The Next Generation: DragonFly Black & DragonFly Red
While the original DragonFly defined the market for micro-DACs, its USB power draw made it compatible with computers only. Music lovers have craved a more portable version—one that could be reliably used with Apple and Android smartphones and tablets.
We’re delighted to present two new options that do just that: DragonFly Black and DragonFly Red.
Convenience and performance are no longer mutually exclusive. With DragonFly Black and Red, any computer, laptop, tablet, or smartphone can be used as a true high-fidelity music player, allowing music lovers to enjoy beautiful sound wherever they go, whenever they please.
AudioQuest, Gordon Rankin, and Microchip: A Beautiful Partnership
AudioQuest and DragonFly designer Gordon Rankin worked alongside Microchip Technology to develop a new high-performance, full-speed USB microcontroller solution that delivers improved signal-to-noise ratio and significantly lower power consumption.
Drawing 77% less current than the previous microcontroller, the new Microchip PIC32MX microcontroller enables true compatibility with Apple and Android smartphones and tablets.
Further, we simply cannot overstate the significance of Gordon Rankin’s contributions to AudioQuest. The new DragonFly models embody many of Gordon’s most innovative, creative, and elegant digital-audio solutions to date.
Improved 32-Bit Digital Performance
For greater overall performance, the new DragonFly models also incorporate improved 32-bit ESS Sabre DAC chips—the 9010 in Black and the higher-performance 9016 in Red—both of which employ minimum-phase filtering for naturally detailed, more authentic sound. While DragonFly Black uses the same high-quality headphone amp and analog volume control found in DragonFly v1.2, DragonFly Red includes the latest ESS headphone amp and a bit-perfect digital volume control that resides on the 9016 DAC chip itself—a sophisticated implementation that ensures maximum fidelity, dynamic contrast, and signal-to-noise ratio.
DragonFly Black will output 1.2 volts—enough power to successfully drive all preamplifier input circuits and a wide range of today’s efficient headphones. Meanwhile, with its higher 2.1-volt output, DragonFly Red will be compatible with a wider range of headphones, including power-hungry, low-efficiency models.
While the DAC chips we’ve selected are remarkably powerful and sophisticated, we’ve intentionally limited DragonFly Black and DragonFly Red’s processing capabilities to 24-bit/96kHz resolution. This makes using the DragonFlys as simple as it’s always been: they’re fully compatible with PCs without having to download and install new drivers.
Most importantly, DragonFly is designed to honor the music you already own and love. Whether you’re listening to Spotify, YouTube, Tidal, ripped CDs, or state-of-the-art high-resolution files, DragonFly will deliver a more emotionally compelling and enjoyable experience.
Free Desktop Application for Software Upgradability (for DragonFly Black and Red only)
In addition, the new DragonFlys will be software upgradeable through a complimentary Windows or OS X desktop application. As new developments arise in music player applications, streaming protocols, or other associated software, DragonFly users will be able to incorporate those updates to their existing devices.

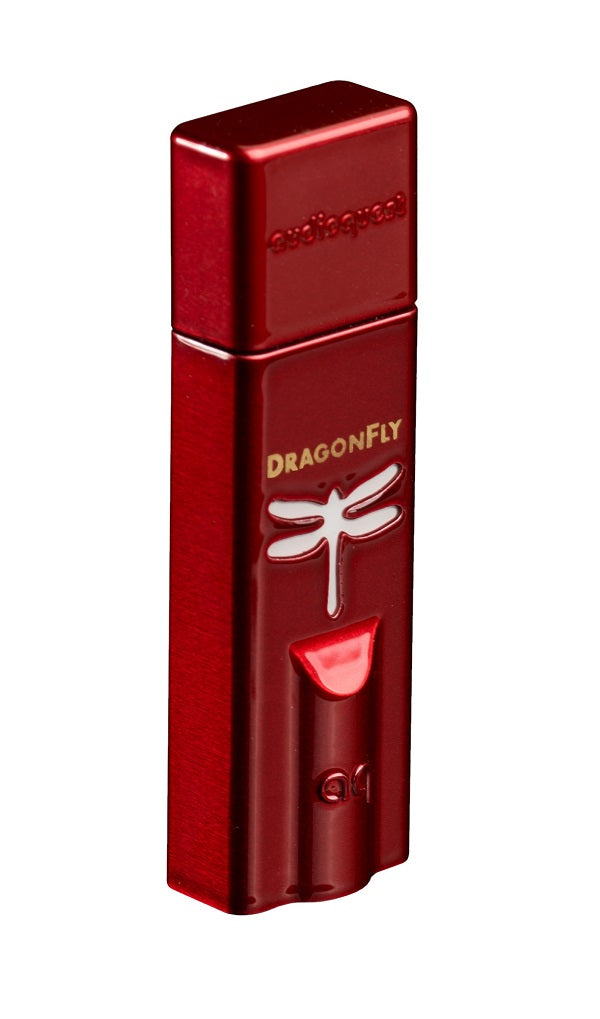

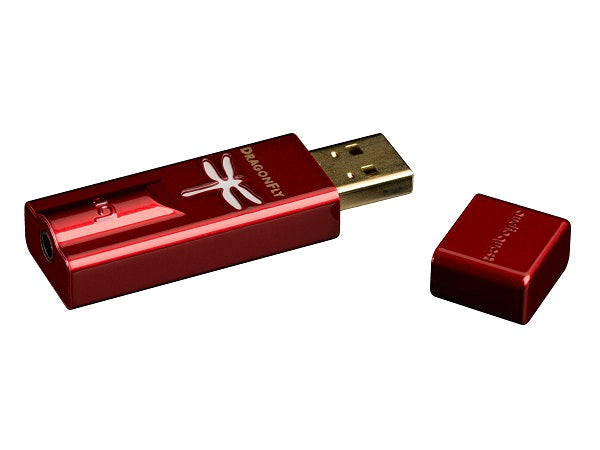

|IDENTIFICATION||Red Automotive Finish With Gold Lettering, Protective End-Cap, Leatherette Travel Pouch|
|NATIVE RESOLUTION||Up to 24-bit / 96kHz|
|Direct-Coupled, High output — With a combination of power, beauty, and finesse, DF Red
delivers greater overall impact, momentum, and grip than either DF 1.2 or DF Black,
while also surpassing their excellent senses of touch, texture, and nuance. In addition,
Red's high (2.1v) output means that it can easily drive the widest range of headphones.
When used as a line-level device (volume set to 100%), DF Red's 2.1 volts provide enough
Power to drive all preamplifier, integrated amplifier, or receiver inputs.
|The Microchip PIC32MX (USB 2.0 compliant) is a full-speed isochronous USB audio solution.
Compared to other controllers, the Microchip microcontroller offers extremely low
power consumption (77% lower than the TAS1020b and 95% lower than the most efficient
XMOS solution), 32-bit architecture, and the option for software upgradibility (via a desktop
application provided by AudioQuest). In addition, the Microchip's ultra-low-noise power supply
minimizes the sound-degrading effect of high-frequency interference on the critical audio signal.
|DAC CHIP||ESS 9016 32-Bit|
|Like the ESS 9010, the 32-bit ESS 9016 uses a sophisticated minimum-phase digital filter to
provide more naturally detailed and dynamic music, but surpasses the 9010 in overall performance.
|VOLUME CONTROL||Digital: 64-Bit Bit-Perfect Volume Control|
|DragonFly Red employs a 64-bit, bit-perfect digital volume control that resides inside the
DAC chip itself—an elegant and sophisticated implementation that ensures maximum fidelity,
dynamic contrast, and signal-to-noise ratio. With DragonFly Red connected to a PC or mobile
device, adjusting the host’s system volume control will, through proxy, control the DragonFly
Red’s onboard volume.
|DESKTOP/PC COMPATIBILITY||Windows 7 / 8.1 / 10; Apple OS X; Linux (no support provided)|
|MOBILE COMPATIBILITY||Yes: Apple iOS (5 and newer); Android 4.1 and newer* For Android devices, see owner's manual.|
|SOFTWARE UPGRADABLE||Yes (from desktop application): Please download AudioQuest's Desktop
Manager Application and register your product.
|USB PROTOCOL||Asynchronous USB Streamlength®|
|Streamlength™ asynchronous USB code ensures low jitter, low resource load,
minimal packet errors, world-class audio playback, and reliable connectivity between our DAC
and any computing device compliant with USB Host Mode (as set forth by the USB Organization).
Streamlength requires no additional drivers, making DragonFly Red virtually plug-and-play for
Apple, Windows, iOS, and Android users.
|DIMENSIONS||12mm (h) x 19mm (w) x 62mm (l)|
