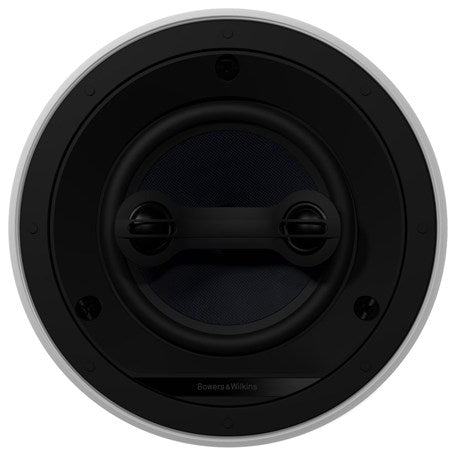

Bowers and Wilkins CCM663SR in-ceiling Speaker
Bowers and Wilkins CCM663SR in-ceiling Speaker
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
- 2 year Warranty
Share
Details
Description
The Bowers and Wilkins CCM663SR is the perfect speaker for multi-room systems, filling smaller size rooms with a stereo image from a single point. Steam resistant so
Bowers and Wilkins CCM663SR Dual Tweeter in-ceiling Speaker.
A high-performance, in-ceiling surround speaker that's ideal for the surround sound channel in a home theatre set-up, or for bringing stereo sound to rooms where space is limited. The speaker brings together a twin voice-coil 150mm (6in) Kevlar bass/midrange driver with two 25mm (1in) soft dome tweeters. This combines the stereo signal, allowing the use of just one ceiling speaker without the loss of one audio channel. The speaker can be changed from stereo to surround sound mode at the flick of a switch.
See nothing, hear everything The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Aramid Fibre coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fibre features on our most advanced high performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.
Specifications
Specifications
| Technical Specifications | |
| Description | Back Box |
| Drive Units | 2-way dual channel in-ceiling system |
| 2x ø20mm (1in) soft dome tweeter | |
| 1x ø150mm (6in) blue Aramid Fibre cone bass/midrange | |
| 48Hz – 30kHz | |
| 25 – 80w (per channel) | |
| Frequency Range (-6dB) | 83dB (per channel) |
| Recommended Amp Power | 89dB (both channels driven) |
| Sensitivity SPL (2.83V, 1m) | 8? (4?) (per channel) |
| Impedance Nominal (min) | 240mm (9.5in) |
| Frame diameter | 202mm (8in) |
| Cut-out diameter | 133mm (5.2in) |
| Depth behind surface | 4mm (0.2in) |
| Protrusion | C6 |
| Pre-mount Kit | 6C |
