Bowers & Wilkins CCM663RD In-Ceiling Speaker
Bowers & Wilkins CCM663RD In-Ceiling Speaker
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
Share
Details
Description
See nothing, hear everything
RD stands for Reduced Depth – so this speaker will fi t into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi t QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great inceiling speaker.

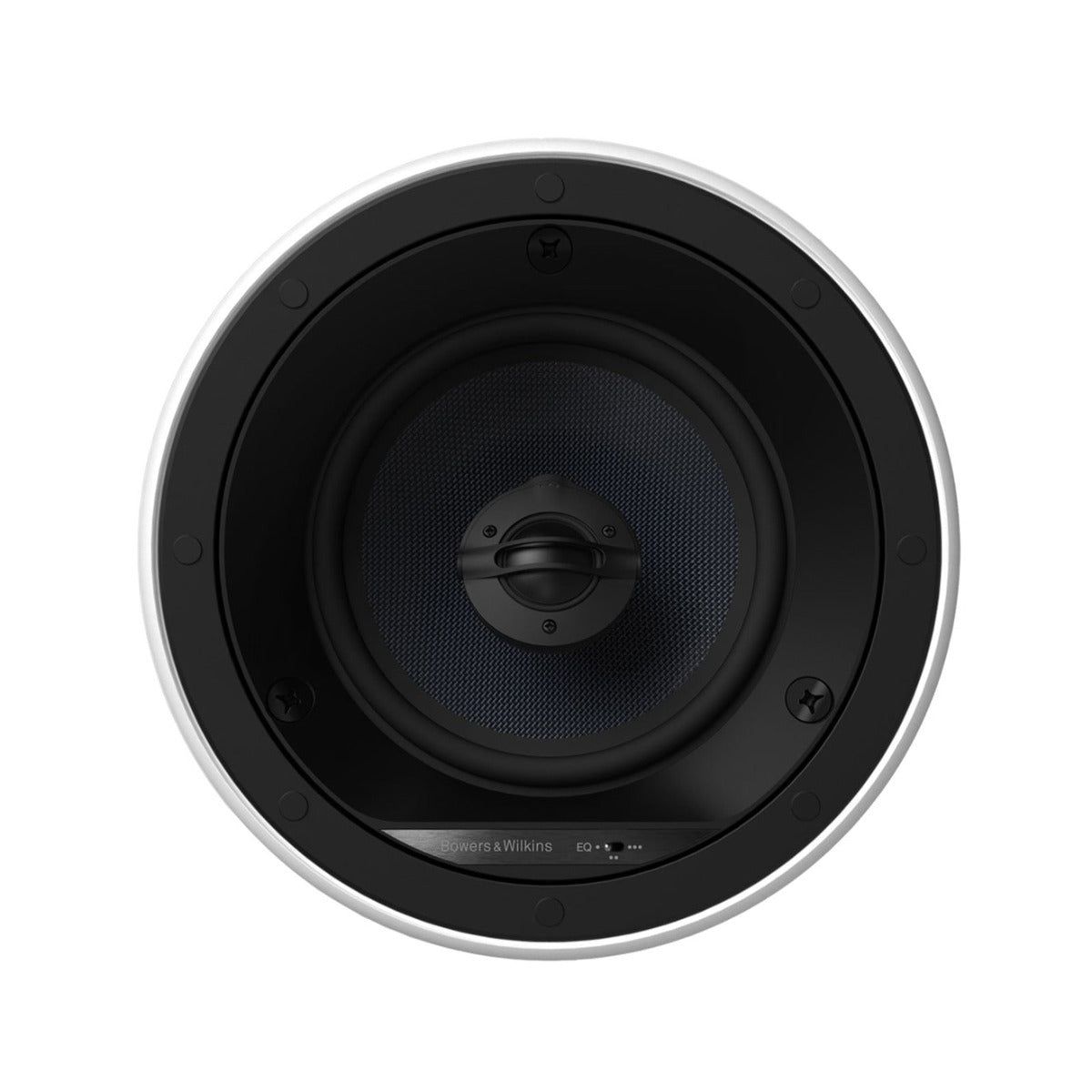

The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminium dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around.

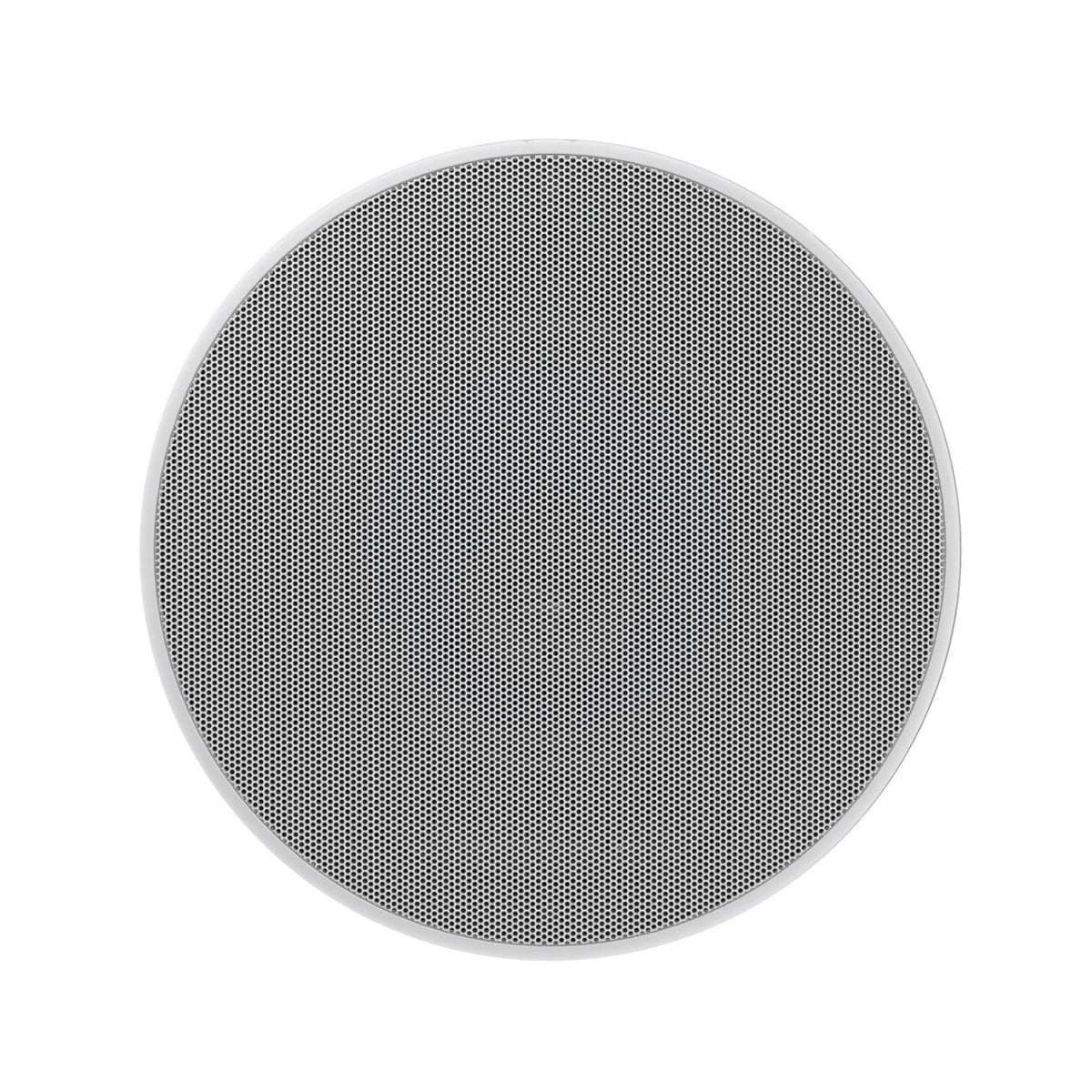

If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.
Specifications
Specifications
| Description | 2-way in-ceiling system |
| Drive Units |
1x Ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x Ø150mm (6 in) blue Kevlar® cone bass/midrange |
| Frequency range (-6dB) | 35Hz – 50kHz |
| Recommended Amplifier Power | 25W – 100W |
| Sensitivity | 86dB (2.83V, 1m) |
| Nominal Impedance | 8Ω (4.8Ω minimum) |
| Frame | Ø240mm (9.4 in) |
| Cut-out | Ø202mm (8 in) |
| Depth behind surface | 92mm (3.6 in) |
| Protrusion | 7mm (0.3 in) |
| Net weight | 2.3kg (5 lb) |
| Pre-mount Kit | PMK C6 |
| Back Box | BB6W or BB125C |
| Sold As | Pair |
