IsoTek

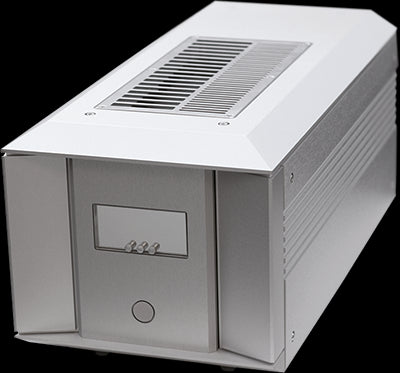

IsoTek EVO3 MOSAIC GENESIS Power Conditioner
IsoTek EVO3 MOSAIC GENESIS Power Conditioner
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
Share
Details
Description
The EVO3 Mosaic Genesis is a hybridised version of IsoTek’s Ultimate series. Combining the extremely low THD sine wave generation engine from Genesis and a lighter version of Super Titan’s Direct-Coupled© conditioning network, it delivers the perfect balance between power and performance.
Removes both Common Mode and Differential Mode mains noise.
Medium power: (three outlets provide new sine wave generation) exceeds 85dB of noise reduction, extending to zero Hz. High current: (two outlets) offers extremely low- impedance and RFI reduction of 75dB (50 ohms standard).
99,000A progressive protection circuit.
Internal wiring; solid core silver plated PCOCC with FEP virtually an air dielectric.
150W of totally clean power for front-end components (three outlets) combined.
With 4600W (230V @ 20A) for large power amplifiers and mono blocks (two outlets). Combining a single cell mains sine wave generator cell from Genesis combined with a light version of the unique Direct-Coupled© conditioning network of Mosaic Titan.
Available with UK, EU, US, Australian, Swiss and South African outlets.
Specifications
Specifications
| Number of outlets | 5 |
| Outlets 1-3 (sine wave generation) | 150W |
| Outlets 4-5 (high current) | 3680W |
| Mains inlet | 16A IEC C20 |
| Mains voltage | 100 to 240V depending upon model |
| Mains frequency | 50 to 60Hz depending upon model |
| Dimensions | 225 x 225 x 470mm (W x H x D) |
| Weight (boxed) | 20Kg |
