Monitor Audio
Monitor Audio CS180 In-Ceiling Speaker
Monitor Audio CS180 In-Ceiling Speaker
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
- Life_Time year Warranty
Share
Details
Description
The CS180 in-ceiling model marries our 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.
Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.

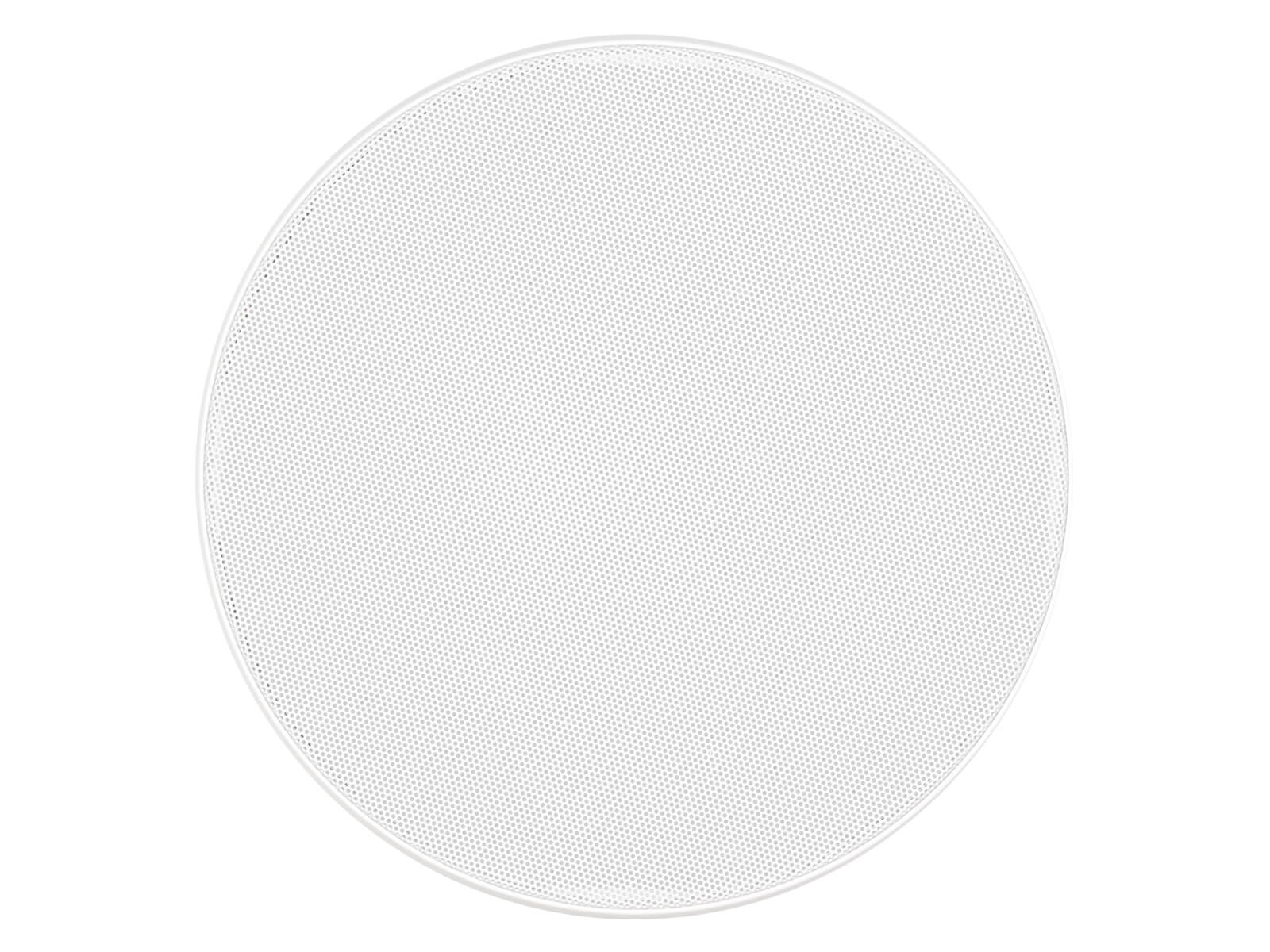

Please specify a round or square grille option when ordering.
Specifications
Specifications
| Frequency Response | 48 Hz – 30 kHz |
| Nominal Impedance | 6 ohms |
| Sensitivity (1W@1M) | 90 dB |
| Maximum SPL | 110.6 dBA |
| Power Handling (RMS) | 120 W |
| Recommended Amplifier Requirements | 30 – 120 W |
| Drive Unit Complement | 1 x 8" MMP II cone bass driver. 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter |
| Acoustic Configuration | 2-way |
| Overall Dimensions (Including Grille) | Round: 251.7 mm (9 15/16") Square: 246.7 x 246.7 mm (9 11/16 x 9 11/16") |
| Mounting Depth | 99.4 mm (3 15/16”) |
| Cut-Out Dimensions | 213 mm (8 3/8”) |
| Fixing Type | 3 position Tri-Grip dog fixings |
| Connection | Gold plated ‘push’ type terminals |
| Grille Attachment | Magnetic |
| Construction Material | Mineral filled ABS, RoHS compliant |
| Weight | 2.72 kg (6 lb) |
| Pre-Construction Bracket | CB6 Pre-Construction Bracket (Purple) |
| Back Box | CCBOX-R | CMBOX-R |
| Sold As | Single Unit |
