Rotel A11 Tribute Integrated Amplifier
Rotel A11 Tribute Integrated Amplifier
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
Share
Details
Description
The A11 Tribute is a Class AB 50W Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy. Upgraded components and meticulous tuning of all critical circuits deliver a richer, expressive, and true-to-life experience from the Bluetooth, RCA and Moving Magnet Phono Stage inputs.
The A11 Tribute is a Class AB 50W (8 ohms) Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy spanning over 40 years in the industry.
The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance of the extremely successful and popular award-winning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-to-life experience from all of the support source inputs including apt-X and AAC wireless Bluetooth, array of 4 RCA analog inputs and a Moving Magnet Phono Stage for vinyl fans.

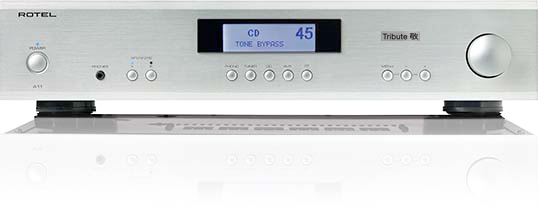

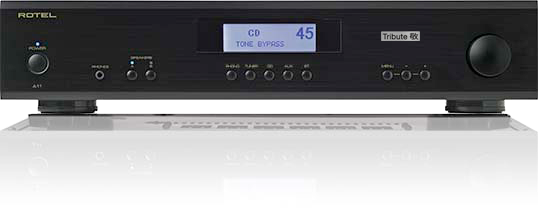

The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.
Specifications
Specifications
| Continuous Power Output (20 - 20kHz, < 0.03%, 8 ohms) | 50 watts/ch |
| Total Harmonic Distortion (20 Hz - 20 kHz at rated power) | < 0.03% |
| Intermodulation Distortion (60 Hz : 7 kHz, 4:1) | < 0.03% |
| Frequency Response |
Phono Input: 20 Hz - 20k Hz, ± 0.5 dB
Line Level Inputs: 10 Hz - 100k Hz, ± 0.5 dB
|
| Damping Factor (20 - 20,000 Hz, 8 ohms) | 140 |
| Input Sensitivity / Impedance | Phono Input: 2.3 mV / 47k Ohms Line Level Inputs: 180 mV / 47k Ohms |
| Input Overload | Phono Input: 50 mV Line Level Inputs: 4 V |
| Preamp Output / Impedance | 1 V / 470 Ohms |
| Tone Controls - Bass / Treble | ± 10 dB at 100 Hz / 10k Hz |
| Signal to Noise Ratio (IHF "A" Weighted) |
Phono Input (MM/MC):80 dB Line Level Inputs: 102 dB |
| Power Requirements | Europe:230 V, 50 Hz USA Power: 120 V, 60 Hz |
| Power Consumption | 160 watts |
| Standby Power Consumption | < 0.5 watts |
| BTU (4 ohms, 1/8 power) | 479 BTU/h |
| Dimensions (W x H x D) | 430 x 93 x 345 mm 17" x 3 5/8" x 13 1/2" |
| Front Panel Height | 80 mm, 3 1/8" |
| Weight (net) | 6.85 kg, 15.1 lb |
| Finish | Silver and Black |
