Rotel RAP-1580MKII Surround Amplified Processor
Rotel RAP-1580MKII Surround Amplified Processor
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
Share
Details
Description
The RAP-1580MKII is the ideal home theater solution delivering uncompromised audio and video performance supporting 7.1.4 Dolby Atmos and DTS:X processing with 7 channels of 140 Watts of Class AB output power into 4 ohm loads and licensed for Dirac Live room correction technology ensuring optimal performance in any setting.
RAP-1580MKII is the ideal home theater solution delivering uncompromised performance that rivals many separates theater components supporting DTS:X and Dolby Atmos up to 7.1.4 processing bringing music and movies to life. The integrated Class AB 140 Watt amplifier is driven by a massive Rotel manufactured toroidal transformer with exceptional energy and control.
The array of 6 audiophile grade Wolfson 24-bit/192kHz Digital-to-Analog converters with hand selection of all critical audio components deliver extraordinary detail and resolution with an extremely low noise floor.
Dirac Live LE and included USB measurement microphone delivers unrivaled room correction with improved staging, better clarity and deeper, tighter bass ensuring the RAP-1580MKII delivers optimal performance in any setting.

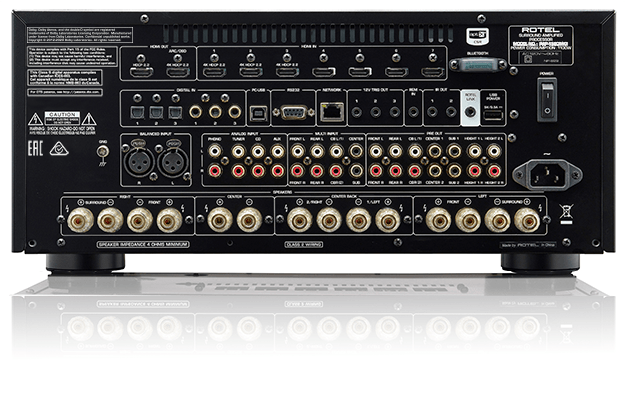

The 8 x 2 HDMI connections support 4K video with HDCP 2.2 HDR supported on 3 of these inputs and both outputs. The RAP-1580MKII includes a vast array of audio inputs including analog, digital, PC-USB with 24b/192k, apt-X wireless Bluetooth, XLR, Moving Magnet Phono stage and front panel iOS USB.

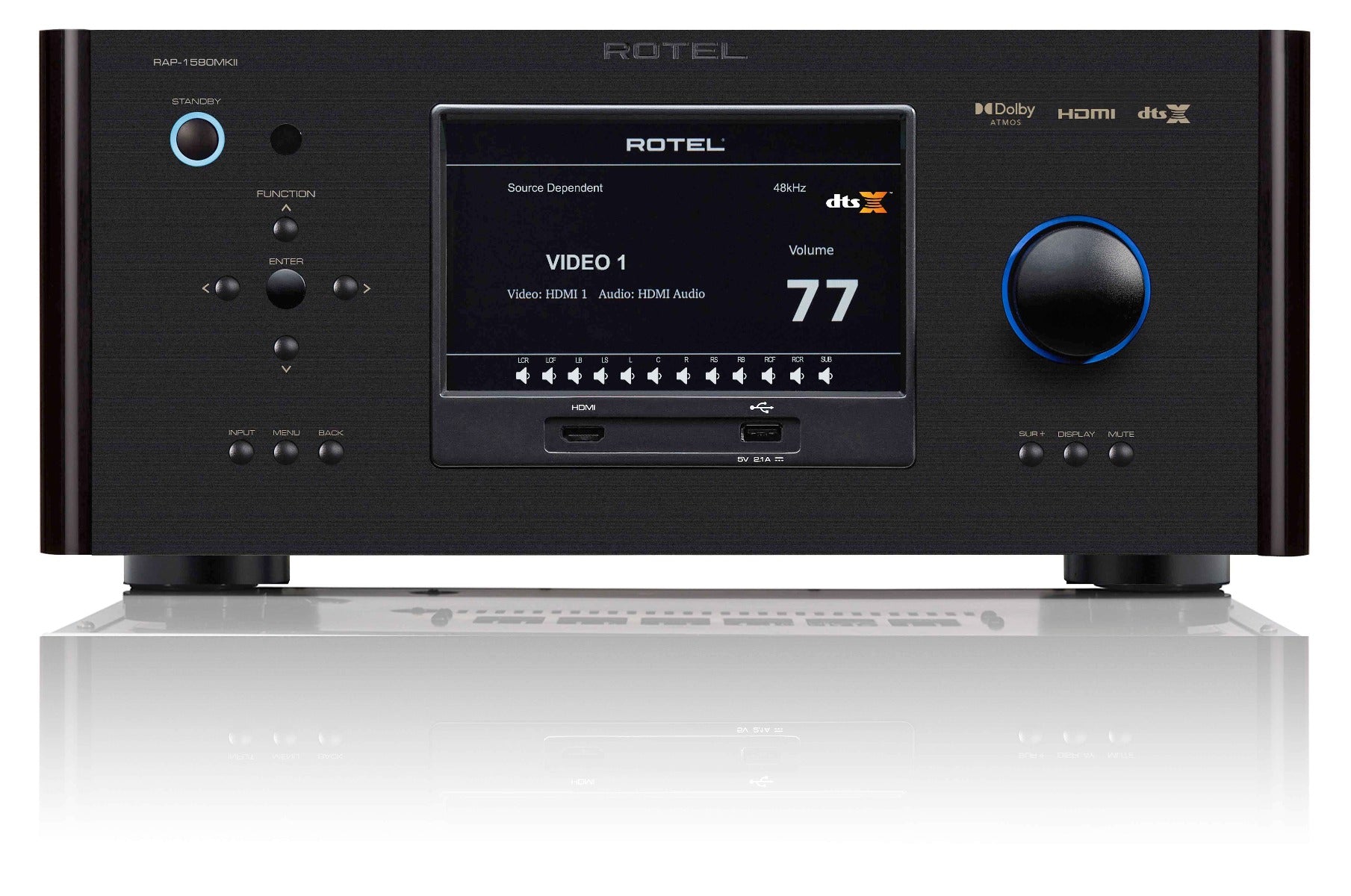

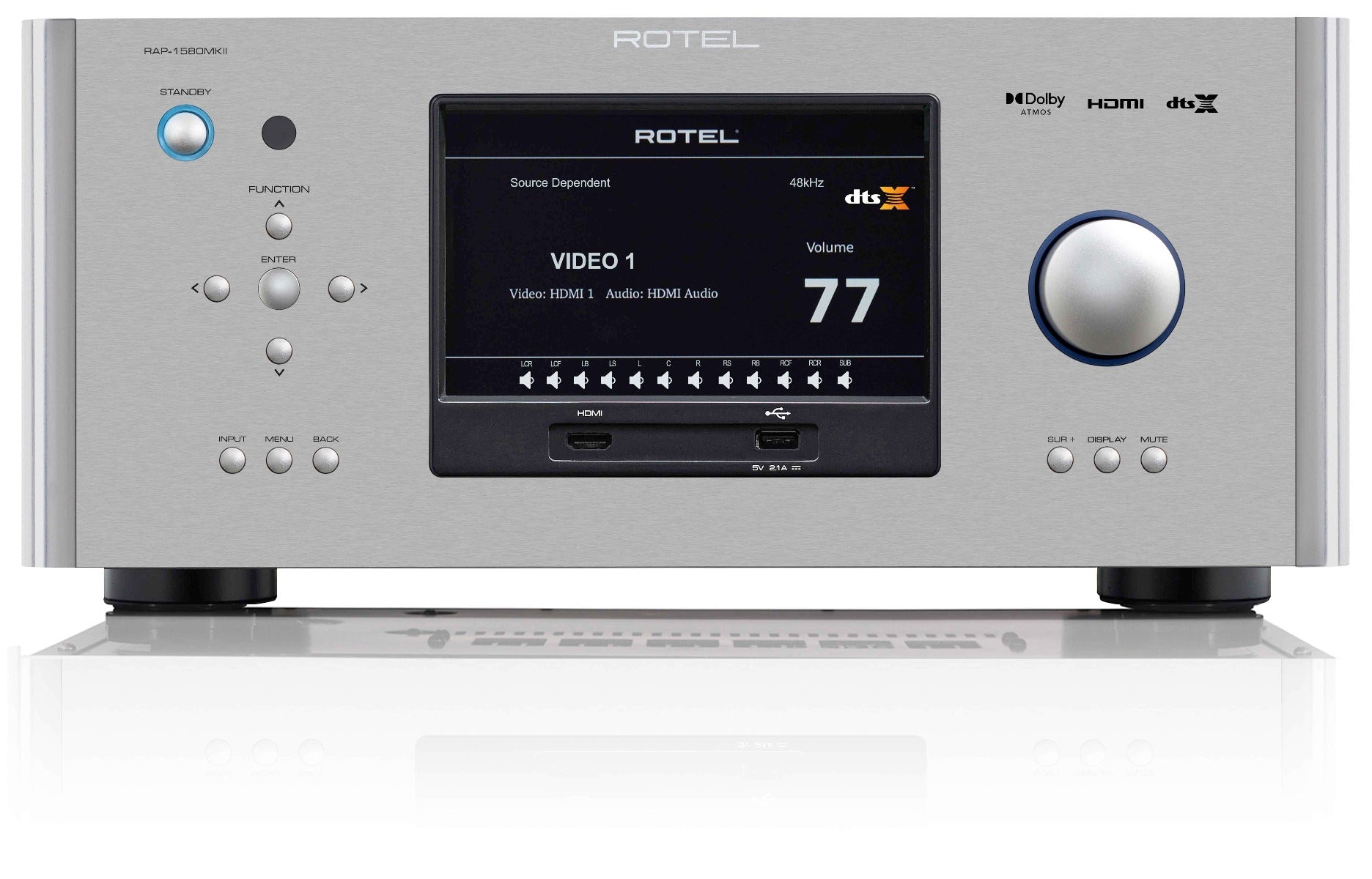

A front panel graphic display provides easy adjustments of all configuration parameters. RS232 and Ethernet connections ensures connectivity with all popular control systems.
Rotel's RAP-1580MKII is simple to operate, powerful, flexible, and refined welcomed in any home theater setting.
Specifications
Specifications
| Continuous Power Output |
1k Hz, THD < 0.05%, 4 ohms: 200 watts / channel (2 channels driven) 1k Hz, THD < 0.05%, 4 ohms: 140 watts / channel (7 channels driven) 1k Hz, THD < 0.05%, 8 ohms: 135 watts / channel (2 channels driven) 20 - 20k Hz, THD < 0.05%, 8 ohms: 100 watts / channel (7 channels driven) |
| Total Harmonic Distortion | < 0.05% |
| Intermodulation Distortion (60 Hz : 7 kHz, 4:1) | < 0.05% |
| Frequency Response |
Phono Input: 20 Hz - 20k Hz, ± 1 dB Analog Bypass: 10 Hz - 100k Hz, ± 1 dB Digital Input: 20 Hz - 20k Hz, ± 0.5 dB |
| Damping Factor (1k Hz, 8 ohms) | 230 |
| Signal to Noise Ratio (A-weighted) | Analog Bypass: 100 dB Digital Input: 96 dB |
| Input Sensitivity/Impedance | Phono Level: 3.85 mV / 47k ohms Line Level: 300 mV / 100k ohms Balance Level: 600 mV / 100k ohms |
| Preamp Output Level | 1.2 V |
| Digital Audio | LPCM (up to 192kHz, 24-bit) Dolby® Surround, Dolby® TrueHD, Dolby® Atmos, DTS-HD Master Audio, DTS:X Dirac Live LE |
| Video Input Resolutions |
480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p 24Hz, 3D, 4K, UHD |
| Output Resolution | 480i/576i, 480p/576p, 720p 1080i, 1080p, 1080p 24Hz, 3D, 4K, UHD |
| Color Space Support | sRGB, YCbCr 4:2:2, YCbCr 4:4:4 |
| Deep Color Support | 24-bit, 30-bit, 36-bit |
| HDMI Inputs/Outputs | 8 inputs with 3 supporting HDCP 2.2 2 outputs supporting HDCP 2.2 Audio Return Channel |
| General Power Consumption | 1100 watts < 0.5 watt (standby) |
| Power Requirements (AC) | 120 volts, 60Hz 230 volts, 50Hz |
| BTU (4 ohms. 1/8 Power) | 2800 BTU/h |
| Dimensions (W x H x D) | 431 x 192 x 470 mm 17 x 7 5/9 x 18 1/2 in |
| Front Panel Height | 4U / 177 mm / 7 in |
| Weight (net) | 22.8 kg / 50.27 lbs |
| Finish | Black, Silver |
