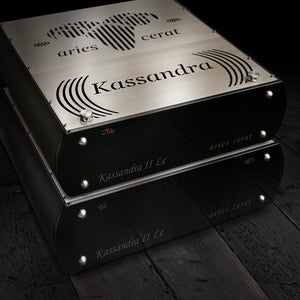

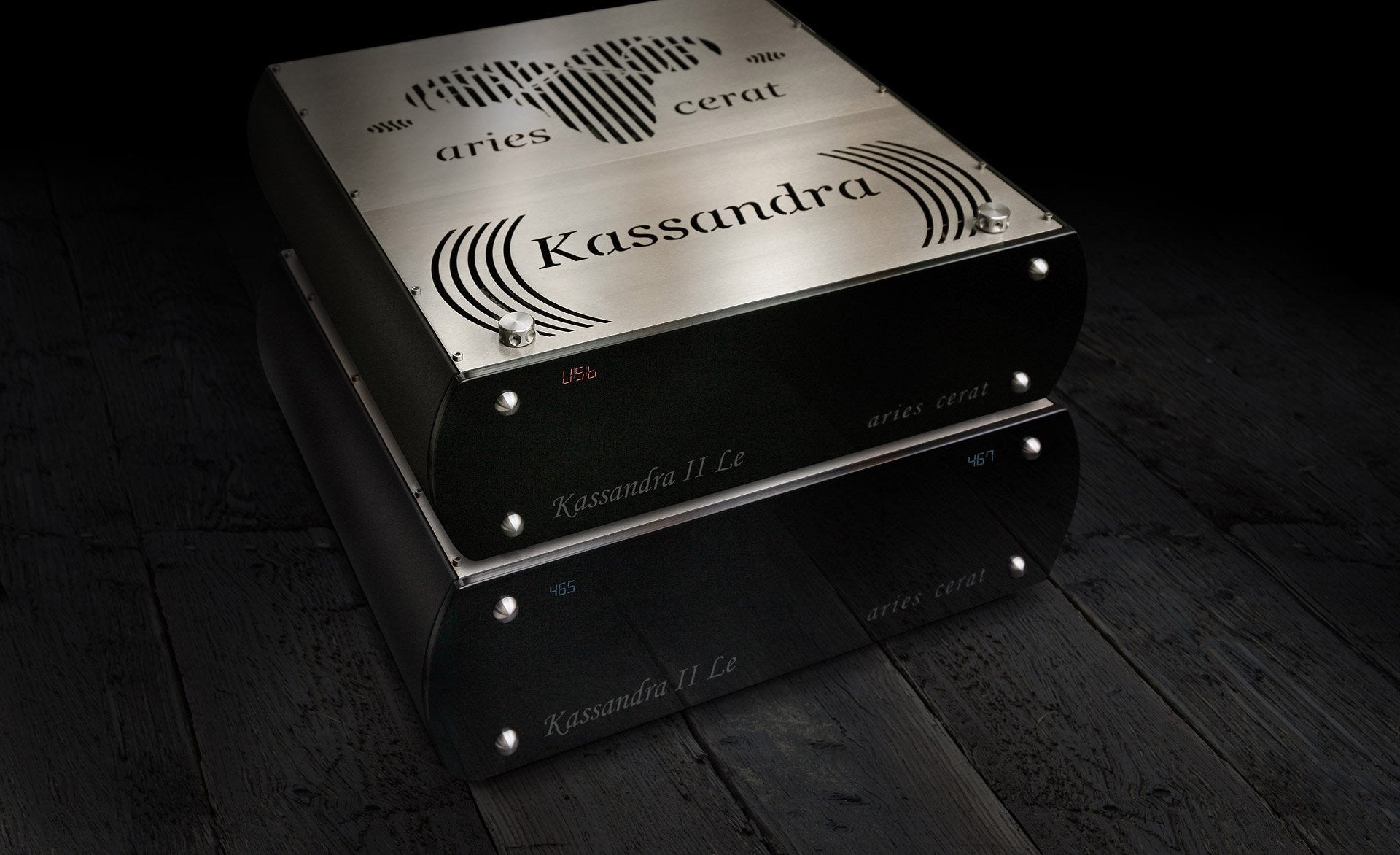

Aries Cerat Kassandra Signature MkII LE DAC

Aries Cerat Kassandra Signature MkII LE DAC

No reviews

Regular price £79,950.00
Regular price Sale price £79,950.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

The Kassandra Signature Limited Edition is our highest level in the Kassandra Series and completely redefines the status of digital replay

Designing the Kassandra

Our approach in designing the Kassandra Signature Limited Edition, was to build on our already SOTA performing Kassandra II Ref, and push the boundaries further, much further. Adopting a 2 chassis design approach along the lines of our amplifiers in the Limited Edition range allowed extra freedom and space. We employed many techniques that proved so successful in our Impera Limited Edition pre-ampliifer, particularly in the power supply unit.
The Kassandra Signature Limited Edition is a ladder DAC. Typically a ladder DAC uses a resistor network switched by a N number of switches, N being the bit depth. It is a passive sort of speak procedure with no manipulation of the incoming data stream.

It also has no digital filter, and completely avoids the negative sonic aspects created by fitting the common Delta-Sigma or Multibit architecture.

In the case of the Kassandra Signature Limited Edition we choose to use an R2R IC – the classic Analogue Devices AD1865N-K, a much praised chip which we believe is the best sounding IC ever made. No less than 24 R2R converters per channel. The AD1865N-K has a very straight forward data handling logic, and does not process the data stream in any way. This gave us the freedom to fully exploit the IC in our converter system.

The input data is latched and directly refreshes the resistor network, with absolutely no additional complex logic or data handling/processing. This way we have full control over the resistor network to use it as part of our converter system. Our Super Clock circuit directly re-clocks and drives the “refresh” signal, so absolutely no additional jitter is induced in the conversion.

There are no less than 24 R2R converters per channel in the Kassandra Signature Limited Edition working as parallel switched resistor ladder converters, cancelling the deviation of resistor values down to Zero. Paralleling R2R converters improves linearity and noise figures are improved on the same principles, along with the dynamic range and channel separation. Sonic wise, paralleling converters elevate performance to another level in all aspects significant in high end audio.
Jitter
In the Kassandra Signature Limited Edition we use many techniques regarding lowering and cancelling jitter, in both passive and active ways. Bouncing signals, overshoots, low rise times etc greatly increase jitter. We solve this by using special driving circuits and carefully tuned digital line terminations for all digital signals.

We use 35 LC filters implemented using RF chokes and high speed capacitors to decouple digital circuits and ICs from the power rails. These are extremely effective in cancelling out any form of PSU sourced jitter and solve this fairly complex problem. Jitter originated in USB and S/PDIF / Toslink sources are eliminated right at the “refresh” signal of the converters.

Having an IC that has no complex data handling logic and no multi stage data logic, the precisely timed signal resolves in a extremely accurate jitter free conversion. In our opinion, this is not possible with any other type of converter system.

The Super Clock is also used upstream for re-clocking the XMOS asynchronous USB controller, as well as the SPDIF receiver. With the internal clock, there is no need for a word clock input.
I/V Stage
The R2R ICs are current output devices. Their impedance is very high and close to an ideal current source. To drive the next stage in the Kassandra, the current must be converted to voltage. Avoiding using sonic degrading Opamps or a simple resistor, we use a specially designed transformer that converts the current differential to a single ended voltage output. The specially designed transformer is an ideal solution, and is second to none in direct comparison to the many alternative I/V methods available.
Gain Stage

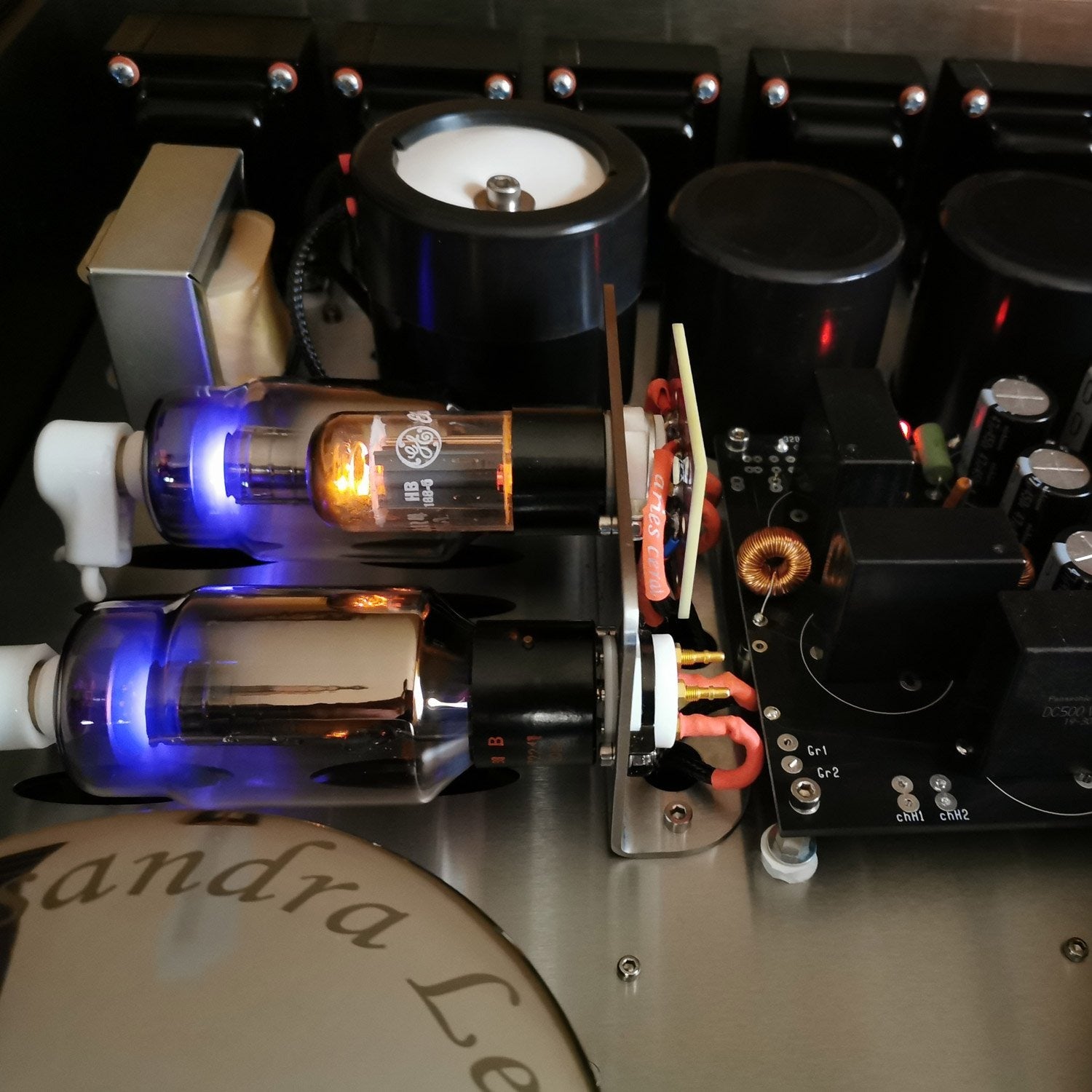

Using technology from our world class tube amplifier and preamplifiers, the analog stage in the Kassandra Signature Limited Edition is a small Single Ended tube amplifier. It is consists of a transformer loaded tube, driven directly by the I/V transformer, and biased with ultra low noise power supplies. The tube used is the best sounding tube from the super tube family of tubes – the E280F. It is triode connected and it’s specific parameters like transconductance, plate impedance and especially linearity and noise are levels above any other small signal tube.

The triode is loaded with a special quality large core step down transformer. The tube power supply is an oversized choke regulated supply, making sure that the tube is up to the task of following the converter’s flashing dynamics. Furthermore, the step-down transformer reduces the output impedance to 40 ohms, with a maximum swing @ full scale of 30V pp sine wave (10V rms).

Specifications

Specifications

* 24 R2R converters per channel, complimentary current output

(using the top grade AD1865N-K , 12 converters per bank, 24 per channel,48 in total)

* Eight discrete ultra-low-noise regulators

(for the 4 converter banks)

*Extensive local decoupling,using tuned LC filters, 76 in number

*Overengineered power supplies,power input filters





*5 torroidal transformers,over 3Farad total system capacitance,wideband local decoupling

*Pseudo-battery system, for isolating all analog stages from the power grid.



* Transformer I/V conversion

(custom wideband transformers,balanced current to SE voltage conversion)

* Internal Super-Clock

(bypassable on the fly.Separate torroidal transformer,triple regulated supply)

*Transformer loaded super tube output stage

(using the E280F tube. 5:1 step down transformer,double choke filtered supply)

*xenon gas rectifiers for the tube PSUs

*Super-capacitors used in tube analog stage. 100 times less ESR/ESL than any film or electrolytic capacitor.
