Aries Cerat
Aries Cerat Talos Reference Phono Mk2
Aries Cerat Talos Reference Phono Mk2
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
Share
Details
Description

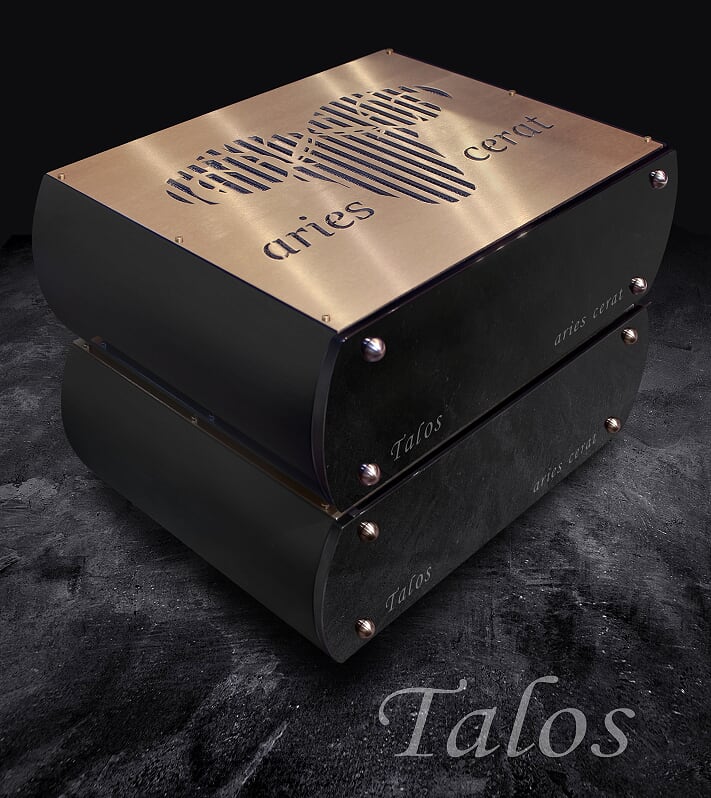

Introducing the Talos Reference phono system - the result of years of research and development in phono preamplification design
A phono preamplifier generally consists of three subsystems -
Input Stage, RIAA Stage, Output Stage
A phono preamplifier generally consists of three subsystems – Input Stage, RIAA Stage, Output Stage. The input stage, responsible for the main amplification of the delicate signal sourcing from the phono cartridge. This task is extremely difficult. The signal level is only a few microvolts rms, comparable to the noise level picked up in the majority of interconnect cables, along with thermal noise of some active devices.
The input stage must amplify the signal to the last micro detail coming from the vinyl groove, whilst rejecting noise coming from external sources, cables and the turntable electro mechanical system. The selection of the active device used for the input stage is as critical as the design of the topology used.
Operational amplifiers were rejected for this cost no object design. Although their performance on the benchmarks were impressive, all opamp designs failed to deliver the detail, flow and sonic bliss associated with top analog systems.
Many discrete JFET implementations, balanced or single ended, were more then satisfying regarding measurable performance. However none of them was quite there, and fell short of our expectations, to stand next to an absolute top system. In addition their high input capacitance presented several problems to the cartridge loading.
Input Stage
The input stage can be accompanied by an optional custom, balanced-to balanced step-up transformer, built to exact customer’s needs, to tailor-fit each cartridge used. The detail retrieval from our input stage is phenomenal.
SUT & Cartridge Loading
Amplifiying the extremely low level signal in differential mode has the advantage of cancelling out common mode noise Common mode noise is electrical noise picked up anywhere from the cartridge body up to the inputs of the phono stage, Thus the Talos Signature has a very high SNR.
The unit comes with no internal loading presets, as this would predefine and limit loading combinations. Loading is thus provided by our loading modules. These are custom built on request, and tailored to a clients cartridge portofilio. Loading modules can be used for both direct and SUT inputs. Loading modules can be any value requested, and users can load any input independently.
RIAA Stage
The Talos preamplifier had to use the best possible RIAA equalization technique, so we used a constant impedance transformer coupled LRC RIAA equalization subsystem. A small transformer loaded tube SET amplifier drives the RIAA transformer system. The RIAA equalization curve is achieved within 0.2 db in the audible range, and the ultra low constant impedance of the LCR circuit is virtually sonically transparent.
Output Stage
Power Supply
The external power supply is connected to the main chassis via a heavy duty umbilical chord. This ensures complete magnetic separation between the power transformer and the eight signal transformers.
The Talos Series phono systems are our answer to designing and building the best phono preamplifiers. Accompanied with a top analog turntable and cartridge system, we firmly believe that they are the top reference audio source today.
Specifications
Specifications
|
Tube compliment: |
8x E280F 4x 6d22s |
|
Total system gain:: |
62db. 80db max gain using the +18db SUT input. |
|
Noise floor: |
<88db unweighted |
|
Maximum Signal to noise ratio: |
106db |
|
RIAA accuracy: |
+-0.2db |
|
Max Output: |
30Vpp |
|
Max input overload: |
Can be used with Very high output MM carts without overload |
|
Dimensions: |
480 mm W x 350mm D x 165 mm H |
|
Weight: |
79kg total |
