AVID Acutus Reference Mono Turntable

AVID Acutus Reference Mono Turntable

Regular price £37,500.00
Regular price Sale price £37,500.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

ACUTUS REFERENCE MONO

Tonearm & Cartridge not inluded as standard.

Instantly recognizable, the luxurious chrome finish and muscular appearance make the Acutus more than a timeless icon, it is striking piece of audiophile art.

Setting you on a compulsive journey of musical rediscovery, so startling is the naturalness and intimacy of the sound, it truly enters your space and deep into your soul, leaving you reaching for the next record.

"Beautifully made, compact, easy to set up and maintain, the only reason not to want it is the high-end cost. Aaah..the price of luxury."
-John Bamford

KEY FEATURES

Twin Mono Power Supply
Unique Sapphire Bearing
Vibration Tuned Subchassis
Frequency Adjustable Suspension

ULTIMATE EXPERIENCE

Offered in three levels with the Reference Mono being the pinnacle of performance, it is an unashamed indulgence that offers a no cost compromise at vinyl reproduction.

Setting a standard of musical reproduction others aspire to achieve, it is the ultimate engineering masterpiece for those wishing the ultimate listening experience.

BEYOND IMAGINATION
When seeking perfection, power is everything and the Mono is in a class of its own. The sonic gains are not a subtle subjective difference, but an immediately obvious improvement in all aspects that goes way beyond any expectation of what you thought possible from a vinyl record.

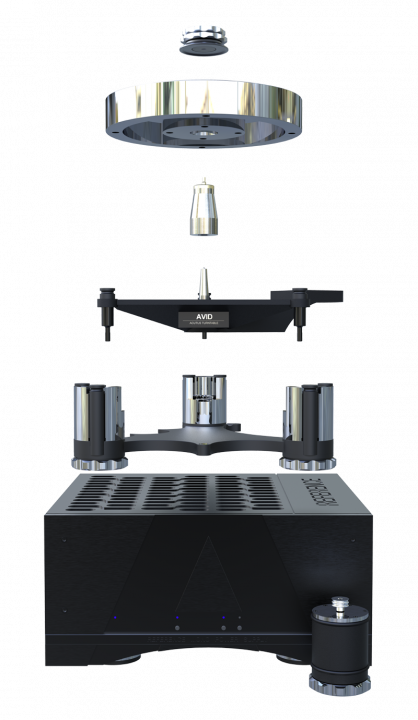

WHAT'S INSIDE

POWER SUPPLY

Setting the Reference Mono apart from the other Acutus versions is the gigantic power supply. Most regard a turntable power supply as just that, a turntable power supply with little more thought, but just the size of the Mono PSU lets you know otherwise.

With a DSP controlled Pre-Amp the regulate and fine tune speed and Twin Mono Power Amplifiers independently driving each motor coil, the leap in sonic performance is nothing less than staggering. The difference is not a subtle subjective difference but an immediately obvious improvement in all aspects that goes way beyond any expectation.

Lower noise floor, extension of both bass and treble responses and a significant dynamic improvement surpassing the Acutus Reference model. But even more startling is the naturalness and intimacy of the performance as it truly enters your space and deep into your soul.

The Acutus Reference Mono SP is an unashamed indulgence that offers a no cost compromise at vinyl reproduction.

MOTOR

Our hand assembled high torque AC synchronous motor spins the platter up to speed within seconds. Ten times more powerful than conventional turntable motors, this provides the ultimate control and stability. With twin round section drive belts the suspension is free to move without inducing speed variations common with flat belt designs.

CLAMP

Our unique two stage clamp performs dual functions, critical to the ultimate sonic performance you hear.First operation grounds the record to the main bearing, allowing vibration caused by the stylus to pass into the subchassis.

Reducing the noise floor of the record vastly improves the sound you hear and there is less damage or wear to records due to mistracing.

Second operation reflex clamps the vinyl flat to the platter surface, eliminating warps and air pockets underneath. The platter mat itself is a unique resin that reflects most vibration, keeping it in the record so it passes more quickly through the bearing into the subchassis.

PLATTER

The 10Kg Chrome plated aluminium platter is the focal point of the Acutus.

Secured with sixteen fixings, the 10mm aluminium disc which has had the resin mat cast and machined offers the perfect record interface. The mat reflects the most vibration except for very high frequencies, which after entering the platter body are rapidly constrained damped by the nickel and chrome layers.

BEARING

The Acutus bearing spindle is the longest of all our turntables and is press fitted into the subchassis. Being fixed it is an inverted design so that the contact point is at the top and naturally has a low centre of gravity. At the top of the precision ground and tapered spindle a tungsten carbide ball mates with a uniquely design sapphire jewel, keeping the bearing point in a fix position with zero lateral movement. Doing this all but eliminates rumble noise present on all other turntables and the self-lubricating sleeve means no metal to metal contact during operation making our bearing totally silent and maintenance free for life.

SUBCHASSIS

It is critical for sound quality that the tonearm and bearing are rigidly coupled, any relative movement between them and information is lost forever. Our unique one-piece multi-fold aluminium casting provides maximum strength where required but allows for movement in non-critical areas, accepting the fact that nothing is totally rigid.

To eliminate the vibration from the record passed through the bearing, the casting is coated with a damping media of specific thickness so that both high and low frequencies dissipate with linearity and time frame, giving a neutral sound.

SUSPENSION

Our adjustable suspension system allows each supporting spring to tuned to the same frequency regardless of the load. This means that single or twin tonearm weights of up to 3Kg can be accommodated, the suspension will be balanced and a perfect pistonic bounce achieved. With an isolation frequency of 2.5Hz the pickup cartridge will not mis track, locked into position and all external vibration blocked.

Specifications

Specifications

DRIVE:
TWIN BELT DRIVE
SPEEDS: 33.3 & 45.0RPM
PLATTER MASS: ALUMINIUM 10KG
BEARING: INVERTED STAINLESS STEEL
THRUST POINT: TUNGSTEN CARBIDE/SAPPHIRE
SUSPENSION: 3 POINT SPRING Vertical 2.5Hz, Lateral 4.5Hz
TONEARM FITTING: SME TEMPLATE
ADAPTERS AVAILABLE: YES: SINGLE OR TWIN TONEARMS
MOTOR: HAND BUILT 24V 140mNm AC Synchronous
POWER SUPPLY: DSP VARI-SPEED CONTROL UNIT
VOLTAGE INPUT: 100-240VAC 50/60Hz 20 Watts Max.
DIMENSIONS: Turntable (overall) 460 x 400 x 210mm (WxDxH)
Turntable (footprint) 410 x 360mm (WxD)
P.S.U. 500 x 450 x 240mm (WxDxH)
NET WEIGHT: 19.0Kg (42lb) turntable only
52.0Kg (115lb) psu only
