The Borg set the bar high for what the FinkTeam can accomplish so it is no suprise that a few basic design principles stayed the same even with its smaller sister KIM. A reflex system with a paper coned woofer with oversized magnet, 2 way construction with AMT tweeter, again based on Mundorf constructions. A cabinet with everything needed to avoid unwanted radiation from the box and a crossover with high quality parts.
So what is different? Obviously the size. The idea was to find a cabinet shape and size that would integrate easily in living spaces. We decided that the height of the speaker should integrate with other things in a living room not higher than the window sill, chairs, tables, sideboards etc..
The cabinet should be a proper size for an 8” woofer and a shape that would be less bold than the Borg cabinet. The result is a rectangular main cabinet and front baffle which offer a shape to minimise diffraction problems from the drive unit. A shape which can offer the same two colour solutions as Borg.

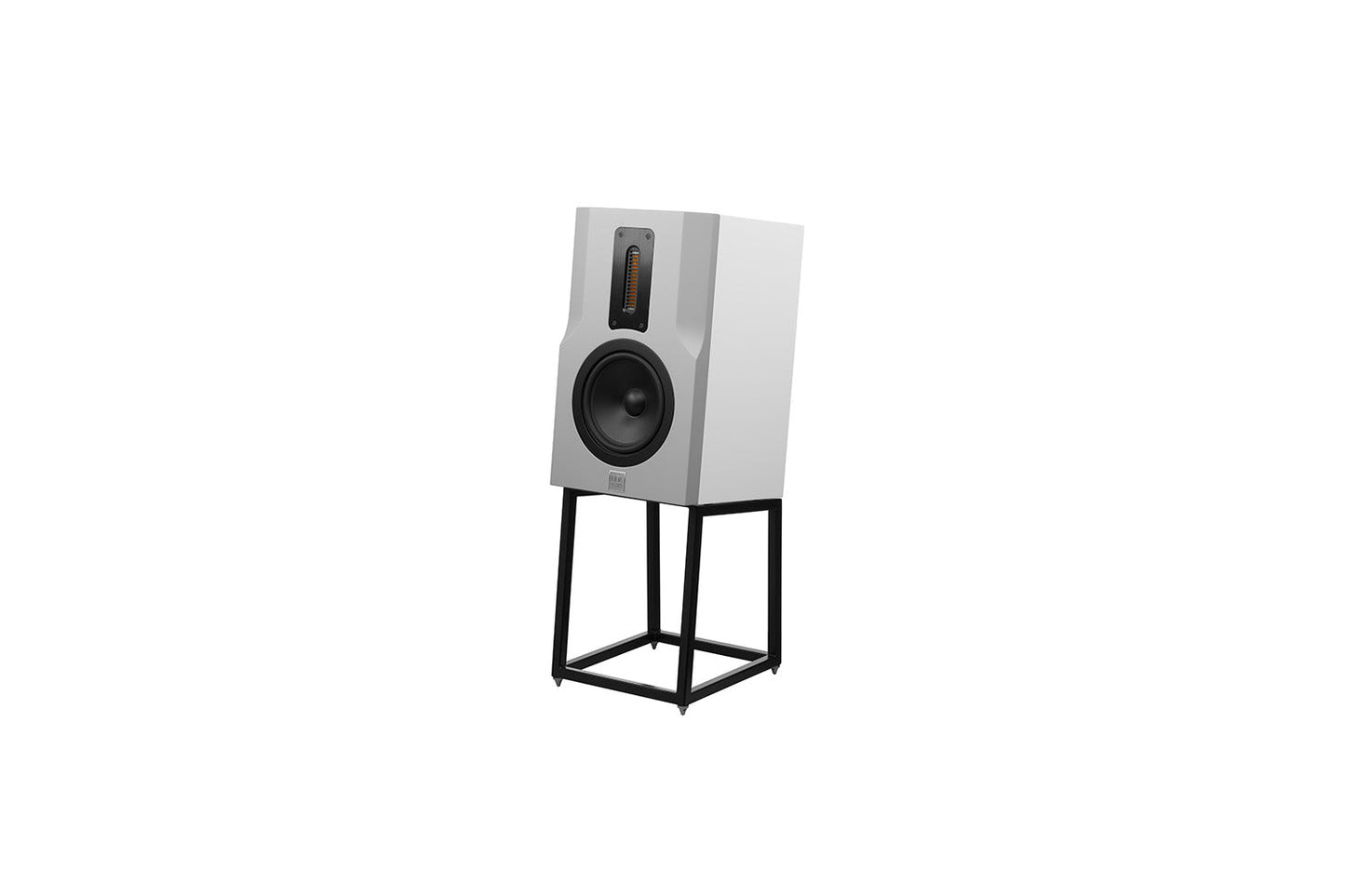

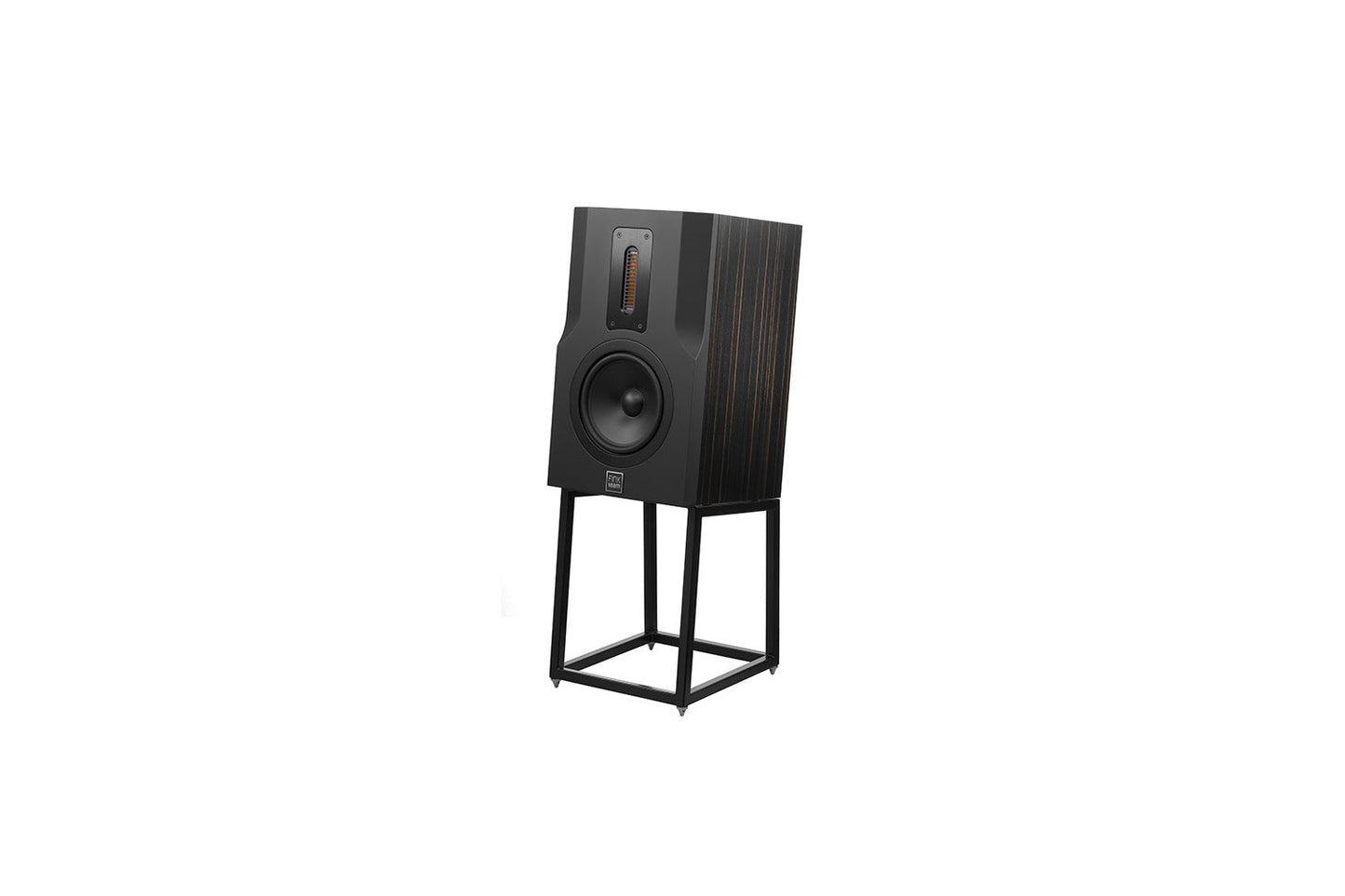

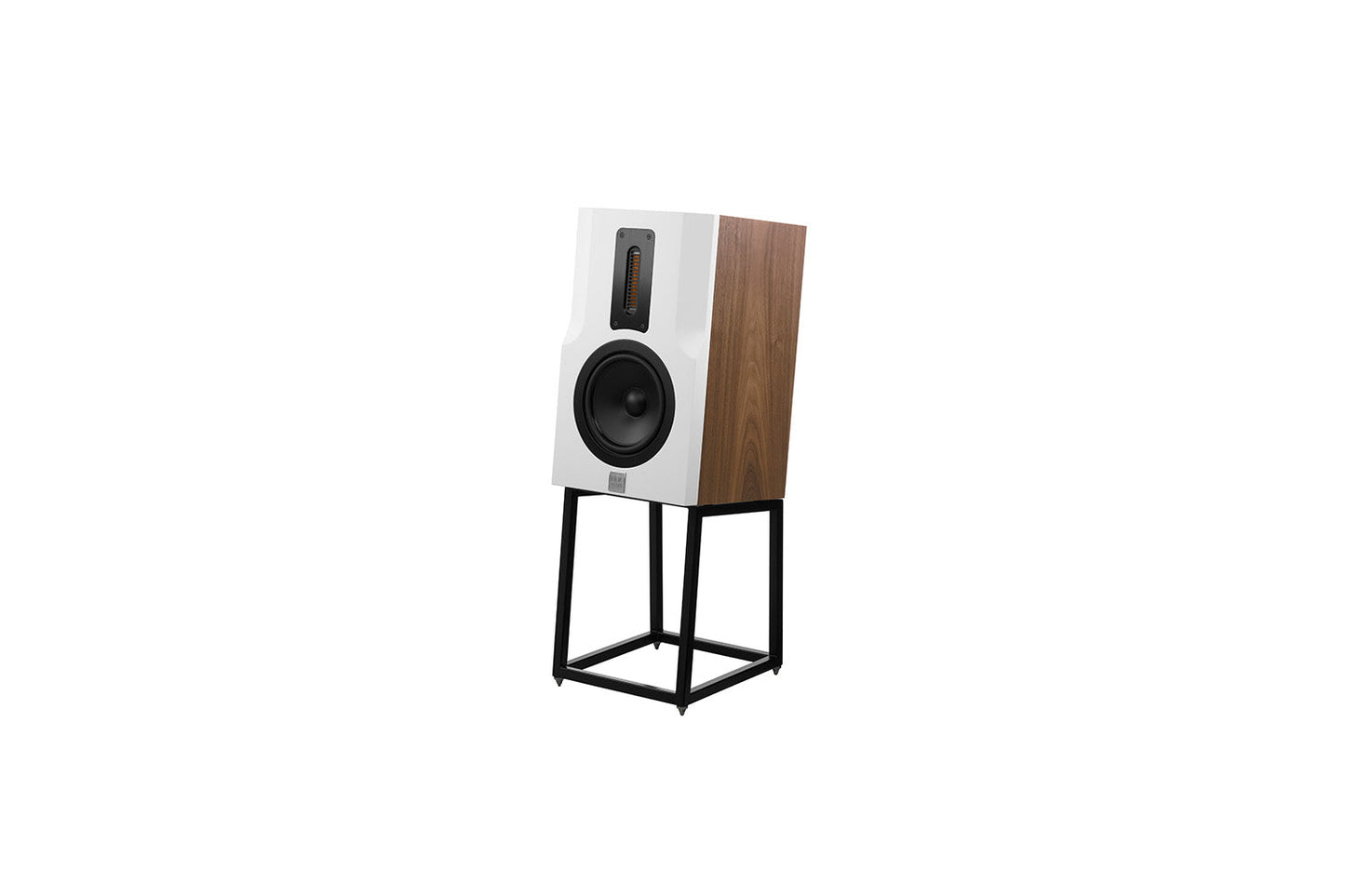

Due to the low height of the design the speaker is tilted on its dedicated stand, this ensures that in a normal listening position the soundstage has the correct height and size. There is still the ability to adjust the angle in case the listener is closer or further away from the speakers. As the stand is so important for the final sound it comes together with the speaker. The stand is made from stainless steel and only has very small surfaces that could radiate resonances and is light enough not to store energy.
The terminal panel utilises one set of pure copper binding posts. It follows the philosophy that one good cable sounds better than two, so better quality cable can be afforded. For adjustment to different amplifiers the woofer damping can be modified and a second switch sets the HF level.
The crossover follows the tradition of Linkwitz–Riley filter 4th order at a low 2200Hz, the AMT is also connected via a passive delay to adjust the phase in relation with the woofer – something that worked very well in Borg. Air-core have been used on all important inductors and capacitors; they are a mixture of Mundorf components plus some custom made for FinkTeam in order to get the tonal balance correct. The resistors are all low inductance bifilar types, all custom made with copper lead wire and low tolerance.
The woofer uses a paper cone, this time with a rubber surround. On an 8” driver It is not possible to use corrugated cloth as a surround material without too many compromises. To get the resonance frequency down to the level required for the cabinet it would reduce the midrange quality and add colouration.
On the cabinet we used all the tricks and whistles we learned over the years. The walls are made from two panels with the latest damping glue between them, the bracing is all carefully optimized and resonators added to avoid standing wave modes without killing the fun out of the box with excessive damping material. The port is made using the same principles developed with Borg, but this time it’s integrated into the rear panel.
35Hz-25kHz -10dB, 45Hz-23kHz -10dB
|Average Impedance||8 Ohm|
|Minimum Impedance||5,9 Ohm @ 160Hz|
|Sensitivity||86dB @ 2.83V / 1m|
|Distortion||0.2% THD @1W|
|Bass Unit||High-Power 8“, 38mm voice coil diameter|
|HF Unit||110mm AMT|
|Dimensions||854 x 300 x 310mm (HWD) Depth 412mm with stand|
|Finish||Choice of several standard finishes|
|Cabinet||Reflex with multiple Strunk Absorbers and damped double layer Sandwich panels with one dimensional bracing and CleanPort resonator. Integrated Stand|
|Option Switches||3 Positions Tweeter level, 3 positions Woofer damping|
|Terminal||High Current Single Wiring pure Copper|
