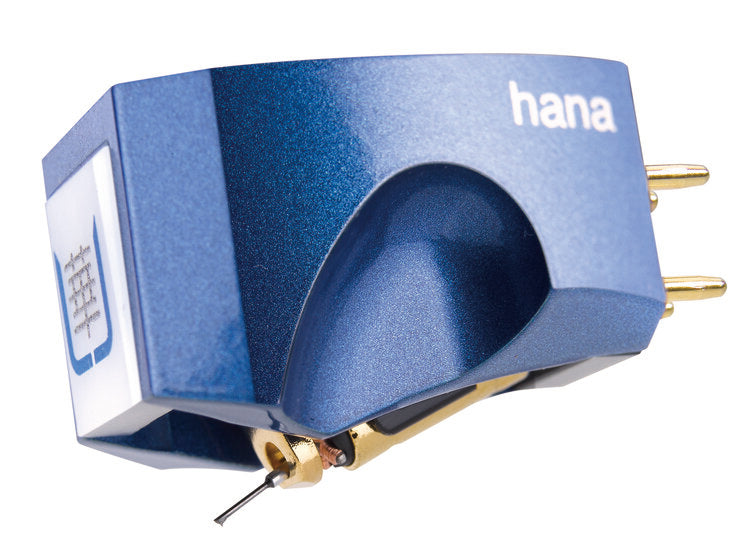

Hana Umami Blue MC Cartridge
The HANA-Umami Way
The HANA-Umami Blue high-end moving coil cartridge combines the vision of Master cartridge designer Okada-san with the history of unique materials, classic Japanese techniques, and modern audio engineering. The Auricle™ body design, unique and exclusive to our Umami series, is CNC machined from Duralumin. Sharing key Umami Red ingredients, including the precision-cut diamond stylus, Boron cantilever, and high-purity copper wires, then combining these with the Alnico magnet-based generator found in the famous Hana ML, creates the exceptionally musical Umami Blue.
This synergistic relationship in MC cartridge design between specific materials, unique body design, a sophisticated generator, and hand-built precision is critical for outstanding cartridge performance. This creates a memorable and emotional experience, reminiscent of a meal at a Michelin 3-star restaurant, with every element and detail working in concert.
All the major parts in a HANA-Umami Blue are manufactured in-house by Excel Sound with its rich history spanning over 50 years. Excel’s highly trained craftsmen skillfully hand assemble the HANA-Umami Blue ensuring an intensely musical experience furthering the HANA “Brilliant and Gorgeous” sound quality.
Umami Sound - Exceptional Musical Quality
Specifications
Specifications
Umami Blue (UB) Cartridge Specifications
| Specification | Value |
|---|---|
| Model | Umami Blue (UB) |
| Body Material | Duralumin (A7075) + POM |
| Body Finish | Gloss Enamel Lacquer/ Blue |
| Cantilever | Boron |
| Stylus | Microline Nude Diamond |
| Armature Material | Permalloy |
| Armature Shape | Cross |
| Parts Material | Pure Iron |
| Magnet | Alnico (Al-Ni-Co) |
| Terminal Plate | PEEK (Polyether Ether Ketone) |
| Terminal Pin | 24K Gold Plated |
| Coil Impedance | 8Ω/1kHz |
| Coil Output Level | 0.4mV/1kHz |
| Coil Wire Material | High Purity Copper |
| Terminating Impedance | >80Ω |
| Cryo-genic treatment | Yes |
| Frequency Response | 15~50,000Hz |
| Output Balance | 0.5dB/1kHz |
| Channel Separation | >30dB/1kHz |
| Tracking Force Weight | 2 gr. |
| Trackability | 70μm/2gr |
| Dynamic Compliance | 10 x 10(-6) cm/dyne (100Hz) |
| Dynamic Compliance | 17 x 10(-6) cm/dyne (100Hz) |
| Cartridge Weight | 10.8 gr. |
