McIntosh MA352 Integrated Amplifier Ex-Demo
McIntosh MA352 Integrated Amplifier Ex-Demo
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
- 3 year Warranty
Share
Details
Description

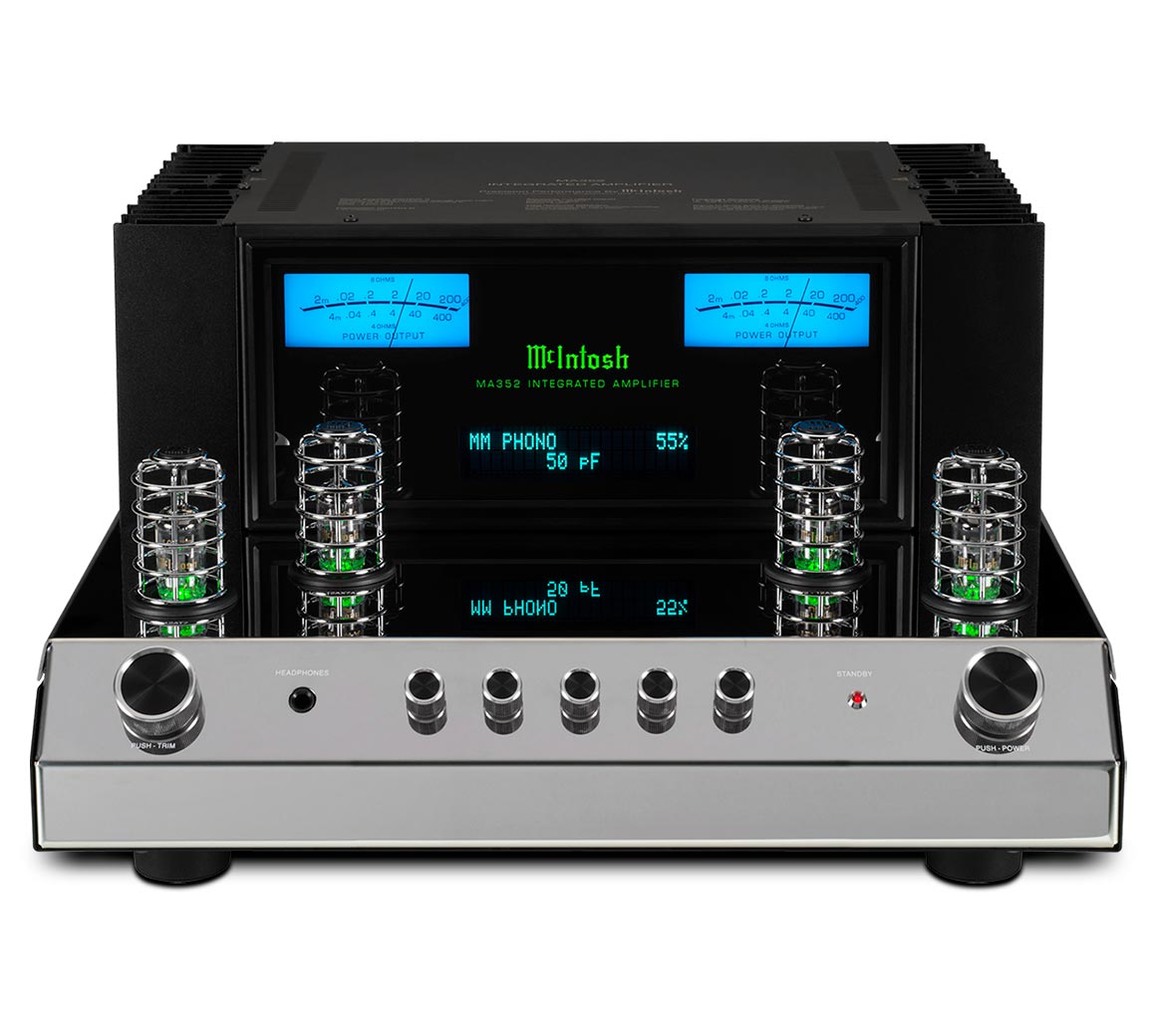

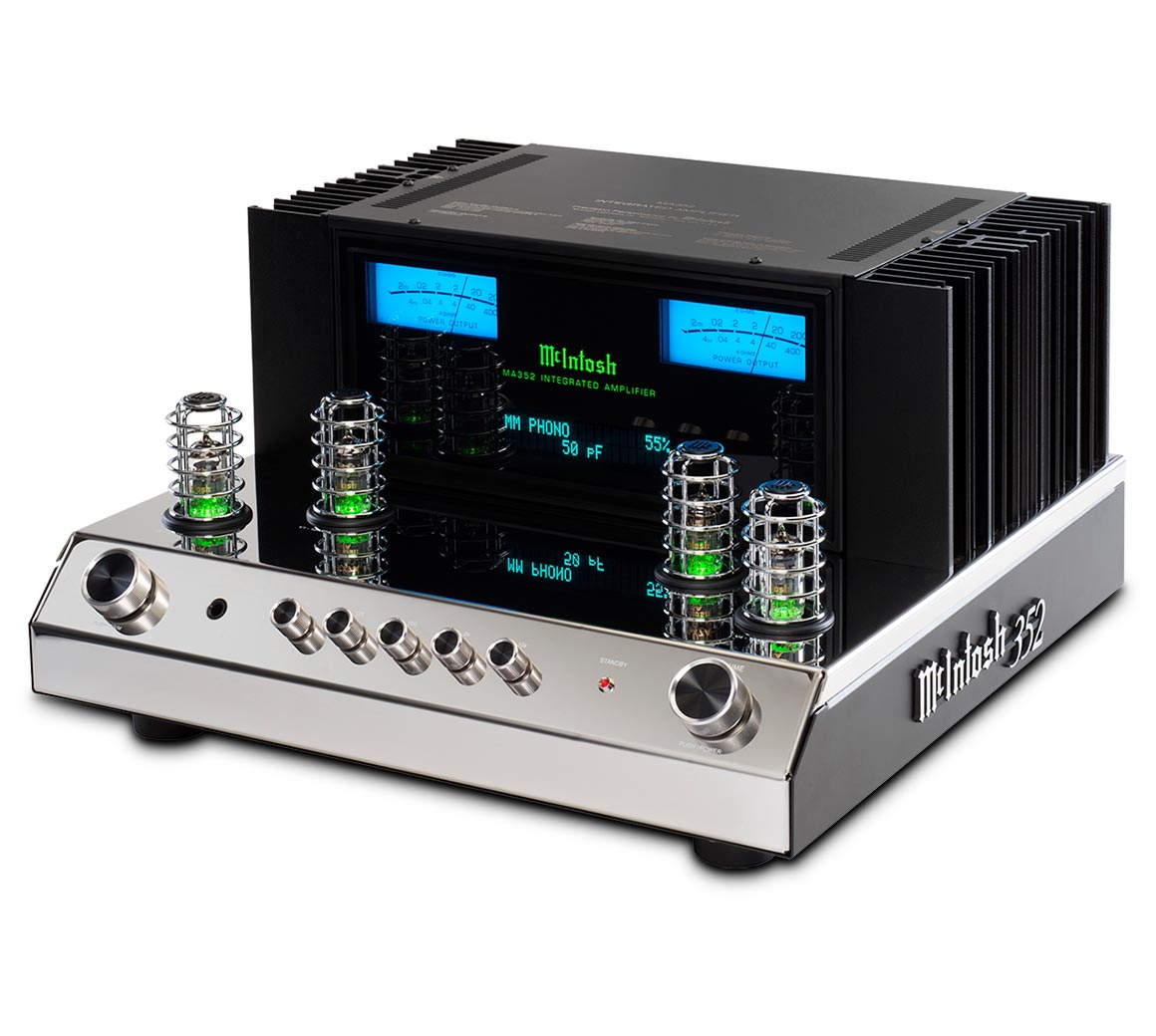

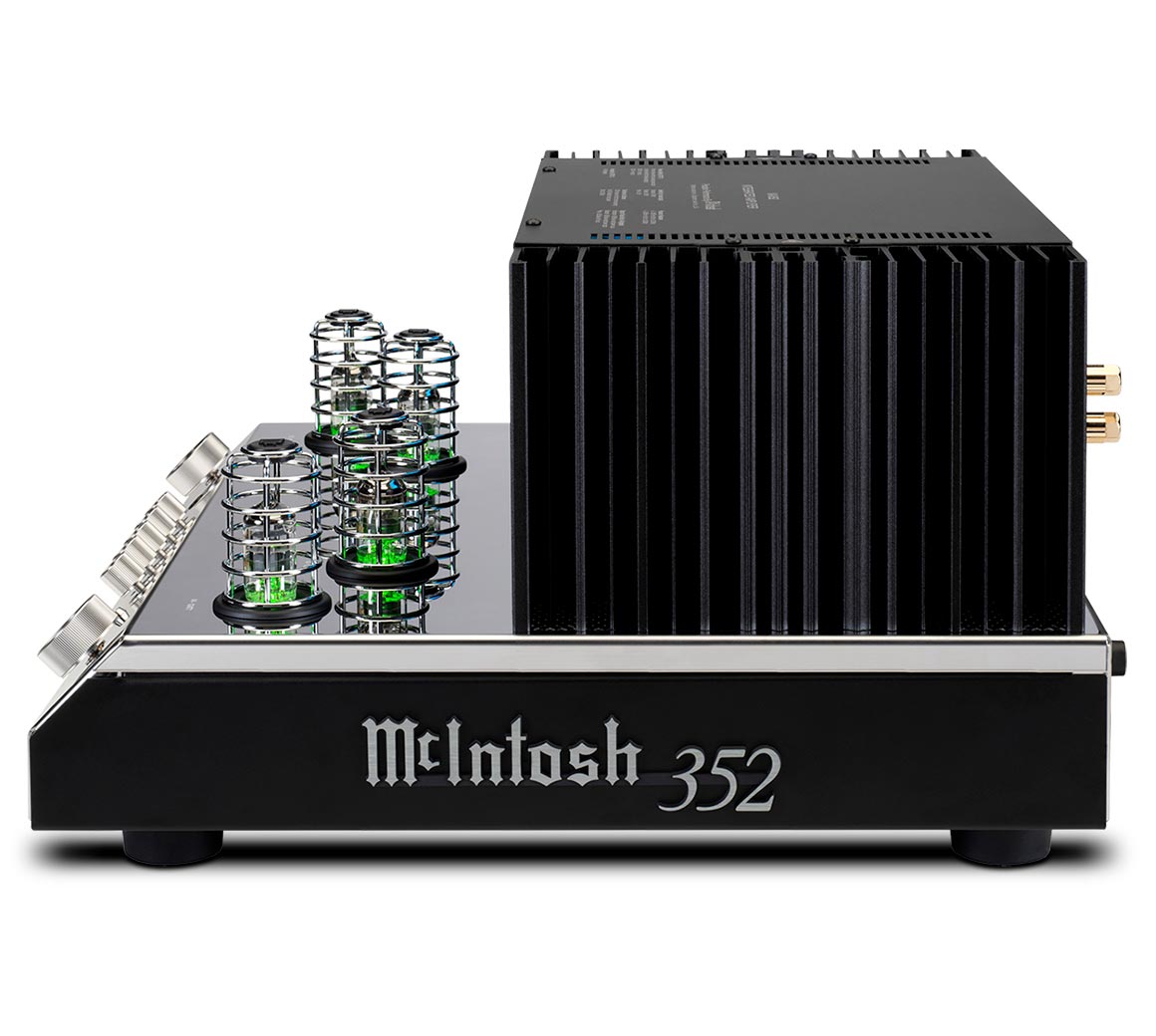

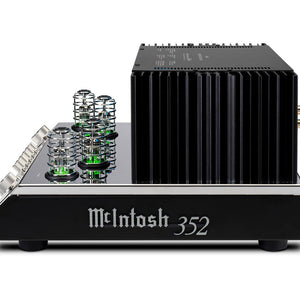

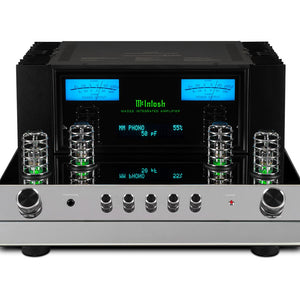

The MA352 Integrated Amplifier is a hybrid design that combines the finest of vacuum tube and solid state audio design principles. The result is an eye-catching amplifier that enjoys the best of these two opposing audio philosophies all while reproducing music at the highest quality level.
An all analog design, the MA352 has a vacuum tube preamplifier section that is powered by a pair of 12AX7A and a pair of 12AT7 vacuum tubes; its output stage is a direct coupled solid state amplifier that outputs 200 Watts per channel into 8 Ohm speakers or 320 Watts per channel into 4 Ohm speakers – enough power to properly drive virtually any set of loudspeakers. Dual scale blue Watt meters give an accurate readout of power output for both speaker impedances.

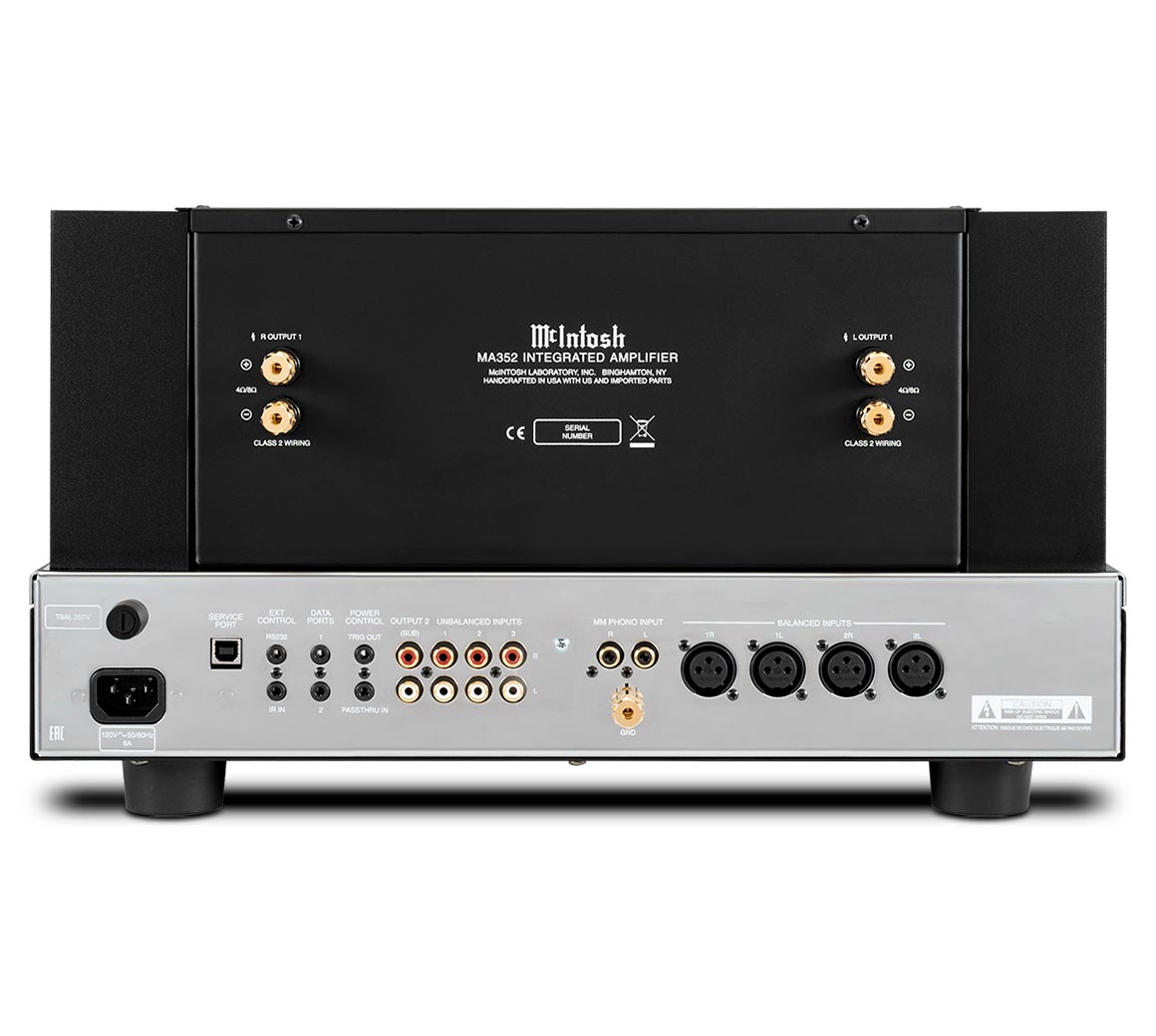

The MA352 has 2 balanced and 3 unbalanced inputs plus 1 Moving Magnet phono input with adjustable loading for connecting a turntable. It has gold-plated speaker binding posts to help prevent corrosion and ensure a quality signal is sent over your speaker cables to your speakers. A stereo preamplifier output is available for connecting a higher-powered amplifier; it can also be used to connect 1 or 2 powered subwoofers for added low frequency performance.
The MA352 is packed with numerous McIntosh technologies including:
- Our patented Power Guard® technology that monitors the output signal for over driving and makes real time micro adjustments to the input signal to prevent harsh sounding clipping that could potentially damage your speakers
- Our fuse-less short-circuit protection circuit Sentry Monitor™ that will disengage the output stage before current exceeds safe operating levels and then resets automatically when operating conditions return to normal
- McIntosh Monogrammed Heatsinks™ which are connected to advanced high current output transistors that minimize thermal equilibrium lag (or warm-up) time
- High Drive headphone amplifier with Headphone Crossfeed Director (HXD®)
- A 5-band analog tone control allows for manual adjustment of your favorite recordings (each band adjustable by ± 12dB)
- Home Theater Pass Through lets it be seamlessly integrated into a home theater system
- Power Control to send power on/off signals to connected McIntosh components for easy system power up and shutdown
- Data Ports to send remote control commands to connected source components
Specifications
Specifications
McIntosh MA352 Integrated Amplifier – Specifications
Key Features
- Hybrid Drive™ design: vacuum tube preamplifier & solid state power amplifier
- 200W per channel into 8Ω / 320W per channel into 4Ω
- All-analogue design with 5-band analogue tone control (±12dB)
- Built-in Moving Magnet phono stage (adjustable loading)
- High Drive headphone amplifier with HXD® (Headphone Crossfeed Director)
- Power Guard® and Sentry Monitor™ protection circuits
- McIntosh Monogrammed Heatsinks™ and classic blue output meters
Overview
| Brand / Model | McIntosh MA352 |
|---|---|
| Product Type | 2-Channel Hybrid Integrated Amplifier |
| Preamp Section | Vacuum tube (2x 12AX7A, 2x 12AT7) |
| Power Amp Section | Solid state, direct coupled |
| Channels | 2 |
| Analogue Inputs | 2x balanced (XLR), 3x unbalanced (RCA), 1x MM phono (adjustable loading) |
| Outputs | 1x unbalanced pre-out, 2x subwoofer out, 1x 1/4" headphone (High Drive with HXD®) |
| Power Output | 200W x 2 into 8Ω 320W x 2 into 4Ω |
Electronic Specifications
| FTC Power Output Rating | 200W |
|---|---|
| Power Output per Channel | 200W into 8Ω 320W into 4Ω |
| Number of Channels | 2 |
| Rated Power Band | 20Hz – 20kHz |
| Total Harmonic Distortion | 0.03% |
| Dynamic Headroom | 1.5dB |
| Frequency Response (+0 / -0.5dB) | 20Hz – 20kHz |
| Frequency Response (+0 / -3dB) | 10Hz – 100kHz |
| Sensitivity (MM Phono) | 2.5mV |
| Sensitivity (High Level, Balanced / Unbalanced) | 0.5V / 0.25V |
| Input Impedance (Balanced / Unbalanced) | 20kΩ / 20kΩ |
| Signal-to-Noise Ratio (MM) | 82dB |
| Signal-to-Noise Ratio (High Level) | 93dB |
| Damping Factor | >200 (8Ω) >100 (4Ω) |
| Maximum Output (Unbalanced) | 8V |
Connectivity
| Balanced Inputs | 2 |
|---|---|
| Unbalanced Inputs | 3 |
| Phono Inputs (MC / MM) | MC: 0 MM: 1 (adjustable loading) |
| Upgradeable DAC Module | No (analogue-only design) |
| Digital Inputs (Coax / Optical / USB / MCT / HDMI ARC) | None |
| Preamp Outputs | 1x unbalanced variable |
| Subwoofer Outputs | 2 |
| Headphone Output | 1/4" High Drive with HXD® |
| Home Theater PassThru | Yes |
| Speaker Binding Posts | Gold-plated, standard McIntosh posts |
| Service Port | 1 |
Control & Features
| Tone Controls | 5-band analogue EQ (±12dB) |
|---|---|
| Tone Bypass / Input Assign | Yes |
| RS232 Control | Yes |
| Power Control Outputs | 1 |
| Data Ports (rear) | 2 |
| Rear Panel IR Input | Yes |
| Input Level Match | Yes |
| Protection | Power Guard®, Sentry Monitor™ |
General
| Amplifier Topology | Hybrid: vacuum tube preamp, solid state power amp |
|---|---|
| Output Type | Direct coupled |
| Output Meters | Dual blue Watt meters |
| Chassis | Dual-layer, polished stainless steel |
| McIntosh Monogrammed Heatsinks™ | Yes |
| Power Requirement | 120V ~ 50/60Hz, 6.0A (region-specific variants available) |
| Standby Power | <0.5W |
Dimensions & Weight
| Dimensions (W x H x D) | 17.5" x 9.875" x 17.4375" (44.5cm x 25.1cm x 44.3cm) |
|---|---|
| Net Weight | 66 lbs (29.9 kg) |
| Shipping Weight | 75 lbs (34.0 kg) |
| ELECTRONIC SPECIFICATIONS | |
| Power Output per Channel | 200 Watts into 8 Ohms |
| 320 Watts into 4 Ohms | |
| Number of Channels | 2 |
| Speaker Impedance | 4 or 8 Ohms |
| Rated Power Band | 20Hz to 20kHz |
| Total Harmonic Distortion | 0.03% |
| Dynamic Headroom | 1.5dB |
| Frequency Response +0,-0.5dB | 20Hz to 20kHz |
| Frequency Response, +0, -3dB | 10Hz to 100kHz |
| Sensitivity Phono (Moving Coil) | N/A |
| Sensitivity Phono (Moving Magnet) | 2.5mV |
| Sensitivity High Level (Balanced / Unbalanced) | 0.5V/0.25V |
| Sensitivity (Power Amp input) | N/A |
| Signal To Noise Ratio (Moving Coil) | N/A |
| Signal To Noise Ratio (Moving Magnet) | 82dB |
| Signal To Noise Ratio (High Level) | 93dB |
| Signal To Noise Ratio (Power Amp input) | N/A |
| Input Impedance (Balanced / Unbalanced) | 20K/20K |
| Damping Factor | 8 Ohms: >200 |
| 4 Ohms: >100 | |
| Maximum Output (Balanced / Unbalanced) | 8V Unbalanced |
| CONNECTIVITY | |
| Balanced Input | 2 |
| Unbalanced Input | 3 |
| Phono Input Moving Coil | 0 |
| Phono Input Moving Magnet | 1 (adjustable loading) |
| Upgradeable Digital Audio Module | No |
| Digital Coaxial Input | 0 |
| Digital Optical Input | 0 |
| Digital MCT (DIN) Input | 0 |
| Digital USB Input | 0 |
| HDMI (ARC) Input | 0 |
| Balanced Variable Output | 0 |
| Unbalanced Fixed Output | 0 |
| Unbalanced Variable Output | 1 |
| Headphone Output | 1/4" High Drive with Headphone Crossfeed Director (HXD®) |
| Subwoofer Output | 2 |
| AM/FM Tuner option | No |
| Home Theater PassThru | Yes |
| Unbalanced Analog Connector Type | Standard |
| Speaker Binding Post Type | Standard |
| Service Port | 1 |
| DIGITAL AUDIO SPECIFICATIONS | |
| Digital-to-Analog Converter (DAC) Type | N/A |
| Digital Coaxial Input Sample Rate | N/A |
| Digital Optical Input Sample Rate | N/A |
| Digital MCT (DIN) Input Sample Rate | N/A |
| Digital USB Input Sample Rate | N/A |
| CONTROL | |
| Tone Controls | 5-Band |
| Tone Bypass and Input Assign | Yes |
| RS232 Control Input | Yes |
| Power Control Output | 1 |
| Rear Panel Data Port | 2 |
| Rear Panel IR Sensor Input | Yes |
| Input Level Match | Yes |
| GENERAL SPECIFICATIONS | |
| Vacuum Tube or Solid State | Preamplifier: Vacuum Tube |
| Power Amplifier: Solid State | |
| Output Type | Direct Coupled |
| Output Meters | Yes |
| Dual Layer Chassis | Yes |
| Chassis Finish | Polished stainless steel |
| McIntosh Monogrammed Heatsinks™ | Yes |
| Power Requirement | 120V 50/60Hz, 6.0A |
| Standby Power Requirement | <0.5 Watts |
| WEIGHTS & DIMENSIONS | |
| Unit Dimensions (W x H x D) | 17-1/2" (44.5cm) x 9-7/8" (25.1cm) x 17-7/16" (44.3cm) |
| Unit Weight | 66 lbs (29.9 kg) |
| Shipping Weight | 75 lbs (34.0 kg) |
