Details
Description

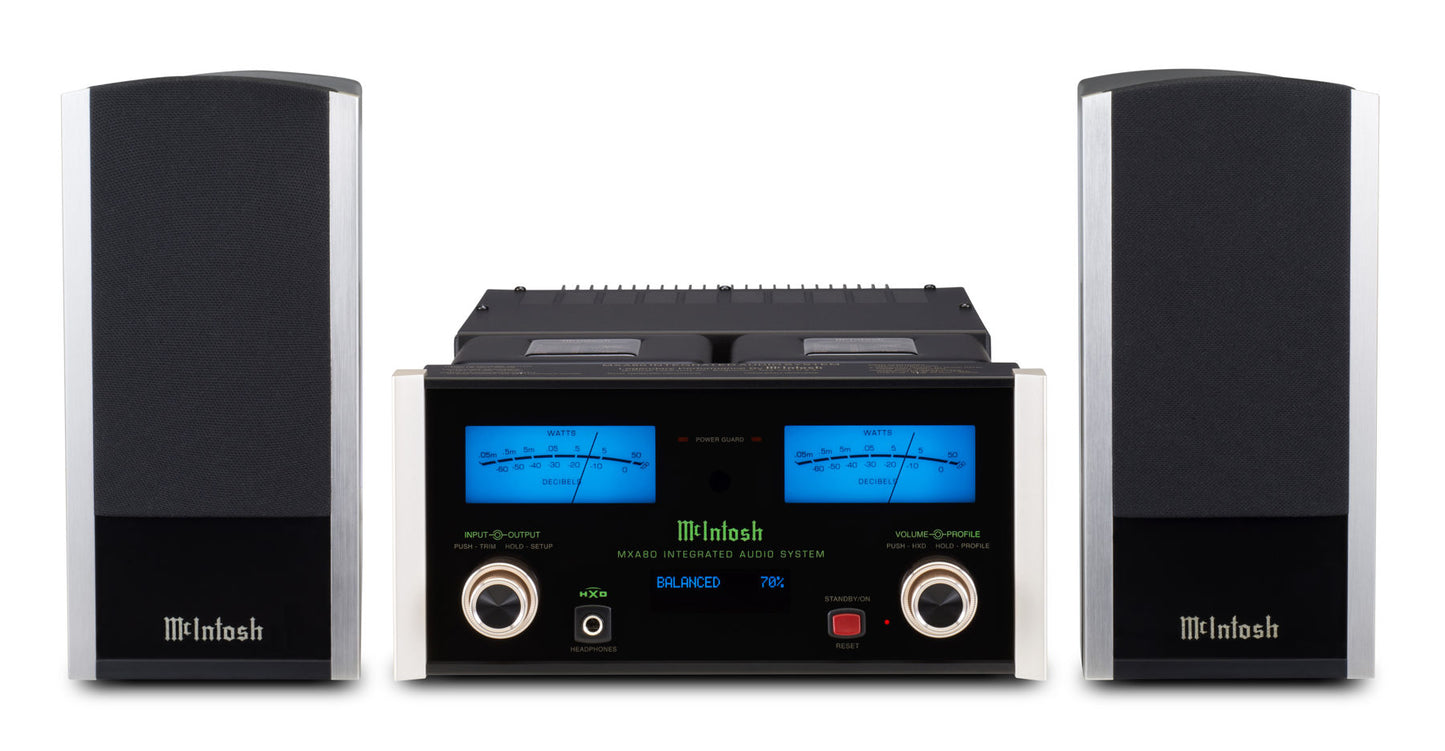

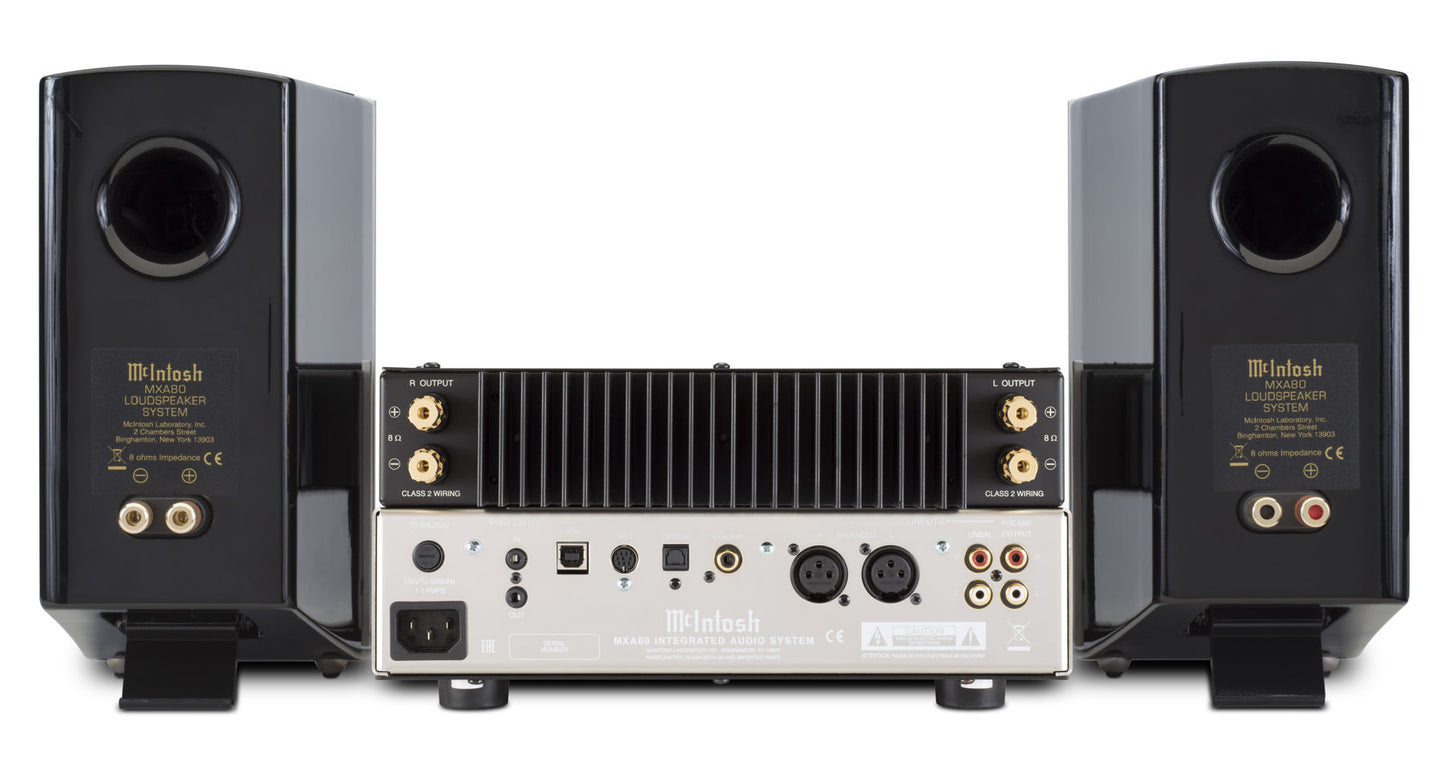

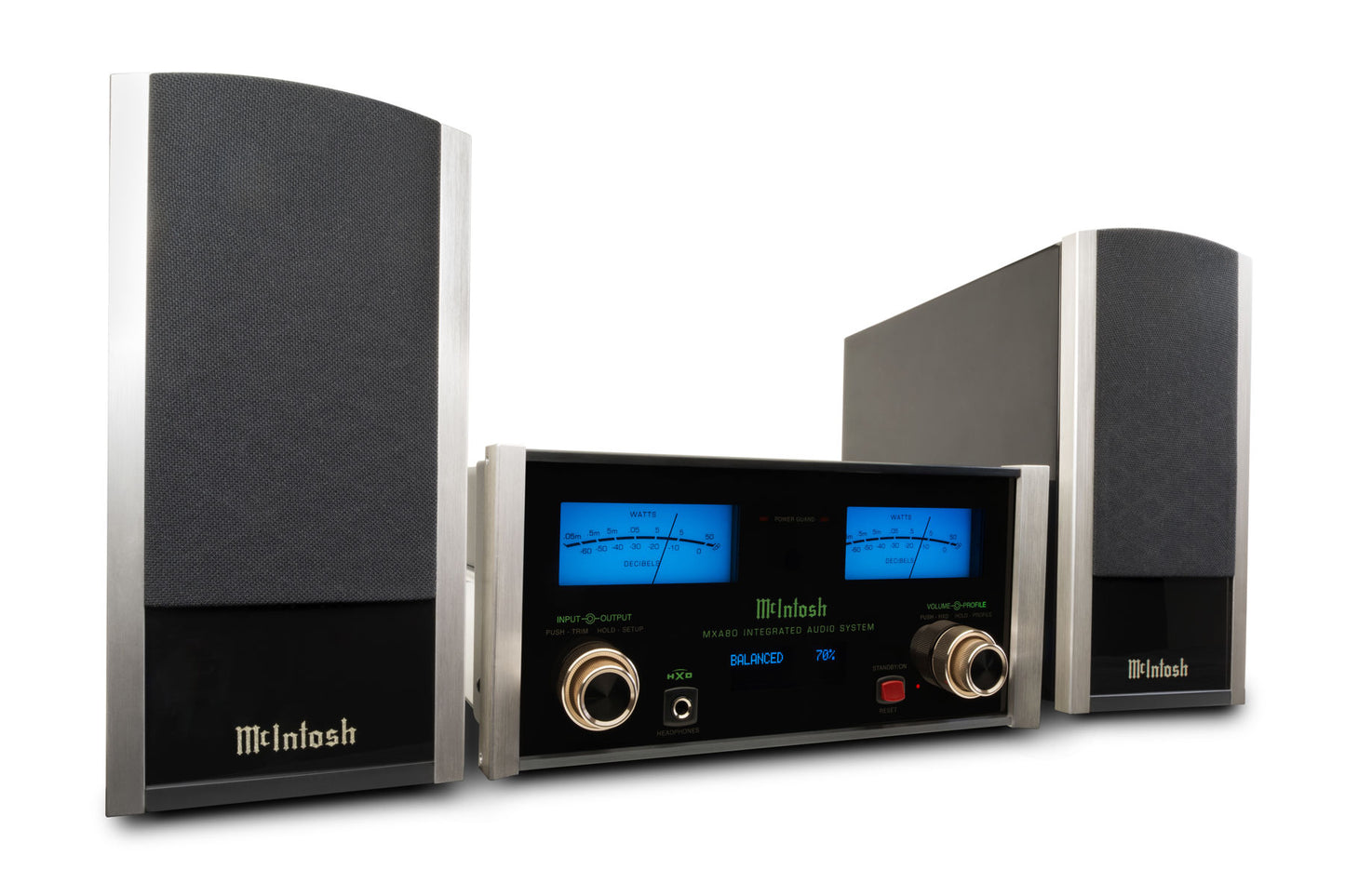

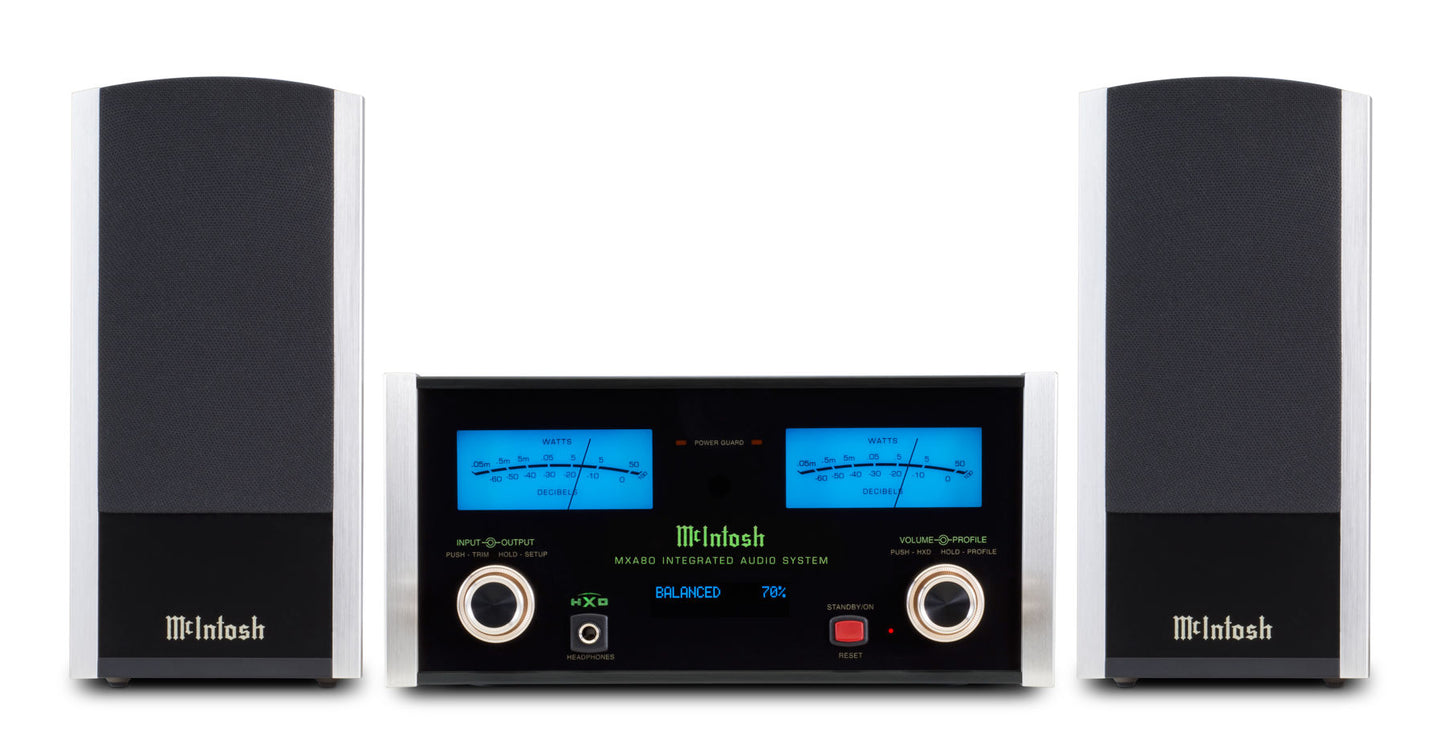

The MXA80 Integrated Audio System is the next generation of the acclaimed MXA70.
The MXA80 Integrated Audio System is the next generation of the acclaimed MXA70. It maintains the same compact footprint and full functionality while adding support for DSD and DXD digital music files thanks to a new digital-to-analog converter (DAC).
The MXA80 features a 50 watt stereo amplifier and a pair of specially designed 2-way desktop speakers that achieve a remarkably rich and full bodied level of performance for their size. A total of six inputs – 4 digital and 2 analog – allow you to connect your music sources. The USB input accepts PCM signals up to 32-bit/384kHz and supports DSD64, DSD128 and DSD256 along with DXD 352.8kHz and DXD 384kHz. Our exclusive MCT input offers a secure DSD connection to enjoy the high definition audio on SACDs when paired with the MCT450 SACD/CD Transport.
A dedicated headphone amplifier is available for those times when you want to listen to your music more intimately. It takes advantage of unique McIntosh technologies so that every headphone yields the best possible personal listening experience. Headphone Crossfeed Director (HXD®) brings added dimension to your music while Power Guard® prevents clipping that could damage your speakers or headphones. A 5 step Bass Boost Control allows for further tonal customization.
The MXA80’s compact size makes it a great audio system for an office, bedroom or vacation house. Combine it with the similarly-sized MB50 Streaming Audio Player and MP100 Phono Preamplifier to form the basis of a complete audio system. The amplifier is housed in a beautiful polished stainless steel chassis that compliments the classic glass front panel, knobs and brushed aluminum end caps; the speakers come with a luxurious, high gloss piano black finish.
Specifications
Specifications
ELECTRONIC SPECIFICATIONS | |
Power Output per Channel | 50 Watts |
Speaker Impedance | 8 Ohms |
Rated Power Band | 20Hz to 20kHz |
Total Harmonic Distortion | 0.01% |
Intermodulation Distortion | 0.005% maximum, if the instantaneous peak power is 100 watts or less per channel with both channels operating for any combination of frequencies from 20Hz to 20kHz |
Dynamic Headroom | 1.5dB |
Frequency Response +0,-0.5dB | 20Hz to 20kHz |
Frequency Response, +0, -3dB | 10Hz to 100kHz |
Sensitivity (Unbalanced) | 300mV |
Sensitivity (Balanced) | 600mV |
Maximum Input Signal (Unbalanced) | 8V |
Maximum Input Signal (Balanced) | 16V |
Signal To Noise Ratio | 105dB |
Input Impedance (Balanced / Unbalanced) | 25K/25K |
Damping Factor | >150 |
Preamplifier Output | 3V (8V maximum) |
Preamplifier Output Impedance | 500 Ohms |
Voltage Gain | 36.5dB |
Power Guard | <2% THD with up to 16dB overdrive at 1kHz |
LOUDSPEAKER SPECIFICATIONS | |
System Driver Complement | One 4 inch Woofer/Midrange |
One 3/4 inch Dome Tweeter | |
Impedance | 8 Ohms Nominal |
Frequency Response | 60Hz - 45kHz |
Sensitivity | 80dB (2.83V/1m equivalent) |
Crossover Frequency | 2,000Hz |
Power Handling | 75 Watts |
Enclosure Finish | High Gloss Black |
Grille Finish | Black Knit Cloth |
DIGITAL AUDIO SPECIFICATIONS | |
Digital Coaxial Input Sample Rate | 16Bit, 24Bit - 32kHz to 192kHz |
Digital Optical Input Sample Rate | 16Bit, 24Bit - 32kHz to 192kHz |
Digital MCT (DIN) Input Sample Rate | 16Bit, 24Bit - 32kHz to 192kHz |
Digital USB Input Sample Rate | 16Bit, 24Bit, 32Bit - 32kHz to 384kHz |
HEADPHONE OUTPUT SPECIFICATIONS | |
Headphone Power Output | High Selection: 1W |
Normal Selection: 250mW | |
Headphone Output Impedance | 8-40 Ohms |
40-150 Ohms | |
150-600 Ohms | |
CONNECTIVITY | |
Headphone Output | 1 (1/4") |
High Level Inputs Unbalanced | 1 Stereo |
High Level Inputs Balanced | 1 Stereo |
Digital Coaxial Input | 1 |
Digital Optical Input | 1 |
Digital MCT (DIN) Input | 1 |
Digital USB Input | 1 |
Preamplifier Output | 1 Stereo |
CONTROL | |
Tone Controls | 5 Step Bass Boost Control: 0 to +12.5dB (in 2.5dB steps) @ 40Hz |
Power Control Input | Yes |
Power Control Output | Yes |
GENERAL SPECIFICATIONS | |
Output Meters | Yes |
Vacuum Tube or Solid State | Solid State |
Power Requirement | 120V 50/60Hz, 1.5A |
Standby Power Requirement | <0.25 Watts |
Output Autoformer | Yes for Headphones |
WEIGHTS & DIMENSIONS | |
Unit Dimensions (W x H x D) | Amplifier: 11-1/2" (29.2cm) x 5-7/8" (14.9cm) x 14-5/8" (37.1cm) |
Speaker (each): 5" (12.7cm) x 10-3/4" (27.3cm) x 10-3/4" (27.3cm) | |
Unit Weight | 50 lbs (22.6 kg) |
Shipping Weight | 66 lbs (29.9 kg) |
