Ortofon

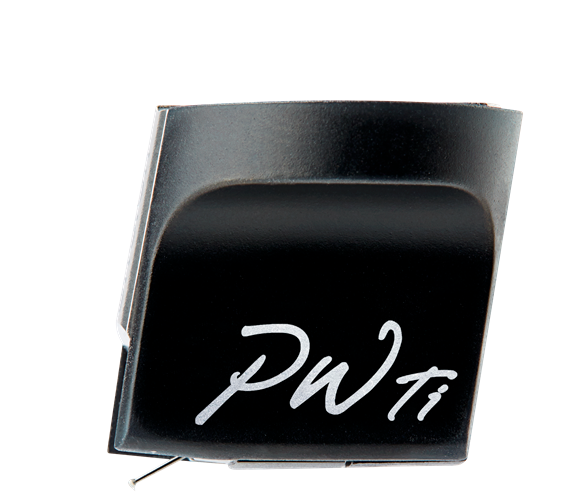

Ortofon MC Winfield Ti Cartridge

Ortofon MC Winfield Ti Cartridge

Regular price £3,999.00
Regular price Sale price £3,999.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

The MC Windfeld Ti - a moving coil phono cartridge in the absolute high-end class

Our extensive knowledge of vibration properties, characteristics in different shapes and materials, competences in magnetism, mechanical design and new technologies has been applied for optimization of the MC Windfeld model. The MC Windfeld Ti has gone to the next level by reducing unwanted vibrations and increasing the dynamic capability of the cartridge.

Those who choose to adopt the MC Windfeld Ti will experience the lifelike, dynamic and open sound, with exceedingly clear midrange. The MC Windfeld Ti remains extremely musical while paying close attention to micro dynamic details, with its delicate, but also analytical nature.

The MC Windfeld Ti technology

The MC Windfeld Ti phono cartridgewas introduced in 2017 as a continuous tribute to Ortofon's former engineer Mr. Windfeld and optimization of the MC Windfeld model launched in 2008.

At the heart of the MC Windfeld Ti liesSelective Laser Melting technology, apllied for manufacturing of the Ortofon Exclusives Series cartridges.
The use of Titanium in the MC Windfeld Ti has provided a further improvement to the overall rigidity of the structure and the cartridge weight. Obviously, MC Windfeld Ti has gone to the next level by reducing unwanted vibrations and increasing the dynamic capability of the cartridge.

In this episode Leif Johannsen, the Ortofon's Chief Acoustics and Development, accurately compares the two MC Windfeld models with the focus on the benefits of the new technologies and materials.

The mechanical integration of the MC Windfeld Ti

Historically, Ortofon has always followed its own path with regard to the mechanical design of the cartridge housing, because mechanical rigidity and total freedom from resonance in the audible range are a precondition for optimal sound quality.

In the MC Windfeld Ti the cartridge’s contact with the tonerarm takes place through three hard, well-defined contact points placed on the fastening section of the cartridge. This means that the mechanical integration of the cartridge and the tonearm arm are always absolutely perfect.

Flexibility and performance with a range of compatibility

With optimized weight and moderate compliance to suit the majority of modern tonearms, the MC Windfeld Ti is easy compatible with an endless array of contemporary high-end turntable equipment, includingthe Ortofon TA-210 and TA-110 tonearms.

A low output impedance of 7 ohm and a medium output voltage of 0.2 mV makes the Ortofon MC Windfeld Ti a perfect partner for most MC pre-amps as well as step-up transformers, includingthe Ortofon ST-80 SE.

When combined with Ortofon’s world-class knowledge in analogue sound reproduction, The MC Windfeld Ti will undoubtedly provide sound which is literally unsurpassed and simply has to be experienced.

MC Windfeld Ti is available through Ortofon Authorised HiFi dealers. Our authorized dealers have comprehensive knowledge and experience in use of Ortofon products and associated equipment, offer high standard customer service and comply withOrtofon Aftersales.

Specifications

Specifications

Output voltage at 1,000 Hz, 5 cm/sec. 0.2 mV
Channel balance at 1 kHz

0.5 dB
Channel separation at 1 kHz

25 dB
Channel separation at 15 kHz

20 dB
Frequency range at -3 dB

10 Hz – 50 kHz
Frequency response

20 Hz – 20 kHz +2 / -1 dB
Tracking ability at 315 Hz at recommended tracking force

90 μm
Compliance, dynamic, lateral

13 μm/mN
Stylus type

Nude Ortofon Replicant 100, special polished on Boron cantilever
Stylus tip radius

r/R 5/100 μm
Tracking force range

2.0 – 2.5 g (20 – 25 mN)
Tracking force, recommended

2.3 g (23 mN)
Tracking angle

23°
Internal impedance, DC resistance

7 Ohm
Recommended load impedance

10 Ohm
Cartridge body material

SLM Titanium, Stainless steel
Cartridge colour

Titanium/Black
Cartridge weight 11 g
