Details
Description

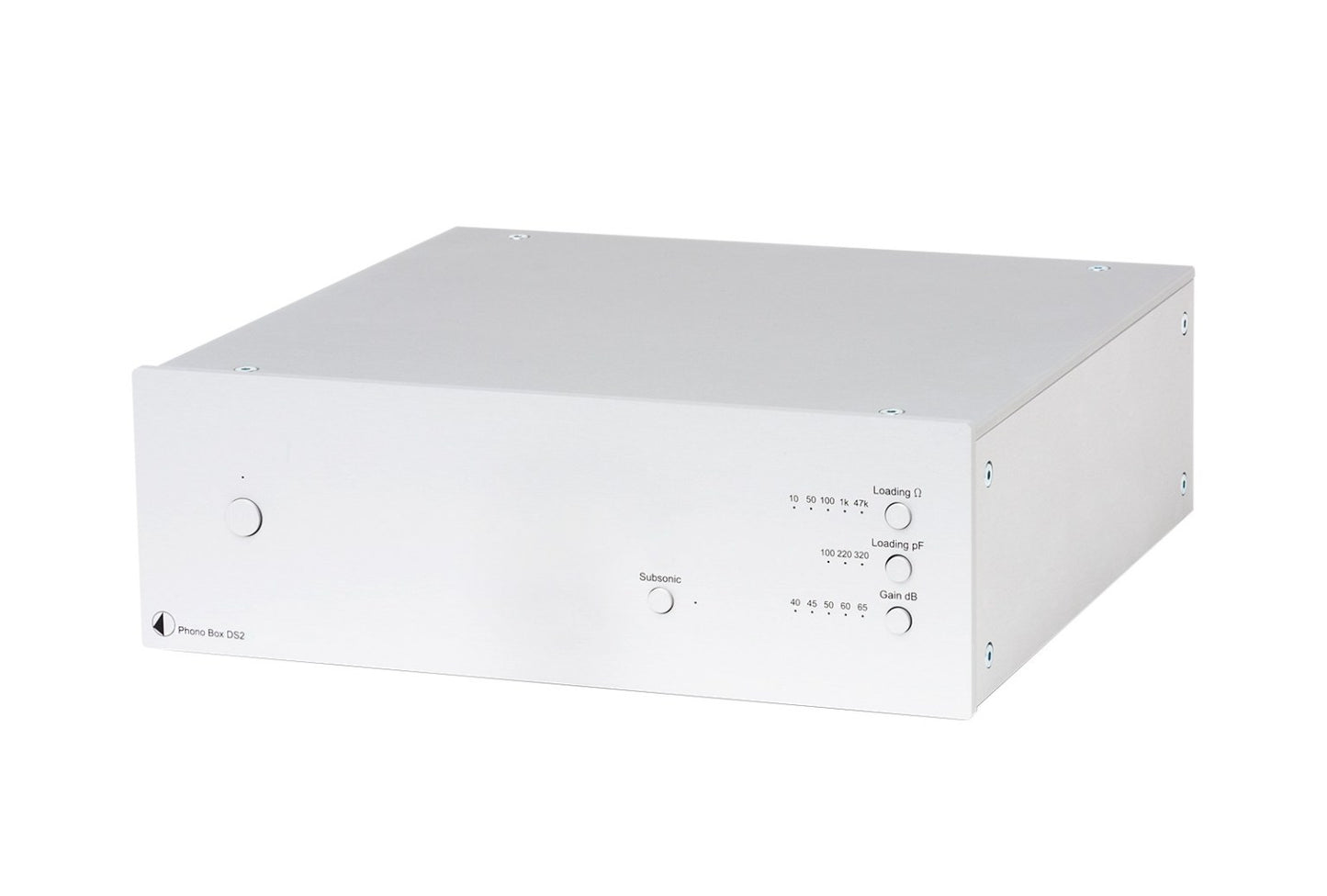

Phono Box DS2
Phono preamplifier
Premium class phono preamplifier with MM & MC capability
Phono Box DS2 is a highly adjustable phono pre-amplifier suitable for all common MM and MC cartridges. With the ability to switch easily between input impedance and capacitance, as well as gain on front it becomes one of the most user friendly phono stages at this price point. It features one pair of RCA inputs for your turntable and one pair of RCA ouputs which will be conected to your pre-amplifier or integrated amplifier. The casing is made of a durable aluminium metal sandwich construction, which not only will effectively protect it against electromagnetic interferences and vibrations, but will also please the eye with its simply and elegant esthetics. Phono Box DS2 features a very linear circuit design to deliver the best possible sound from a minimalistic PCB. With its high value sonics and low cost price it becomes an audiophile bargain!
Features
Suitable for MM and MC cartridges
Precise RIAA equalisation
Dual mono circuitry for optimized channel separation
Selectable input inpedance on front
Selectable input capacitance on front
Low noise ICs
Gold-plated RCA in & outputs
Sandwich alu/metal casing protects from vibrations and electromagnetic interference

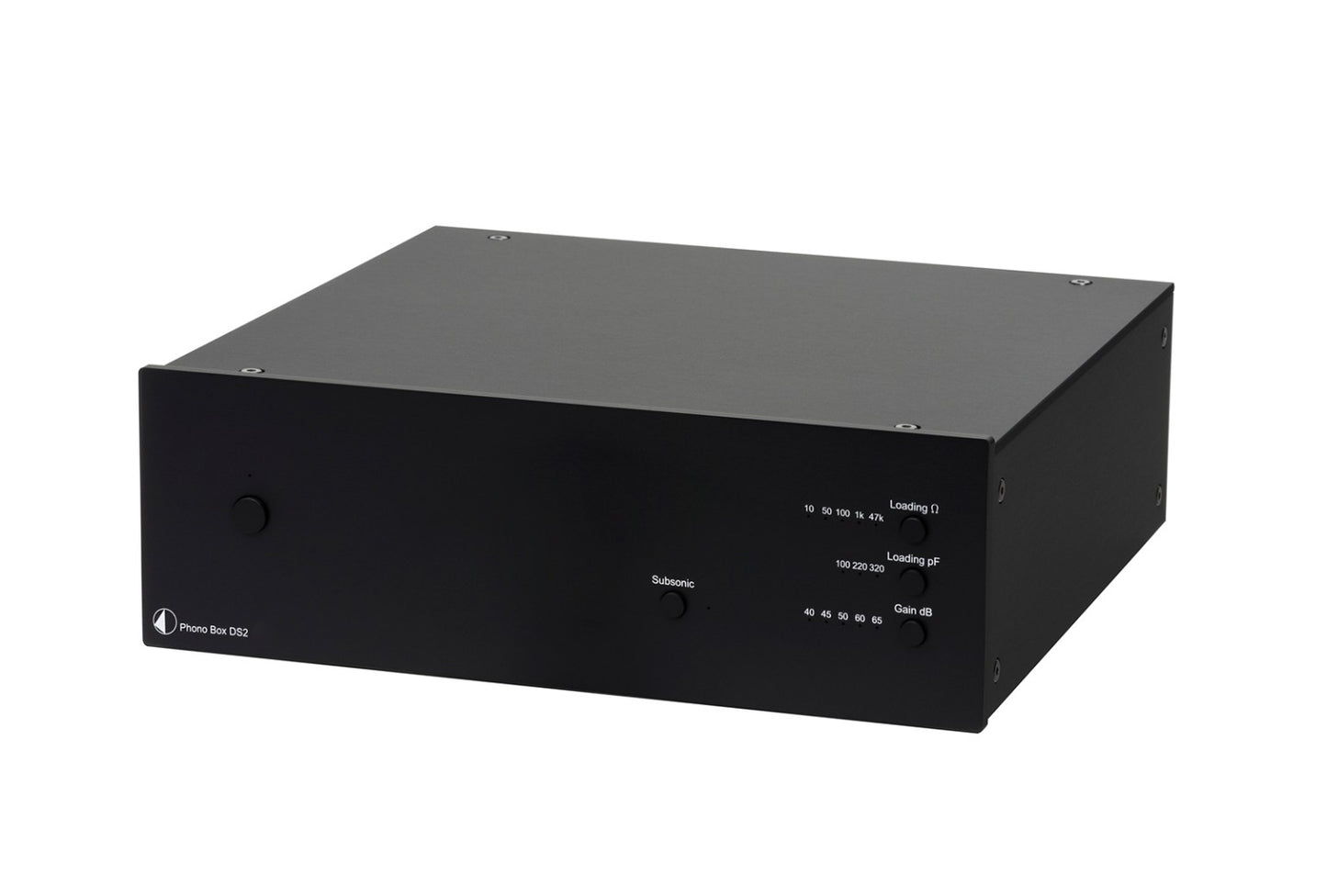

Available in silver or black with or without side panels in Eucalyptus, Rosenut or Walnut
Specifications
Specifications
Input impedance | 10-47 kOhm |
Capacitance | 100/220 and 320pF |
Gain | 40/45/50/60/65 dB |
Output voltage | 500mV @ 1kHz (at 5mV input voltage @ 1kHz) |
Noise floor | - 80 dB V |
THD+N | < 0.02% |
THD | 0.0008% |
RIAA equalisation curve accuracy | Within 0.5dB/20Hz - 20kHz |
Inputs | 1 pair RCA |
Outputs | 1 pair RCA |
Power supply | 18V/500mA DC; 110 - 240V, 50/60Hz |
Power consumption | 100 mA DC, < 1 Watt standby |
Dimensions W x H x D | 206 x 71 x 194 mm (Alu) |
240 x 72 x 194 mm (Wood) | |
Weight | 1320 g (Alu) without power supply |
1770 g (Wood) without power supply |
