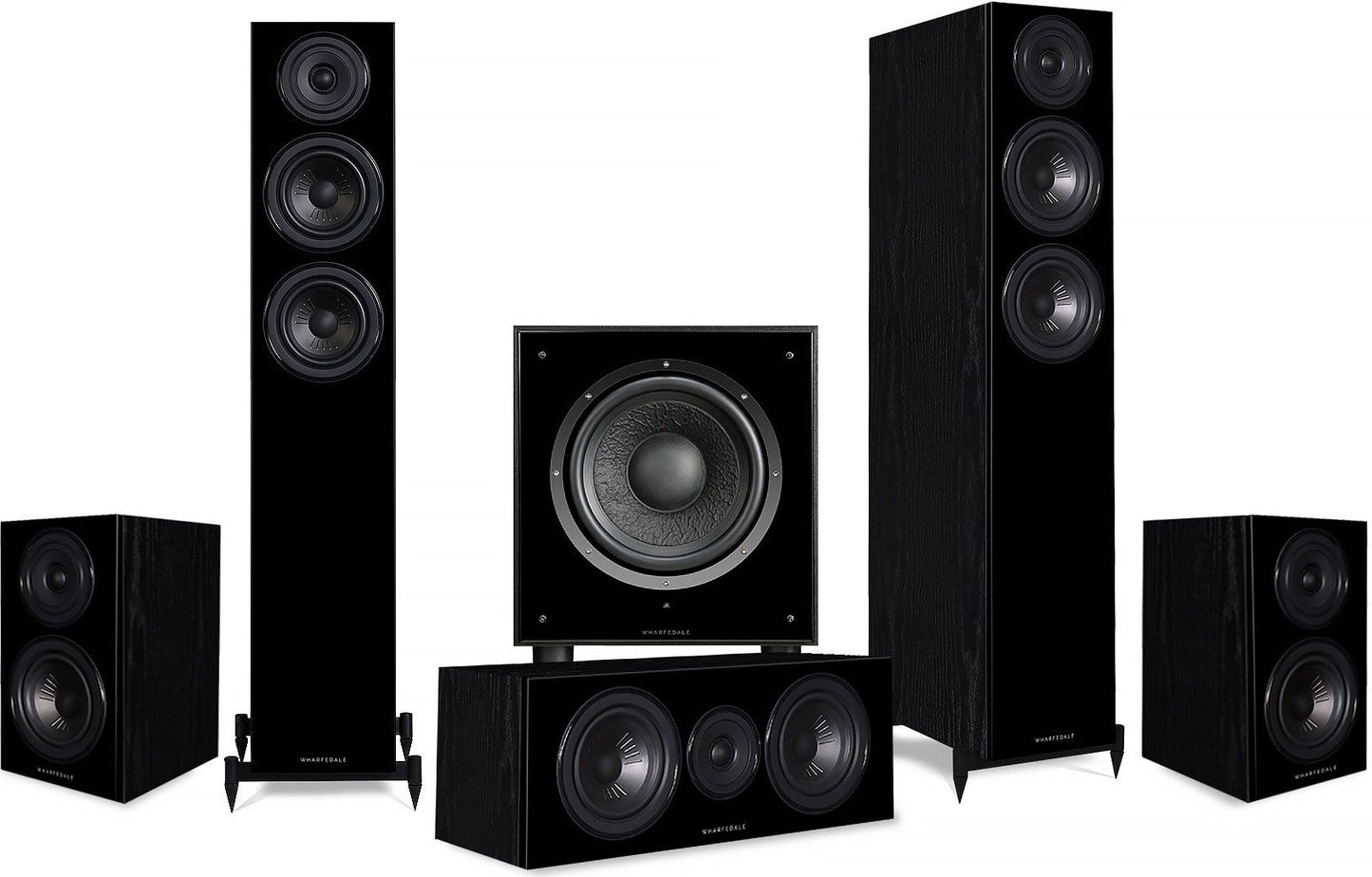

Wharfedale Diamond 12.3 HCP 5.1 Speaker Package
Wharfedale Diamond 12.3 HCP 5.1 Speaker Package
Couldn't load pickup availability
- Pay in 3
Share
Details
Description
The Wharfedale Diamond 12.3 HCP 5.1 Speaker package is the perfect surround setup for those who want top quality sound but out breaking the bank that makes this setup the perfect gateway into the Wharfedale eco-system.
Diamond 12.3 Floorstanders
Standing tall in this setup are the pair of 12.3 Floorstanders that pack a serious amount of sound into a gorgeous package – with a 5 inch bass and 5 inch mid driver pairing, these speakers will truly bring your setup to life.
Diamond 12.1
Taking care of the side or rear part of your surround setup is a pair of Diamond 12.1 bookshelf speakers (or stand mounted if you prefer) that deliver serious sound in such a small footprint, with a 5 inch woofer – these are truly a fantastic all round speaker.
Diamond 12.C
The centre channel is as important as your side and rear channels which is where the 12.C takes over proceedings providing that middle ground with a 1 inch treble driver to give that cinematic feel to your sound.
SW-10
Finally, the SW-10 takes care of your deep bass spectrum which laser like focus. With the ability to reproduce sound at 40Hz all the way through to the 120Hz range (at 13dB) this brings the rest of the package to life.
SPECIFICATIONS:
Diamond 12.3
| General description | 2.5-way floorstanding speaker |
| Enclosure type | bass reflex |
| Bass driver | 5"(130mm) advanced PP Cone |
| Midrange driver | 5"(130mm) advanced PP Cone |
| Treble driver | 1"(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 89dB |
| Recommended amplifier power | 30-150W |
| Peak SPL | 102dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 5Ω |
| Frequency response(+/-3dB) | 45Hz ~ 20kHz |
| Bass extension(-6dB) | 40Hz |
| Crossover frequency | 2.2kHz |
| Cabinet Volume (in litres) | 26.6L |
| Dimensions ( H x W x D ) | (925+50) x 180 x (320+28) mm |
| Net weight | 19.5kg/pcs |
Diamond 12.1
| General description | 2-way bookshelf speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 5"(130mm) advanced PP Cone |
| Treble driver | 1"(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 88dB |
| Recommended amplifier power | 20-100W |
| Peak SPL | 96dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.0Ω |
| Frequency response(+/-3dB) | 65Hz ~ 20kHz |
| Bass extension(-6dB) | 60Hz |
| Crossover frequency | 2.6kHz |
| Cabinet Volume (in litres) | 8.2L |
| Dimensions ( H x W x D ) | 312 x 180mm x (250+28) mm |
| Net weight | 6.8kg/pcs |
Diamond 12.C
| General description | 2-way center speaker |
| Enclosure type | closed-box system |
| Transducer complement | 2-way |
| Bass driver | 5"(130mm) advanced PP Cone x2 |
| Treble driver | 1"(25mm) Textile Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 90dB |
| Recommended amplifier power | 20-120W |
| Peak SPL | 96dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.0Ω |
| Frequency response(+/-3dB) | 90Hz ~ 20kHz |
| Bass extension(-6dB) | 80Hz |
| Crossover frequency | 2.2kHz |
| Cabinet Volume (in litres) | 8.7L |
| Dimensions ( H x W x D ) | 180 x 480 x (180+28) mm |
| Net weight | 8.5kg/pcs |
SW-10
| Drive Units | 1 x (10") 250mm cone long-throw |
| Frequency Response | 40 - 120Hz ±3dB |
| Amplifier Power Output | 200W |
| Peak Power Output | 350W |
| Line Input Sensitivity | 200mv for maximum output |
| Crossover Range | 30 - 150Hz |
| Inputs | Stereo Line In (2 x RCA Phono) |
| Mono (LFE) Line In (RCA Phono) | |
| Input Impedance | Line Input 10kΩ |
| LFE 5kΩ | |
| Signal-to-noise ratio (S/N) | ≥85dB |
| Avg. Max Output @1m | 110dB |
| Features | Phase inversion, Auto on-off |
| Dimensions | Height: (358+58)mm(with feet) |
| Width: 336mm | |
| Depth: (366+15)mm | |
| Net weight | 15kg |
| Finishes | Cabinet: Rosewood /Walnut Pearl/White sandex/Blackwood Vinyl with Hi-gloss baffle |
| Accessories | IEC power cord |
