Arcam

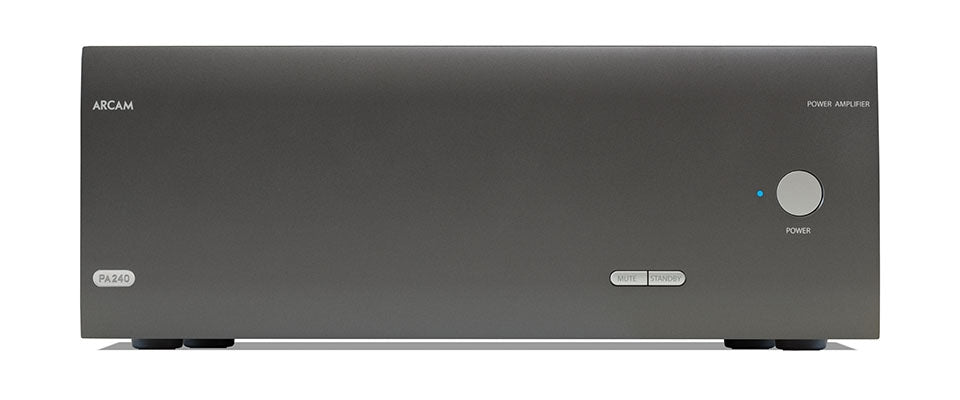

Arcam PA240 - 2 Channel Power Amp

Arcam PA240 - 2 Channel Power Amp

Regular price £2,249.00
Regular price Sale price £2,249.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
  • 5 year Warranty
View full details

Details

Description

The Arcam PA240 is a 2 channel class with an impressive 380wpc (into 4ohms) but capable of delivering 790W 1 channel driven into 8 ohms when in bridged mode. It also operates with Class A for the first 50W of amplification which covers most of the frequency range at reasonable listening levels giving you the best of both worlds with power on demand but the open and sweet Class A signature for everything else.


Arcam PA240 is a two channel power amp of Arcams latest HDA series.

PA240 delivers a mighty 380W of class G amplification into two channels. Designed to enhance your 2 channel hifi experience power amplifier or for driving front channels in home cinema the PA240 is a versatile amplifier with great specs.

The Best Performing Arcam Range

Created off the back of the strong Arcam legacy in amplification, the HDA range has been crafted to produce the best performing products which offer a wide range of applications.

PA240 is fitted with the best in class components, torodial based power supply, acoustically damped chassis and paralleled transistor outputs all to give exceptionally low levels of noise but with plenty of power meaning the PA240 masters music reproduction but also has the muscle to excel in AV setups.

Key Features

– 2 Channel Power Amplifier
– 2 x 380W Class G amplification
– 1 x 790W Class G bridged mode
– Class G amplification with 50W of class A operation
– Toroidal transformer
– Stereo, Dual Mono or Bridged operation

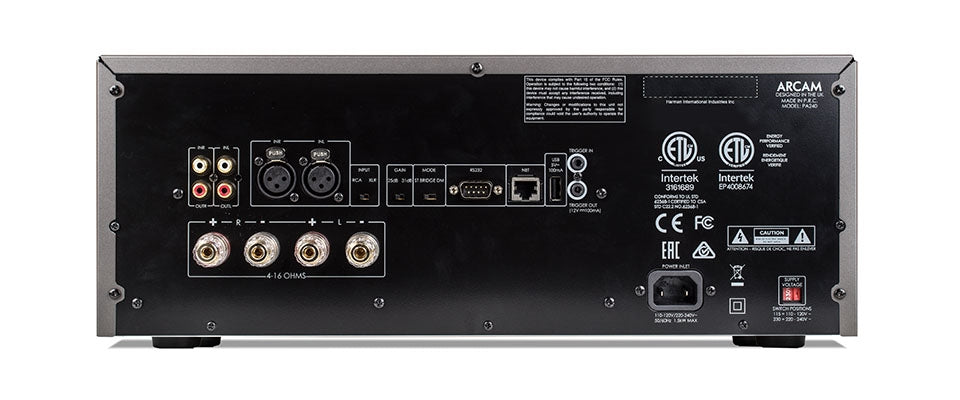

– Ethernet, RS232 control
– Switchable RCA or balanced XLR inputs

Specifications

Specifications

Continuous power output at 0.2% THD per channel

2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz 380W/225W

1 channel driven, 8Ω bridged mode, 20-20kHz 790W

Harmonic distortion, 80% power, 8Ω at 1kHz 0.001%

Inputs

RCA Type XLR Type

Input sensitivity 200W / 8Ω 1.15V RMS 2.3V RMS

Signal/Noise ratio (A-wtd) 50W / 8Ω 110dB

Input impedance 10kΩ

Frequency response 20 - 20kHz +/-0.05dB

General

Mains voltage 110–120V or 220–240V, 50–60Hz

Power consumption (maximum) 1.5kW

Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)

Power consumption (standby) <0.5W

Dimensions W x H x D (including feet,

control knob and speaker terminals)

433 x 425 x 177mm

Weight (net) 18kg

Weight (packed) 19.7kg
