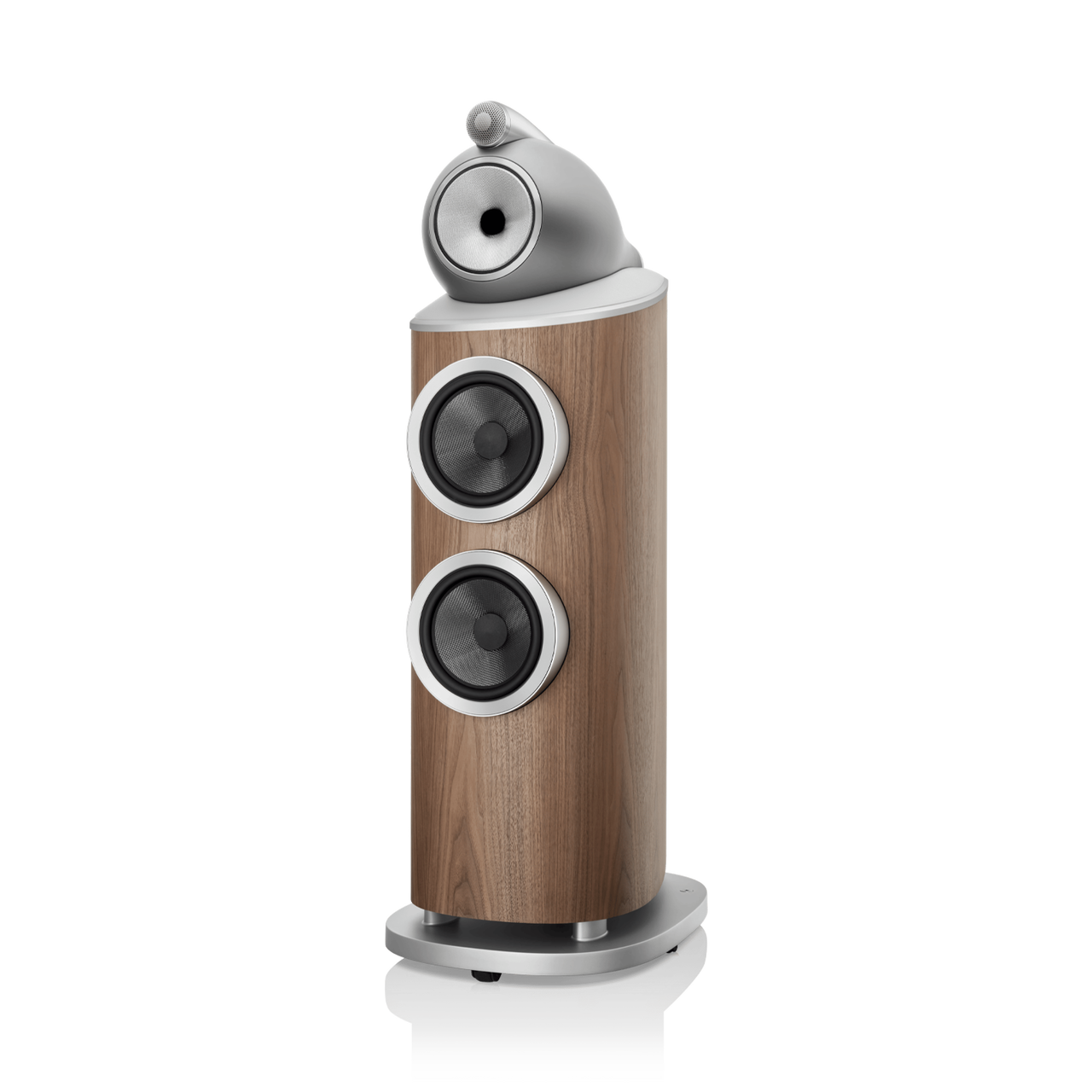

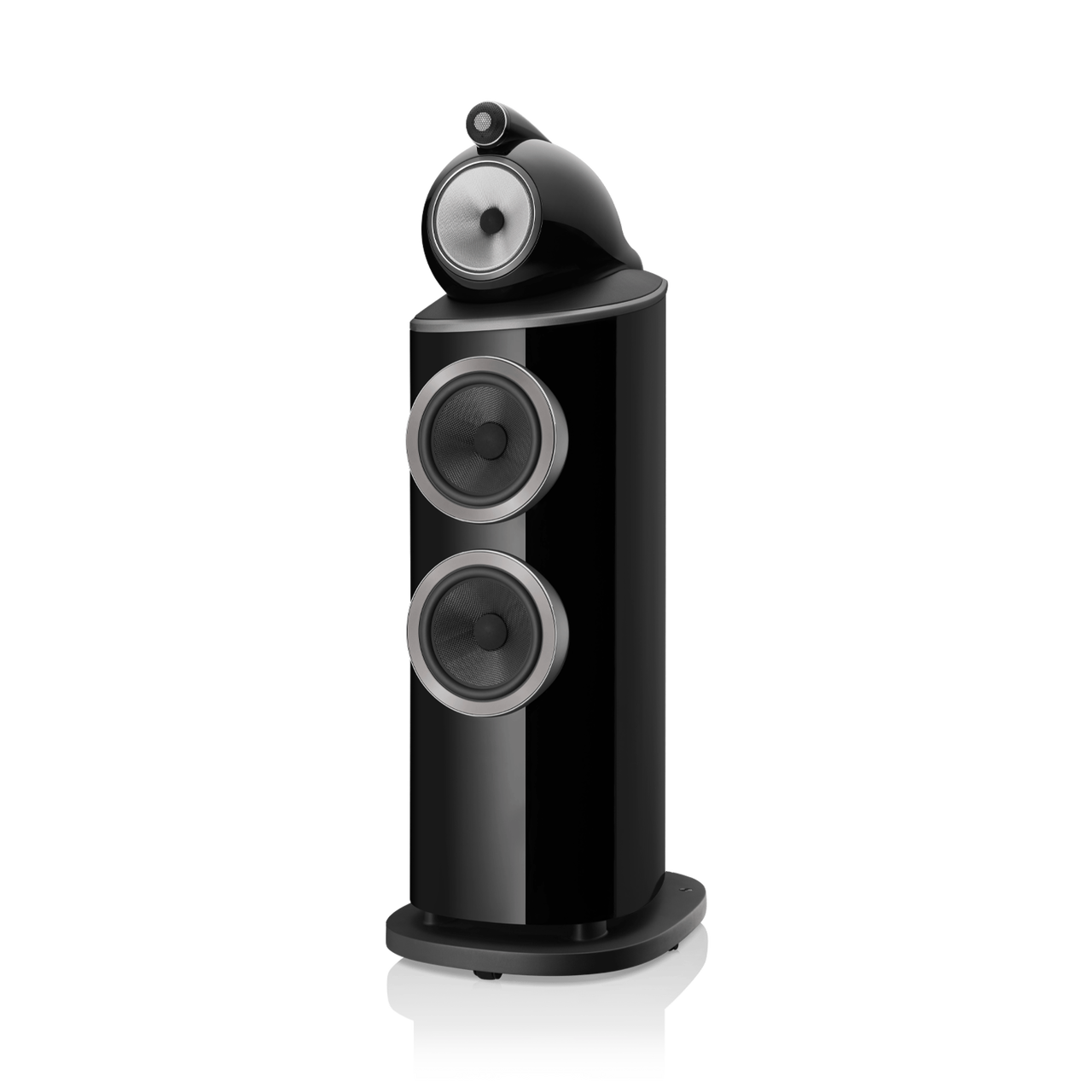

The 802 D4 offers fantastic value, utilising the same turbine head and midrange drive unit as the reference 801 D4, it is just the twin bass units that are reduced in size down to 8-inch Aerofoil cones.

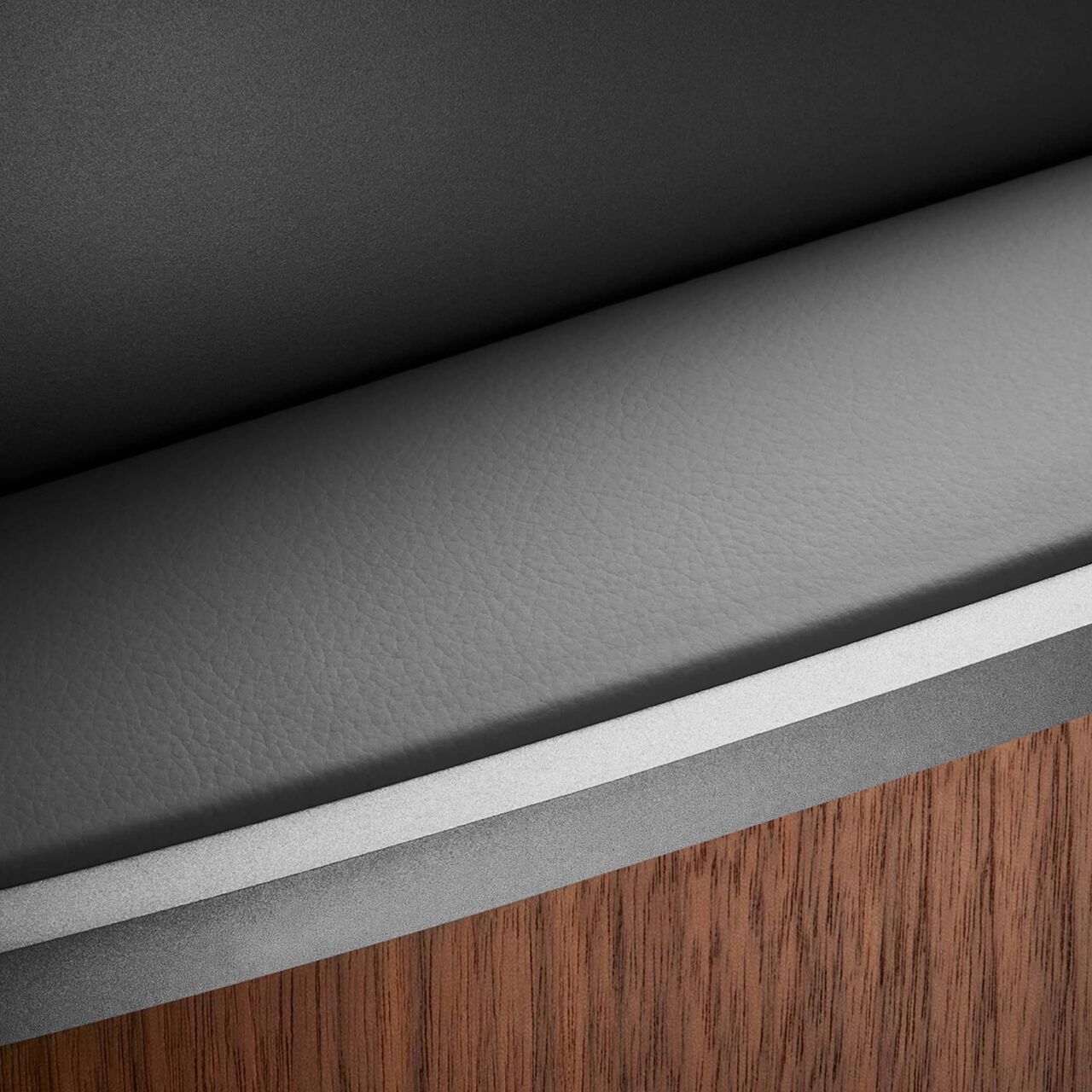

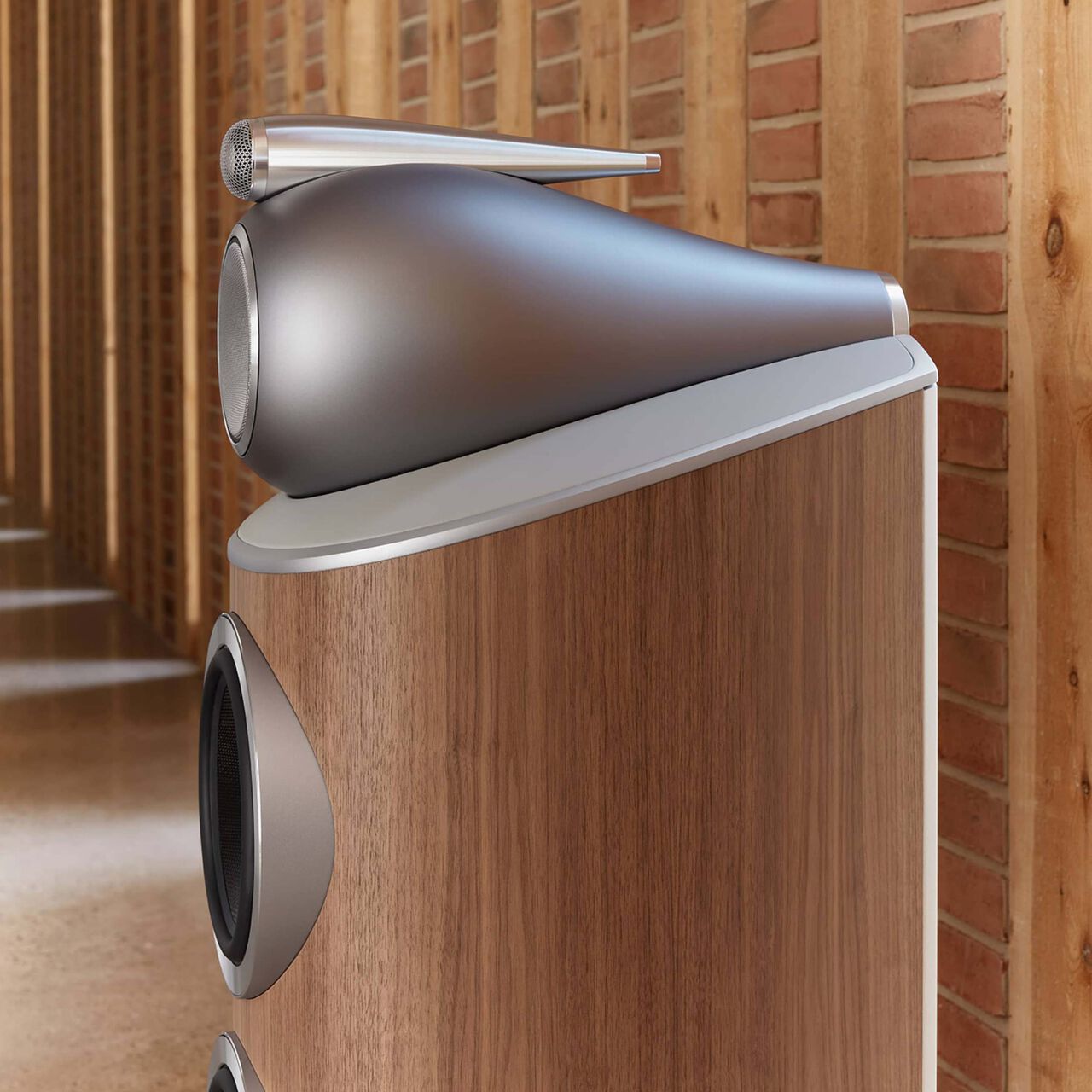

The 802 D4 model has seen some significant upgrades to its cabinet design, with an all-new aluminum top plate providing greater stiffness and less colouration, and as a result, even more realism to your music. Every aspect of the 800 series design was examined for potential audio gains but also some nice aesthetic touches as well, the new aluminum top plate proved to be a perfect mounting point for a Leather covering by Connolly cabinet detailing, giving a fantastic look and finish to the 802 D4.

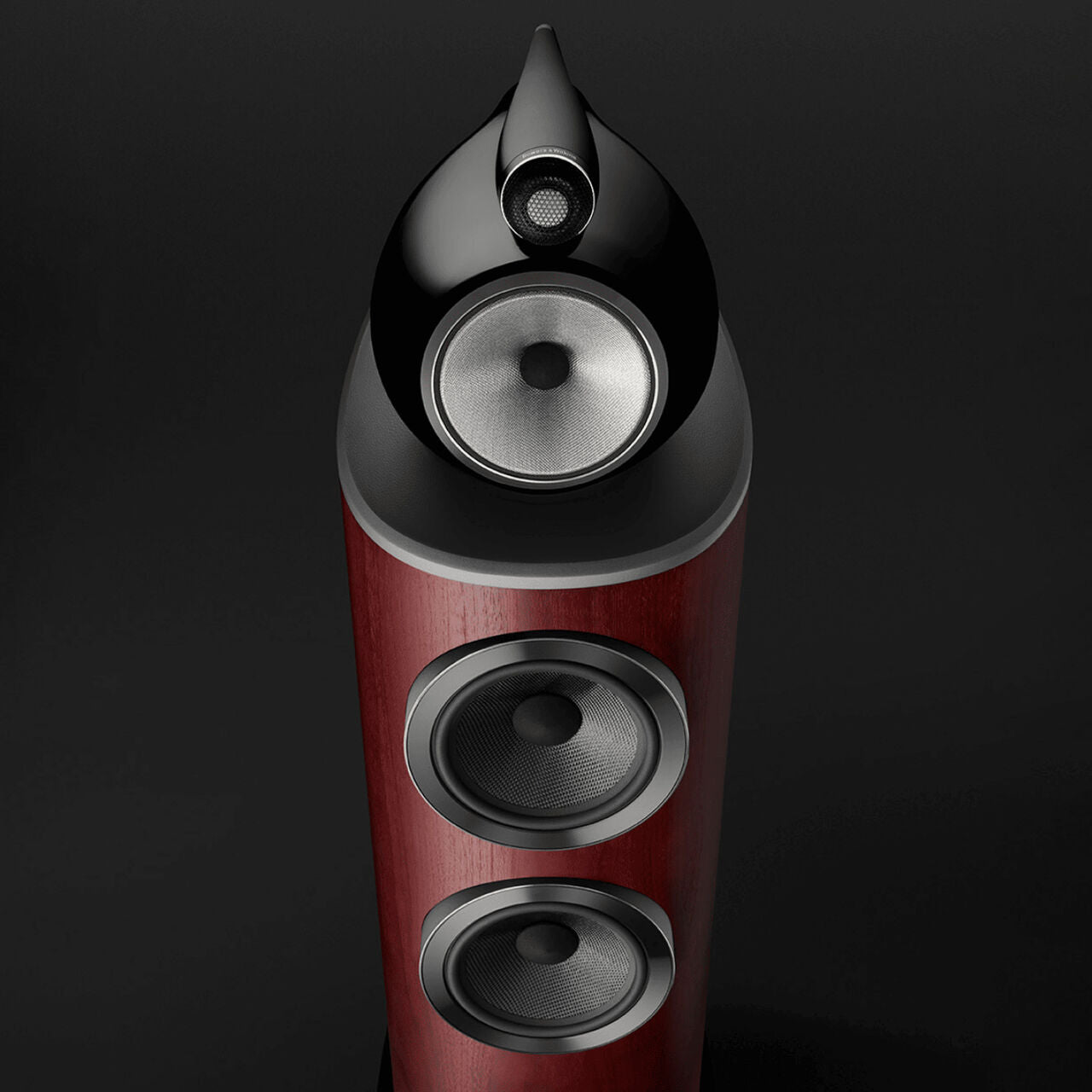

The dedicated mid-range cone uses four proprietary Bowers & Wilkins technologies: the Continuum cone, FST, Biometric Suspension, and midrange decoupling, the latter ensuring minimal interference from the loudspeaker’s bass drivers.
Nintronics will have the full 800 D4 series on demonstration, so feel free to give us a call on 01707 320 788 or drop us an email at sales@nintronics.co.uk to book an appointment or discuss our fantastic trade-in incentives.
Specifications
Specifications
Technical features | Diamond tweeter |
Solid body Tweeter-on-Top | |
Continuum cone FST™ | |
Anti-Resonance plug | |
Biomimetic Suspension | |
Turbine Head Matrix™ | |
Aerofoil cone bass units | |
Flowport™ | |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1in) diamond dome high-frequency |
1x ø150mm (6in) Continuum cone FST™ midrange | |
2x ø200mm (8in) Aerofoil cone bass units | |
Frequency range | 14Hz to 35kHz |
Frequency response (+/-3dB from reference axis) | 17Hz to 28kHz |
Sensitivity (on axis at 2.83Vrms at 1m) | 90dB |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) |
<1 % 70Hz – 20kHz | |
<0.3% 100Hz – 20kHz | |
Nominal impedance | 8Ω (minimum 3.0Ω) |
Recommended amplifier power | 50W – 500W into 8Ω on unclipped programme |
Max. recommended cable impedance | 0.1Ω |
Dimensions | Height: 1218mm |
Width: 413mm | |
Depth: 602mm | |
Net weight 88.10kg |
