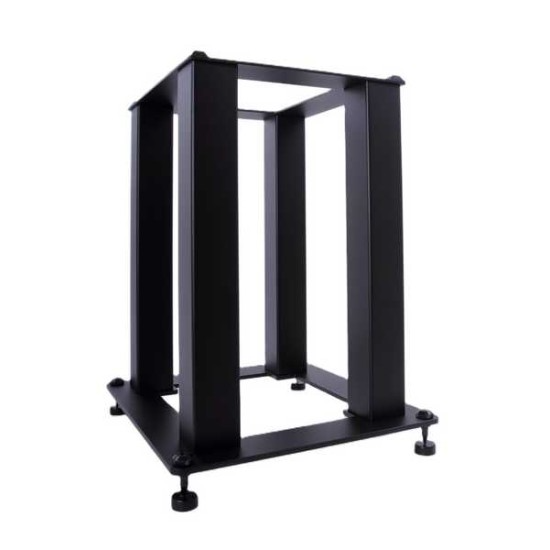

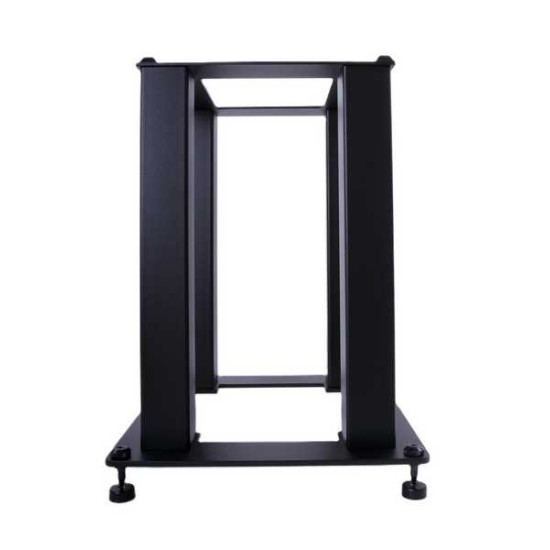

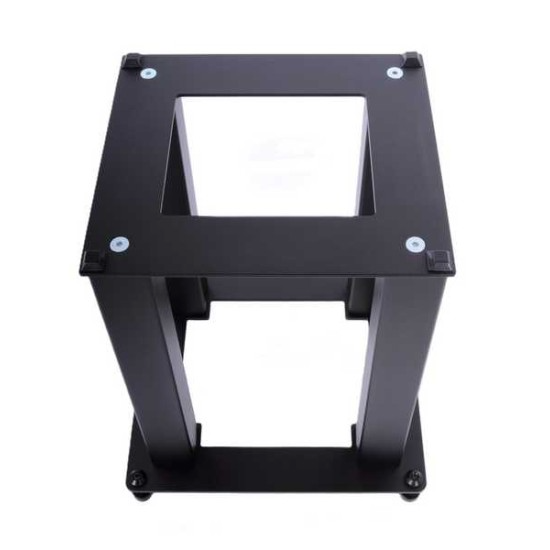

Custom Design OM 44 S Speaker Stands

Description

Speaker Stands OM S speaker stands Custom Built OM S Speaker Stands 4mm Acoustic Steel Top Plate Isolation 6mm CR4 Steel Isolation Base Plate Speaker Stand Support Custom Built OM S Speaker Stands Mass Loading Speaker Stands Book Shelf Speaker Stands Stand Mount Speaker Stands OM S Speaker Stands custom built All Design Copyright © to Custom Design (Newcastle) 2024


The OM 44 S Speaker Stands have been designed especially for the Spendor Classic speaker range with a quadrifid design available as standard 410mm high plus the base isolation spike at 25mm and manufactured with ERW 50.8mm x 50.8mm mild steel supports.
The OM 44 S speaker stand design includes 4mm Inert Acoustic steel isolation top plate and a 6mm CR4 steel base plate, when combined with zinc plated, allen key adjustable M8 base isolation spikes and M8 fixing bolts provide  total joint rigidity. The hand finished, polished acoustic steel isolation plates connect to ERW BS EN 10305-3 steel 50.8 x 50.8mm tubes, as standard for sound quality and as part of the Custom Design attention to detail philosophy.

Custom Design  manufacture the exclusive, world renowned, Inert, Acoustic Steel and Acoustic Aluminium products for total hifi isolation stands. The OM 44 S Speaker Support Stand Range are manufacture by the craftsman at Custom Design, creating a totally isolated, rigid speaker stand support with a medium, initial Mass, although this has been reduced by laser cutting the centre section of the acoustic steel top isolation plate and the CR4 6mm base plate

Please remember before Mass loading the speaker stand steel support columns with Inert Filler, we suggested you listen to your music and system first and if the bass frequency requires a little more control then add Inert Filler, which greatly increases the final mass of the speaker stand, which in turn could effect the bass frequency more depending upon the speakers design and manufacturer. Inert Filler 1.7kg per bag and 13.5kg per box

The modern, contemporary open frame design OM 44 S speaker stands have true aesthetics especially with the thin wall speaker cabinet design. When combined with Inert Acoustic steel Isolation Top plates and CR4 Steel Base plates the reduction in resonance noise vibration is significant, resulting in an improved performance and sound quality. Please visit our Acoustic Steel page to view the graph demonstrating which frequencies of resonance vibration noise are absorbed by each process and the combination of Acoustic Steel top and base plates with our specially selected Inert Filler material

OM 44 S (Open Frame Medium Mass) Speaker Stands with 50.8 x 50.8mm supports.

OM 44 S Speaker Stands are supplied as standard with Inert Acoustic Steel Isolation Top plates and 6mm CR4 steel Base plates.
OM 44 S Top Support 270mm wide x 300mm depth  x 4mm Acoustic Steel
Base Plate dimensions 320mm x 350mm x 6mm CR4
M8 Black zinc plated, Allen key Adjustable base isolation spikes supplied as standard with complimenting spike covers

20mm x 20mm x 8mm hifi isolation pads supplied as standard
Standard height available 410mm  Custom Heights available on request 435mm including base isolation spikes
Standard finishes: Black
