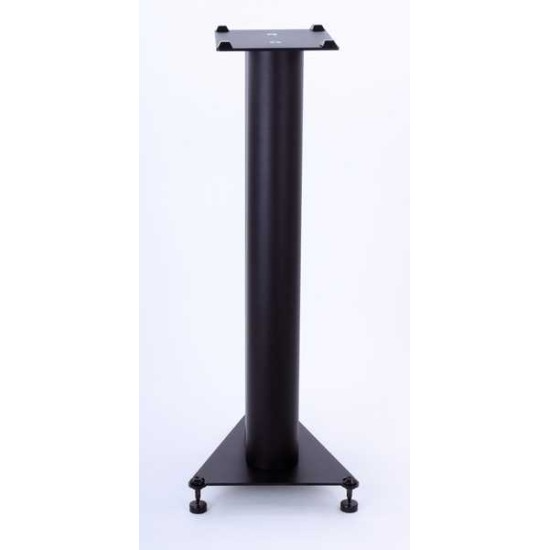

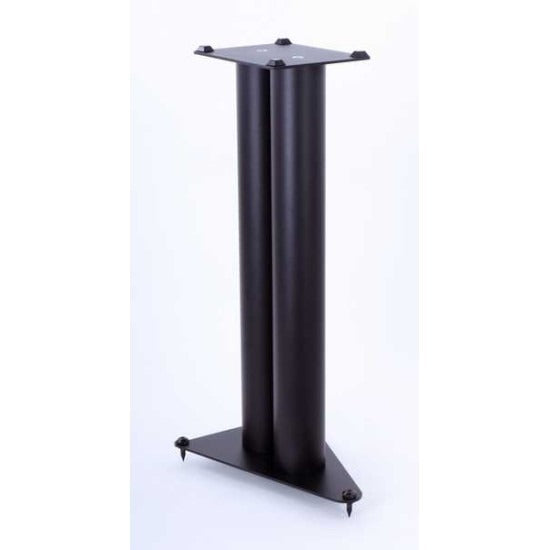

Custom Design TRS 302 Speaker Stands

Description

TRS 302 Speaker Stands (New) Design for optimum performance Tri point Isolation Speaker Stands Acoustic Steel Isolation Top Plate 160 x 210 x 4mm Acoustic Steel hifi Isolation Platform Speaker Stands TRS 302 Speaker Stand Support TRS 302 Range  Design Copyright © to Custom Design (Newcastle) 2024

The TRS 302 Speaker Stand have been designed and manufactured by the skilled workforce at Custom Design. The tri point isolation design includes a 4mm Inert Acoustic Steel Isolation Top Plates, 4mm CR4 steel base plates for a superior finish and zinc plated M8 fixing bolts for total integrity and joint rigidity as standard. Hand polished steel plates connect to the ERW BS EN 10305-3 Steel 76mm tubes, reflecting the attention to detail and standards of quality that Custom Design provide to all of their customers. Custom Design manufacturer in house the world renowned Inert, Acoustic Steel isolation and Acoustic Aluminium isolation products. All acoustic steel or acoustic aluminium products are not made for or by any other companies except Custom Design.

The Tri Point Base isolation TRS 302 Speaker Support Stand Range provide substantial strength and integrity. By combining the ERW BS EN 10305-3 76mm steel tube support columns with 4mm Acoustic steel isolation top and CR4 steel base plates. Custom Design have created a discrete, rigid tri point isolation speaker stand support with an initial mass of 12kg per pair. Mass loading the support columns with Inert Filler adds a further 13kg to the final mass, we recommend at least 2 bags of Inert Filler per support column, enhancing the performance of your TRS 302 Speaker Stands. If the bass frequency requires more control then add the Inert Filler in small increments of 500g until the bass frequency has been fine tuned your speaker cabinet characteristics.  When combined with our unique inert Acoustic Steel Isolation Top plates and the 20mm x 20mm x 8mm isolation pads the reduction in resonance vibration noise is significant, resulting in an improved performance and sound quality. Please visit our Acoustic Steel page to view the graph demonstrating which frequencies of resonance vibration noise are absorbed by each process and the combination of Acoustic Steel top and base plates with our specially selected Inert Filler.
Standard finishes include Black or White

TRS 302 Speaker Stands Acoustic Steel Isolation Top Plates supplied standard.
TRS 302 Top Supports are 160 x 210 x 4mm - custom sizes available
TRS 302 Base Plate dimensions 240mm wide x 320mm depth x 4mm CR4 Steel for a superior finish

The base plate can be reversed to use which ever way our customers find most aesthetically pleasing

M8 Black Zinc Plated Allen Key adjustable Base isolation spikes supplied as standard

Complimenting M8 Black Zinc Plated Spike covers supplied as standard.

Support Columns manufactured from ERW BS EN 10305-3 76mm steel tube for greater Rigidity

Available heights 510mm (20") and 610mm (24")

Standard finishes: Black or White

2 Bags Inert Filler recommended per Centre Column support ( 610mm high ) If the bass frequency requires more control then add the Inert Filler in small increments of 500g until the bass frequency has been fine tuned your speaker cabinet characteristics.

Custom Design only recommend Inert Filler with all of our Custom Design range of Speaker Stand Supports. It is not a waste product, will not rust, kills voids to prevent resonance in all speaker stand support columns, easy to apply with a very high mass value, 1mm to 2mm particle size for perfect mass loading of speaker stand supports

Inert Filler optional extra £5.99 per bag or £39.99 for box of 8

20mm x 20mm x 8mm Black Isolation Pads supplied as Standard
