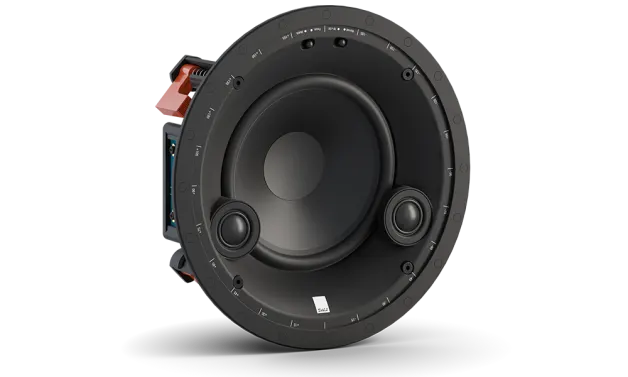

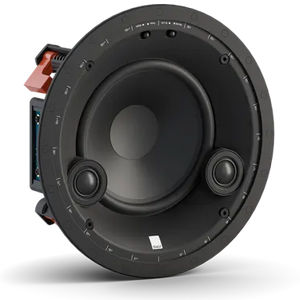

Dali Phantom E-60 S In-Ceiling Speaker
Dali Phantom E-60 S In-Ceiling Speaker
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
- 5 year Warranty
Pay in 3
Pay in 3Share
Details
Description
The PHANTOM E-60 S is our first in-ceiling stereo speaker. Featuring two 20 mm tweeters, its compact size is well suited to small to medium-sized rooms or as height speakers in a multi-channel setup.
Easy Installation
The dogleg mounting system makes for quick installation: simply turn the screws to rotate the brackets and fasten them into place.
Discreet Design
The thin magnetic front grilles integrate seamlessly into any home environment.
Functional Flexibility
The PHANTOM E speaker can be adjusted to deliver room-filling off-axis audio to almost any listening space.
Wide Dispersion
Wide dispersion DALI speakers ensure a larger sweet spot to enjoy the best sound experience. Especially for in-wall and in-ceiling speakers.
IN-CEILING HEIGHT SPEAKER
Great stereo in small to medium sizes
The new PHANTOM E-60 S stereo speaker builds on the heritage of the highly acclaimed DALI PHANTOM E-60 in-ceiling speaker. Featuring two 20 mm soft dome textile tweeters, you will experience a wider than average audio experience from this true stereo speaker. Two switches ensure that both channels can be tuned for the acoustics of your listening room, resulting in fantastic integration and a high level of detail. The PHANTOM E-60 S delivers great stereo sound in small to medium sized rooms and can also be used as a height speaker in a multichannel setup.
DESIGN DETAILS
Every detail thought through
Thick edges around the PHANTOM E-60 S baffle offers tight and secure mounting and improves the overall strength and rigidity of the speaker, while the dogleg mounting system makes installation a simple one-step action. At the front, the stylish and discreet grille design helps the PHANTOM E-60 S integrate perfectly into any room.
HIGH QUALITY CROSSOVER
Made from audiophile components

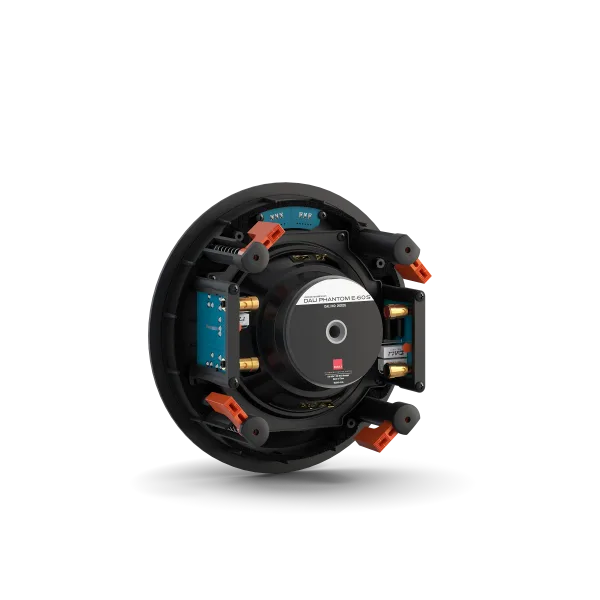

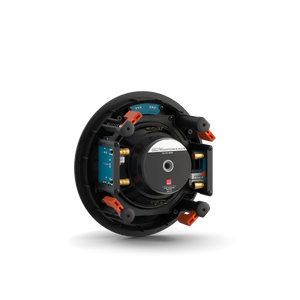

Designed specifically for this speaker, the components used for the PHANTOM E-60 S crossover has been chosen for their audiophile quality. The signal path is a dual-mono construction with separate inputs and crossover circuit boards for each channel, and the internal wiring is optimised for the speaker design and secured to eliminate the possibility of rattling. The speaker terminals are also located on the crossover for the shortest possible signal path, while the spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.
TWIN TWEETERS
Delivering high-frequency performance
The two 20 mm ultra-lightweight soft dome tweeters coupled with the polypropylene woofer from the other PHANTOM E series speakers ensure a compact, high quality, two-way, two-channel performance. The 144 mm distance between the tweeters also helps to maximiser the stereo performance.
POLYPROPYLENE WOOFER
Designed with low loss principles
To ensure the best balance between durability and great audio reproduction, the 6½" woofer features a polypropylene cone. The woofer is also tilted and angled to improve directionality and soundstaging. Every part of the woofer has been designed according to our low loss principles, so even smaller amplifiers can combine with the PHANTOM E-60 S to deliver a high-quality audio experience.
Specifications
Specifications
| Product series | PHANTOM E-60 S |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 57 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] | 90.0 |
| Nominal Impedance [ohms] | 2 x 8 |
| Maximum SPL [dB] | 105 |
| Recommended Amplifier Power [W] | 2 x 20-80 |
| Crossover Frequency [Hz] | 2,600 |
| High frequency driver, Quantity | 2 x 20 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 x 6½" |
| Low frequency driver, Diaphragm type | Polypropylene Cone (Dual voice-coil) |
| Enclosure type | Open back |
| Connection Input | 2 x Single Wire |
| Recommended Placement | In-Ceiling |
| Functions | 2 x Normal/HF+ |
| Dimensions (ØxD) [mm] | 250 x 99.5 |
| Cut-Out Dimensions (ØxD) [mm] | Ø225 |
| Accessories Included | Cut-Out Template Front Grille Logo Badge Manual |
| Optional Accessories | Square Grille |
| Weight [kg] | 2.0 |
