Description
The DALI PHANTOM H-60 in-wall speaker delivers the perfect balance between size and performance. Featuring a 6¬Ω" woofer and designed for in-wall use, the PHANTOM H-60 performs equally as well as an in-ceiling speaker.
A TRUE FULL-RANGE SPEAKER
Perfect balance in size & performance
With the PHANTOM H-60, you get a loudspeaker with the perfect balance of size and performance, bringing a complete audio experience to medium sized rooms and home cinemas. It's an in-wall speaker built around innovative loudspeaker technologies, such as our signature woofer cone made from a mix of paper pulp and wood fibre. The PHANTOM H-60 is a true full-range loudspeaker and needs no additional subwoofer – it's all about Hi-Fi sound, versatility and flexibility.
COMPACT DESIGN
Details designed for optimal integration

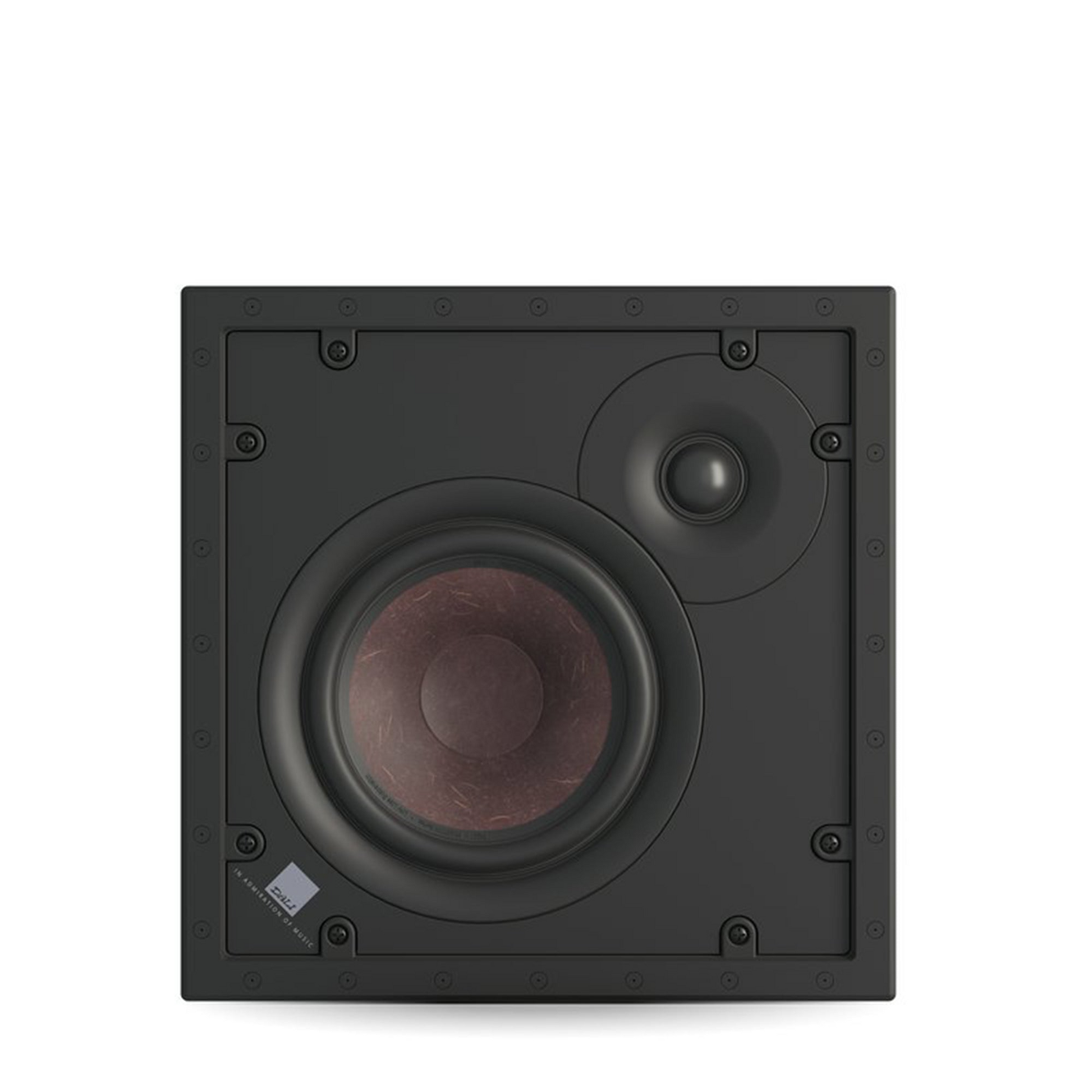

Bringing the virtues of traditional cabinet speaker design to in-wall speakers, the DALI PHANTOM H-60 combines compact design with Hi-Fi performance. The drivers are securely mounted in the solid MDF front baffle with the tweeter placed close to the woofer for optimum integration. Installing the PHANTOM H-60 is also quick and easy, thanks to the dogleg mounting system that secures the speaker in place in seconds.
HIGH QUALITY CROSSOVER
Made from audiophile components

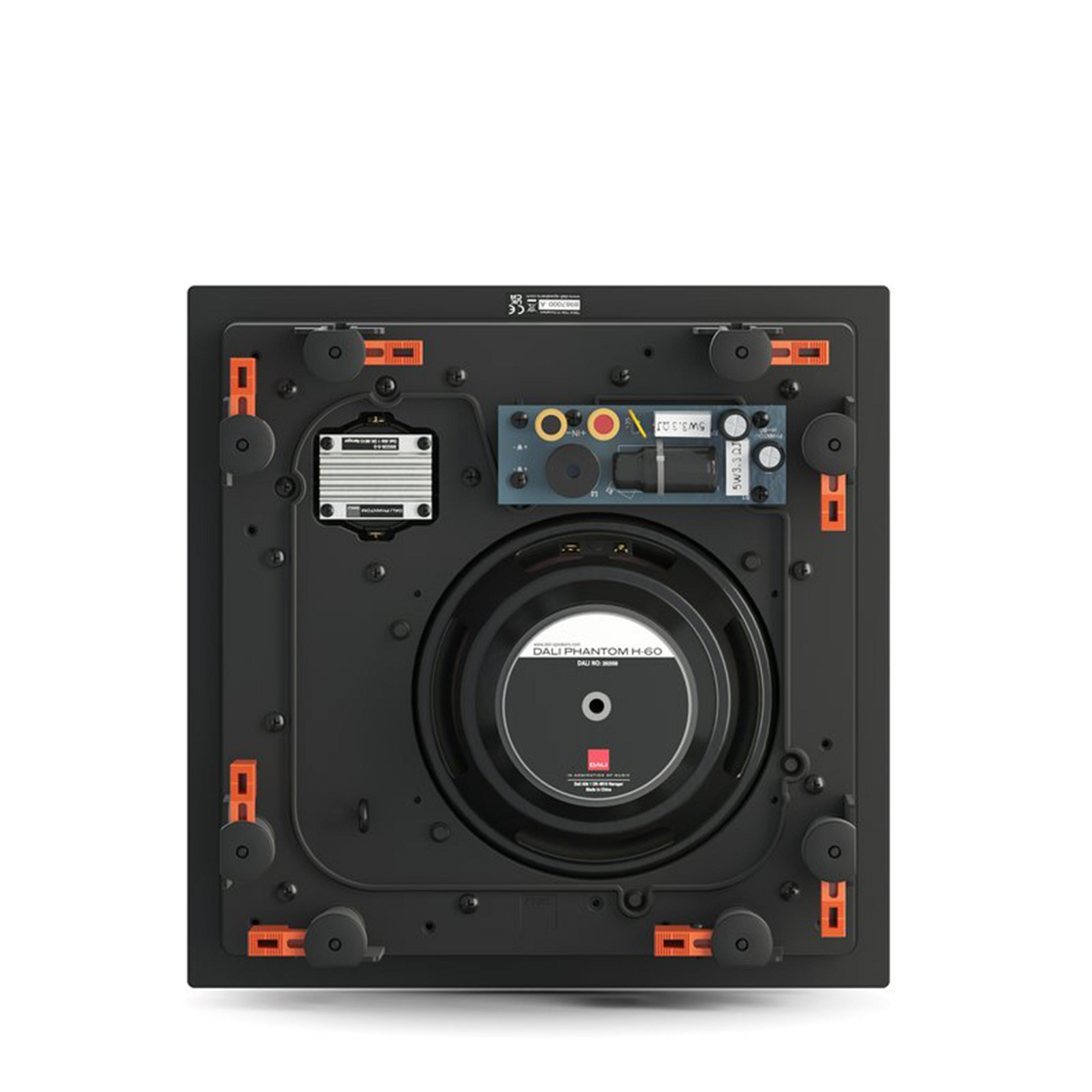

Every crossover component has been selected for its audiophile quality. The crossover includes a PPTC (Polymeric Positive Temperature Coefficient device) safety function – also referred to as a resettable fuse – which safeguards the driver components from overheating if played at very loud volumes over a long period. The speaker terminals are also located on the crossover for the shortest possible signal path, while spring-loaded grips ensure a solid and long-lasting connection to the speaker cable.
LIGHTWEIGHT SOFT DOME
Detailed frequency & woofer integration
The ultra-lightweight weave fabric and high-performance magnet motor system endow the 28 mm soft dome tweeter with more accuracy and detail in the high frequencies than other tweeter designs. By positioning the tweeter front plate near the dome, the PHANTOM H-60 combines extended frequency response with wide dispersion and low colouration to improve the integration with the woofer.
WOOD FIBRE CONE
High-resolution midrange & coherent bass
A true Hi-Fi speaker can deliver a believable soundstage and render even the smallest microdetails without colouration. Using our signature wood fibre cone technology, the PHANTOM H-60 woofer reproduces every small detail in the music, delivering high resolution midrange and precise, coherent bass.
Wide dispersion
Easy integration in any room
All DALI speakers are designed around the principle of wide dispersion, which optimises off-axis listening to give a larger sweet spot and a better audio experience throughout a room. This principle is the perfect solution for PHANTOM series speakers, which are mounted flush with the surface of a wall or ceiling.
Specifications
Specifications
| Product series | PHANTOM H-60 |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 51 - 25,000 |
| Sensitivity (2,83 V/1 m) [dB] | 89.0 |
| Nominal Impedance [ohms] | 6 |
| Maximum SPL [dB] | 107 |
| Recommended Amplifier Power [W] | 30 - 150 |
| Crossover Frequency [Hz] | 1,900 |
| High frequency driver, Quantity | 1 x 28 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 x 6½" |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Open back |
| Recommended Working Volume | 10 - 35 L |
| Connection Input | Single Wire |
| Recommended Placement | In-Wall In-Ceiling |
| Dimensions (HxWxD) [mm] | 300 x 300 x 95 |
| Cut-Out Dimensions (HxWxD) [mm] | 264 x 264 |
| Accessories Included | 3mm Allen Key Cut-Out Template Logo Badge Manual |
| Weight [kg] | 2.60 |
| Recommended Volume [litre] | 10 - 35 |
