Emotiva XPA C Gen3 Compact Chassis Power Amplifier
Emotiva XPA C Gen3 Compact Chassis Power Amplifier
Couldn't load pickup availability
- Pay in 3
Share
Details
Description

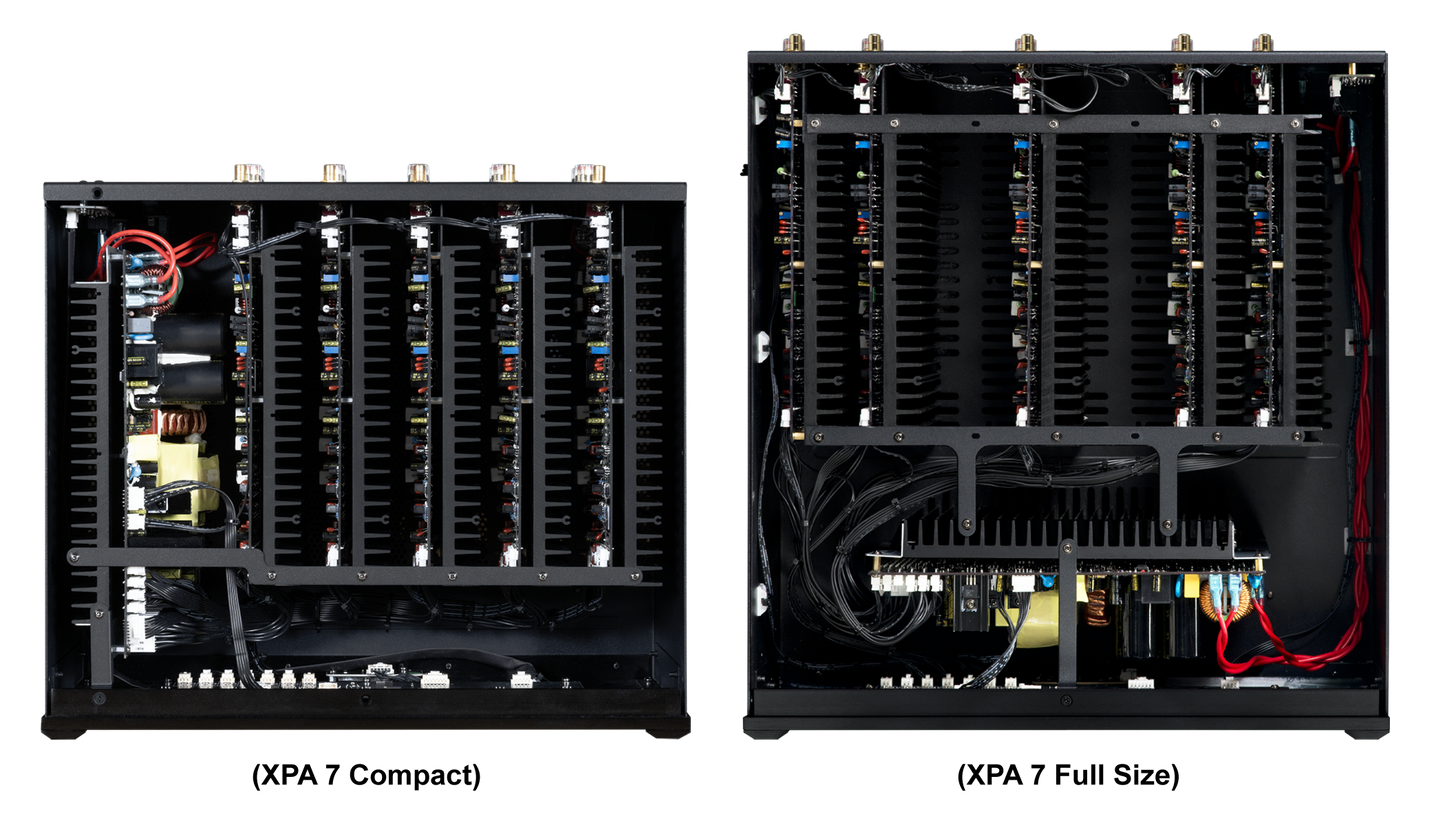

Introducing the new XPA Gen3 Modular Amplifier System, now with a compact 15" chassis designed to fit most modern home entertainment cabinets. Our innovative design allows you to mix and match mono and stereo modules within the 5 available bays, giving you the flexibility to configure the perfect amplifier for your needs. Whether you choose one of our popular pre-configured models or create a custom setup, the XPA Gen3 delivers exceptional technical performance and superb sound quality for both music and movie soundtracks in high-end home theater systems.

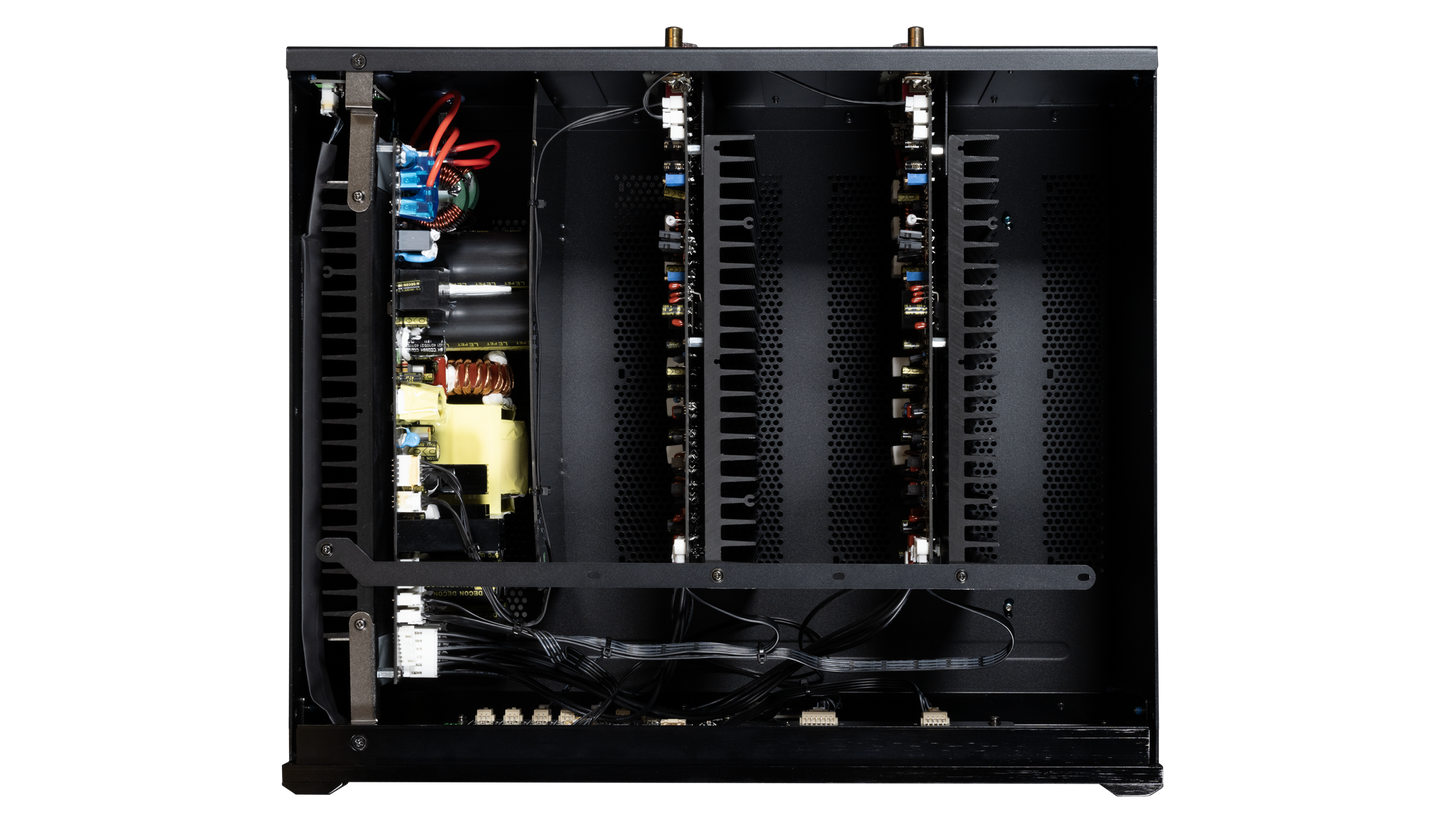

Each XPA C Gen3 chassis can accommodate between 1 to 5 modules, allowing for a combination of High-Powered Single Channel Modules and Stereo Modules. This modular approach provides unmatched flexibility, enabling you to build the exact amplifier configuration you need. Use our Channel Configuration selector to choose your ideal combination, with model numbers indicating the number of mono and stereo modules included.
The Power Supply: The Foundation of a Great Amplifier
At the heart of the XPA Gen3 is our new high-current switch mode power supply (SMPS), capable of delivering over 3 kW of continuous power with high efficiency and reliability. This advanced SMPS offers the dynamic attributes of classic transformer-based designs without the drawbacks, ensuring ample continuous and dynamic power for all amplifier modules.
The Latest in a Long Line of Great Amplifiers
The XPA Gen3 features a unique differential input stage with cross-linked current sources driving a balanced voltage amplification stage. This advanced circuitry ensures an accurate and pure audio signal, delivering a holistic, natural, and powerful listening experience. The wide bandwidth and low distortion performance reveal every nuance of high-resolution music sources, providing enough power to drive even the most demanding loudspeakers.
Class A/B Sound Quality Meets Optimized Class H Efficiency
Both amplifier modules in the XPA Gen3 utilize a fully analog Class A/B output stage powered by the Soft-Switch™ Class H power supply topology, enhancing efficiency without compromising audio quality. The Mono modules and Stereo Modules deliver independent channels of pure Class A/B audio power, perfectly matching the performance of each module.
The Benefits of a Dedicated Power Amplifier
Our dedicated power amplifiers, designed for single-purpose use, avoid the compromises inherent in multi-purpose components. The result is real-world power and fidelity that you can immediately hear and appreciate. The 3 kW switch mode power supply ensures tightly regulated continuous power and massive reserves of dynamic power, enabling our amplifier modules to perform to their ultimate potential.
Designed and Assembled in the USA with Globally Sourced Components
Designed, assembled, and tested in the USA, the XPA Gen3 uses premium components to deliver a reliable and refined system. Each amplifier is crafted with the finest materials and the latest technologies, embodying our commitment to world-class audio performance.
A new approach to amplifier design

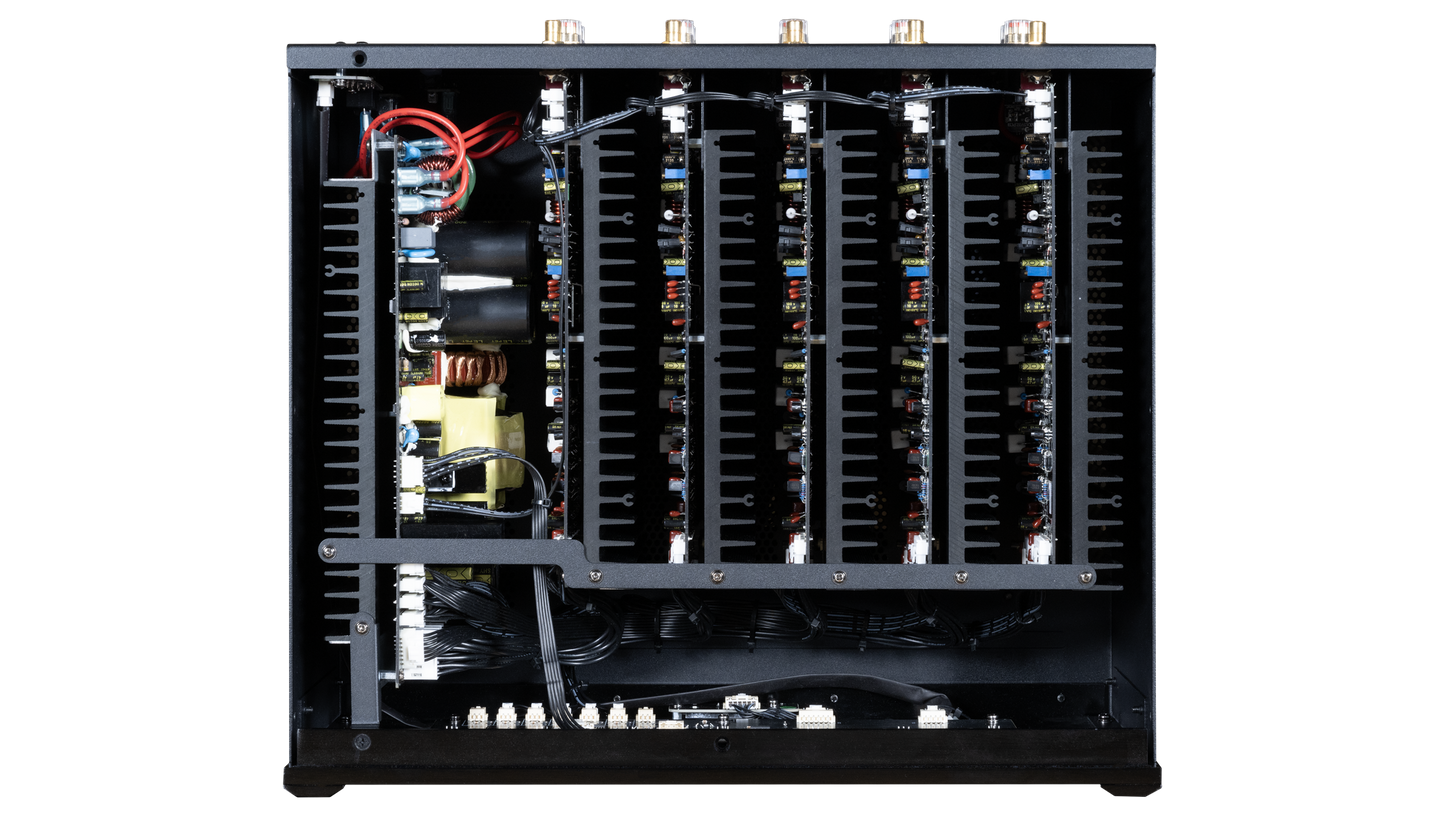

With the XPA C Gen3, we've taken amplifier design to a new level. By analyzing and improving every aspect of our previous models, we have created a foundation for our new line of audiophile amplifiers. The XPA Gen3 is a modular power amplifier housed in a heavy-duty chassis, featuring an oversized power supply and up to five amplifier modules. As your needs grow, additional modules can be installed to expand the system, ensuring you always have the perfect configuration.
Note: For optimal performance and reliability, amplifier modules need to be installed by Emotiva or an authorized Emotiva service representative.
Specifications
Specifications
| Circuit Topology | The XPA C Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection. The XPA C Gen3 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS). |
| Audio Specifications (High-Powered Single Channel Modules) | Power Output: 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven. 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven. 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven. |
| Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB). | |
| Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB. | |
| THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms. Signal to Noise Ratio (8 Ohm load): > 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted). Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads) Damping Factor (8 Ohm load): > 500 Input Sensitivity (for rated power; 8 Ohm load): 1.71 V Gain: 29 dB Input Impedance: 33 kOhms (balanced) 23.5 kOhms (unbalanced) |
|
| Audio Specifications (Stereo Modules) | Power Output: 65 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven 100 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven 65 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven 100 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven |
| Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB) | |
| Broad Band Frequency Response: 50 Hz to 80 kHz +0/-1.5 dB | |
| THD + noise: < 0.02%; at 60 watts RMS; 1 kHz; 8 Ohms Signal to Noise Ratio (8 Ohm load): > 105 dB; ref FTC rated power; unbalanced input (A-weighted) > 85 dB; ref 1 watt; unbalanced input (A-weighted) Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads) Damping Factor (8 Ohm load): > 500 Input Sensitivity (for rated power; 8 Ohm load): 0.8 V (800 mV) Gain: 29 dB 33 kOhms (balanced) 23.5 kOhms (unbalanced) |
|
| Maximum Power Consumption | Audio Specifications The Output Power your XPA Gen3 amplifier can deliver with all channels driven will depend on the total number and type of modules you have configured. The following list shows the power an XPA C Gen3 will deliver, all channels driven, into 8 Ohms, when configured with the indicated number of High-Powered Single Channel Modules. Populated with two modules: 300 watts RMS/channel continuous < 0.1% THD Populated with three modules: 275 watts RMS/channel continuous < 0.1% THD Populated with four modules: 260 watts RMS/channel continuous < 0.1% THD Populated with five modules: 250 watts RMS/channel continuous < 0.1% THD |

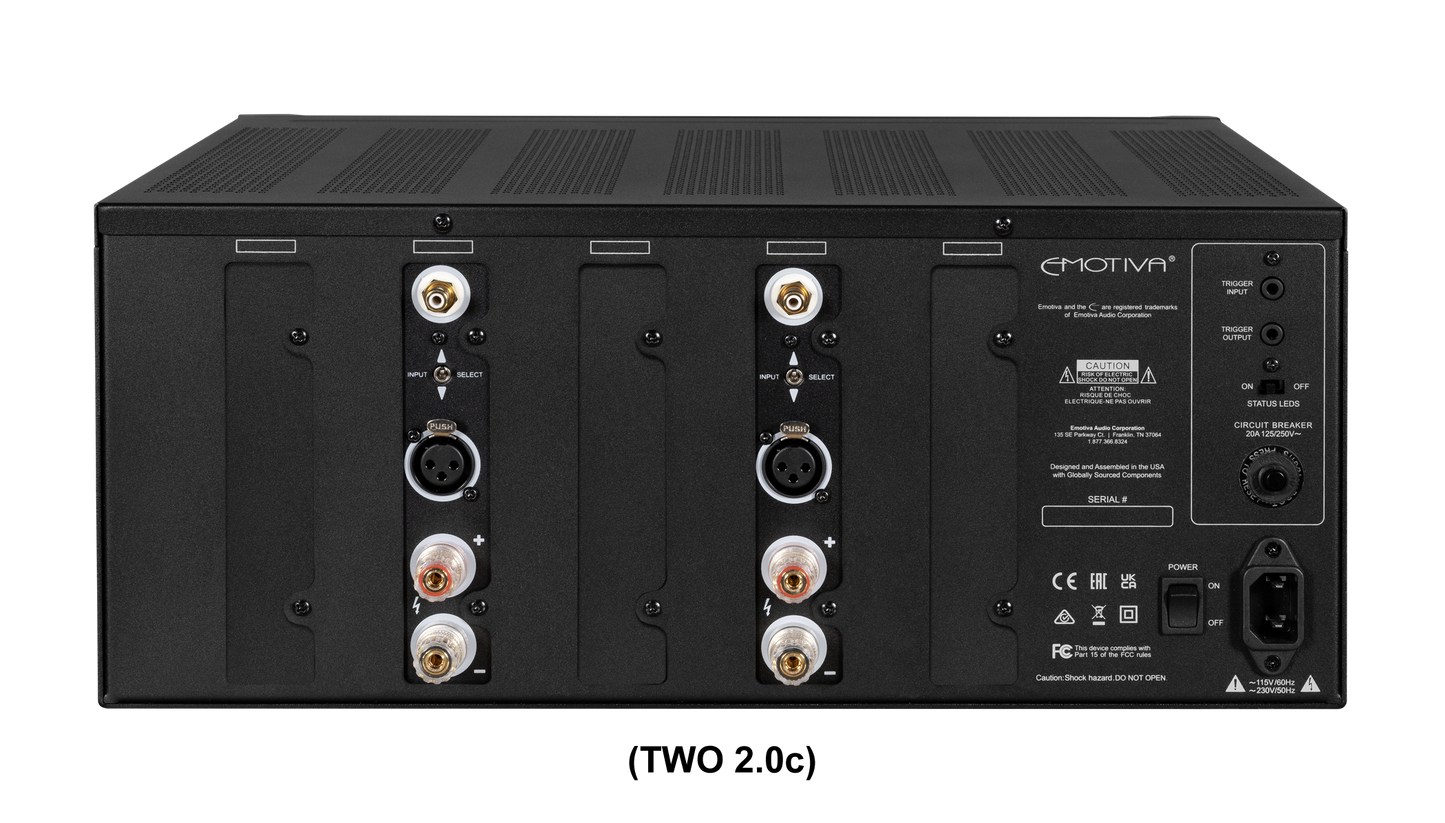

| Input And Output Connections | Input Connections (High-Powered Single Channel Modules): Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable. Input Connections (Stereo Modules): 2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts Trigger: Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required Trigger Output: 12 VDC; can drive any load up to 120 mA |
| Power Requirements | Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected) |

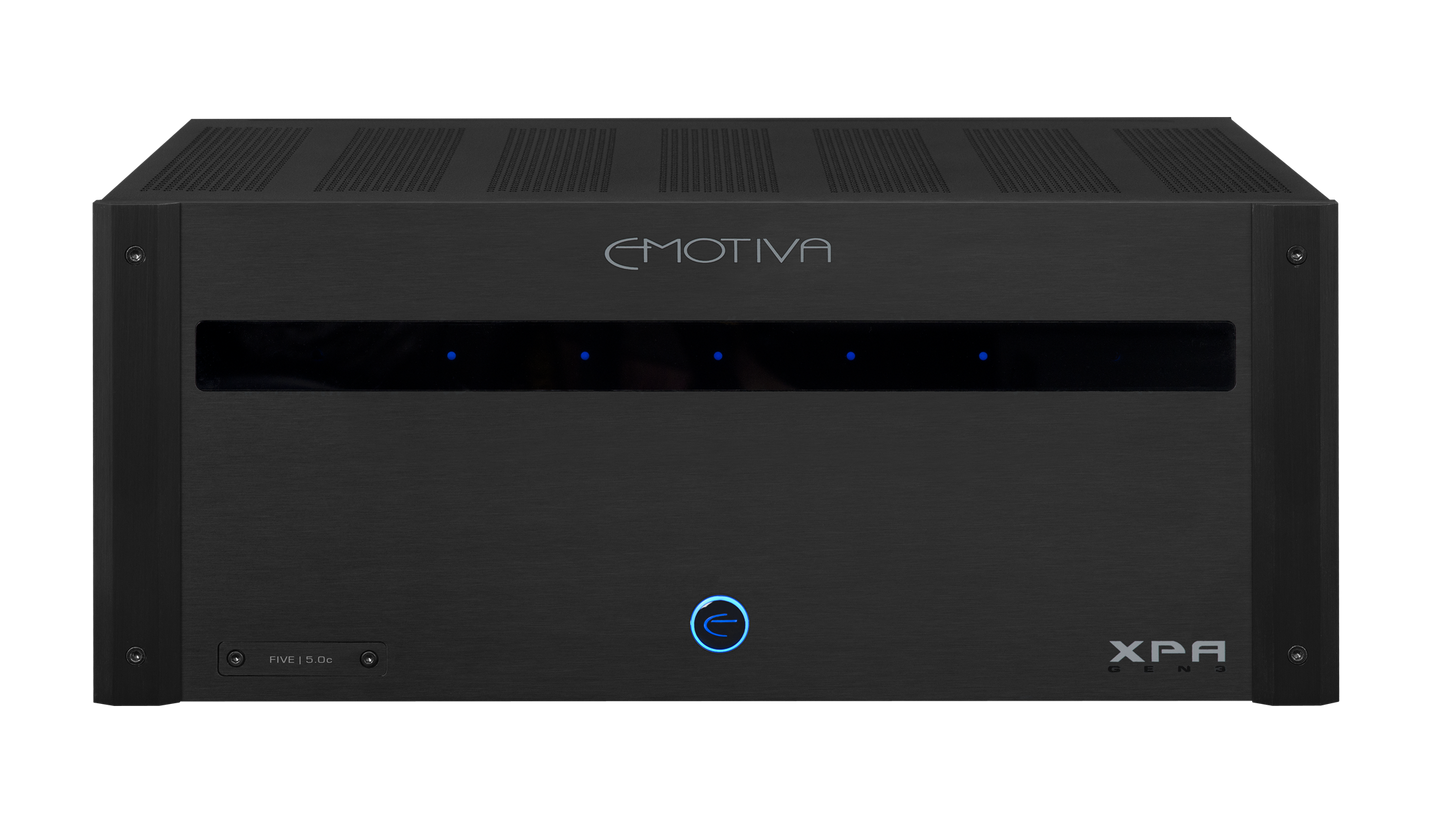

| Front Panel Controls and Indicators | Standby: push button (halo ring changes color to indicate Standby or On) Status LEDs: one per channel; blue Status LEDs change to red to indicate a fault condition |

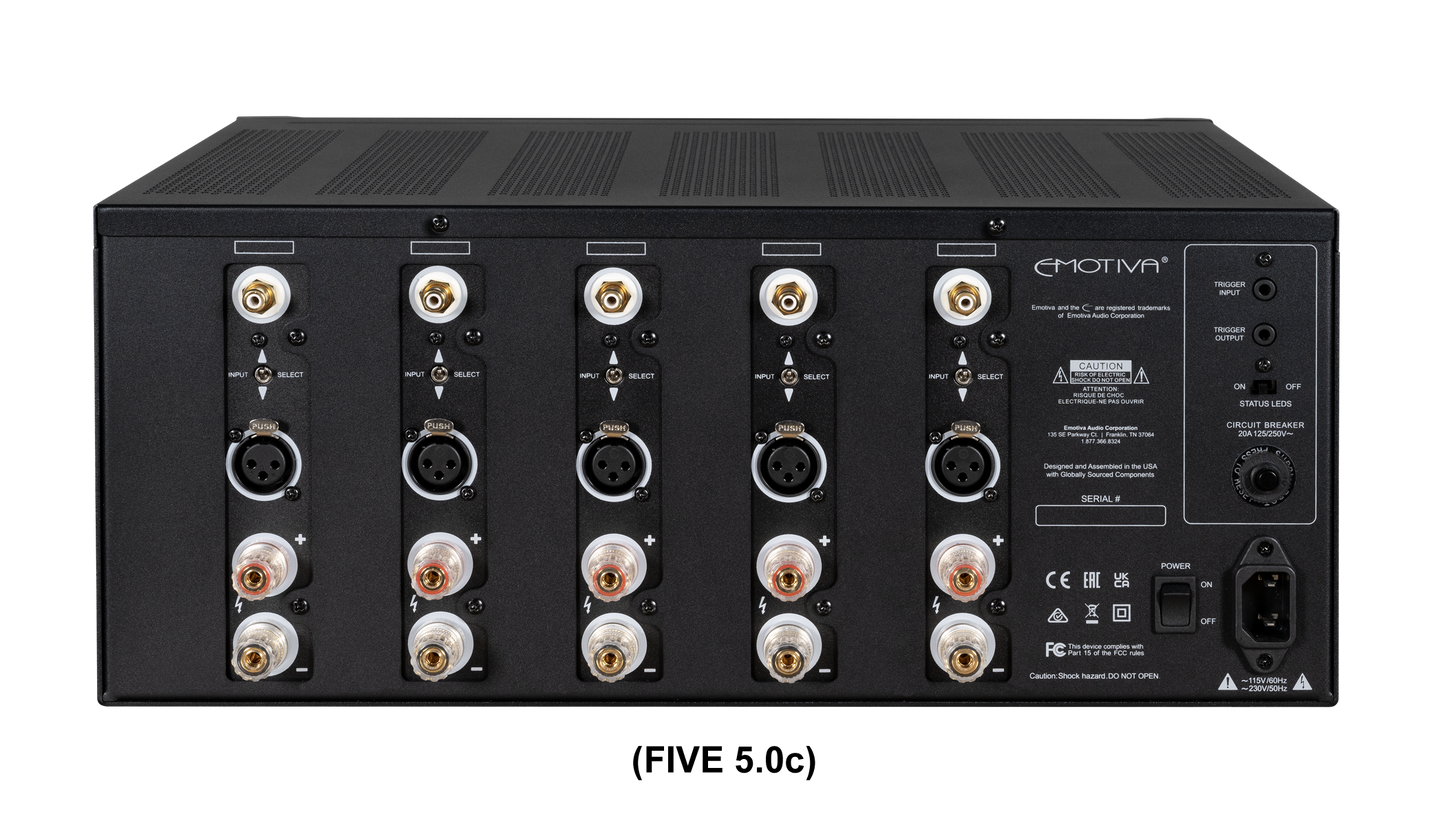

| Rear Panel Controls | AC Power switch: rocker switch (switches AC main power) Status LEDs switch: disables front panel Status LEDs and dims Standby button halo Input selector switches (one per channel): Metal toggle switches; select between balanced and unbalanced inputs Circuit Breaker: press button to reset circuit breaker |
| Protection | The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions. |
| Mechanical | Dimensions (dimensions are the same for all configurations): 17” wide x 8” high x 15” deep (unboxed; including feet) 17” wide x 7” high x 15” deep (unboxed; without feet) 24-1/2” wide x 12” high x 20-3/4” deep (boxed) Weight (weight will depend on the number of modules configured): - with 2 modules: 35.5 pounds (unboxed) - with 3 modules: 39 pounds (unboxed) - with 4 modules: 42.5 pounds (unboxed) - with 5 modules: 46 pounds (unboxed) * For boxed weight, add 5 lbs to the above weights |
