Gryphon Audio Essence PreAmplifier

Menu-Activated Functions

Maximum Level selects and stores in memory a maximum volume setting which cannot be exceeded, manually or by remote, until you re-set this function. This effectively protects your power amplifier and loudspeakers from expensive accidents.

Start-Up Level selects and stores in memory a default volume setting which will automatically be set by the preamplifier every time you turn it on.

Level Matching can be pre-set to automatically match the levels of your low-output and high-output sources. Matching is executed via the volume attenuator, with no additional components in the signal path.

Green Bias (active only when the Gryphon Essence is attached to a Gryphon Class A power amplifier via the Green Bias control link). Green Bias allows you to automatically switch between operation in 50%, 75% or 100% Class A with no sonic degradation.

Modular Options

The Gryphon Essence preamplifier offers the option of installing either a Gryphon PS2 phonostage or Gryphon ZENA DAC module at time of original purchase or at a later date. If your system consists of both analogue and digital sources, the DAC module can be installed and the Gryphon Sonett phonostage can be purchased as a stand-alone addition.

DAC Module

The Gryphon ZENA DAC module is the perfect match for the Essence preamplifier. With the module installed, the Essence display monitors the active digital input, sampling frequency, PCM/DSD format and selected digital filter setting.

At the time of original purchase or as the need arises at a later date, the Gryphon Essence can be fitted with a specially designed Gryphon ZENA DAC module based on the innovative, award-winning Gryphon Kalliope digital-to-analogue converter. The module adds four digital inputs (USB, balanced AES/EBU 115 Ω, TOSLink optical and BNC S/PDIF 75 Ω). USB can process PCM up to 32-bit/384 kHz as well as DSD (on Windows OS up to DSD512, on Mac OS up to DSD128, on Linux OS up to DSD128 DoP); via BNC S/PDIF and AES/EBU digital inputs up to192 kHz/32-bit PCM and via TOSLink up to 96 kHz/24-bit PCM. Format compatibility of the various inputs is subject to change without notice.

This future-proof digital module is ready for any current or foreseeable high resolution digital format.

PS2-S MM/MC Phono Module

Gryphon Audio Designs has consistently offered unwavering support to the LP format with high performance MC/MM phonostages as separate products or as optional modules for installation in preamplifiers and integrated amplifiers at all price points across our product range.

Based on the Legato Legacy phonostage, the Gryphon PS2-S MM/MC Phono Module is a true dual-mono design for enhanced channel separation, capable of extracting every musical detail for ultimate realism.

Nearly 40 years after the introduction of the compact disc, the LP still represents the largest selection of recorded music on any storage medium in human history. Therefore, we believe it is essential that Gryphon owners have full access to the artistic vision captured for all time by this true high-resolution format.

The Gryphon Essence preamplifier can be ordered with the PS2-S Phono Module factory-installed. The module can also be added later at a time of your choosing.

If the module slot in your Gryphon Essence preamplifier is already occupied by the Gryphon ZENA DAC Module, then the stand-alone Sonett Phonostage is recommended as a substantial upgrade for any system assembled to extract the very best from black vinyl grooves.

Style and performance

The peerless finish, build quality, ergonomics and pride of ownership that contribute to the totality of the Gryphon concept can only be fully understood and appreciated up close and in person. The distinctive, luxuriant finish of every Gryphon product arises organically out of the audio circuit design and the user interface for a truly unique integration of form and function.

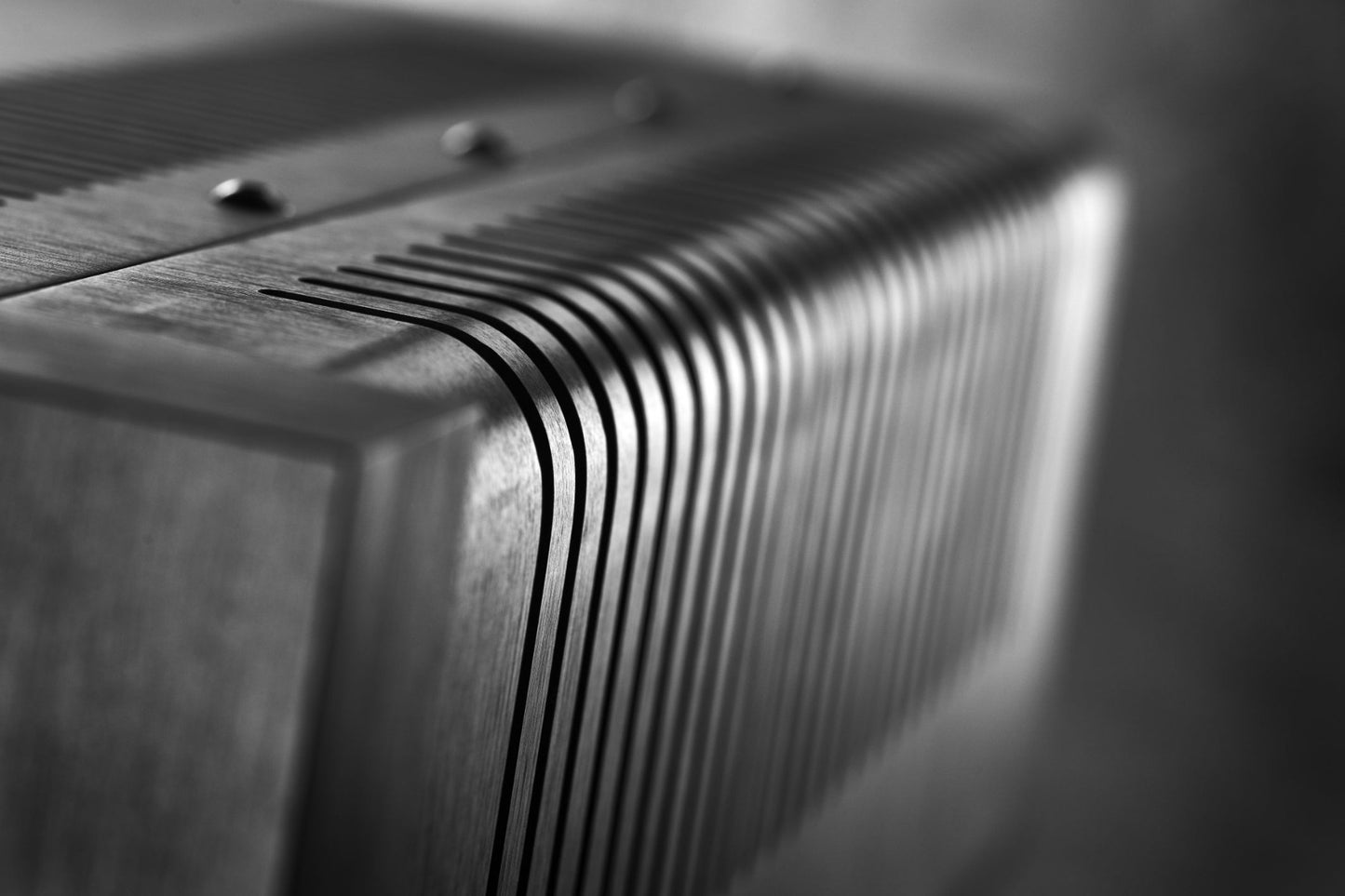

The exemplary build quality combines brushed, anodised aluminium with subtle black acrylic details for a highly refined aesthetic sensibility.

From the very beginning, every Gryphon product has offered stunning audio performance, sumptuous styling and superb user- friendliness, catering to the needs of the discerning audiophile who demands musicality, convenience and aesthetics, all without compromise.

Essence bass performance is simply superb: firm, well-defined, with massive attack, in a pure demonstration of power.

The wealth of detail and fine handling of bass and high frequencies contribute to the preamplifier’s ability to render the width and depth of a soundstage with three-dimensional realism and instrumental placement with great precision and realistic size.
