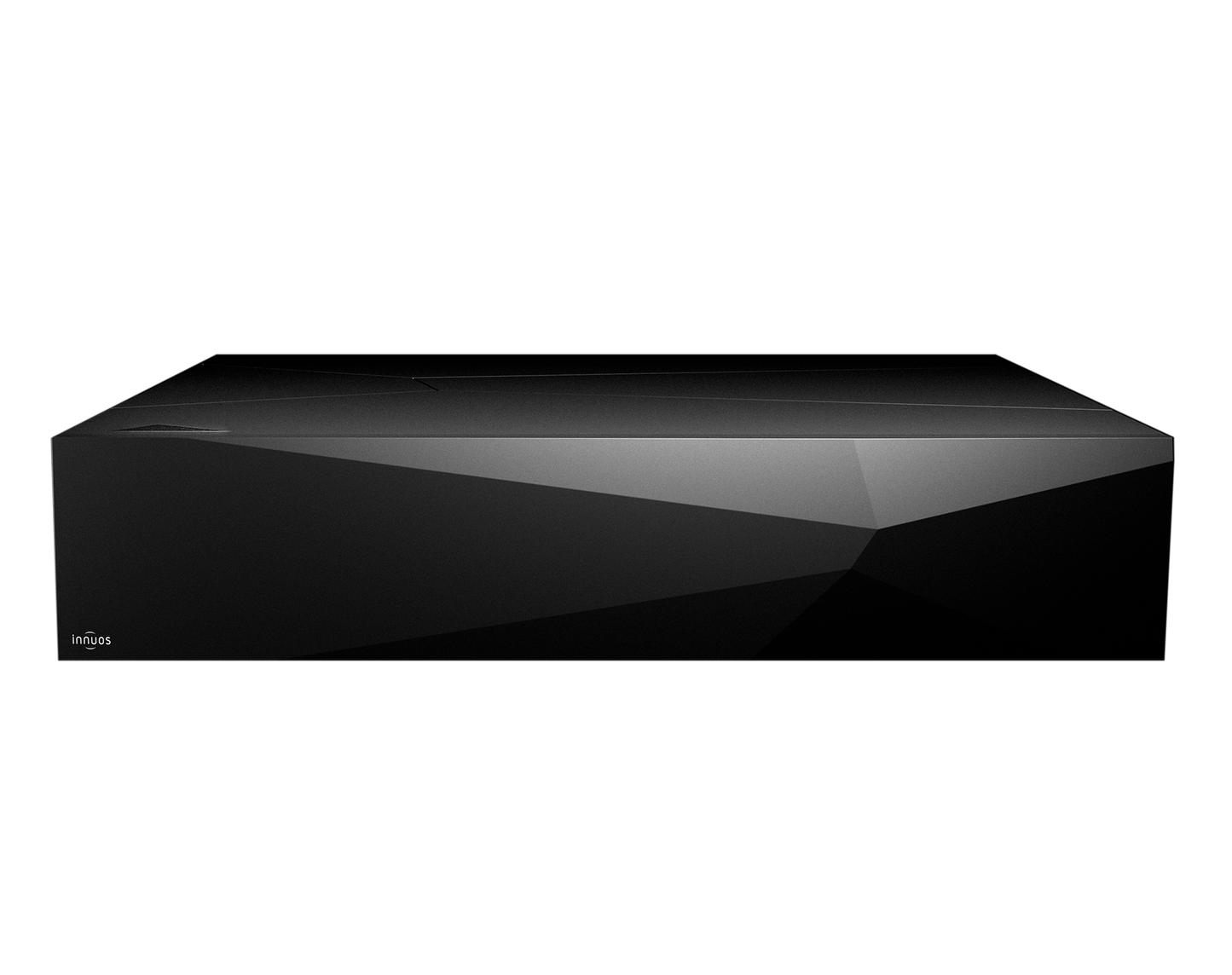

Innuos ZEN NG Music Server

Innuos ZEN NG Music Server

No reviews

Regular price £9,000.00
Regular price Sale price £9,000.00
Sale Sold out
    View full details

    Details

    Description

    ZEN NG

    Upgrade your streaming

    The digital source has become a known sight on Hi-Fi systems for its convenience. Almost all the music can now be accessible at the touch of a button. But playing sound is one thing and playing music is another. To get the true essence of the recording, your digital signal must be as pristine and well-timed as possible so your DAC can play at its best. Feed it with a noisy signal and that will just be amplified along the chain.

    A pristine digital signal requires a dedicated digital source, with meticulous detail starting from the ultra-low noise power supplies, through the custom processor boards and all the way to specific software development minimizing power noise during operation.

    The ZEN NG is the first model within the ZEN Series to include both new and trickled-down NG technology developments: our new cutting-edge Gallium Nitride regulated NGaN RECAP2 PSU, the new PreciseAudio custom mainboard, Sense 3 with real-time kernel together with AudioCore technology, selected industrial-grade low noise DDR4 RAM and a dedicated, direct-attached, ultra-low noise SSD for the Operating System to name just a few. Connect the ZEN NG to your DAC and be amazed at the difference.

    A new modular approach for storage and audio connectivity options creates a hugely versatile device; use just as a streamer with no on-board storage at all or as a music server with Sense or Roon Core with up to 16TB of seamless storage, whilst maximizing sonic output through your choice of optimal Digital Output Module – all housed in a new premium 10mm CNC-machined aluminium chassis. And if that's not enough, we have designed the ZEN NG to be upgradeable to a ZENith NG at any time.

    The new ZEN NG is a revelation in both sound, performance and flexibility.

    Main Features

    Innuos NGaN PSU

    New cutting-edge Gallium Nitride power regulation stage to enhance the RECAP2 linear power modules with a tuned switching frequency offering much lower power supply impedance for a more transparent sound with better instrument separation.

    Innuos PreciseAudio Mainboard

    An all-new custom server-grade mainboard, ultra-tuned for low processor latency, power noise and EMI emissions; further improved by enhanced power regulators and solid capacitors.

    High Performance, Low Power

    New generation of Intel Core i3 combining 4 physical cores with 4 virtual cores for responsive speeds yet low heat dissipation, enhanced with Innuos AudioCore providing separate cores dedicated only to audio processes. Supported with 16GB of industrial-grade low-noise DDR4 RAM allowing to cache more databases and files for a speedy response.

    Modular Architecture

    You can configure the ZEN NG as a Music Server/Streamer, Server-only or Streamer-only easily. Choose between no storage or up to 16TB configurations and optional audio output slot for different modules such as USB, I2S, or AES/Coaxial/Optical SPDIF.

    Dedicated OS SSD

    Dedicated industrial-grade 3D TLC SSD for the OS with power-loss protection to prevent any issues with the system in case of a power cut. Extremely low levels of power consumption, electrical noise and thermal output.

    Innuos XSM

    High Performance Expandable Storage Management System (XSM) allows a single pool of storage from multiple drives. The ZEN NG supports an internal, high performance NVMe PCIe drive up to 8TB with an additional externally accessible M.2 NVMe slot for up to 8TB for a total 16TB of seamless storage. Intelligent management and data protection provided through Sense.

    Premium Chassis

    Newly-designed 10mm thick CNC-machined bead-blasted and anodized aluminium chassis, containing new vibration-dampened transformer platform and with Chassis Ground port connection.

    Sense 3

    Unique benefits for the ZEN NG and ZENith NG through Sense 3, including new Real-Time Kernel, lowering latency even further for the core Operating System, AudioCore for audio process to run in dedicated physical cores, Expandable Storage Management interface, and new CD-ripping via external USB drives with drive-head alignment for accurate ripping.

    Upgradeable

    The modular construction of the chassis and components means the ZEN NG can be upgraded to a ZENith NG in the future for even better sound quality and performance.

    Specifications

    Digital Output

    USB (Up to 32bit/768KHz, Up to DSD256 via DoP, Up to DSD512 via Native DSD)



    1 x Digital Output Module: PhoenixUSB, PhoenixI2S, AES/Coaxial/Optical SPDIF (Sold Separately)



    Auxiliary Ethernet Port for Streamer or NAS

    Ethernet

    2 x LAN RJ45 Bridged Gigabit Ethernet (LAN, Aux)

    USB

    3 x USB 3.2 Gen2 (Backup/Import, Aux, DAC)

    Chassis Ground

    4mm ‘Speaker plug’ port

    Ripping

    External USB-connected CD ripper required

    CD Formats

    Red Book

    Disc Compatibility

    CD, CD-R, CD-RW

    CD Ripper Formats

    FLAC (compression level 0), WAV

    Playback Audio Formats

    WAC, AIFF, FLAC, ALAC, AAC, MP3, MQA

    Sample Rates

    44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 768kHz, DSD over PCM (DoP) up to DSD256, Native DSD up to DSD512 (on selected DACs)

    Bit Depths

    16bit, 24bit, 32bit

    Web Interface

    Modern Web Browsers from iOS, Android, Windows and OS X

    Mobile

    Innuos Sense App for iOS/Android/Kindle Fire

    Storage

    3D TLC SSD for OS



    [Optional] 1 x PCIe NVMe SSD – 2TB / 4TB / 8TB (Factory fitted)



    [Optional] 1 x m.2 NVMe SSD (User or factory fitted)

    Processor

    Intel Core i3: 4 x Physical Cores + 4 x Virtual Cores

    Memory

    16GB DDR4 Industrial-Grade RAM

    UPnP/DLNA

    AssetUPnP

    Streaming Services

    Qobuz, Tidal, Deezer, HighResAudio, Internet Radio

    Average CD Storage Time

    5 Minutes

    CD Metadata

    FreeDB, Musicbrainz, Discogs, GD3

    Compatible Music Systems

    Sonos Multi-room Wireless Music System



    DLNA/UPnP Compatible Devices



    USB DACs complying to USB Audio Class 2



    Selected USB DACs supporting Native DSD

    Network

    Internet connection required for metadata lookup, streaming services and software updates.



    Network access via Ethernet



    Premium subscription required for streaming services such as Qobuz, Tidal etc.

    Mains Supply

    230V AC / 115V AC (Switchable)
