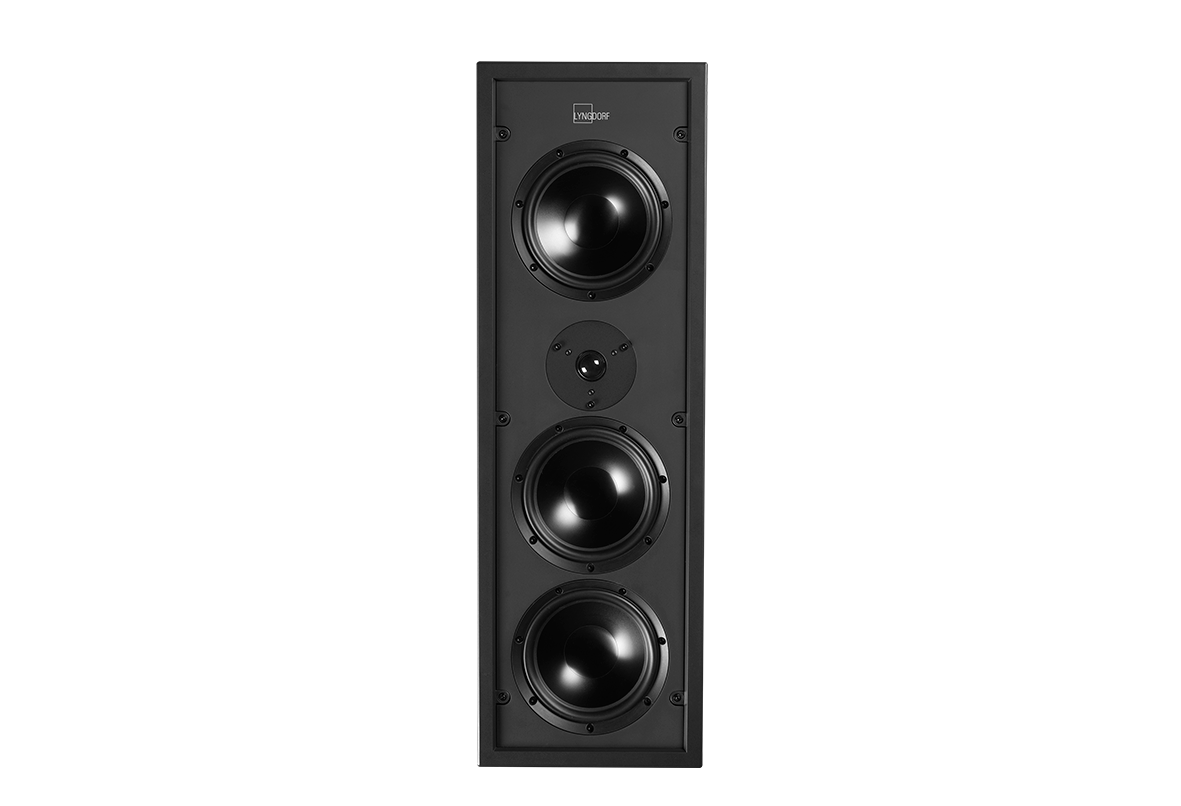

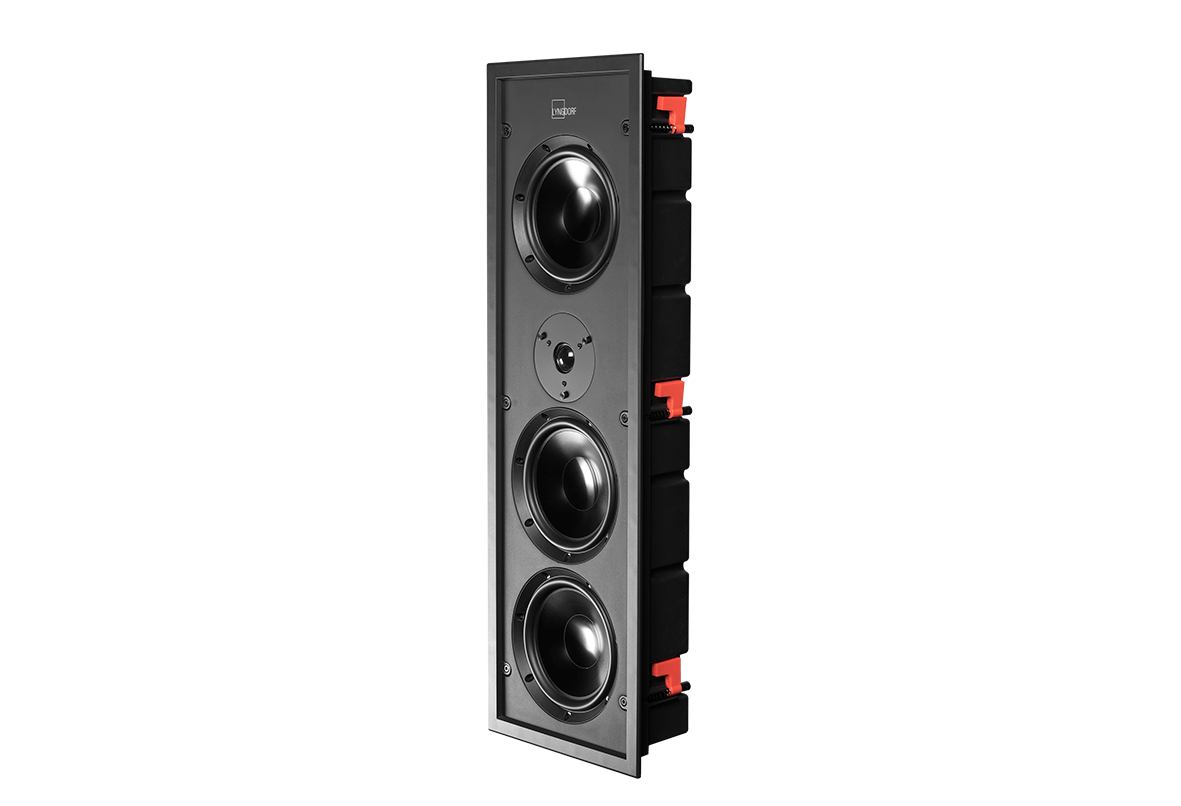

D-500

The first Lyngdorf Audio installation speakers

The D speakers bring Lyngdorf Audio sound quality to the custom installation speaker market. After the successful introduction of Lyngdorf loudspeakers for modern living rooms, ranging from the MH and FR on-wall speakers and BW boundary woofers to the CS-1 cabinet speaker, the Lyngdorf D series expands the company’s range with in-wall and in-ceiling speakers for stereo and multichannel installations.

D stands for discreet

D stands for discreet – all models are designed as installation speakers for discreet in-wall or in-ceiling integration, featuring a wall-fixing mechanism with mounting legs. All models also come with their own loudspeaker enclosure, making system planning and the actual installation as easy as possible, with no after-market backbox or closed wall cavity required. This also ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Full-range speaker design

The D-500 models are designed as full-range speakers, with two passive woofers complementing the midrange driver and tweeter. This design makes the D-500 models easy to drive while reaching below 50Hz, suitable for systems without a subwoofer in smaller or medium sized rooms, or as full range in-wall speakers in a stereo setup left and right of a TV.

Pre-mounted loudspeaker enclosure

All D-500, D-60 and D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall.

Lyngdorf Audio speaker design and drive-units

The woofers and tweeters are based on the known drive-units used in other Lyngdorf loudspeakers customized for these new models, featuring soft-dome tweeters, light aluminum cones, vented magnets, and die-cast baskets.

Specifications

Model: Lyngdorf D-500
Description: 2 way speaker with 2 passive woofers
Tweeter: 28 mm / 1,1” soft dome
Midrange driver: 175 mm, 38 mm voice coil, aluminum cone, vented magnet
Passive woofer: 2 x 175 mm, aluminum cones
Enclosure: Closed compound cabinet
Frequency range: 50 – 22.000 Hz (-3 dB)
Nominal Impedance: 4 Ohm
Sensitivity: 88 dB (2.83V/1m)
Power handling: 100 W (IEC)
Maximum SPL: 105 dB
Crossover point: 2,5 kHz
Connections: Binding posts
Mounting: In-wall
Dimensions with grill (W x H x D): 254 x 779 x 106 mm / 10 x 30.7 x 4.2 inches
Cut-out dimensions (W x H x D): 226 x 751 x 100 mm / 8.9 x 29.6 x 3.9 inches
Weight: 7,4 kg / 16 lb
Finish: Matte black, white grill
