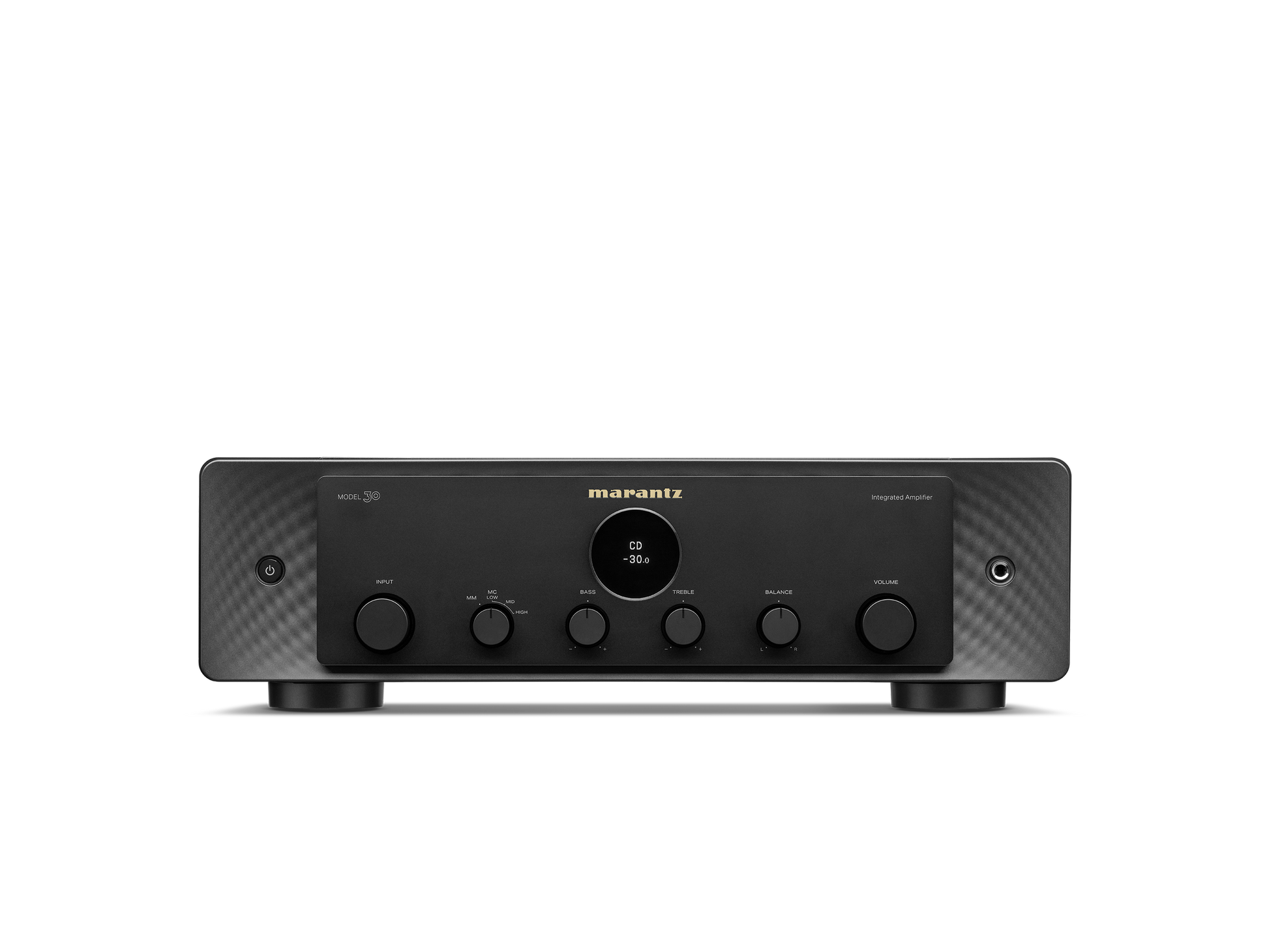

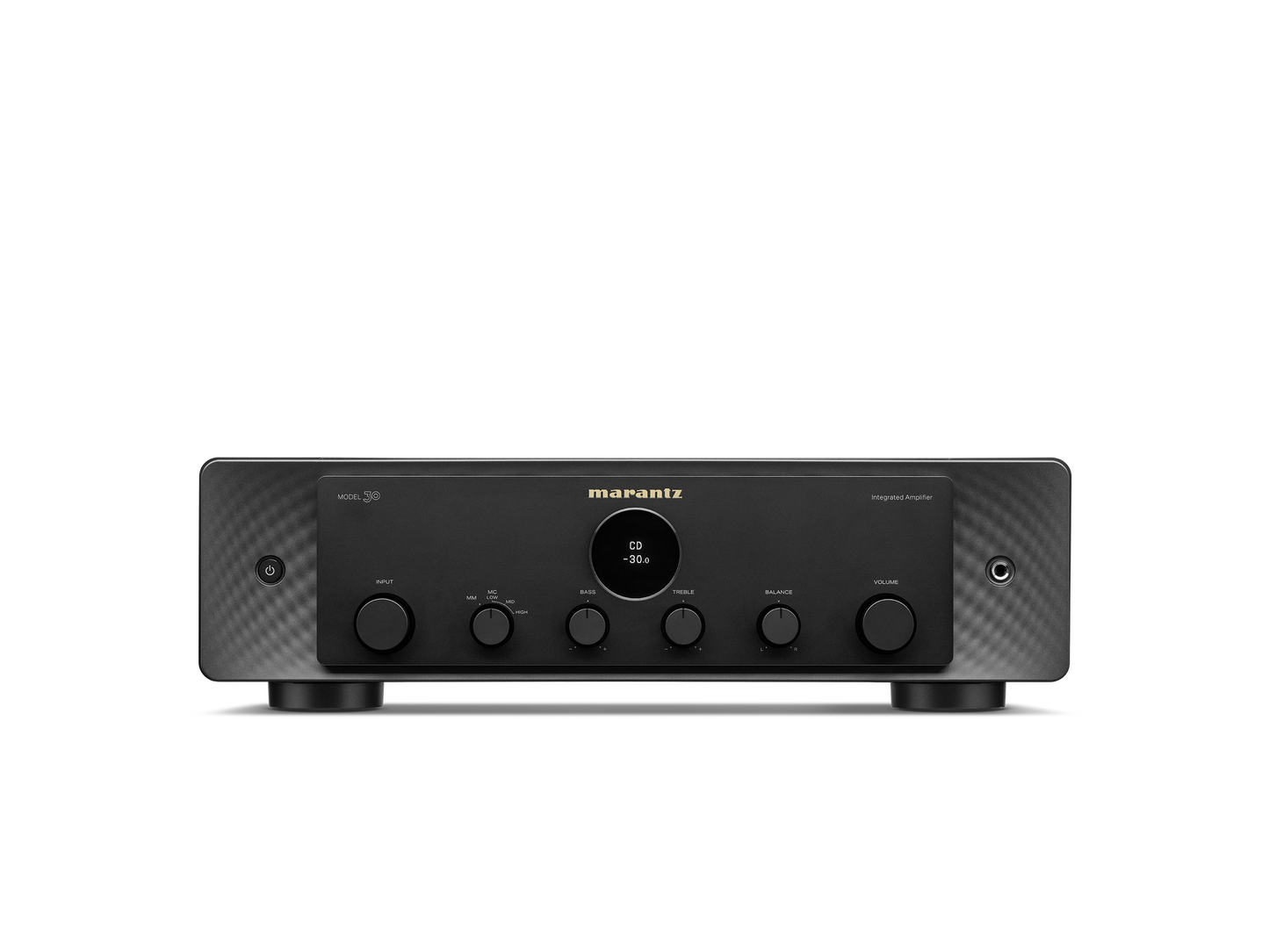

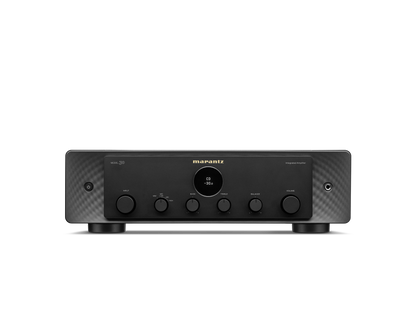

MODEL 30
Get the most musical sound possible from this Sound Master tuned integrated amplifier. Its custom designed technology delivers exquisite detail and unforgettable musicality from any style of music.
- Artisinal Design
- 2.2 Channels
- 100 Watts Per Channel
- Custom HDAM
- 3 Year Warranty
A Masterpiece of Audio Architecture
MODEL 30
You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
The Marantz Sound Master meticulously tuned MODEL 30 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Thanks to their exemplary build quality and feature-rich design, Marantz amplifiers are engineered to provide years of enjoyment, for you, for those that follow.
Specifications
Specifications
| Output Power | |
|---|---|
| Rated Output Power | 100W + 100W (8ohm) 200W + 200W (4ohm) |
| JEITA Power output | No |
| Features | |
| Amplifier Circuit | Switching Amp (Hypex NC500/SMPS600 by single) |
| Power Trans | Toroidal w/case |
| Volume | Electric |
| Loudness | No |
| Bass / Treble / Mid / Balance Control | yes / yes / No / yes |
| REC Out Select | No |
| Source Direct | yes |
| Pure Direct | No |
| (Marantz) Purest Mode | No |
| Isolator (for USB-B input) | No |
| Jitter reducer | No |
| Dual Clock: 44.1 / 48 kHz | No |
| Digital Filter | No |
| Analog Amp Mode | No |
| Wide Range | 5Hz - 50kHz |
| Total Harmonic Distortion | 0.005% (1kHz, 8Ω) |
| Damping Factor | 500 |
| Input Sensitivity: Phono input | MM: 2.3 mV / 39 kohm MC: 250 |
| Input Sensitivity: CD/Line/Recorder | 220 mV / 13 kohm |
| Input Sensitivity: Power Amplifier input | 1.1 V / 13 kohm |
| SN Ratio | PHONO (MM): 88dB PHONO (MC): 75dB CD: 107dB |

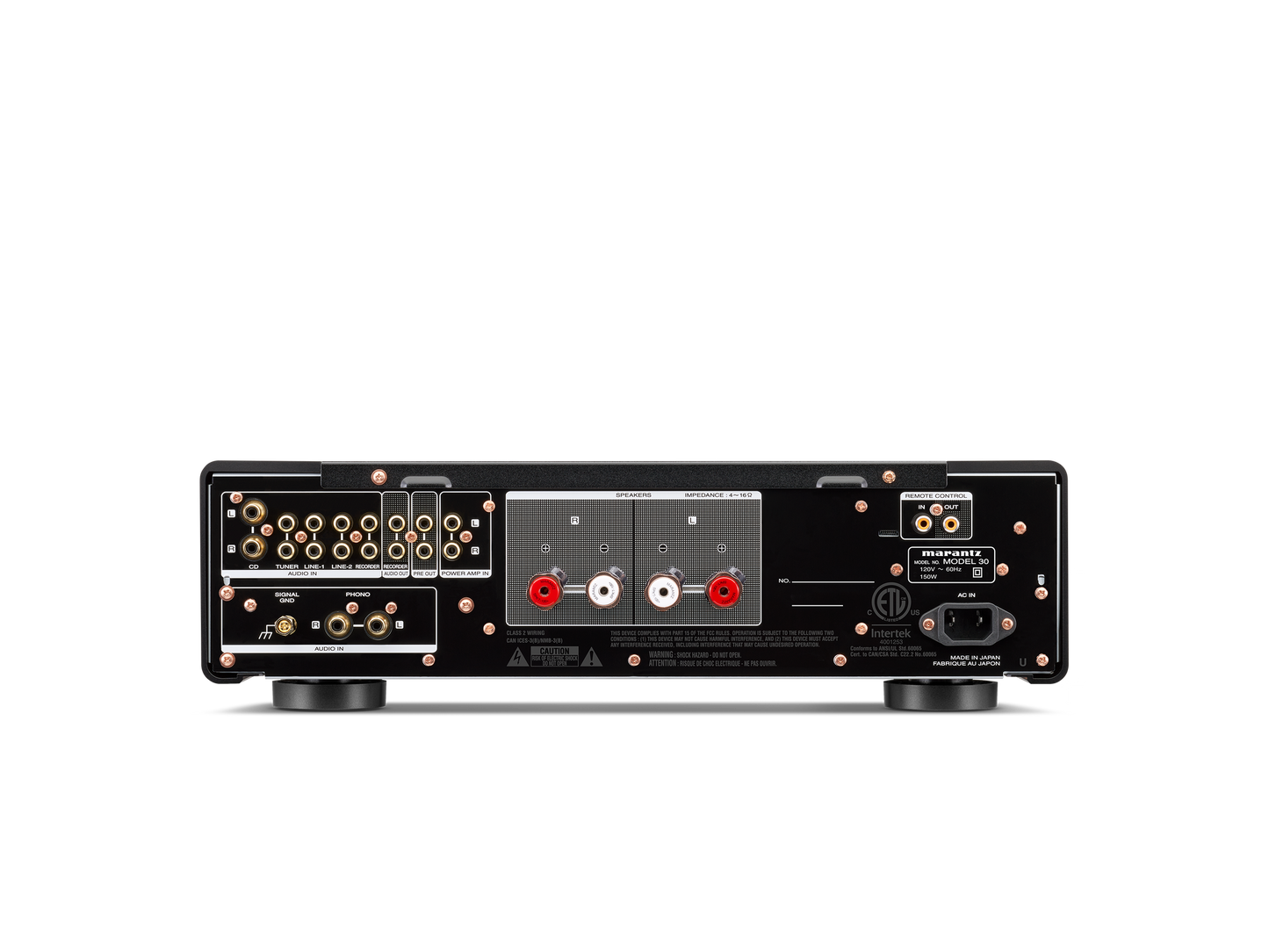

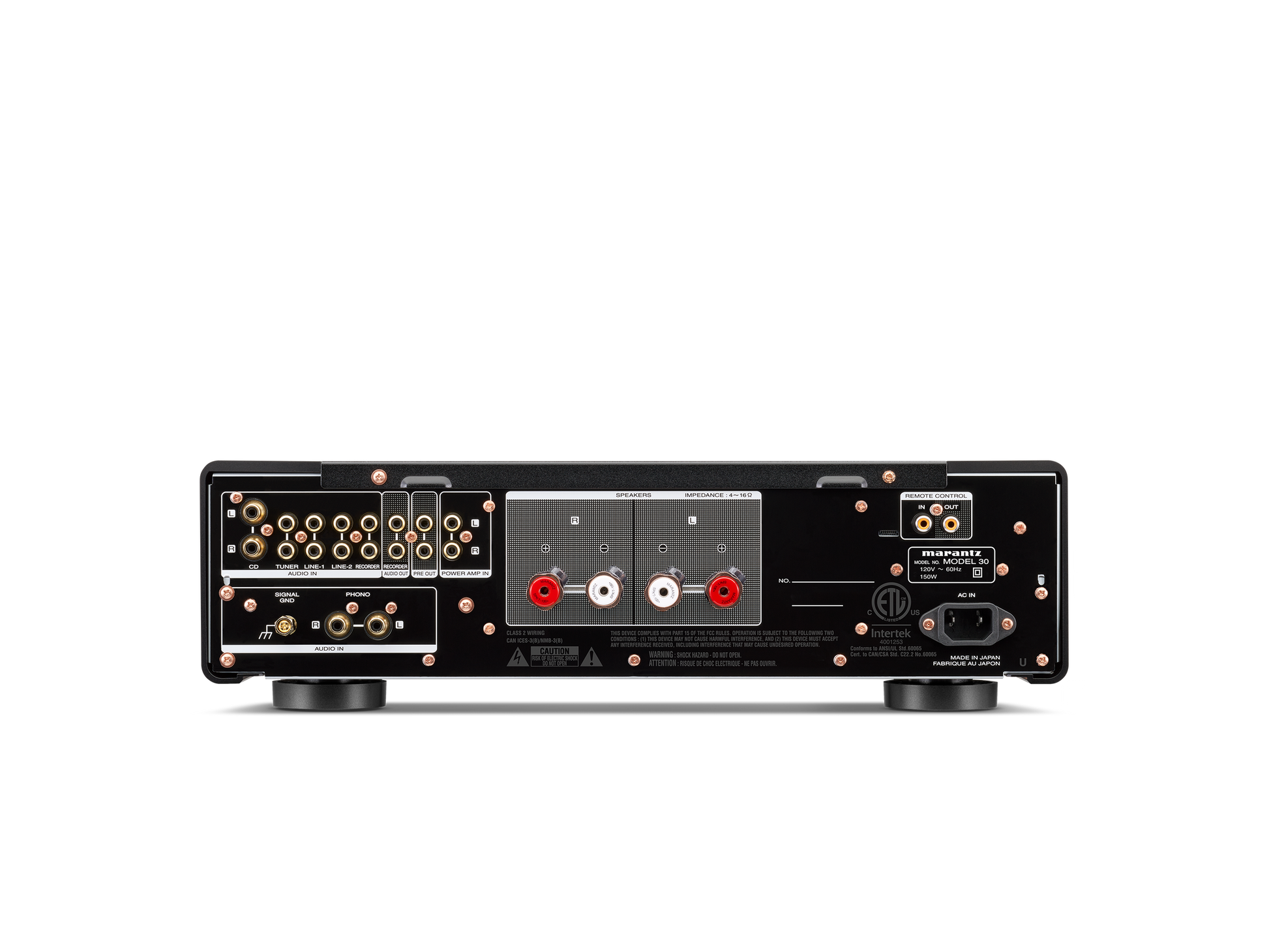

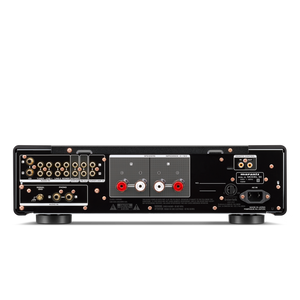

| Terminal | |
| Phono Input | yes (MM/MC) |
| Ext. Pre Input (Power Amp Direct) | yes |
| Preout | yes |
| Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out | 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER) * [PHONO] and [CD] inputs = high grade terminals. |
| Balanced XLR input | No |
| Rec-Out Selector | No |
| Optical input | No |
| Coaxial input | No |
| USB A | No |
| USB B | No |
| HDMI | No |
| DAC | No |
| 2 sets of Spk Terminal | No |
| Speaker Terminal | Marantz Original SPKT-100+ |
| Remote Control Bus Terminal | yes (Cinch) |
| NFC | No |
| Ethernet | No |
| Network | |
| Engine | No |
| Computer music file streaming | No |
| Gapless Playback Music ServerUSB A | No |
| Internet radio | No |
| AirPlay 2 | No |
| GoogleCast | No |
| Album art browsing | No |
| Jpeg Picture Playback | No |
| Cloud Music Service | No |
| WPS Wi-Fi Protected Setup | No |
| Wi-Fi Sharing | No |
| WMM | No |
| OFF mode | No |
| OFF mode | No |
| Multi-Poimt | No |
| UI | |
| Display | yes (Porthole, OLED) |
| Control | |
| App Control via Network Player | yes |
| System Remote Controller | yes (New system remote controller to control SACD 30 and MODEL 30) |
| RS232C | No |
| Flasher Input | No |
| Trigger 12V | No |
| TV Auto-play (Opt/Coax digital-in sensor) | No |
| Others | |
| Unit (W x H x D mm) | 443 x 130 x 432 |
| Packaging Dimensions (W x H x D mm) | 534 x 255 x 522 |
| Net weight | 14.8kg |
| Packaging gross weight | 17.6kg |
| Power Consumption | 130W |
| at Standby | 0.2W |
| at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB) | No |
| AC Inlet | yes |
| AC Outlet | No |
| Owner's Manual | Web Manual |
| Quick Start Guide | Paper |
| Chassis Material | SECC |
| Chassis Layer | Triple |
| Foot | New |
| Cosmetic | |

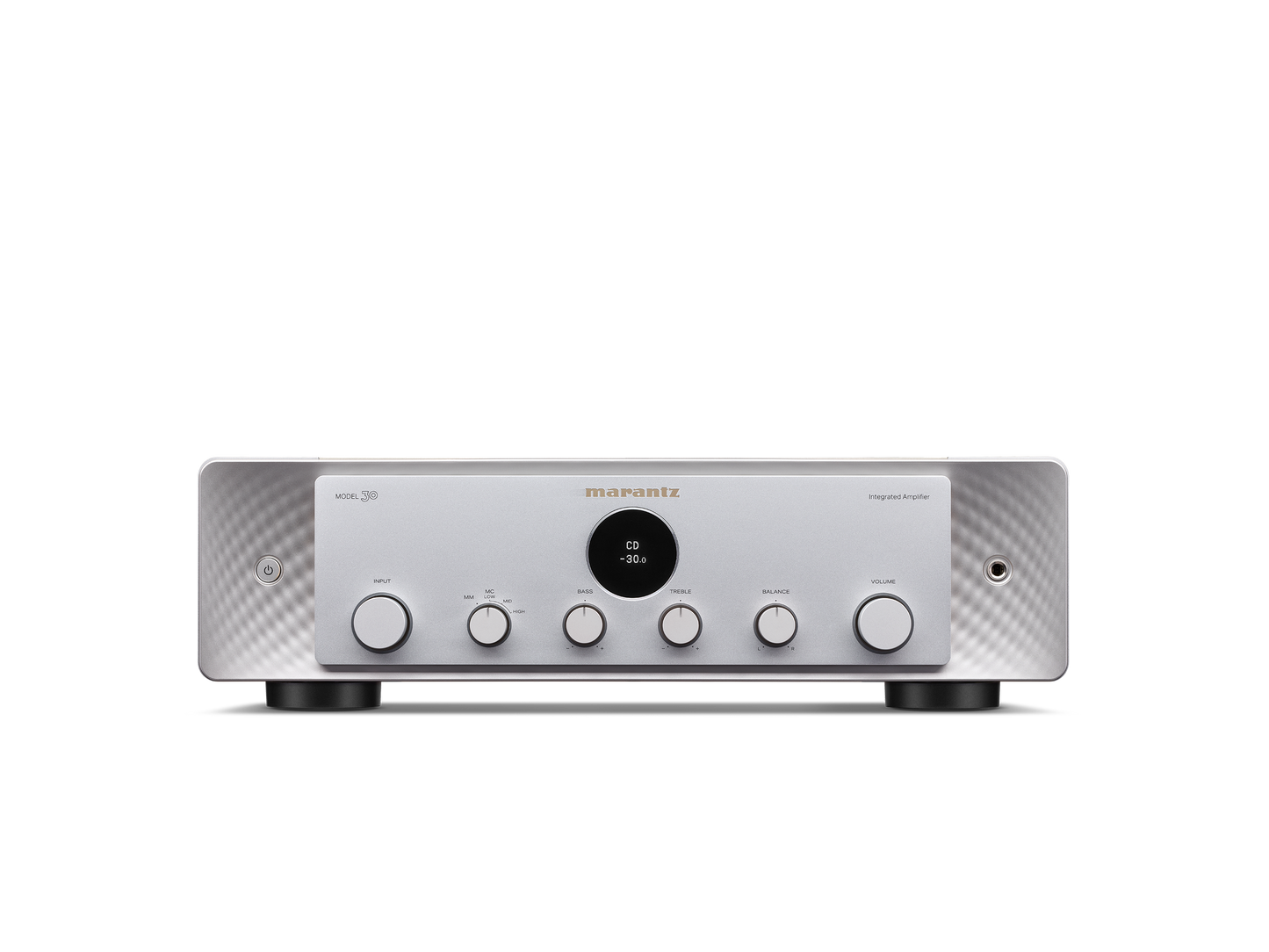

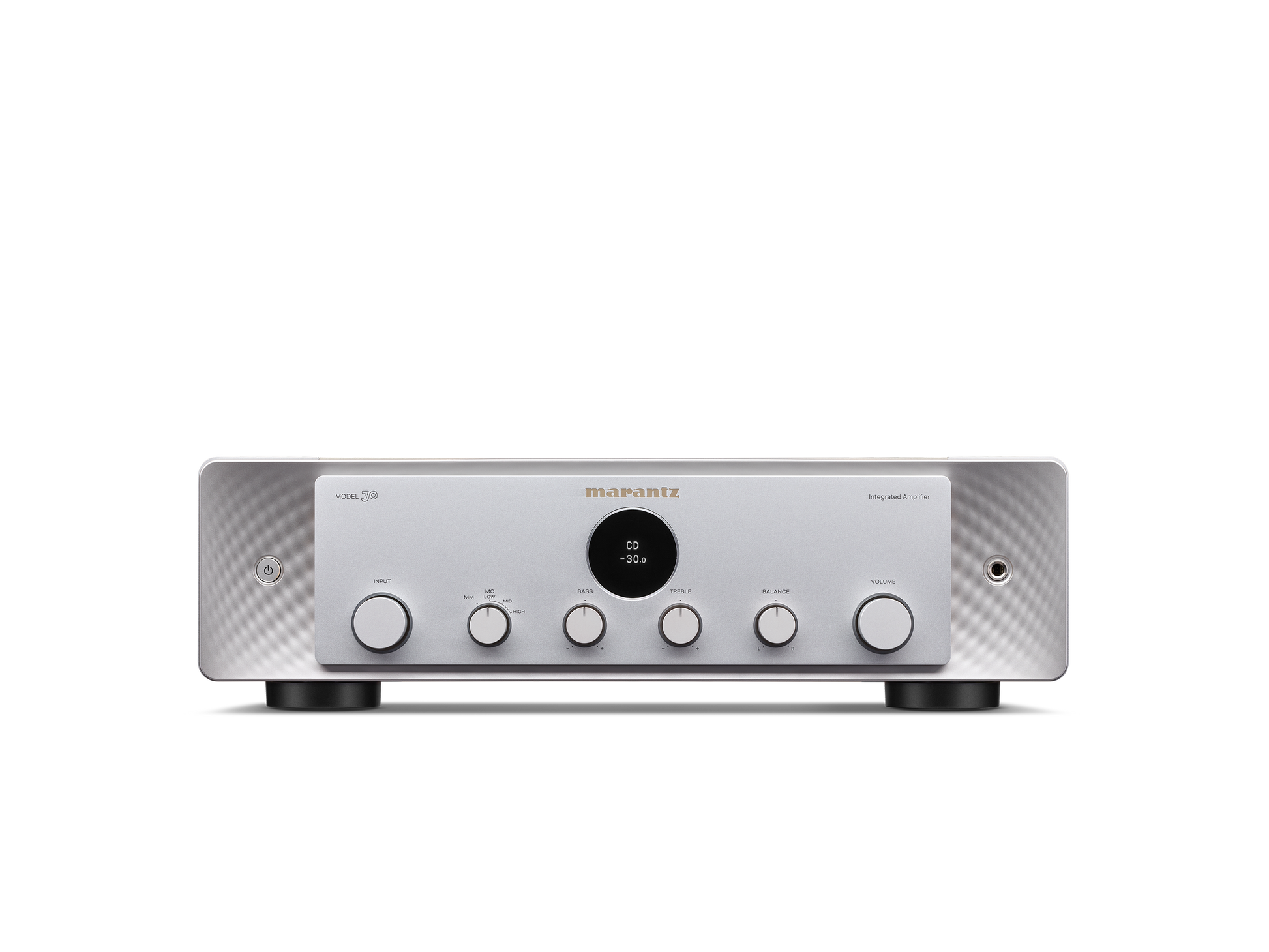

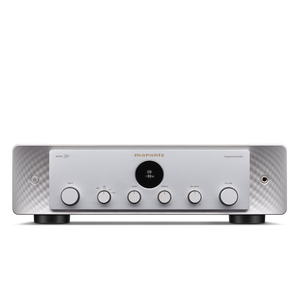

| Panel Color | SG / BK |
| Front Center Panel | Aluminum |
| Back-shell | No |
| Side cover | Aluminum |
| Top Cover | Steel |
| Edge Lighting | yes (Dimmer) |
| Volume Knob | Aluminum |
| Input Selector | Aluminum |
| Bass/Treble/Balance/ REC Out Sel knobs | REC Out-->PHONO (Aluminum) |
| Speaker A/B button | No |
| Power button | Aluminum |
| Other knob/button (LOUDNESS, SOURCE DIRECT etc) | No |
| Side screw | |
