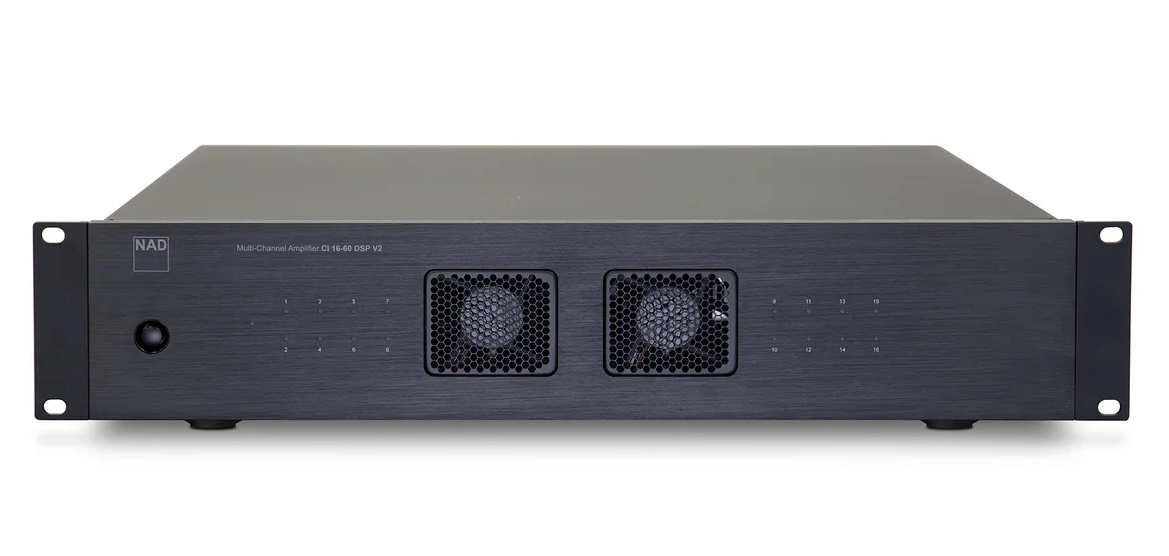

NAD CI 16-60 V2 Multi-Channel Amplifier
NAD CI 16-60 V2 Multi-Channel Amplifier
Couldn't load pickup availability
Share
Details
Description
The NAD CI 16-60 V2 Multi-Channel Amplifier designed specifically for modern custom installation systems. Delivering sixteen channels of clean, efficient power, the CI 16-60 V2 is a perfect match for the NAD CI580v2 Four Zone Network Music Player, making a high quality but extremely cost effective combination for distributed audio and system, where reliability and consistency are critical. NAD’s HybridDigital™ amplification ensures stable performance with reduced heat and energy consumption, making it well suited for continuous operation. With simple set up via the web UI, flexible channel configuration, and dependable sound quality, the CI 16-60 V2 provides a robust amplification platform for scalable whole-home and commercial audio systems.
KEY FEATURES
Specifications
Specifications
| Continuous Output Power (8 Ohms) | 60 W (all channels driven, 1 kHz, 0.05% THD) |
| Continuous Output Power (4 Ohms) | 65 W (all channels driven, 1 kHz, 0.05% THD) |
| Continuous Output Power (8 Ohms, Bridged Mode) | 140 W (all channels driven, 1 kHz, 0.05% THD) |
| THD (1 W to 50 W) | 0.05% (20 Hz – 3 kHz, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio | 80 dB (A-weighted, 500 mV input, ref. 1 W output in 8 ohms) |
| Clipping Power (All Channels Driven) | 60 W (1 kHz, 8 ohms, 1% THD) |
| Clipping Power (8 Ohms, Bridged Mode) | 150 W (1 kHz, 1% THD, all channels driven) |
| IHF Dynamic Power (All Channels Driven) | 8 ohms: 65 W |
| IHF Dynamic Power (Two Channels Driven) | 8 ohms: 70 W |
| IHF Dynamic Power (Bridged Mode, All Channels) | 8 ohms: 270 W |
| IHF Dynamic Power (Bridged Mode, Two Channels) | 8 ohms: 280 W |
| Peak Output Current | 15 A (1 ohm, 1 ms) |
| Damping Factor | 110 (20 Hz to 1 kHz, 8 ohms) |
| Frequency Response | ±1 dB (20 Hz - 20 kHz) |
| Channel Separation | 60 dB (1 kHz) |
| Maximum Undistorted Input Level | 2900 mV |
| Input Sensitivity | 760 mV (for 50 W in 8 ohms, maximum volume) |
| Input Impedance | 20 kΩ // 220 pF |
| Analog Input Audio Sense Threshold | 3 ± 0.5 mVrms (ref. 100 Hz - 10 kHz) |
| Trigger Input Level | 3 - 30 VDC |
| Standby Power | 0.5 W |
| Dimensions (W x H x D) | 483 x 100 x 435 mm |
| Net Weight | 10.3 kg (22.7 lbs) |
| Shipping Weight | 12.8 kg (28.2 lbs) |
