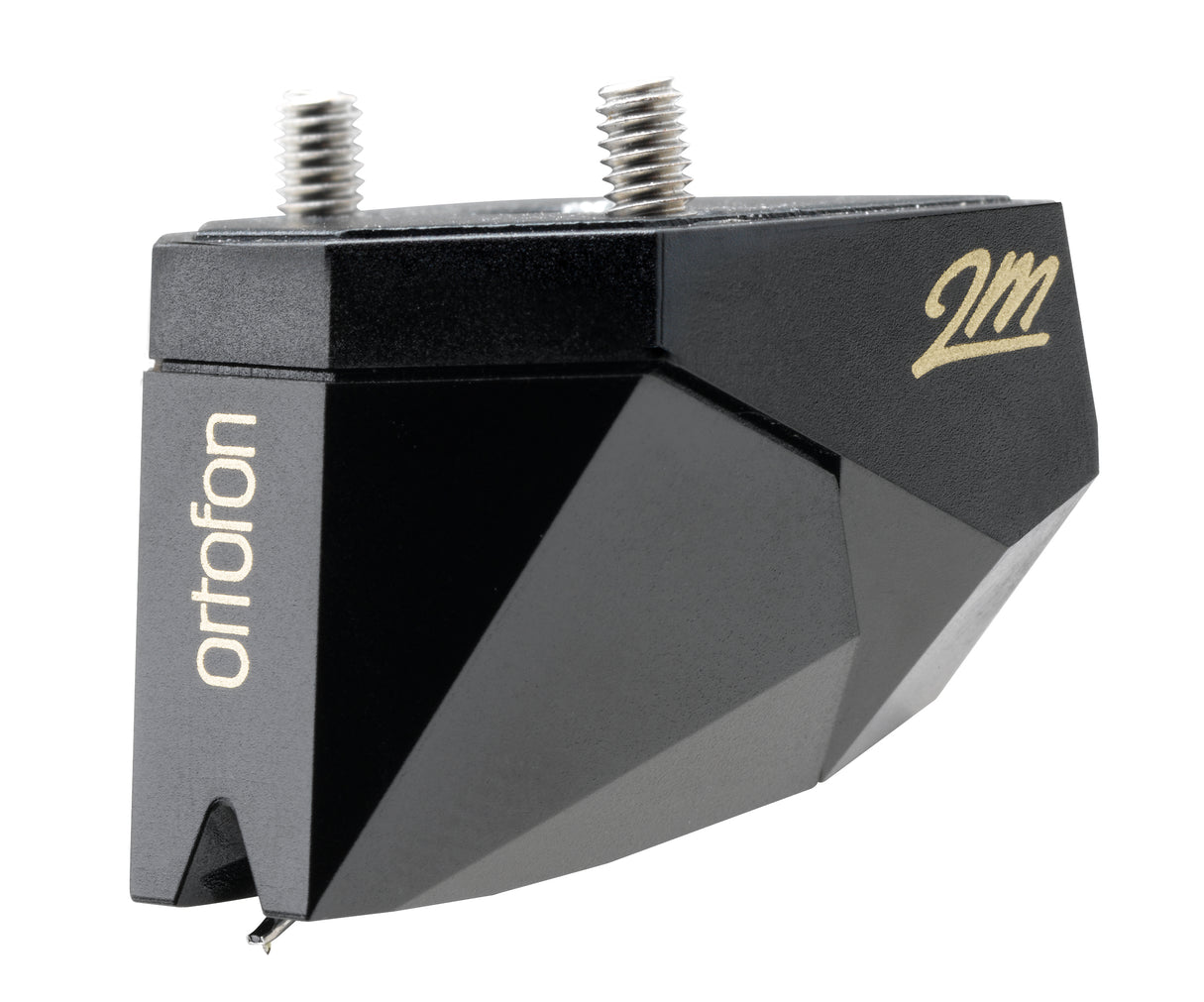

Ortofon 2M Black Verso MM Cartridge

Name: Ortofon 2M Black Verso MM Cartridge
Brand: Ortofon
SKU: 2M Black Verso
Price: 519 GBP
Availability: InStock

£519.00

Sale Sold out

Product variants

Quantity

Trade in Available Book a Demo

Pay in 3

View full details

Details

Description

2M Black Verso

The 2M Black is the flagship of the series, and it lives up to this with flying colors. You can hear every little detail in the music from every part of the spectrum. Just the way the artist wanted you to. This is for those who want to sense the presence of the artist in the room when they listen to their records. The 2M Black Verso model is an alternative product for bottom mount headshells.

Feeling the presence of the artist

Accuracy level

With the 2M Black, you will not only hear the music, but you will sense the presence of the artist in the room while listening to your favorite records.

Shibata diamond

Stylus

The 2M Black is graced with a Shibata diamond that gives it contact with the groove like nothing else. The slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.

Enhance your music
journey with the 2M Series

If you're noticing a decline in the quality of your music playback or own an older phono cartridge, it might be the perfect time to explore the world of upgraded sound. Upgrading your stylus can transform your listening experience, breathing new life into your vinyl collection. By simply replacing your worn-out stylus with a fresh one, you'll be astounded by the immediate improvement in sound quality. What's more, this upgrade can prolong the lifespan of your precious vinyl records, preventing undue wear and tear caused by an aging stylus.

Whether you're attached to your current cartridge or seeking an upgrade, the 2M series offers a solution. Experience the benefits of a stylus replacement – elevating your audio quality, achieving better performance, and economizing by avoiding a complete cartridge purchase.

Split pole pin technology

Features

The 2M Black uses a special engine featuring Ortofon’s very own invention: split pole pins upgraded with a silver-plated copper wire.

Universal fit

Compatibility

The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today.

The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

How to replace M2.0 mm screws on 2M Verso

Replacement guide

Remove the stylus with the stylus protection guard from the cartridge body to avoid damaging the diamond.
Using the Torx 8 key, unscrew the black screw from the Verso top plate.
Gently detach the top plate by pulling the screws.
Remove the two countersunk screws from the top plate.
Insert the two M2.0 mm screws in the top plate.
Attach the top plate to the cartridge body by flipping it 180 degrees.
Mount the black screw in the top plate and tighten with appropriate force.
Mount the cartridge on the tonearm using the enclosed tool.
Mount the stylus with the stylus protection guard on the cartridge body.

Specifications

Channel balance at 1 kHz	1 dB
Output voltage at 1 kHz, 5cm/sec	5 mV
Channel separation at 1 kHz	26 dB
Frequency response 20 Hz - 20 kHz	2 / - 0 dB
Tracking ability at 315 Hz	80 µm
Compliance, dynamic, lateral	22 µm/mN
Stylus type	Nude Shibata
Stylus tip radius	r/R 6/50 µm
Tracking force range	1.4-1.7 g (14-17 mN)
Tracking force, recommended	1.5 g (15 mN)
Tracking angle	20°
Internal impedance, DC resistance	1.2 kOhm
Cartridge colour	Black/Black
Cartridge weight	7.2 g
Premounted cartridge weight	16.7 g
Recommended load resistance	47 kOhm
Internal inductance	630 mH
Recommended load capacitance	150-300 pF
