Pathos InControl MK2 Preamplifier
Pathos InControl MK2 Preamplifier
Couldn't load pickup availability
Share
Details
Description
New InControl Mk2 is the natural partner of InPower Mk2, the stunning and powerful final stage produced by Pathos: more versatile, more compact, with a dedicated headphone amplifier and a new design inspired by InPower Mk2.
We decided to keep the name “InControl” for coherence with the previous pre-amplifier, but new InControl Mk2 is so different from the old one to deserve a new name.
Fully balanced differential circuitry
InControl Mk2 hides a fully balanced differential circuitry. We chase prestigious Tung-Sol ECC803S tubes to guarantee a pure and defined sound, with an high gain.
Mk2 version is more compact and light than previous InControl: all Pathos technology used for this pre-stage is held in the chassis, which perfectly matches with InPower Mk2.
Versatile and adaptive control
VFD display is the same of InPol Heritage: bigger, clearer, with an adjustable brightness according to your preferences. The large full aluminum knob set the volume with maximum precision. 100 steps have an high dynamic range, in addition to the natural logarithmic progression of decibels: volume control is therefore versatile and adaptable.

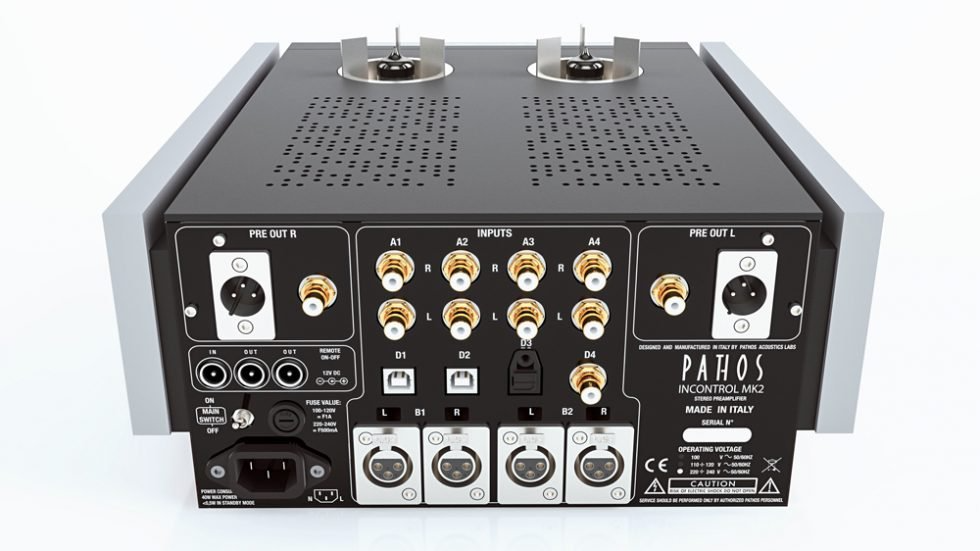

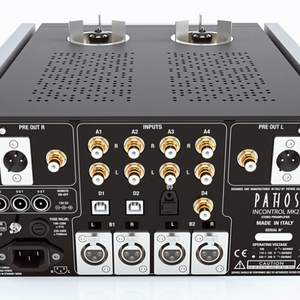

This pre-amplifier operates with a remote control, too: we chase the new universal remote control, which allows to drive all our units, including new Converto Mk2 RR. InControl Mk2 has 4 RCA inputs and 2 XLR inputs; optional HiDac Mk2 board adds 4 digital inputs.
We implemented the same headphone amplifier we used for Kratos; its dedicated circuitry supplies 2W32Ohm and let drive most of headphones in the market.
Specifications
Specifications
| Type | Pre-amplifier, pure class A, fully balanced |
| Tubes | 2x ECC803S Tung-Sol |
| Max. input voltage | 9 Vrms (unbalanced); 18 (9+9) Vrms (balanced) |
| Input impedance | 100K Ohm |
| Gain | Adjustable 6 dB / 12 dB |
| Frequency response | 2 Hz – 200 KHz ± 0,5 dB |
| Max output voltage | Balanced 10+10 Vrms Unbalanced 10 Vrms |
| Output polarity | Selectable by remote control |
| Connections | Analogue inputs 2 balanced XRL line, 4 unbalanced RCA line Digital inputs (optional) 2 USB type “B” ports for PC, 1 coaxial SPDIF, 1 optical SPDIF (Installation of HiDac Mk2 board is required) Outputs 1 Unbalanced RCA, 1 Balanced XLR |
| Headphone Specifications | Output power 3,3 W @ 16 Ω , 2 W @ 32 Ω Max output level 10V RMS |
| Dimensions | Amplifier 290mm (D) x 360mm (W) x 155mm (H) |
| Weight | 18Kg |
