Details
Description

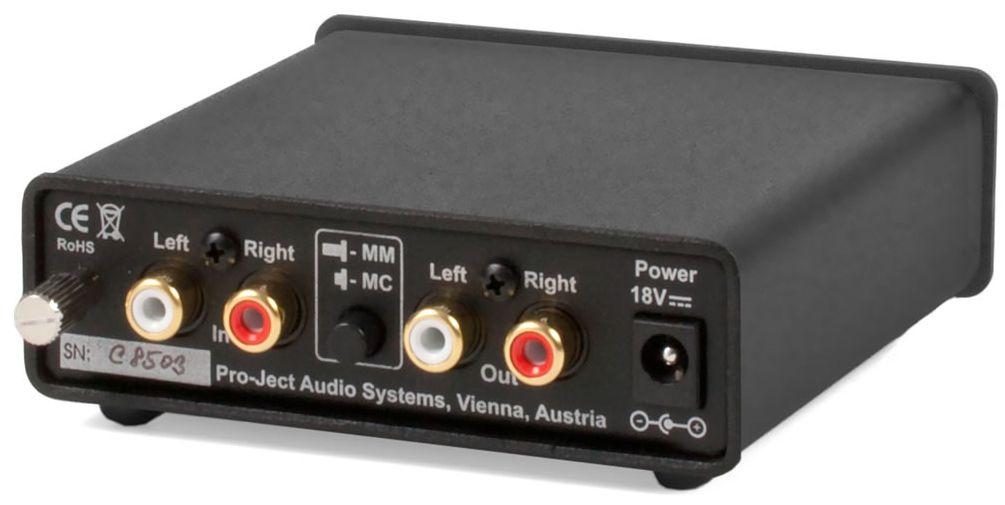

Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono pre-amplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,...) of your amplifier.
Specifications
Specifications
Input impedance, MM | 47 kohms/120 pF |
Input impedance, MC | 100 ohms / 120 pF |
Gain, MM | 40 dB |
Output voltage typically | 300 mV/1 kHz at 3 mV/1 kHz (MM input) |
Gain, MC | 60 dB |
Output voltage typically | 300 mV / 1 kHz at 0,3mV/1 kHz (MC input) |
Max. output | 9.5V (1kHz) |
Noise floor, MM | 94 dBA |
Noise floor, MC | 75 dBA |
THD, MM | 0,01% |
THD, MC | 0,05% |
RIAA-equalisation curve accuracy | 20 Hz - 20 kHz / max. 0,5 dB |
Outboard power supply | 18V / 200 mA DC, suitable for your country's mains supply |
Standby power consumption | < 1 watts |
Dimensions W x H x D | 103 x 36 x 104 (115 mm with sockets) |
Weight | 570 g |
