Main Features
FAMILY FEELING
The PL-563 directly refers to the Sonetto Collection for the choice of materials, the electroacoustic project and design.
Tweeter and mid-woofers are enriched with satin aluminum trims.
MULTIPLE POSITIONS
The LCR model PL-563 is designed to cover multiple roles according to different needs, front/side/surround channel if used in a vertical position or center channel if mounted horizontally. The tweeter ring can be oriented according to the needs.
MAGNETIC GRILLES
The PL-563 is equipped with a magnetic edgeless square metal grille, ready to be painted
QUICK INSTALLATION
Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard.
MID-WOOFER
The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.
TWEETER
DADTM (Damped Apex Dome)silk dome tweeter.
PARACROSS TOPOLOGY TM
The anti-resonant design of the x-over network features the Paracross TopologyTM circuitry, to guarantee a better definition and purity of sound.
The voice of Sonus Faber
It’s the timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of a design solution that identify the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology, and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus Faber receipt. The crossover network or the entire line is designed for better definition and purity of sound featuring the Paracross Topology™ circuitry.
Level 5 and Sonetto: harmonic integration
The characterization of Level 5 front panels is the same as the Sonetto collection. The satin aluminum trims that frame both tweeter and mid-woofer, create the “Voice of Sonus Faber” aesthetic. The string pattern explicitly references the Sonetto bookshelves stand design, where the motif ideally referred to the use of the elastic strings of the first Guarneri stands (1993).
Easy to install and customize
All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille to further increase the freedom of the listener’s choice. Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new construction installations.
Specifications
Specifications
LOUDSPEAKER SYSTEM | Two-way left/right/center In-wall system. Infinite baffle |
TWEETER - DADTM DRIVER | 29 mm / 1.1 in |
MIDWOOFER | 2 x 165 mm / 2 x 6.5 in |
CROSSOVER FREQUENCY - PARACROSS TOPOLOGYTM | 1,650 Hz |
FREQUENCY RESPONSE | 50 - 25,000 Hz |
SENSITIVITY (2.83 Vrms @ 1m) | 90 dBspl |
NOMINAL IMPEDANCE | 4 Ω |
COVERAGE ANGLE (1 kHz, @-6 dB) | ± 45° H - ± 60° V |
SUGGESTED AMPLIFIER POWER OUTPUT (*) | 40 – 250W without clipping |
FRAME OUTER | 471 x 216 mm / 18.5 x 8.5 in |
CUT OUT | 448 x 192 mm / 17.6 x 7.6 in |
DEPTH BEHIND SURFACE | 101 mm / 3.4 in |
PROTRUSION | 13 mm / 0.51 in |
NET WEIGHT | 6.3 Kg / 13.9 lb |
INCLUDED IN THE BOX | Bezel-Free square magnetic grille |
Book a Demo
Book a Demo:

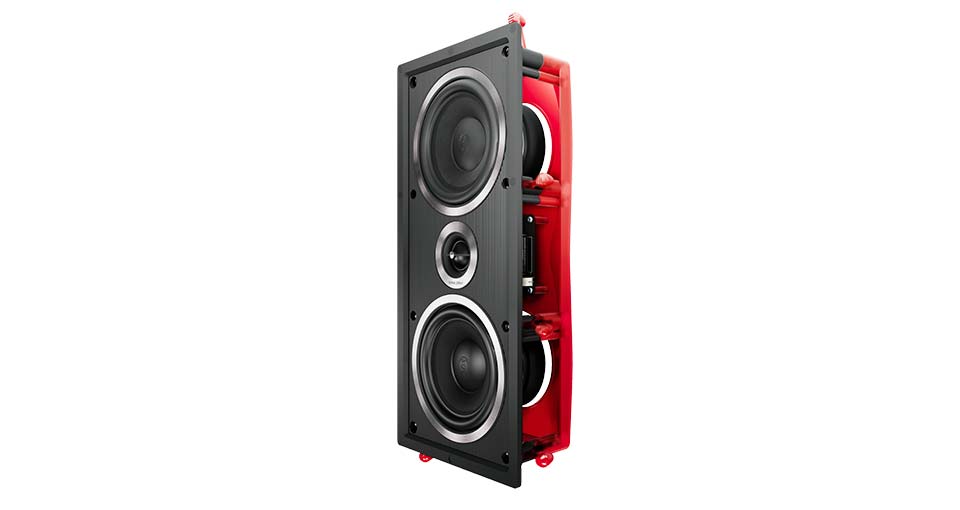

Sonus Faber Palladio 5 PL-563 In-Wall Speaker (Single)
