Sonus Faber

Sonus Faber Palladio 6 PL-664 In-Wall Speaker (Single)

Sonus Faber Palladio 6 PL-664 In-Wall Speaker (Single)

No reviews

Regular price £1,999.00
Regular price Sale price £1,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Demo Available
  • Trade-in Available
View full details

Details

Description

Main Features

Family feeling

A visible reminder of the Olympica Nova collection is the front wooden panel with hand-made inlays in maple, available in walnut or wengè finishes. The leather embellishes the Voice of Sonus Faber, the iconic configuration of tweeter and midrange, and enriches the aesthetic rings around the woofers.

Magnetic Grilles

The PL-664 is equipped with a magnetic edgeless rectangular metal grille, ready to be painted

Quick installation

Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard

Multiple Positions

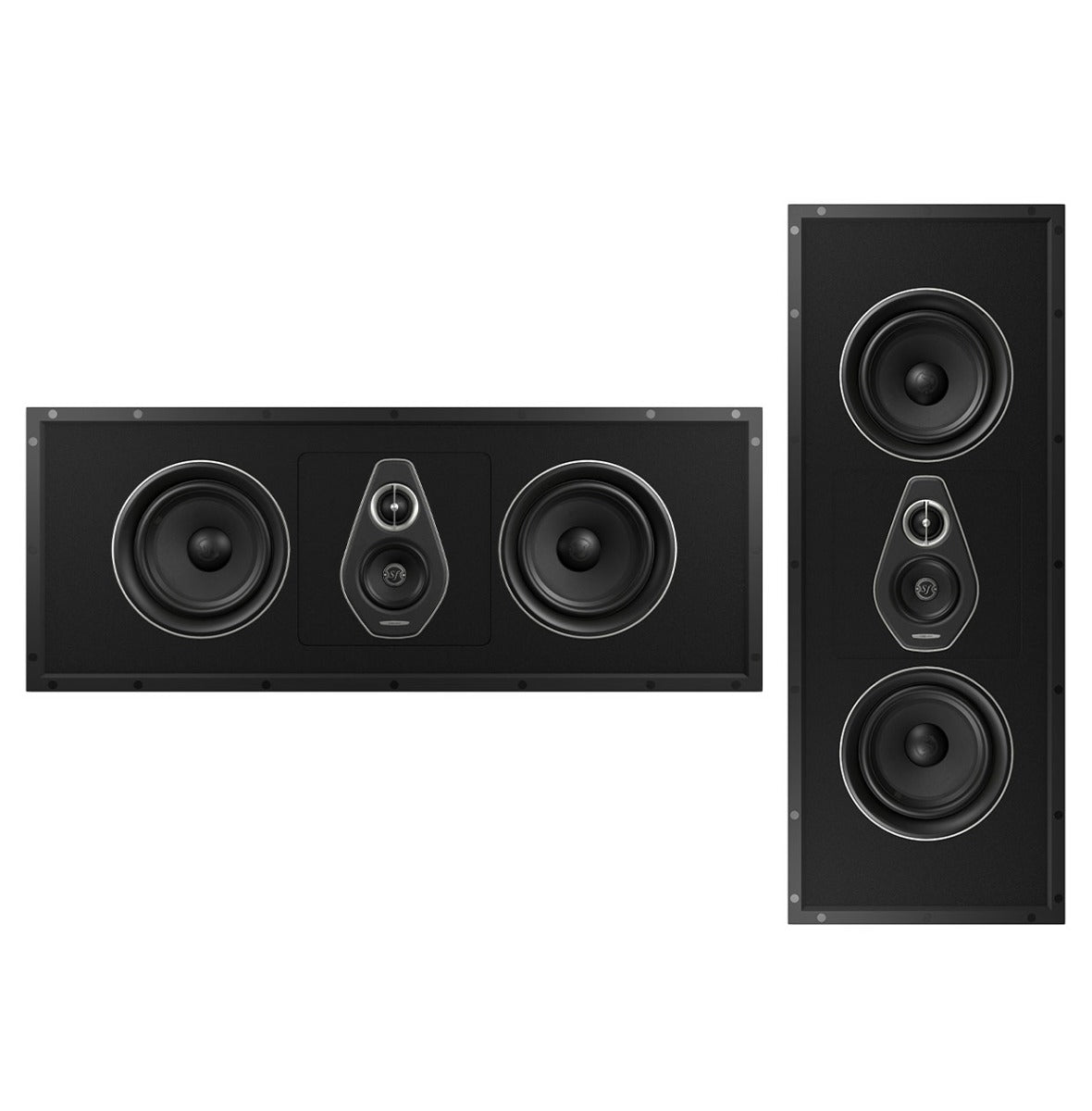

The LCR model PL-664 is designed to be installed both horizontally and vertically according to different needs: front/side/surround channel if used in a vertical position or center channel if mounted horizontally. Two versions of the wooden panel are available to allow both arrangements by simply removing the 4 screws.

Premium kit

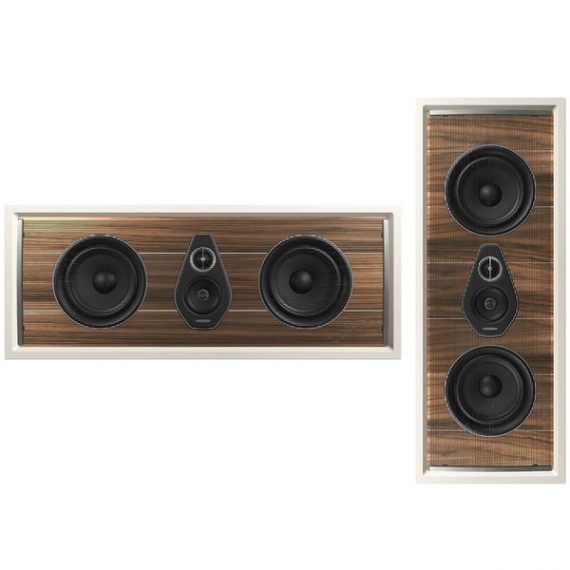

The LCR model PL-664 can be completed with the Premium Kit that includes the natural wood front mask, the string grille, and the paintable magnetic frame

Woofer

Made with a sandwich construction technique: two sheets of cellulose pulp are combined with a hi-tech syntactic foam in between them.

Tweeter

DADTM (Damped Apex Dome)silk dome tweeter.

Midrange

The custom diaphragm is made in natural fiber and cellulose pulp, according to the most natural sound.

Drone Cone

Damped hi excursion suspensions. Made with a sandwich construction technique: two sheets of cellulose pulp are combined with a hi-tech syntactic foam in between them.

The voice of Sonus Faber

It’s the timbre of our loudspeakers systems, especially in the mid-high frequencies section: a warm and fascinating sound obtained by means of a design solution that identifies the DNA of the brand. As for our line of passive loudspeakers, the 29 mm silk dome tweeters are characterized by DAD (Damped Apex Dome™) technology, and mid-ranges and mid-woofers are equipped with custom diaphragms made in natural fiber and cellulose pulp, a special Sonus Faber receipt.

Level 6 and olympica nova: the custom-made sound

With Level 6 of the Palladio collection, we reach for higher structural standards, particularly regarding the choice of materials. Besides the Voice of Sonus Faber shape covered in leather, the unmistakable Sonus Faber style is further achieved with the integration of a Premium Kit as an additional fitting for the PL-664 and PW-662. It consists of a package made of three key accessories: a natural wood front panel enriched with hand-made maple inlays, available in walnut or wengè finishes; a paintable magnetic frame to cover the aluminum edges and make the speaker completely integrated into the environment; the classic elastic string grille, the iconic design element of higher Sonus Faber ranges.

A versatile design

Three models (PC-664P, PL-664, PW-662) are provided with a wooden sealed box, designed to be used when sound insulation is needed. The box is the ideal solution to avoid sound pollution through to other floors and simultaneously allows precise control of speaker loads. The LCR model PL-664 is designed to be installed both horizontally and vertically according to different needs by simply arranging the midrange-tweeter assembly. Two versions of the wooden panel are available to allow both arrangements.

Easy to install and customize

All Palladio series models are equipped with a magnetic, edgeless metal grille, designed to make each model as discreet as possible. All models grilles are ready to be painted and all in-ceilings models can be equipped with a square magnetic grille, to further increase the freedom of the listener’s choice. Thanks to the swing-out dogs fixing system, all Palladio speakers can be secured quickly and effectively to plasterboard. All Palladio In-Ceiling speakers (except for PC-664P and PC-563P) can be completed with their pre-mount kit, an optional accessory for new constructions installations.

Specifications

Specifications

LOUDSPEAKER SYSTEM

3 way left / right / center in-wall. Drone cone passive radiator enclosure

TWEETER - DADTM DRIVER

29 mm / 1.1 in

MIDRANGE

80 mm / 3.1 in

WOOFER

165 mm / 6.5 in

DRONE CONE

165 mm / 6.5 in

CROSSOVER FREQUENCY - PARACROSS TOPOLOGYTM

500 - 3,500 Hz

FREQUENCY RESPONSE

58 - 25,000Hz(-6dB)

SENSITIVITY (2.83 Vrms @ 1m)

90 dBSPL

NOMINAL IMPEDANCE

4 Ω

SUGGESTED AMPLIFIER POWER OUTPUT (*)

40 – 200 W Undistorted signal

FRAME OUTER

751 x 288 mm / 29.5 x 11.3 in

CUT OUT

724 x 265 mm / 28.5 x 10.4 in

DEPTH BEHIND SURFACE

100 mm / 4 in

PROTRUSION

15 mm / 0.59 in

NET WEIGHT

10,3 kg / 22.7 lb

INCLUDED IN THE BOX

Bezel-Free rectangular magnetic grille | 750x291 mm / 29,5x11.4 in

ADDITIONAL FITTINGS

Premium Kit: • Natural wood front mask • String grille • Paintable frame
net weight 0,88 kg | 1.94 lb
