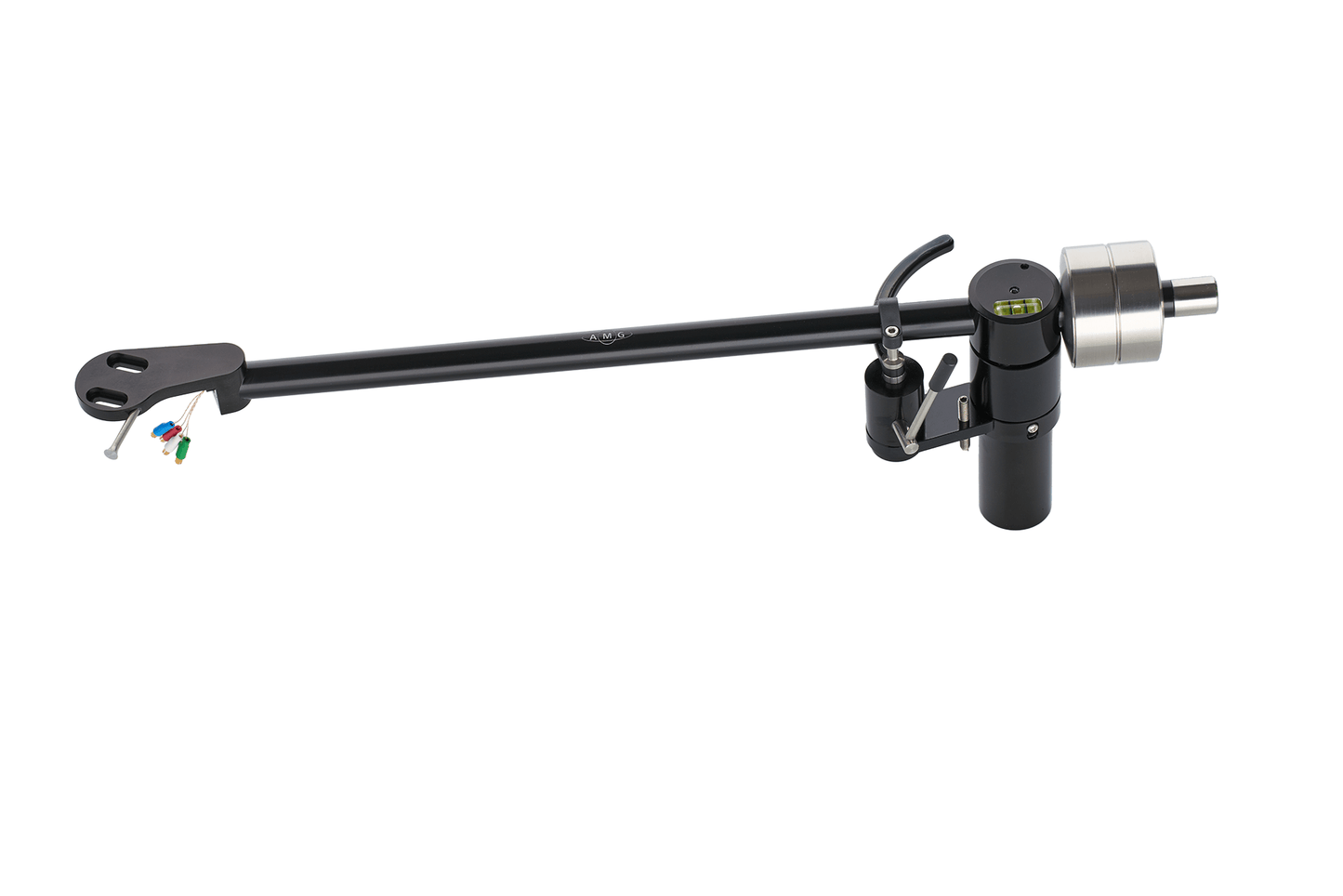

AMG 9W1 Tonearm
AMG 9W1 Tonearm
Couldn't load pickup availability
Share
Details
Description
9W1
Prototype for the first time implementation of the principles of helicopter rotor control in an AMG tonearm.
Decisively clear and dynamic directness thanks to the vertically highly flexible, horizontally absolutely rigid tonearm suspension.
Perfect force/mass distribution for maximum dynamics at the needle tip. Clear design language and proportionality.
Accurate setting and adjustment options with the highly efficient magnetic anti-skating system as well as precise fine threads on all relevant parameters.

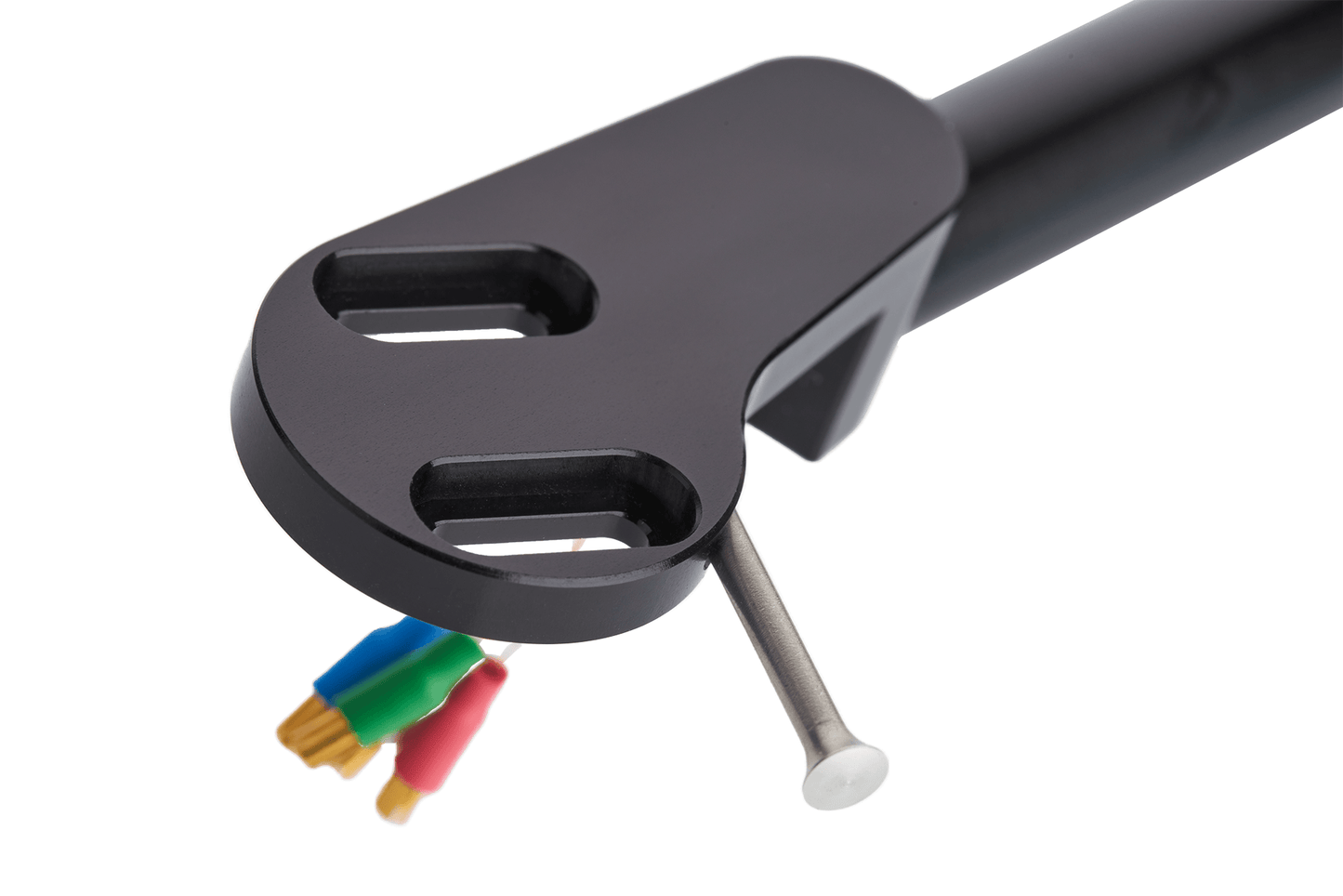

The internal wiring:
Gold-plated connectors, custom-made cables with specific twisting to eliminate magnetic field resonances and discontinuities.
The arm tube:
The ratio of cross-section to unsupported length, precisely matched to the material specifications of the quality aluminum used, guarantees the lowest possible resonance behavior.
The VTA:
Exactly calibrated and positioned height adjustment with precise verification through the integrated spirit level.
The counterweight as the basis of dynamics:
Stainless steel counterweight for perfect weight adjustment.
Significantly higher dynamics and directness of the needle due to optimized force/mass distribution in the entire tonearm system.
The magnetic anti-skating system:
Magnetically acting and detailed adjustable anti-skating for perfectly centered and distortion-free groove tracking.
The integrated azimuth adjustment:
Accurate adjustment with fine thread adjustment screw as the basis for perfectly aligned groove tracking.
TECHNICAL DATA |
|
|
EFFECTIVE LENGTH
|
240.3mm |
| DISTANCE FROM PIVOT TO CENTER OF PLATTER | 223mm |
| OVERHANG | 17.3mm |
| ANGLE OF SHIELD | 22.9° |
| EFFECTIVE MASS | 9.2g |
| ZERO POINT (INSIDE) | 66.04mm |
| ZERO POINT (OUTSIDE) | 120.9mm |
| BORE SIZES FOR ADAPTER BUSHINGS | |
| WITHOUT ADAPTER SOCKET | 20mm |
| AMG VIELLA ADAPTER SOCKET | 25mm |
| AMG VIELLA FORTE ADAPTER SOCKET | 30mm |
| ADAPTER SOCKETS FOR THIRD-PARTY DRIVES | Miscellaneous |
| HOLE CIRCLE DIAMETER FOR SCREWS | 30 / 48mm |
