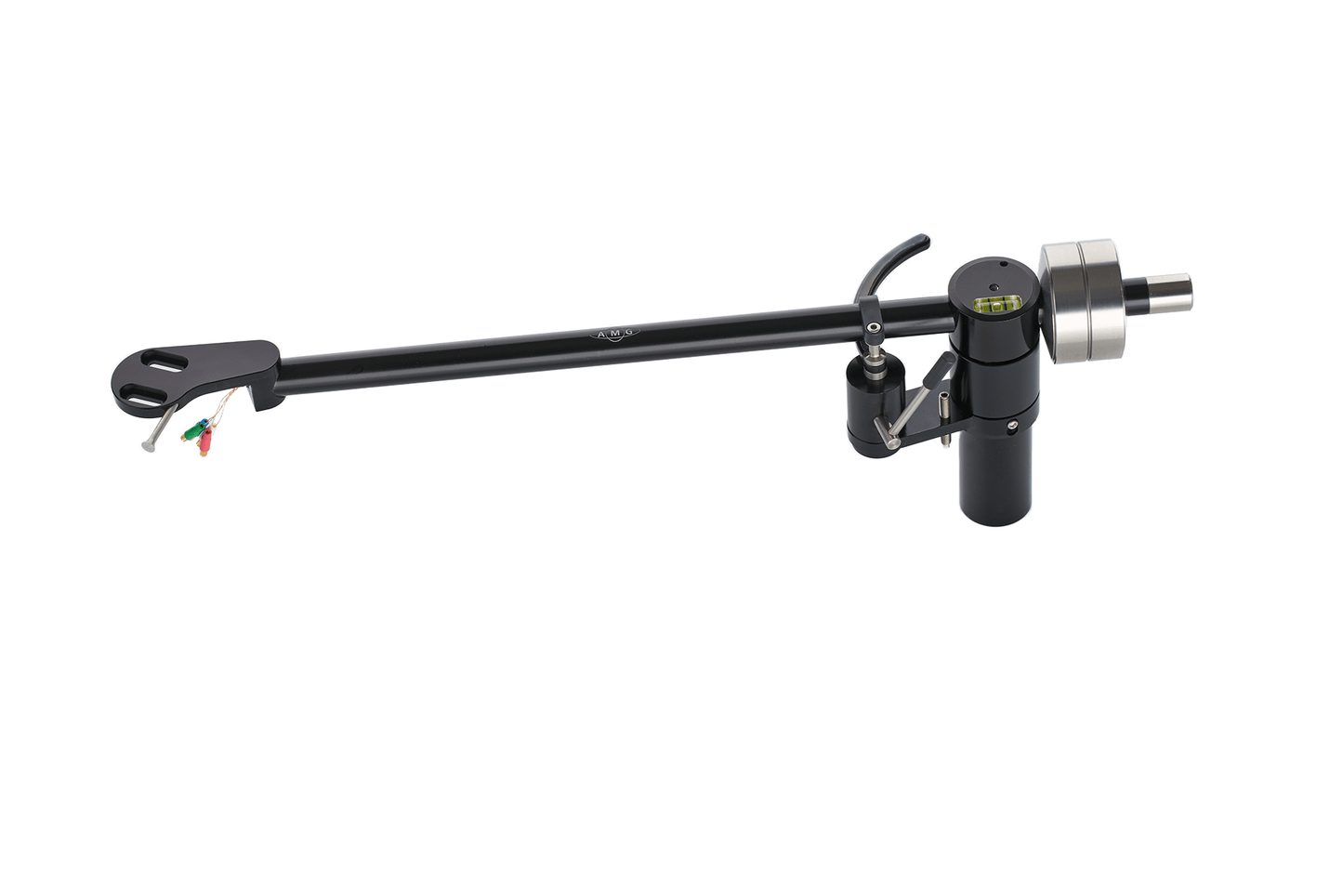

AMG 9W2 Tonearm
AMG 9W2 Tonearm
Couldn't load pickup availability
Share
Details
Description
9W2
Consistent further development of the 9W1, known for its outstanding dynamics. Designed to also work in drives from other manufacturers.
Immediate spatial presence with contoured directness and energetic depths as a result of continuous development in detail.
Aesthetic statement in fascinating technical and precision mechanical perfection.
Precision in the micrometer range, highest material and manufacturing quality, individually built by hand, carefully measured and finally tested.

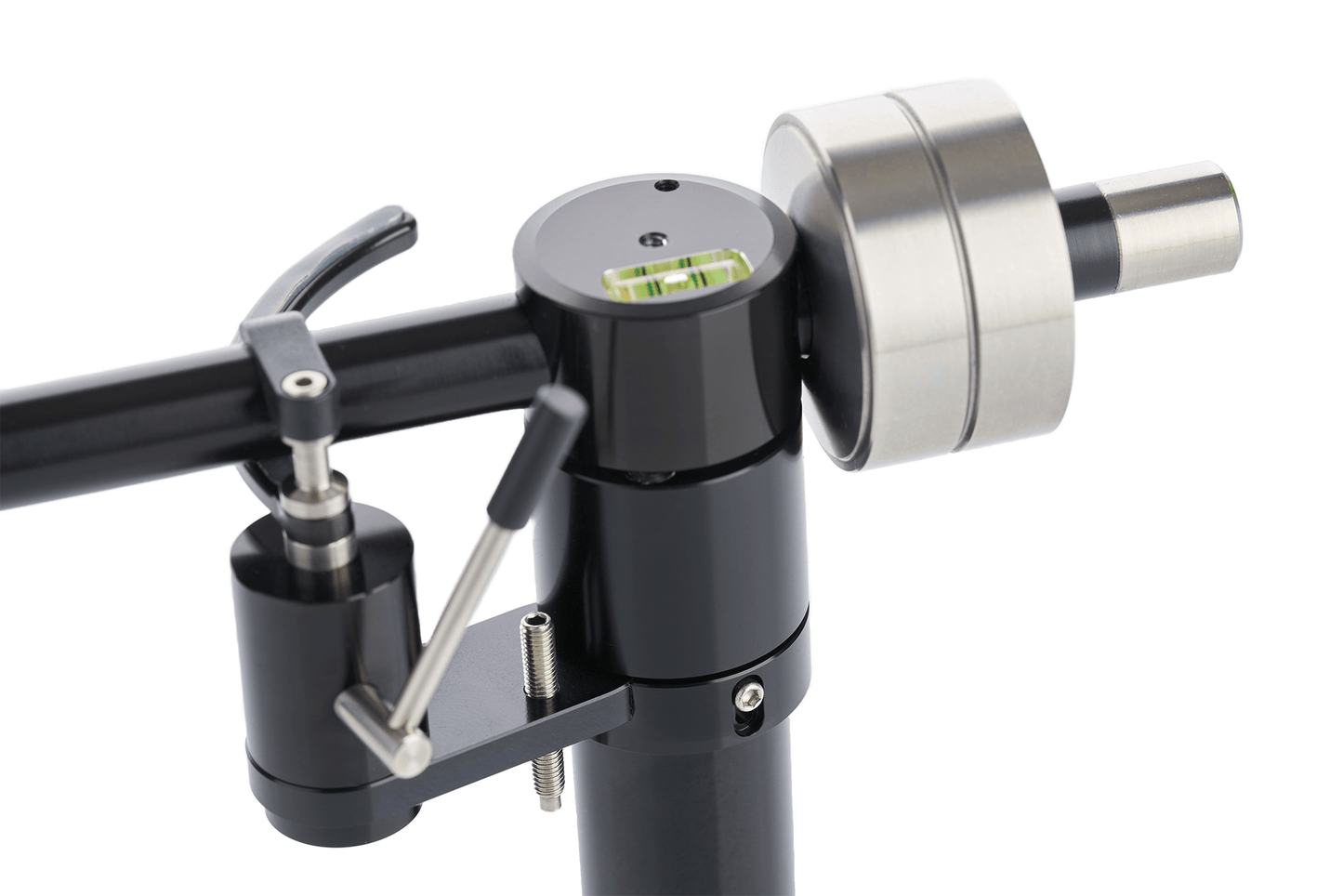

The magnetic anti-skating system:
Magnetically acting and detailed adjustable anti-skating for perfectly centered and distortion-free groove tracking.
The integrated azimuth adjustment:
Accurate adjustment with fine thread adjustment screw as the basis for perfectly aligned groove tracking.
The VTA:
Exactly calibrated and positioned height adjustment with precise verification through the integrated spirit level.

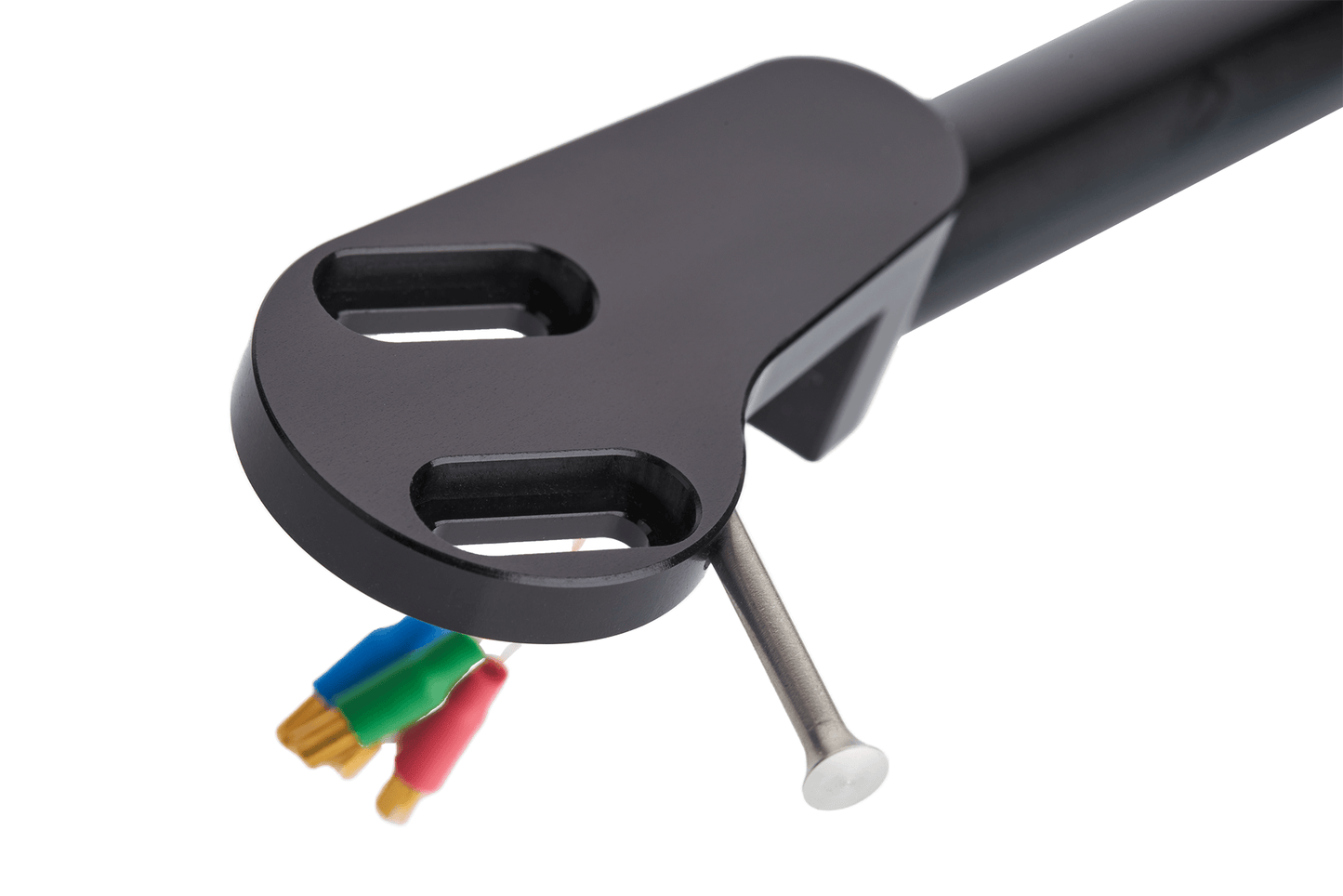

The internal wiring:
Gold-plated connectors, custom-made cables with specific twisting to eliminate magnetic field resonances and discontinuities.
The arm tube:
The ratio of cross-section to unsupported length, precisely matched to the material specifications of the quality aluminum used, guarantees the lowest possible resonance behavior.

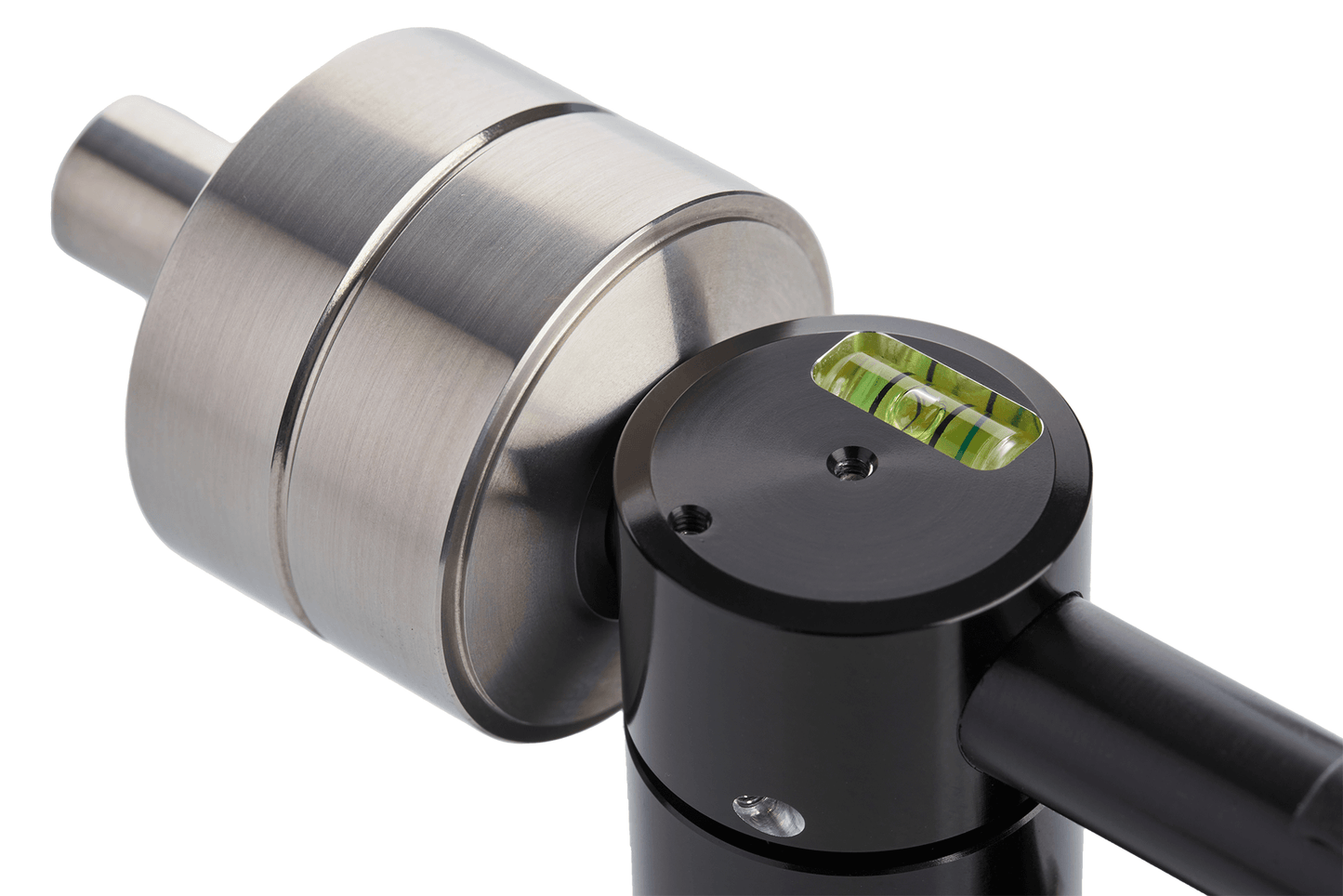

The counterweight as the basis of dynamics:
Stainless steel counterweight for perfect weight adjustment.
Significantly higher dynamics and directness of the needle due to optimized force/mass distribution in the entire tonearm system.
TECHNICAL DATA |
|
|
EFFECTIVE LENGTH
|
229mm |
| DISTANCE FROM PIVOT TO CENTER OF PLATTER | 211mm |
| OVERHANG | 18.1mm |
| ANGLE OF SHIELD | 24.07 ° |
| EFFECTIVE MASS | 9.1g |
| ZERO POINT (INSIDE) | 66.04mm |
| ZERO POINT (OUTSIDE) | 120.9mm |
| HOLE SIZES FOR MOUNTING BRACKETS | |
| WITHOUT ADAPTER SOCKET | 20mm |
| AMG VIELLA ADAPTER SOCKET | 25mm |
| AMG VIELLA FORTE ADAPTER SOCKET | 30mm |
| ADAPTER SOCKETS FOR THIRD-PARTY DRIVES | Miscellaneous |
| HOLE CIRCLE DIAMETER FOR SCREWS | 30 / 48mm |
