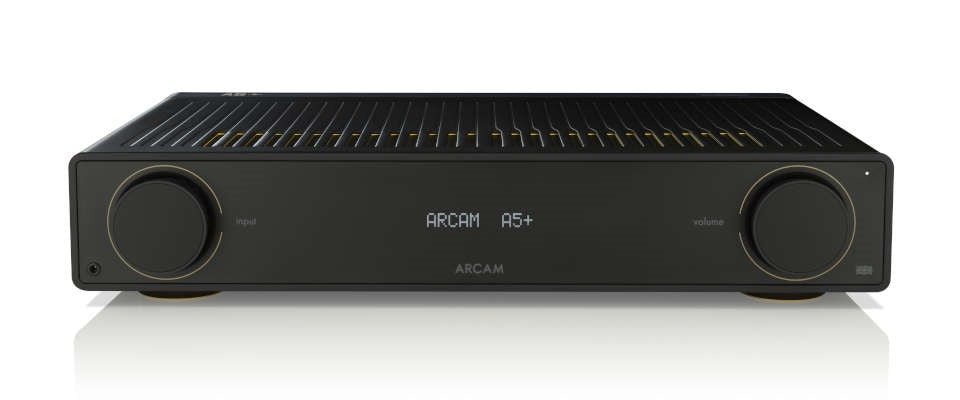

A5+
Integrated Amplifier with Bluetooth and Auracast
The ARCAM A5+ is for sharing intimate listening experiences with family and friends.
The "A" in ARCAM stands for amplification, where our expertise lies. The A5+ is the latest in nearly 50 years of amplifier design and manufacture, dating back to our first product in 1976 —the A&R Cambridge A60 amplifier. Since the launch of the award-winning ARCAM Radia A5, we haven't rested. Our engineering team pushed further to create the ARCAM A5+, an even better sounding and more versatile integrated amplifier.
The A5+ features an enhanced power supply design and cutting-edge wireless capabilities straight out of the box. Snapdragon Sound delivers uncompressed digital audio via Bluetooth, while Auracast enables multiple compatible headphones or speakers to share music wirelessly, with no pairing required.
With a wide array of digital and analogue inputs, including a meticulously tuned phono stage, the A5+ ensures impeccable sound quality for everything from vinyl to streaming.
Arcam CD5 CD Player
The Arcam CD5 uses premium components to deliver top-notch sound without unnecessary extras. Its high-quality electronics enable playback of Hi-Res audio discs or music via the USB-A input. As part of Arcam’s Radia range, it combines sleek styling with all-aluminium construction, making it one of the most elegant Arcam CD players to date.
Features
- Specially selected components and materials - to deliver on sound quality
- All new Radia design - Purposeful yet playful
- CD, CD-R, CD-RW playback - to enjoy your favourite album or mix CD
- USB mass storage playback - for your library of music rips and downloads from a USB stick
- Plastic Free Packaging - for easy disposal of natural materials
Premium quality ESS DAC for dynamic and detailed sound
At its core, the Arcam CD5 features an ESS 9018 Digital to Analogue Converter (DAC). Combined with precision-engineered components, this DAC ensures superb sound quality. The result is a highly detailed, distortion-free, and dynamic performance that brings out the best in your CD collection.
Hi-Res audio playback
The player supports Hi-Res music playback through FLAC and WAV-encoded CDs. Alternatively, use the USB-A interface to play stored Hi-Res music files, with support for WAV and FLAC formats up to 24-bit/96kHz. This ensures the player delivers its full sonic potential.
Connects to all types of systems
The CD5 offers three output options, making it versatile for connecting to various systems. Use the optical or coaxial digital outputs for AV receivers or digital amplifiers, or the analogue RCA outputs for traditional amplifiers without digital inputs.
Sleek new style
As part of the Radia series, the CD5 boasts a refined design with just six buttons and a discreet display. Its aluminium casing with rounded edges adds to its premium feel, and the compact remote control enhances convenience. It perfectly balances aesthetics and performance.
Specifications
Specifications
| Continuous power output (0.5% THD), per channel | |
| 2 channels driven, 20Hz–20kHz, 8Ω | 50W |
| 2 channels driven, 1kHz, 4Ω | 75W |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.003% |
| Analogue Inputs | |
| Number of inputs | 3 (RCA pairs) |
| Signal/noise ratio (A-wtd, ref. 50W, 1V input) | 106dB |
| Frequency response | 20Hz—20kHz ±0.2dB |
| Phono (MM) Input | |
| Input impedance | 47kΩ + 100pF |
| Frequency response (ref. RIAA curve) | 20Hz—20kHz ±1dB |
| Digital Inputs | |
| Supported sample rates (kHz) | 192, 176.4, 96, 88.2, 48, 44.1 |
| Bit depths | 24, 16 |
| Frequency response (filter 1) | 20Hz—20kHz ±0.2dB |
| Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) | 109dB |
| Headphone Output | |
| Maximum output level (RMS) into 32Ω/300Ω | 2.5V / 5V |
| Load range | 16Ω – 2kΩ |
| Wireless Specifications | |
| Bluetooth version | 5.4; A2DP Sink/Source, AVRCP, BLE, SBC, AAC, aptX, aptX HD, aptX Lossless, LE Audio, Auracast |
| Bluetooth transmitter frequency & power | 2,400–2,483.5 MHz; <20dBm |
| General | |
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 350W |
| Power consumption (standby) | <0.5W |
| Dimensions (W × D × H) | 431 × 344 × 83 mm |
| Weight (net) | 8 kg |
| Weight (packed) | 11 kg |
| Supplied accessories | |
| Mains lead(s) | Included |
| Remote control | With 2 × AAA batteries |
| Quick Start Guide | Included |
| Important Safety Instructions | Included |
| Supported media | CD (Audio), CD-R (Audio / Data), CD-RW (Audio / Data), USB-A (Data) |
| Supported files (Data) | WAV (LPCM), FLAC, MP3, AAC, WMA |
| Supported Bit depth | 16 bit – 24 bit |
| Supported sample rates (kHz) | 32, 44.1, 48, 88.2 (WAV & FLAC only), 96 (WAV & FLAC only) |
| Outputs | 1 × Analogue Stereo (RCA) pair, 1 × Digital Coaxial (RCA), 1 × Digital Optical (Toslink) |
| Frequency response (filter 1) | 20Hz – 20kHz ±0.05dB |
| Max analogue output (0dBFS) | 2.1V rms |
| SNR (A-wtd, ref. 16-bit/24-bit, 0dBFS) | 93dB / 115dB |
| Mains voltage & power consumption | AC 100–240V, 50/60Hz, 12W |
| Dimensions (W × D × H) | 431 × 344 × 83 mm |
| Product weight | 6 kg |
| Shipping weight | 9 kg |
| Supplied accessories | Mains lead(s), Remote control with 2 × AAA batteries, Quick Start Guide, Important Safety Instructions |
Book a Demo
Book a Demo:

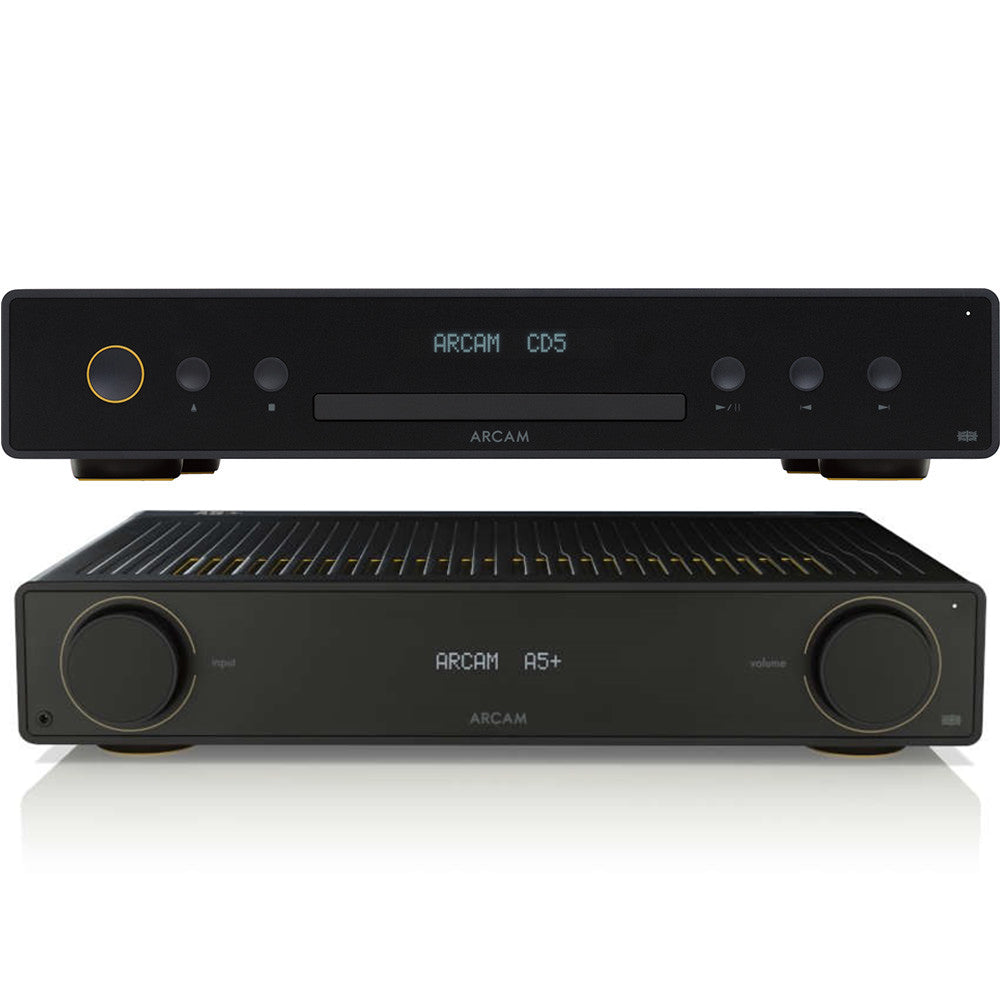

Arcam A5+ Amplifier + CD5 CD Player
