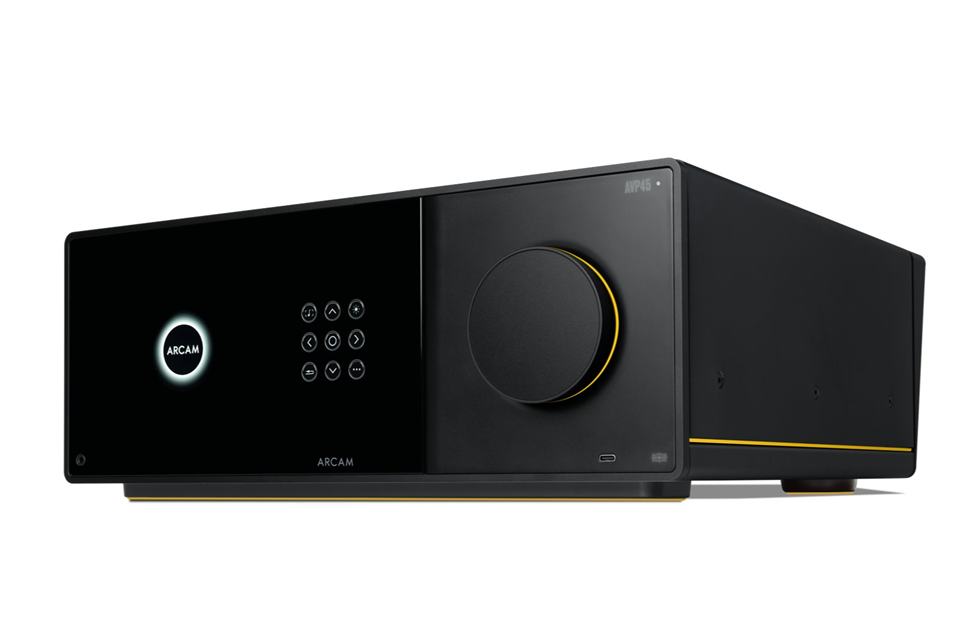

Arcam AVP45 – 16‑Channel Immersive Audio Video Processor

The Arcam AVP45 is a flagship 16‑channel AV processor engineered for those who demand uncompromised home cinema performance. Designed as the ultimate control centre for high‑end multi‑channel systems, the AVP45 delivers reference‑grade audio processing, world‑class decoding, and complete system flexibility.

Powered by Arcam’s high‑performance DAC architecture and precise multi‑channel signal handling, the AVP45 ensures exceptional clarity, dynamics, and spatial imaging. Its full suite of immersive formats—including Dolby Atmos, DTS:X, IMAX Enhanced, and Auro‑3D—creates a three‑dimensional audio environment that places you at the centre of every performance.

With Matrix Channel Assignment, the AVP45 offers complete freedom in system design, allowing configurations tailored to dedicated cinemas, media rooms, or custom installations. Balanced XLR outputs provide the cleanest possible connection to external power amplifiers such as Arcam’s own PA9.

Featuring HDMI 2.1a with support for 8K/60Hz and 4K/120Hz, HDR10+, Dolby Vision, VRR, and ALLM, the AVP45 is built for next‑generation displays and gaming systems. Streaming is equally advanced with AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz, Roon Ready and more.

A vivid 6.5‑inch colour display, intuitive on‑screen menus, and the Radia control app make setup and daily operation seamless. The AVP45 stands as Arcam’s most powerful and flexible home cinema processor—designed for enthusiasts, professionals, and anyone building a truly reference‑grade system.

Immersive Audio Processing

• 16‑channel immersive audio decoding
• Dolby Atmos, DTS:X, IMAX Enhanced, Auro‑3D
• Matrix Channel Assignment for full system flexibility
• Balanced XLR outputs for all channels

HDMI & Video Performance

• HDMI 2.1a with 7 HDMI inputs and 2 HDMI outputs
• 8K/60Hz and 4K/120Hz support
• HDR10+, Dolby Vision, and HLG compatibility
• VRR, ALLM, CEC and eARC support
• On‑screen menu display

Streaming & Connectivity

• Streaming via AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz
• Roon Ready for high‑resolution network playback
• Internet radio, UPnP, and podcast support
• Bluetooth with Snapdragon Sound and Auracast
• Supports Hi‑Res formats up to 24‑bit/192kHz

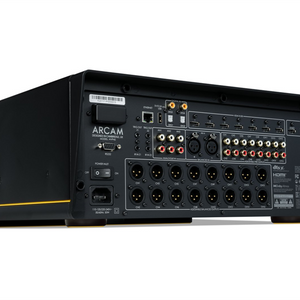

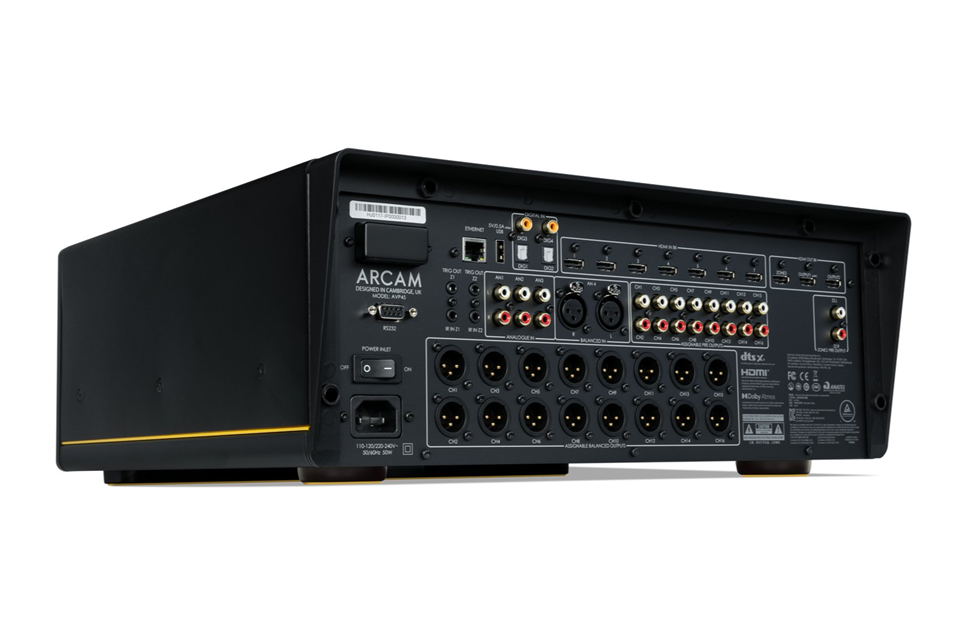

Inputs & Outputs

• Balanced XLR outputs for all channels
• Digital Inputs: Coaxial and optical
• Analogue Inputs: 3 × RCA stereo inputs
• Support for multiple subwoofers and height channels

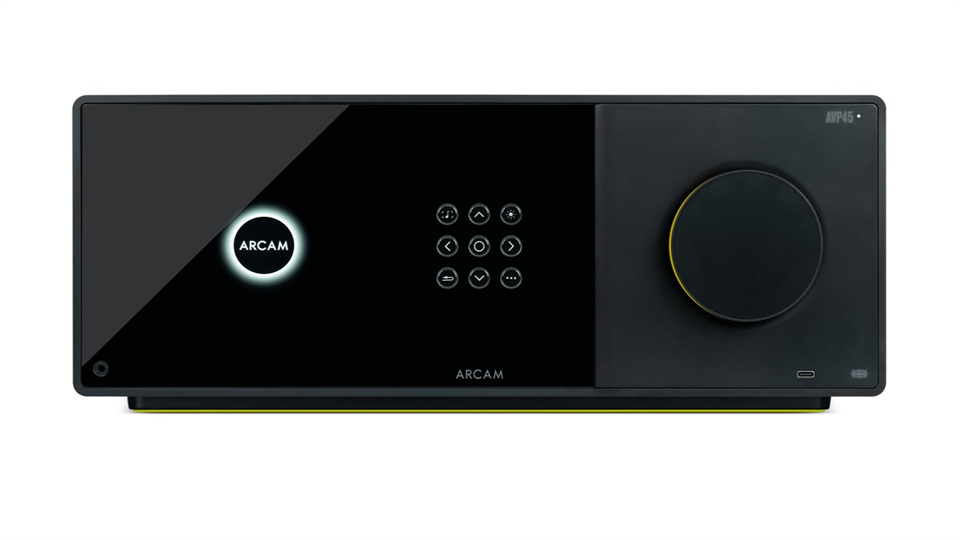

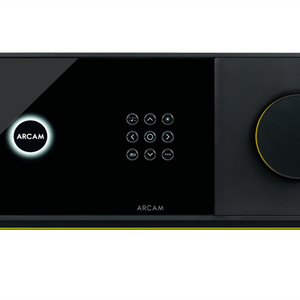

Display & Control

• 6.5‑inch high‑resolution colour display
• Bluetooth remote control
• Radia app for setup and system management

Design & Construction

The AVP45 features Arcam’s latest Radia Series industrial design with an elegant layout, precision engineering, and build quality suited for premium home cinema installations.
