Arcam Radia R25 Bookshelf Speaker
The R25 is the larger of the two Radia Series bookshelf loudspeakers, stepping up to a 6.5-inch Micro Ceramic Composite (MCC) cone woofer for greater low-frequency extension and dynamic authority, while retaining the same 1-inch Deep Ceramic Composite (DCC) aluminium dome tweeter and Acoustic Lens waveguide used across the entire Radia range. The result is a bookshelf speaker with noticeably more scale and weight than its smaller sibling, without sacrificing the precision and refinement that define the series.
The two-way crossover is set at 1.7kHz, with the cabinet tuned via a rear-mounted bass-reflex port to deliver a frequency response of 43Hz–40kHz (±6dB). Nominal impedance is 6 ohms, with a sensitivity of 85.5dB at 1M/2.83V, straightforward to drive with any quality amplifier, and particularly well-matched to Arcam's own Radia electronics.
Internally, the cabinet is rigidly cross-braced to minimise resonance and keep the presentation clean and controlled. The Black Walnut veneer finish with subtle yellow Radia accents looks at home in both dedicated listening rooms and contemporary living spaces, while magnetic grilles keep the front baffle uncluttered when you want them to.
Pair the R25 with Arcam's SA35 or SA45 streaming amplifiers and you also unlock Anechoic EQ (AEQ) speaker-specific tuning profiles developed in HARMAN's own anechoic chambers that automatically optimise the amplifier's output for the R25. System-level coherence without the faff.
A strong performer in medium to large rooms, and an equally capable foundation for a premium home cinema build when partnered with the R35C centre channel, R25B subwoofer, and the incoming Radia AVA amplifiers.
Specifications
Specifications
Arcam R25 — Technical Specification Sheet
Overview
The Arcam R25 is the larger bookshelf model in the Radia Series, designed to deliver deeper bass, greater scale and higher dynamic capability while maintaining the clarity, refinement and elegant acoustic performance the Radia range is known for.
Acoustic Architecture
- 25 mm (1") Deep Ceramic Composite (DCC) dome tweeter with Acoustic Lens waveguide
- 165 mm (6.5") Micro Ceramic Composite (MCC) mid/bass driver
- Precision‑engineered driver frames for control, rigidity and optimized airflow
- Magnetic grille for a clean, seamless front profile
Cabinet & Construction
- Premium Black Walnut veneer finish with Radia Series accents
- Internal bracing for improved cabinet stability and lower resonance

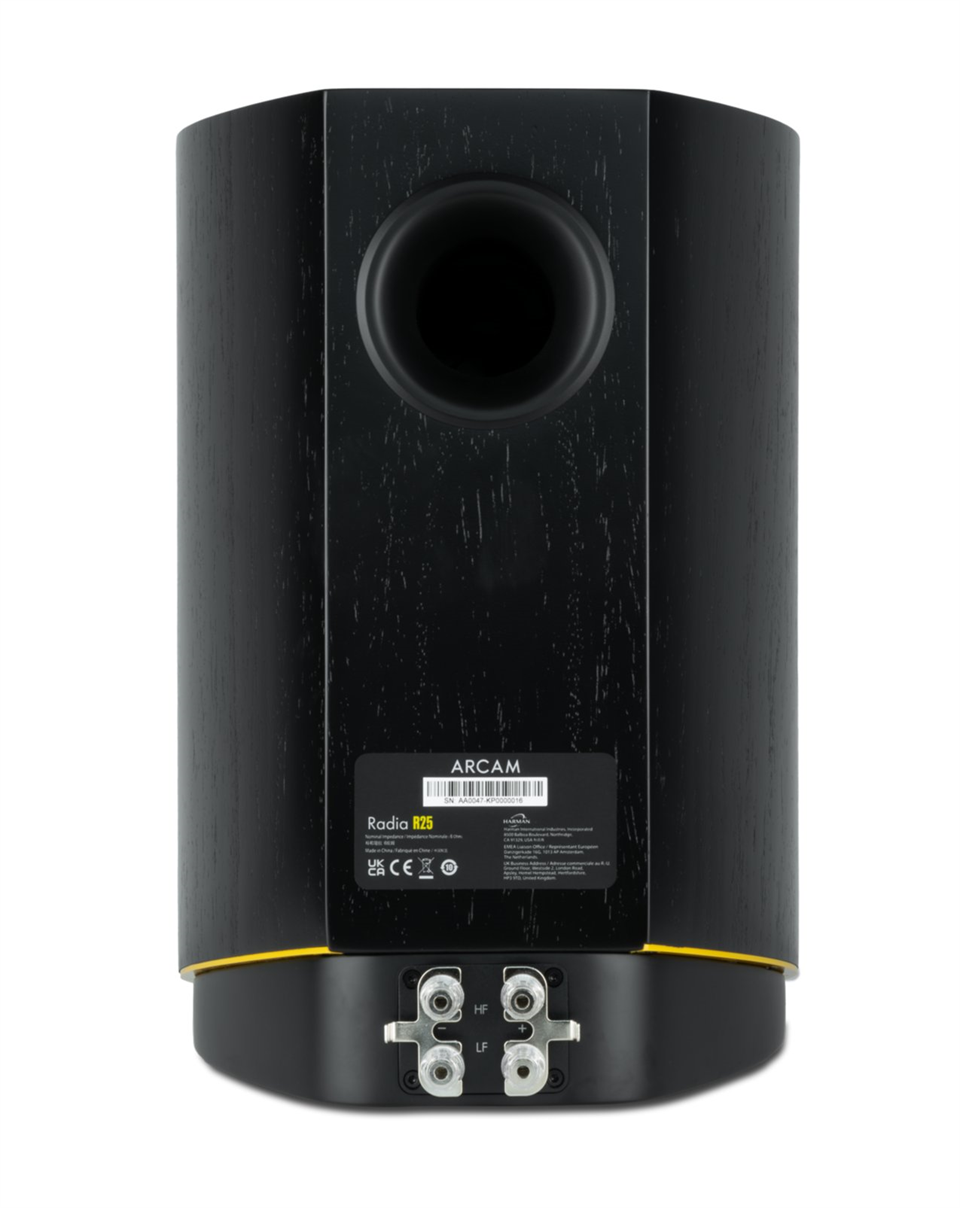

- Bass‑reflex enclosure with rear port
Crossover & System Integration
- 2‑way crossover engineered for smooth driver integration
- Optimized for natural tonal balance and wide dispersion
- Designed to pair seamlessly with Arcam Radia amplifiers
Technical Specifications
- Frequency Response (±6 dB): 48 Hz – 40 kHz
- Sensitivity (2.83 V / 1 m): 87 dB
- Nominal Impedance: 6 Ω
- Recommended Amplifier Power: 20 – 200 W
- Crossover Frequency: 1.7 kHz
Dimensions & Weight
- Width: 230 mm
- Depth: 305 mm
- Height: 350 mm
- Weight (each): 9.2 kg
What’s Included
- Pair of Arcam R25 loudspeakers
- Magnetic grilles
- User documentation
Placement Notes
- Allow space behind the speakers for optimal port performance
- Suitable for stands or solid furniture with adequate support
