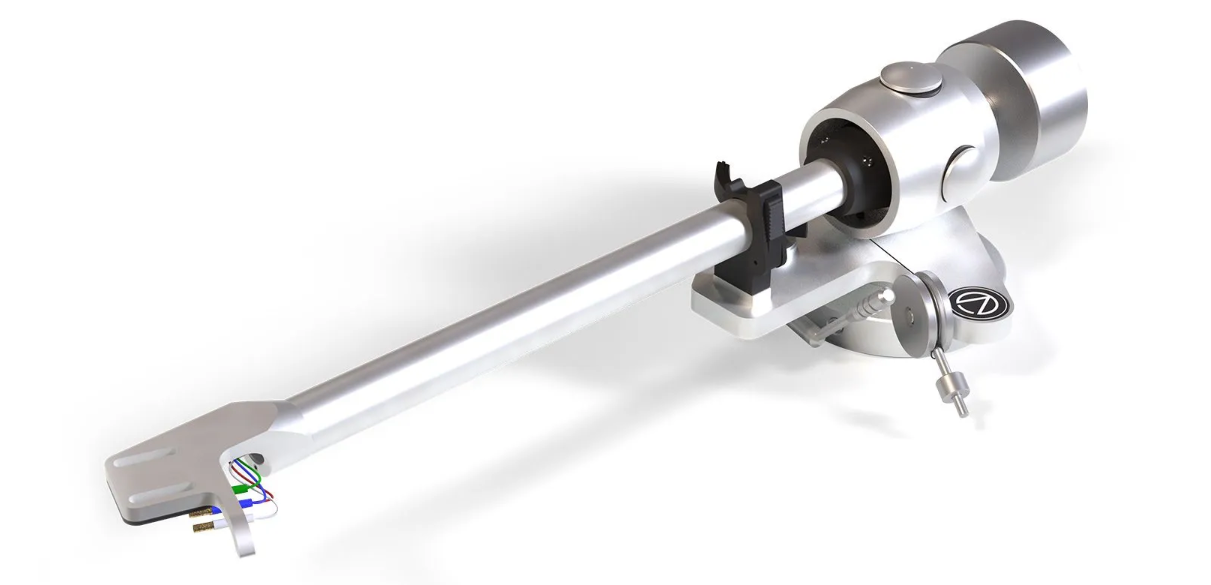

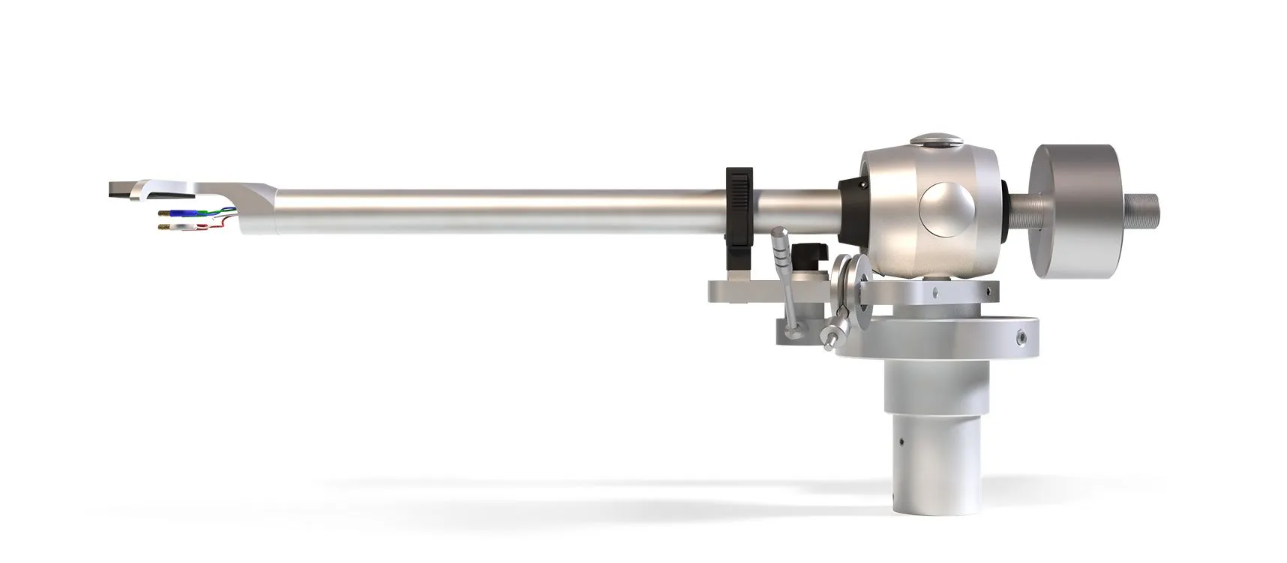

The Audio Origami PU7 Alloy Tonearm is one of the finest tonearms available today. Engineered to exacting standards, the arm is the perfect partner for high-end, low-medium compliance cartridges and provides a beautifully neutral conduit between your cartridge and the phono stage.
With a minimal yet bulletproof design, the PU7 Alloy delivers a pure, unaltered signal thanks to the high-grade materials employed in its base, armtube, headshell and cabling.
The armtube is damped with our unique Meta Material Armtube Damping System, (M.M.A.D.S.), 3D printed from an ultra-light and ultra-rigid material which provides perfect damping and keeps the internal cabling from touching any part of the armtube.
The internal cabling is supplied by Cardas and is wired to a Zavfino1877 DIN connector allowing you to choose your preferred tonearm cable.
The 12 inch version of the PU7 Alloy has almost identical characteristics to the 9 inch, but adds more dramatic dynamics and benefits from the ability to track the groove better, as you expect from longer arms.

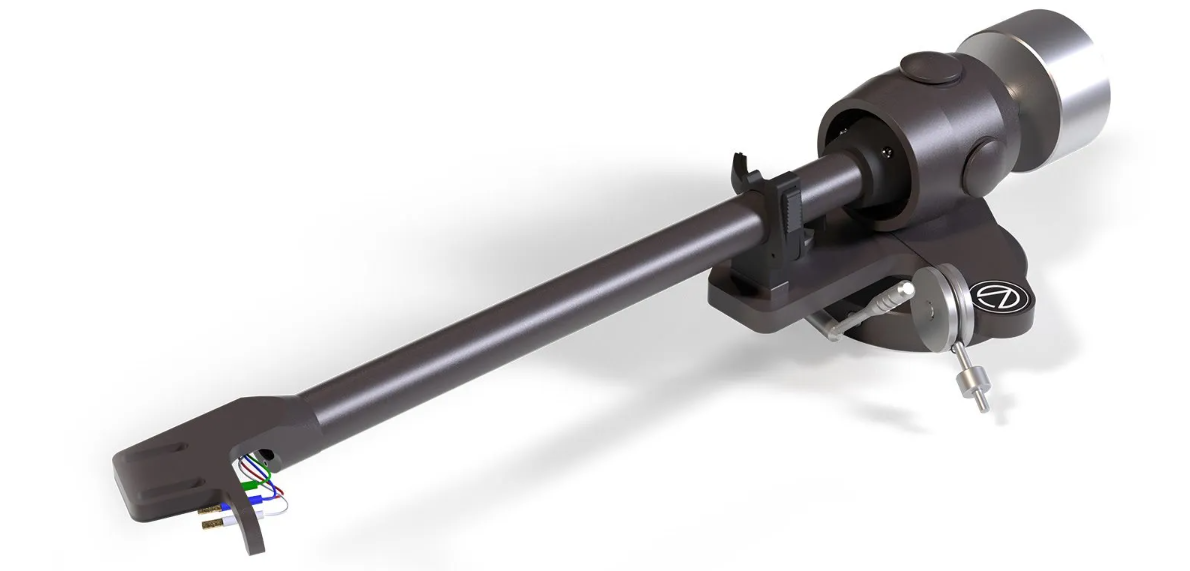

The Audio Origami PU7 Alloy is bead-blasted, brightened and anodised in a choice of satin silver or satin black and silver allowing you to choose the finish that suits your turntable.
It looks great, sounds ridiculously pure, and once you hear it on your turntable, it will likely be the last tonearm you ever buy.
M.M.A.D.S
META-MATERIAL ARM DAMPING SYSTEM
All tonearm tubes suffer from resonance regardless of the material they are made from. Vibrations caused by the stylus and airborne resonance travel up and down the arm tube and the internal cables, increasing the noise floor and affecting the signal picked up by the cartridge.
Audio Origami has invented a unique method of damping arm tubes, which provides perfect damping and resonance control.
M.M.A.D.S is a tunnel embedded within the arm tube, made from a material that “floats” the internal cabling and reduces any resonance reaching the cables. The tunnel is suspended by ultra-thin flanges made from a material that rejects vibration.
Unlike other damping methods, such as foam or rubber, M.M.A.D.S doesn’t dull the sound. In fact, it lowers the noise floor so much that you experience more clarity and air from your records.
SPECIFICATIONS:
| 9 Inch PU7 Alloy | 12 Inch PU7 Alloy | |||
| Effective Length | 9 inches | Effective Length | 12 inches | |
| Effective Mass | 10.5g | Effective Mass | 12g | |
| Tonearm Type | Ball Race Gimbal | Tonearm Type | Ball Race Gimbal | |
| Mount | Rega / Linn | Mount | Rega / Linn | |
| Base | Aluminium | Base | Aluminium | |
| Armtube | Aluminium | Armtube | Aluminium | |
| Headshell | Aluminium | Headshell | Aluminium | |
| Gimbal Housing | Delrin | Gimbal Housing | Delrin | |
| VTA | Adjustable | VTA | Adjustable | |
| Azimuth | Adjustable | Azimuth | Adjustable | |
| Anti-Skate | Adjustable | Anti-Skate | Adjustable | |
| Damping | Meta Material | Damping | Meta Material | |
| Internal Wiring | Cardas | Internal Wiring | Cardas | |
| External Wiring | DIN Connector | External Wiring | DIN Connector | |
| Counterweight | Threaded Steel | Counterweight | Threaded Steel | |
| Colour | Silver or Black/Silver | Colour | Silver or Black/Silver | |
| Packaging | Cardboard and Foam | Packaging | Cardboard and Foam |
