B.dpr one
DAC / PREAMPLIFIERBased on the B.dac one, the B.dpr one is equipped with an additional analog pre-amplification stage.
Aiming at reproducing music as faithfully as possible with all its presence, naturalness and dynamics, the B.dpr one incorporates the main technological innovations introduced in the reference series.
Like our reference converters, the B.dpr one incorporates our patented SJR “Source Jitter Removal” technology for optimal conversion quality, regardless of the source. The preamplifier section features a 100% balanced analog volume control stage. It is built using discrete resistor networks switched by relays, preserving the signal integrity.
Design

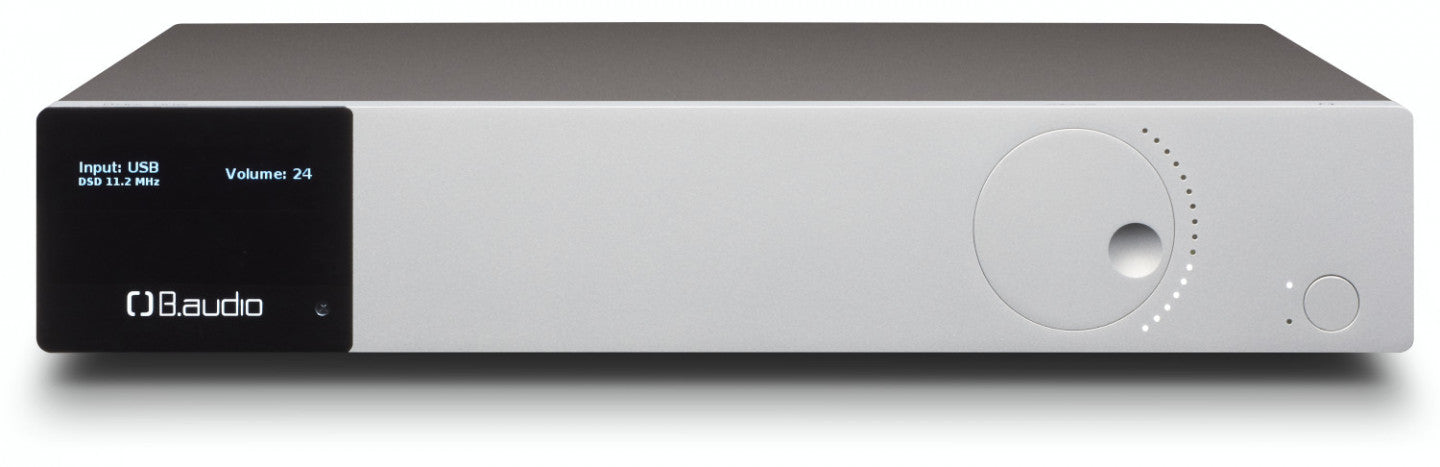

Just like all B.audio electronics, the B.dpr one is elegantly and sleekly designed, with no visible screws. The CNC machined aluminium front panel features a rotary knob mounted on high quality ball bearings.
Remote control
Each B.dpr one comes with a custom-made remote control made of massive aluminium.
ANALOG INPUTS
The B.dpr one features two unbalanced inputs (RCA) and one balanced input (XLR). Thanks to the analog volume control stage, the signals coming from these inputs are processed completely in the analog domain.
SPECIFICATIONS
| GENERAL | ||
| Power supply | Factory set: 220-230V or 100-115V, 50-60Hz | |
| Dimensions | 450x375x91mm | |
| Weight | 6,9kg | |
| TECHNICAL | ||
| Power stage total capacity | > 45 000µF | |
| Power stage regulation | multiple, linear | |
| Conversion type | multibit sigma-delta | |
| Clock management | patented SJR technology | |
| DIGITAL IN | ||
| Connectors | 2x SPDIF, 2x Toslink, 1x AES/EBU, 1x USB (type B) | |
| USB (type B) | ||
| operating mode | asynchronous | |
| Supported format | PCM (incl. DXD), DSD, DSD over PCM (DoP) | |
| Sample rate (PCM) | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz (DXD), 384kHz | |
| Word length (PCM) | 16, 24, 32 bits | |
| Data rate (DSD) | 2.8224MHz (DSD64), 5.7648MHz (DSD128), 11.2896MHz (DSD256) | |
| Data rate (DSD over PCM) | 2.8224MHz (DSD64), 5.7648MHz (DSD128) | |
| SPDIF and AES/EBU | ||
| Supported format | PCM | |
| Sample rate (PCM) | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | |
| Word length (PCM) | 16, 24 bits | |
| Toslink | ||
| Supported format | PCM | |
| Sample rate (PCM) | 44.1kHz, 48kHz, 88.2kHz, 96kHz | |
| Word length (PCM) | 16, 24 bits | |
| ANALOG IN |
||
| Balanced | ||
| Connectors | 1x XLR | |
| Input impedance | 47 kOhms | |
| Unbalanced | ||
| Connectors | 2x RCA (pair) | |
| Output impedance | 47 kOhms | |
| ANALOG OUT | ||
| Balanced | ||
| Connectors | XLR | |
| Output impedance | 100 Ohms | |
| Unbalanced | ||
| Connectors | RCA | |
| Output impedance | 75 Ohms | |
| VARIABLE OUTPUT LEVEL |
||
| Balanced | -80 to +0 dB, 64 steps | |
| Unbalanced | -80 to +0 dB, 64 steps |
