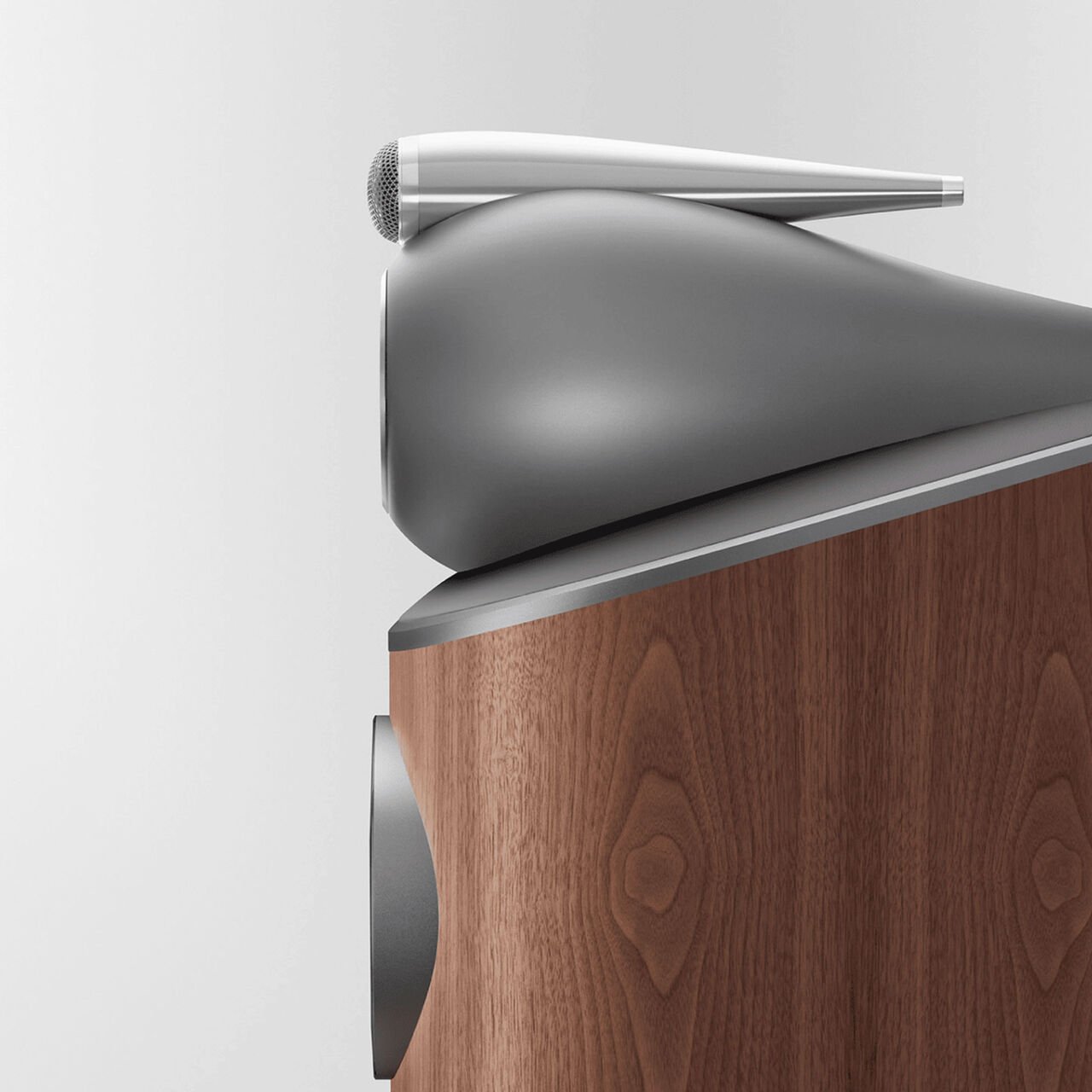

Bowers & Wilkins 803 D4 Floorstanding Speaker
Bowers & Wilkins 803 D4 Floorstanding Speaker
Couldn't load pickup availability
- Free Delivery
- Demo Available
- Trade-in Available
- 5 year Warranty
Share
Details
Description
Bowers and Wilkins's 803 D4 is the first speaker in the range to have the full complement of the 800 series technology.
Bowers and Wilkins's 803 D4 model is where the separate turbine head for the mid-range drive unit is introduced, this brings all the technical advantages of a dedicated midrange enclosure to a smaller footprint that’s easily accommodated in any home. Small doesn’t mean compromised, either: 803 D4 still bristles with technical innovation throughout.
803 D4 mounts two Aerofoil bass cones in aluminum base pods, each of which is clamped into an internal aluminum plate fixed to the stiffest part of its cabinet. Formed as single pieces of metal, these structures provide the perfect location for clean, accurate bass.
Bowers and Wilkin's all-new Biomimetic Suspension revolutionises midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn't believe possible.
Nintronics will have the full 800 D4 series on demonstration, so feel free to give us a call on 01707 320 788 or drop us an email at sales@nintronics.co.uk to book an appointment or discuss our fantastic trade-in incentives.
Specifications
Specifications
| Technical features | Diamond tweeter |
| Solid body Tweeter-on-Top | |
| Continuum cone FST™ | |
| Anti-Resonance plug | |
| Biomimetic Suspension | |
| Turbine Head | |
| Matrix™ | |
| Aerofoil cone bass units | |
| Flowport™ | |
| Description | 3-way vented-box system |
| Drive units | 1x ø25mm (1in) diamond dome high-frequency |
| 1x ø130mm (5in) Continuum cone FST™ midrange | |
| 2x ø180mm (7in) Aerofoil cone bass units | |
| Frequency range | 16Hz to 35kHz |
| Frequency response (+/-3dB from reference axis) | 19Hz to 28kHz |
| Sensitivity (on axis at 2.83Vrms at 1m) | 90dB |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) |
| <1 % 80Hz – 20kHz | |
| <0.3% 100Hz – 20kHz | |
| Nominal impedance | 8Ω (minimum 3.0Ω) |
| Recommended amplifier power | 50W – 500W into 8Ω on unclipped programme Max. |
| Recommended cable impedance | 0.1Ω |
| Dimensions | Height: 1165mm |
| Width: 357mm | |
| Depth: 511mm |
