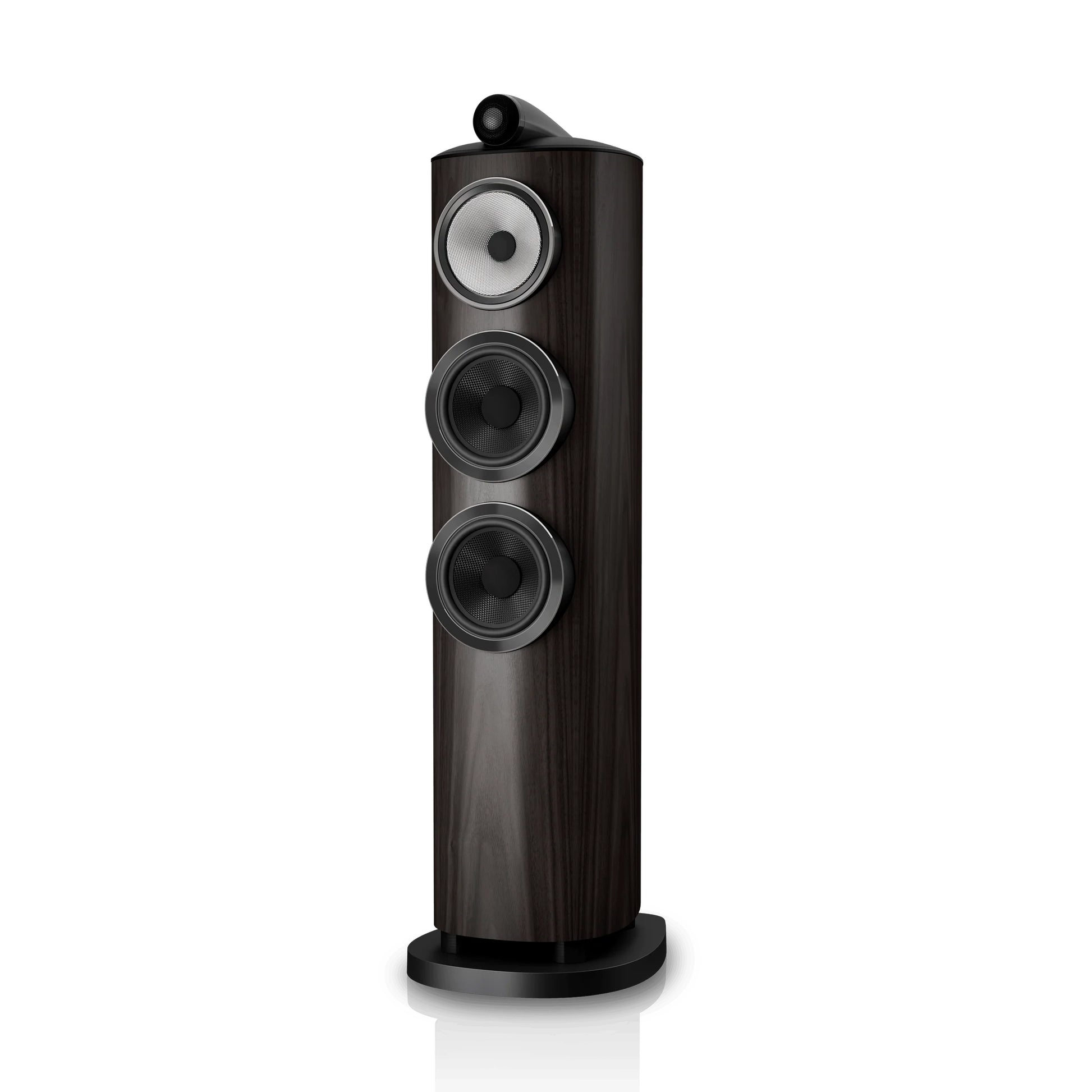

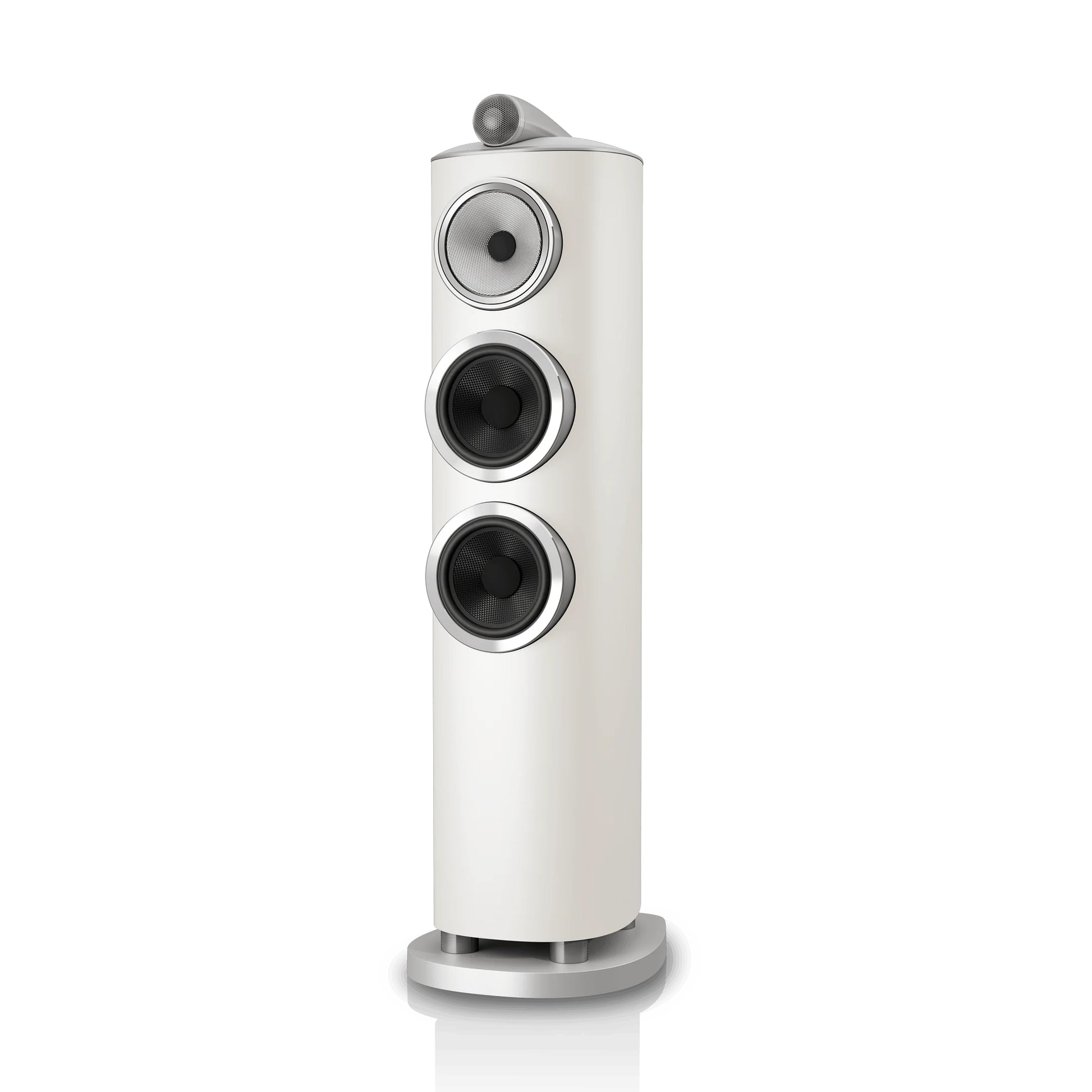

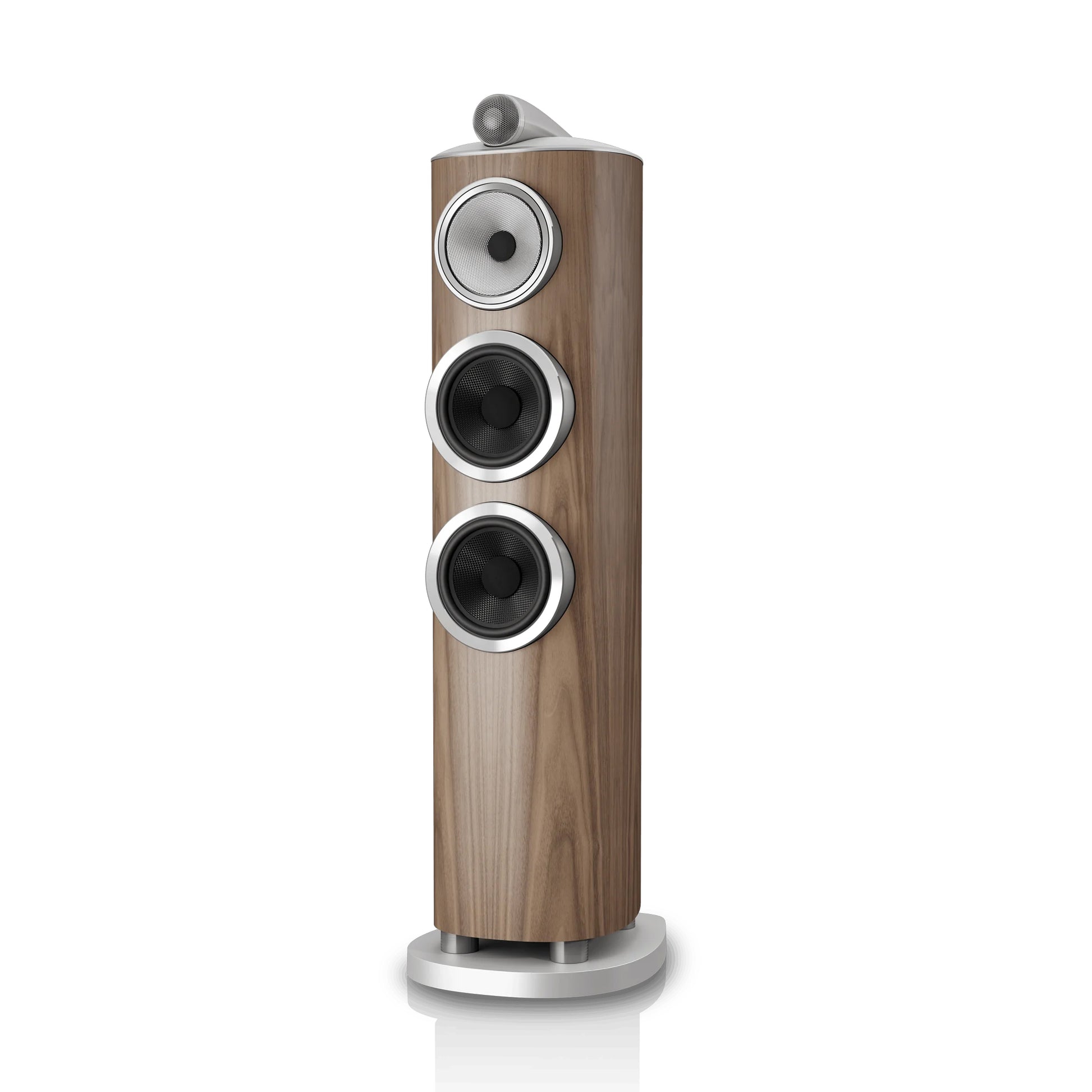

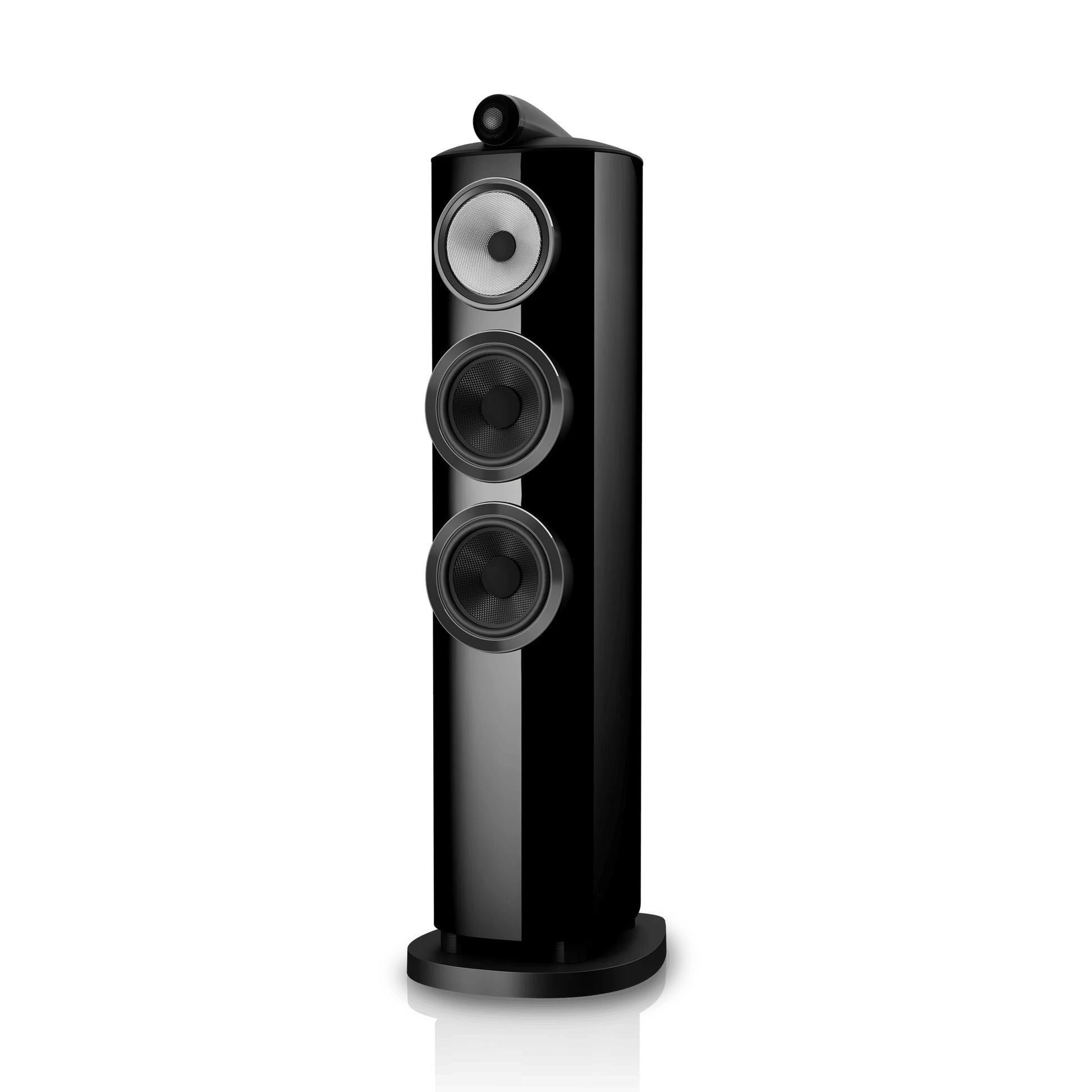

Bowers & Wilkins 804 D5 Floorstanding Speaker (Pair)
Bowers & Wilkins 804 D5 Floorstanding Speaker (Pair)
Couldn't load pickup availability
Share
Details
Description
The 804 D5 brings reference-quality 800 Series Diamond performance to a more conventional floorstanding loudspeaker design.
Perfect for those who want a breathtaking listening experience in a smaller footprint, the 804 D5 features our Diamond dome tweeter, housed in the iconic Tweeter-on-Top, for astonishing high-frequency precision. This is complemented by our Continuum cone, located within an all-new Aluminium midrange enclosure, plus two Aerofoil bass drive units, rigidly mounted within the reverse-wrap cabinet. Stabilised on an upgraded plinth with tuned-mass damping, 804 D5 reproduces clarity with breathtaking accuracy. Available in Stealth Black, Warm White, Light Walnut, and Dark Walnut, with matching Leather by Connolly trim, the 804 D5 looks and sounds incredible.
Ultimate drive unit technology
Pairing our most advanced and innovative drive unit technology, the 804 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
Optimised for pure performance
Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section and midrange enclosure within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be better by design
The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.
Specifications
Specifications
| Height | 1101 mm (43.3 in) including tweeter and plinth |
| Width | 238 mm (9.4 in) cabinet only; 308 mm (12.1 in) including plinth |
| Depth | 337 mm (13.3 in) cabinet only; 392 mm (15.4 in) including grille and terminals |
| Net Weight | 40.3 kg (88.7 lbs) |
| Technical Features | Diamond Dome Tweeter, Solid Body Tweeter-on-Top, Continuum™ Cone FST Midrange, Anti-Resonance Plug, Biomimetic Suspension, Matrix™, Aerofoil™ Bass Cones, Flowport™ |
| Description | 3-Way Vented-Box System |
| Drive Units |
1 × Ø25 mm (1 in) Diamond Dome High-Frequency Driver 1 × Ø130 mm (5 in) Continuum™ Cone FST Midrange Driver 2 × Ø165 mm (6.5 in) Aerofoil™ Bass Drivers |
| Frequency Range (-6 dB) | 20 Hz – 35 kHz |
| Frequency Response | 19 Hz – 24 kHz (±3 dB) |
| Sensitivity | 89 dB |
| Harmonic Distortion |
<1% from 90 Hz – 20 kHz <0.3% from 120 Hz – 8 kHz (2nd and 3rd harmonics, 90 dB at 1 m on-axis) |
| Nominal Impedance | 8 Ω (minimum 3.0 Ω) |
| Recommended Amplifier Power | 50 W – 1000 W into 8 Ω (unclipped program) |
| Maximum Recommended Cable Impedance | 0.1 Ω |
| Cabinet Finishes | Stealth Black, Warm White, Dark Walnut, Light Walnut |
| Grille Finishes |
Black (Stealth Black and Dark Walnut) Grey (Warm White and Light Walnut) |
