Bowers & Wilkins

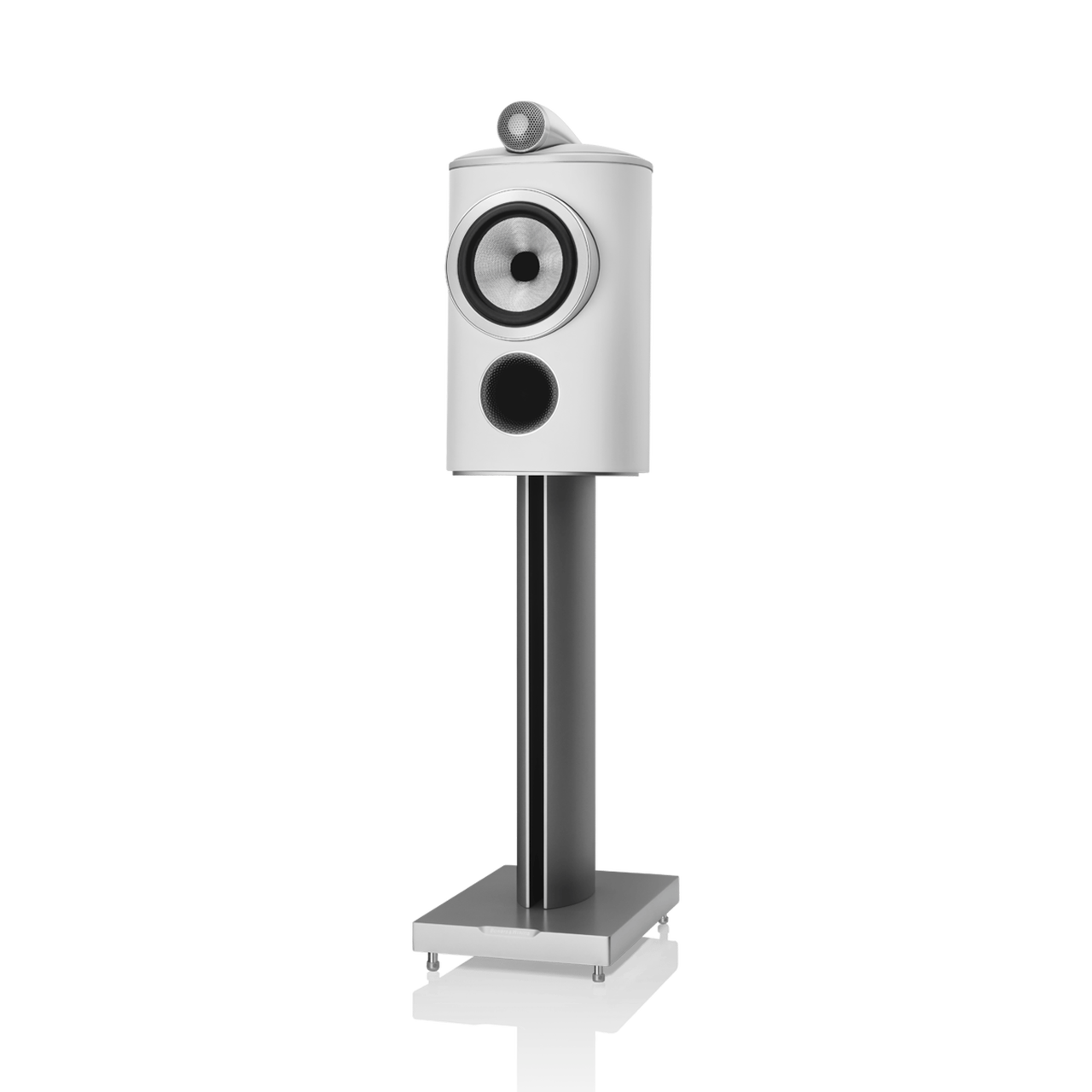

Bowers & Wilkins 805 D4 Standmount Speaker

Bowers & Wilkins 805 D4 Standmount Speaker

No reviews

Regular price £8,750.00
Regular price Sale price £8,750.00
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Demo Available
  • Trade-in Available
  • 5 year Warranty
View full details



The 805 D4 is the entry-level speaker in the new 800 D4 series but packs all the technology of its bigger brothers into this 2 way standmount ported design.

The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond range, but it’s still packed with the advanced technologies of its bigger brothers, including that all-important Diamond dome tweeter and Solid Body Tweeter- on-Top. Compact but still mighty, the 805 D4 offers a fantastic bass extension for its size but also retains that signature speed and impact that Bowers and Wilkins 800 series has become known for.

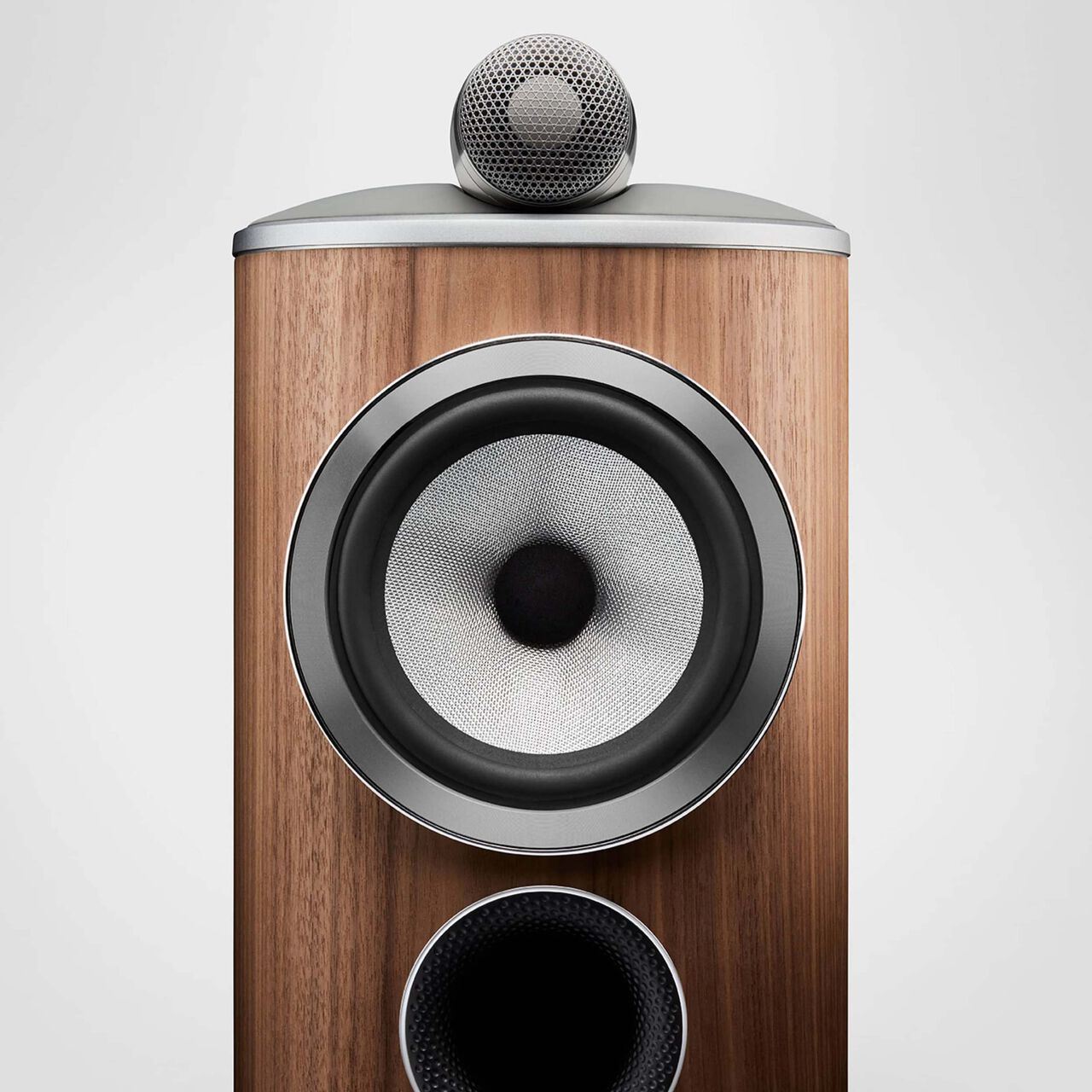

The iconic Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, creating an even more free and open sound with high frequencies. As before, the carefully decoupled housing is milled from a single solid block of aluminum to better resist resonance.

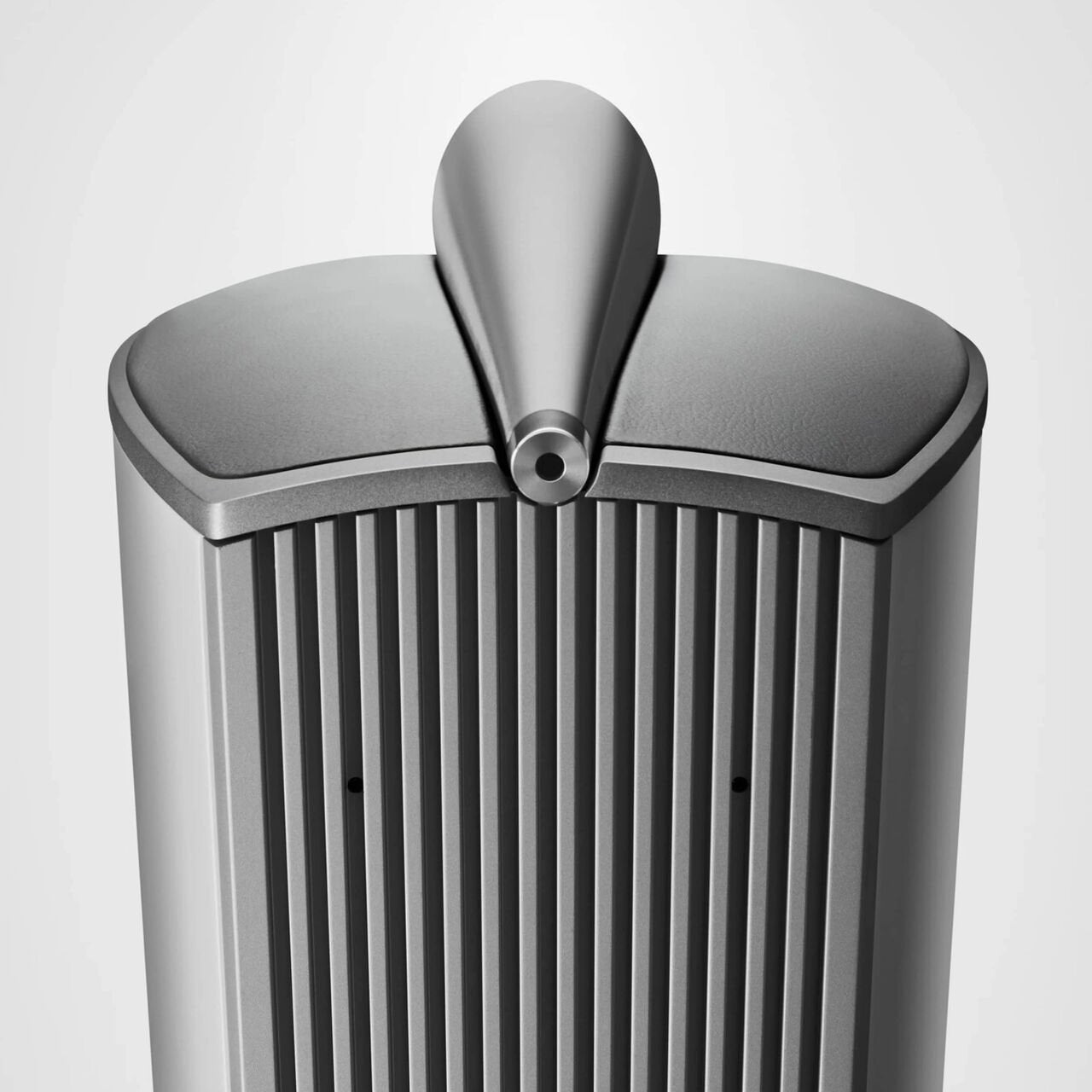

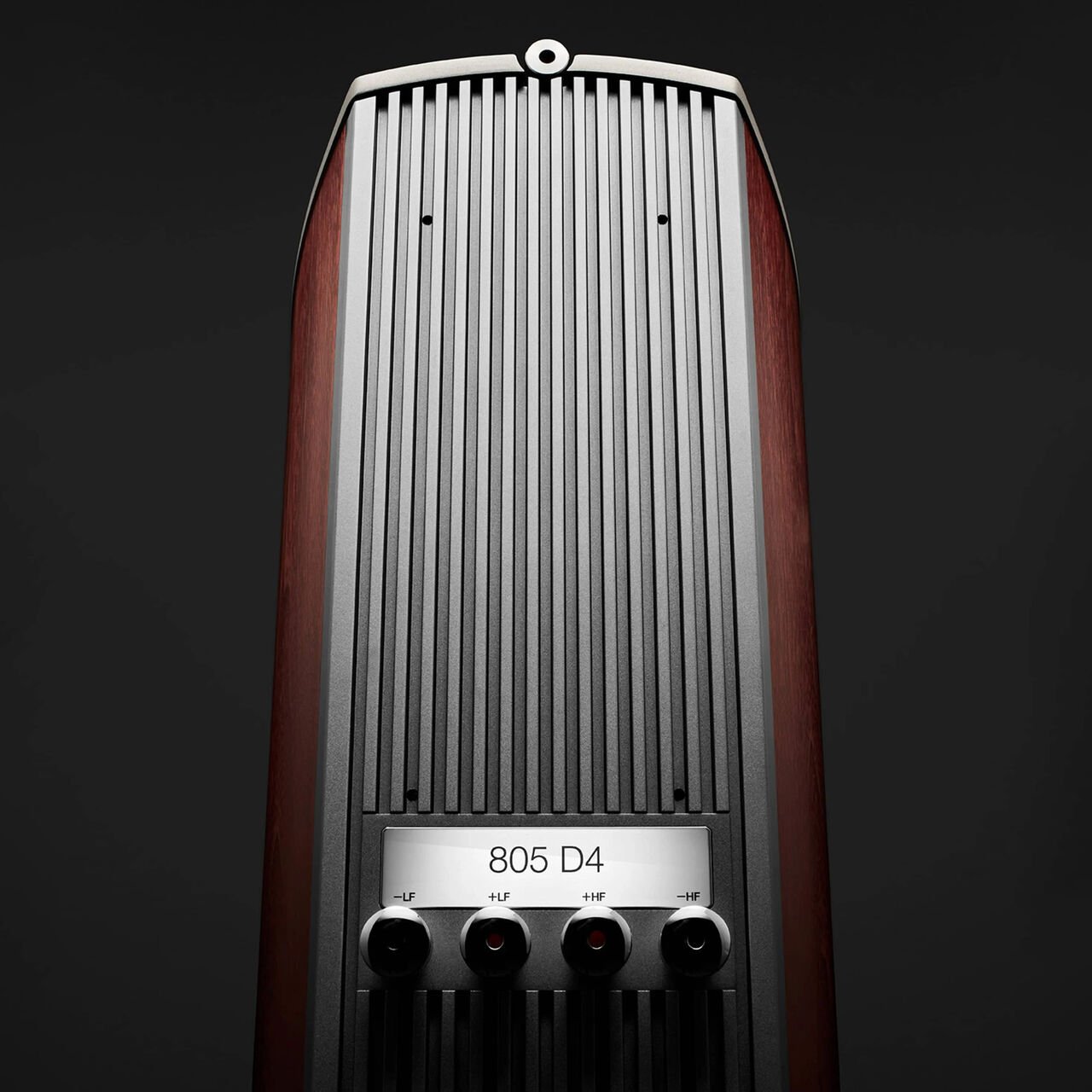

The 805 D5 now uses a rear-mounted crossover design, mounted to the stiff aluminum spine of the speaker. This isolates the sensitive capacitors from the effects of air pressure within the enclosure.

If you are looking for a more compact design speaker that still delivers an incredible performance then the Bowers and Wilkins 805 D5 is the speaker of choice. Nintronics will have the full 800 D4 series on demonstration, so feel free to give us a call on 01707 320 788 or drop us an email at to book an appointment or discuss our fantastic trade-in incentives.



Technical features

Diamond tweeter


Solid body Tweeter-on-Top


Continuum cone bass/mid




Anti-Resonance plug




2-way vented-box system

Drive units

1x ø25mm (1in) diamond dome high-frequency


1x ø165mm (6.5in) Continuum cone bass midrange



Frequency range

34Hz to 35kHz

Frequency response (+/-3dB from reference axis)

42Hz to 28kHz

Sensitivity (on axis at 2.83Vrms at 1m)


Harmonic distortion

2nd and 3rd harmonics (90dB, 1m on axis)


<1 % 90Hz – 20kHz


<0.3% 120Hz – 20kHz

Nominal impedance

8Ω (minimum 4.6Ω)

Recommended  amplifier power

50W – 120W into 8Ω on unclipped programme

Max. recommended  cable impedance



Height:     440mm


Width:      240mm


Depth:      373mm



Net weight

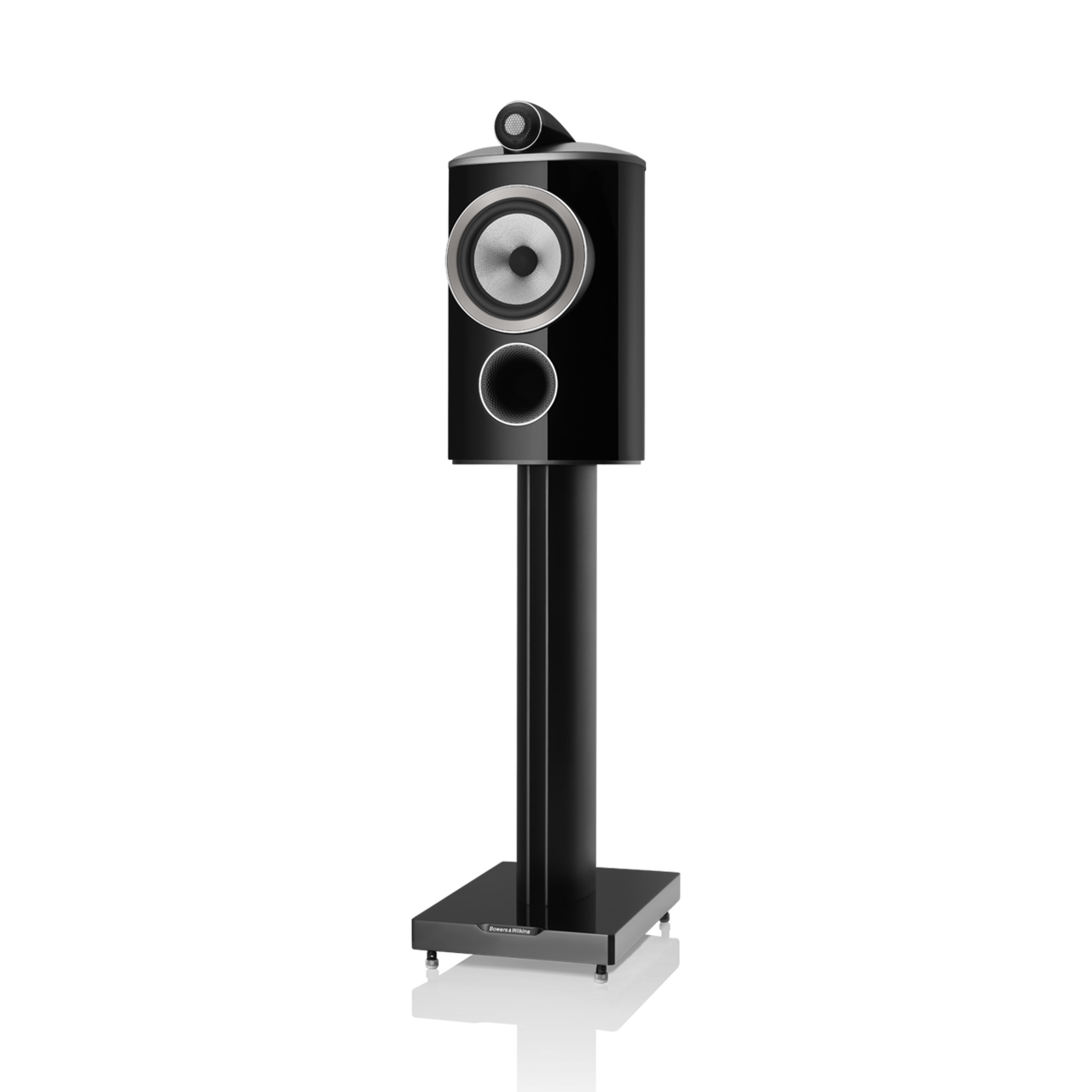

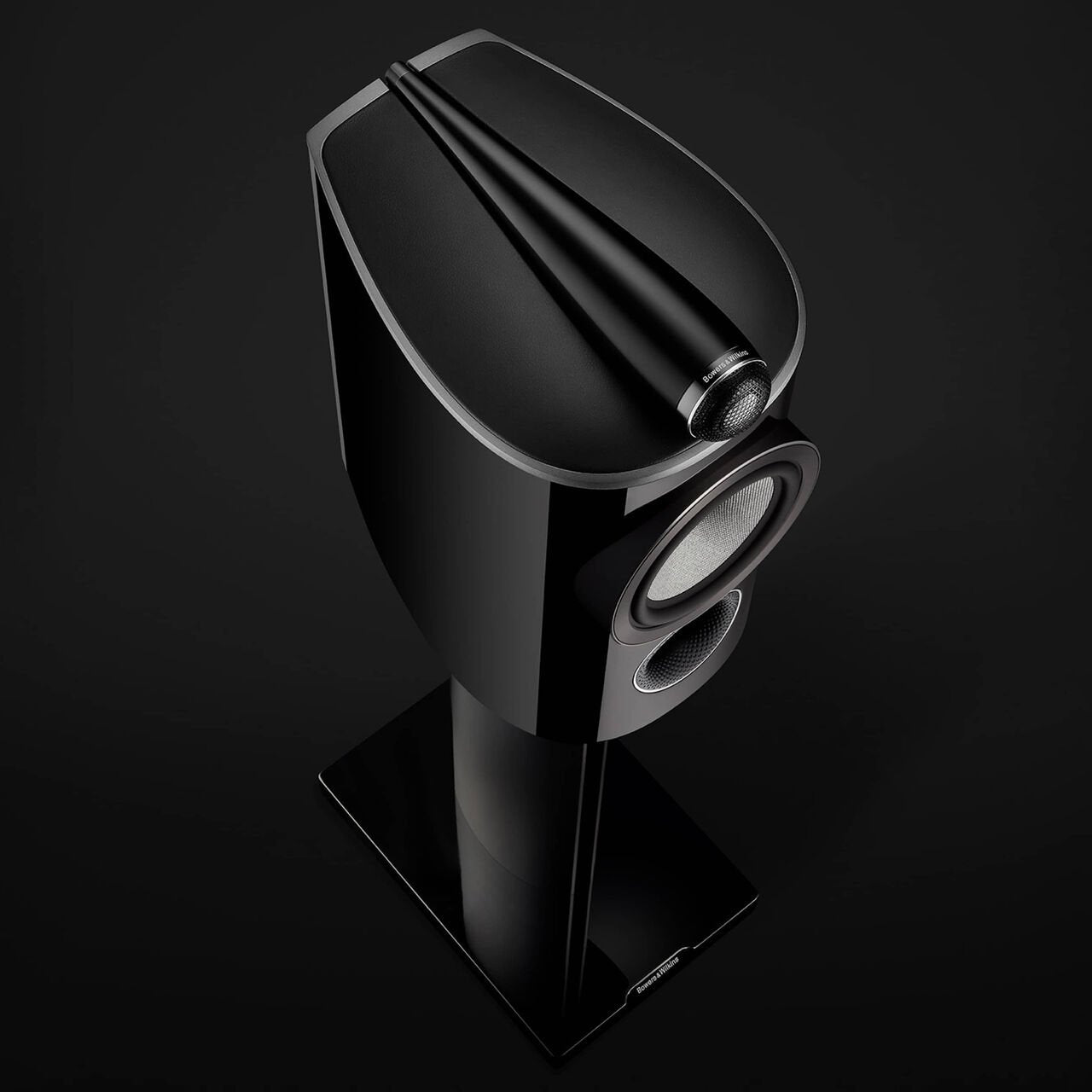

Gloss Black

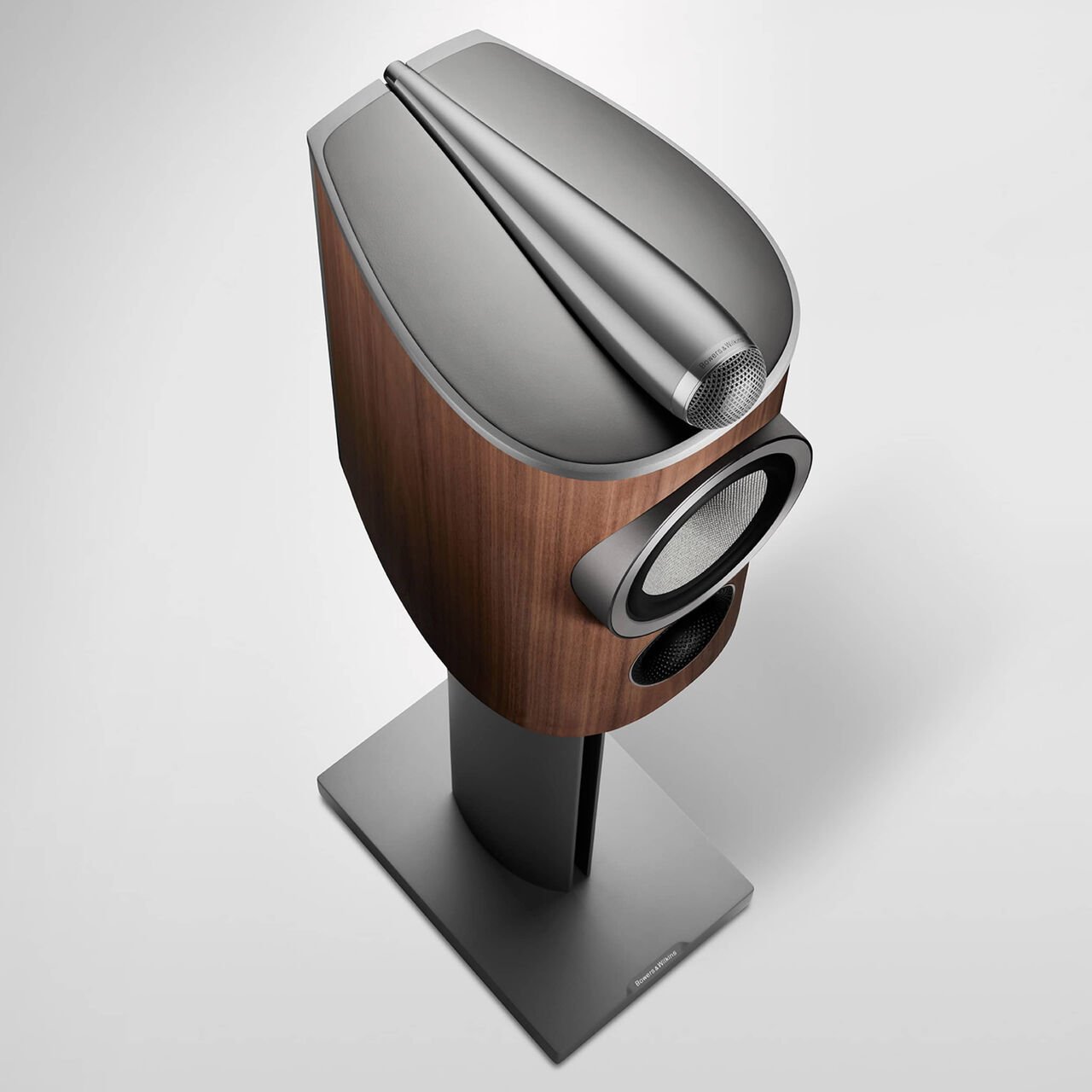

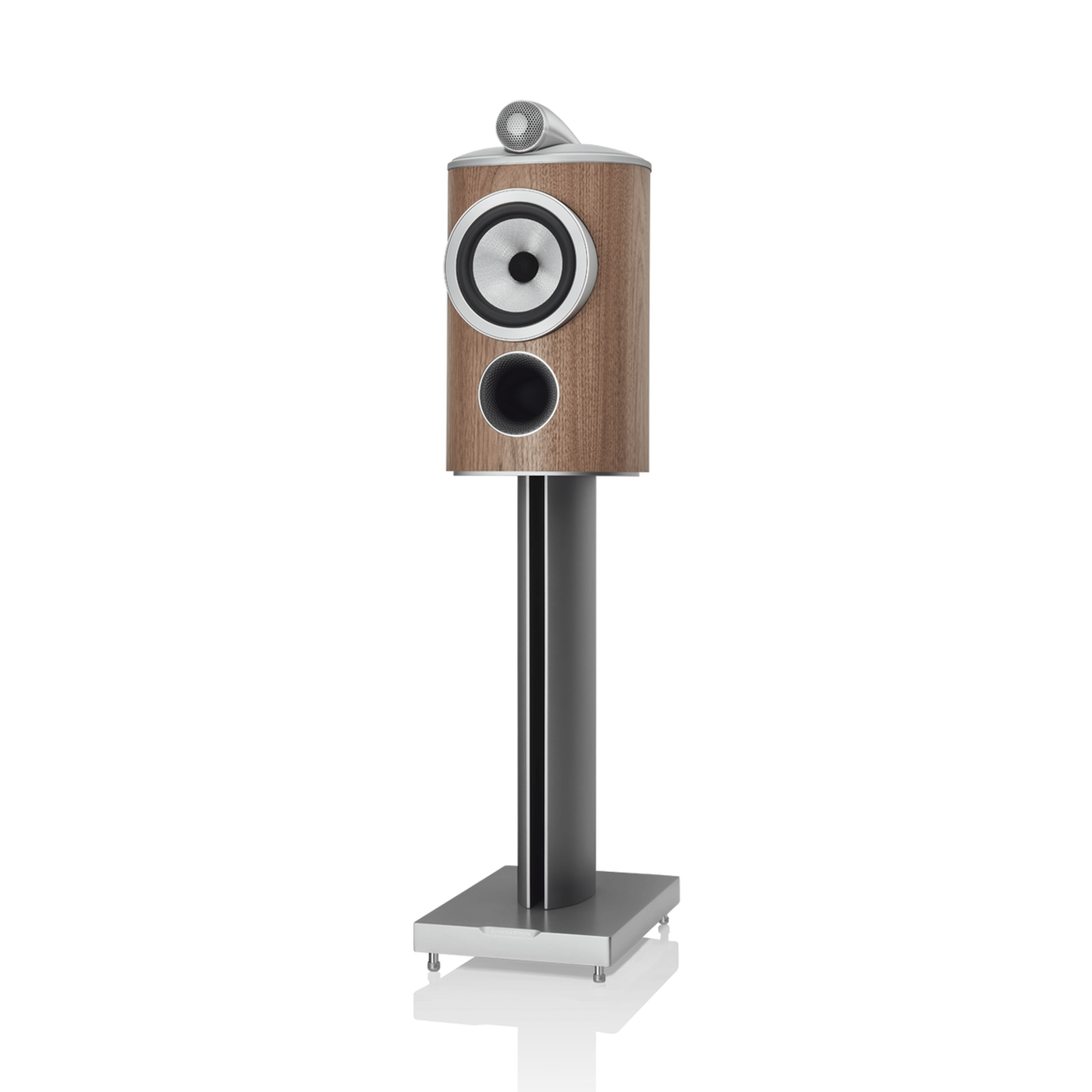

Satin Walnut
