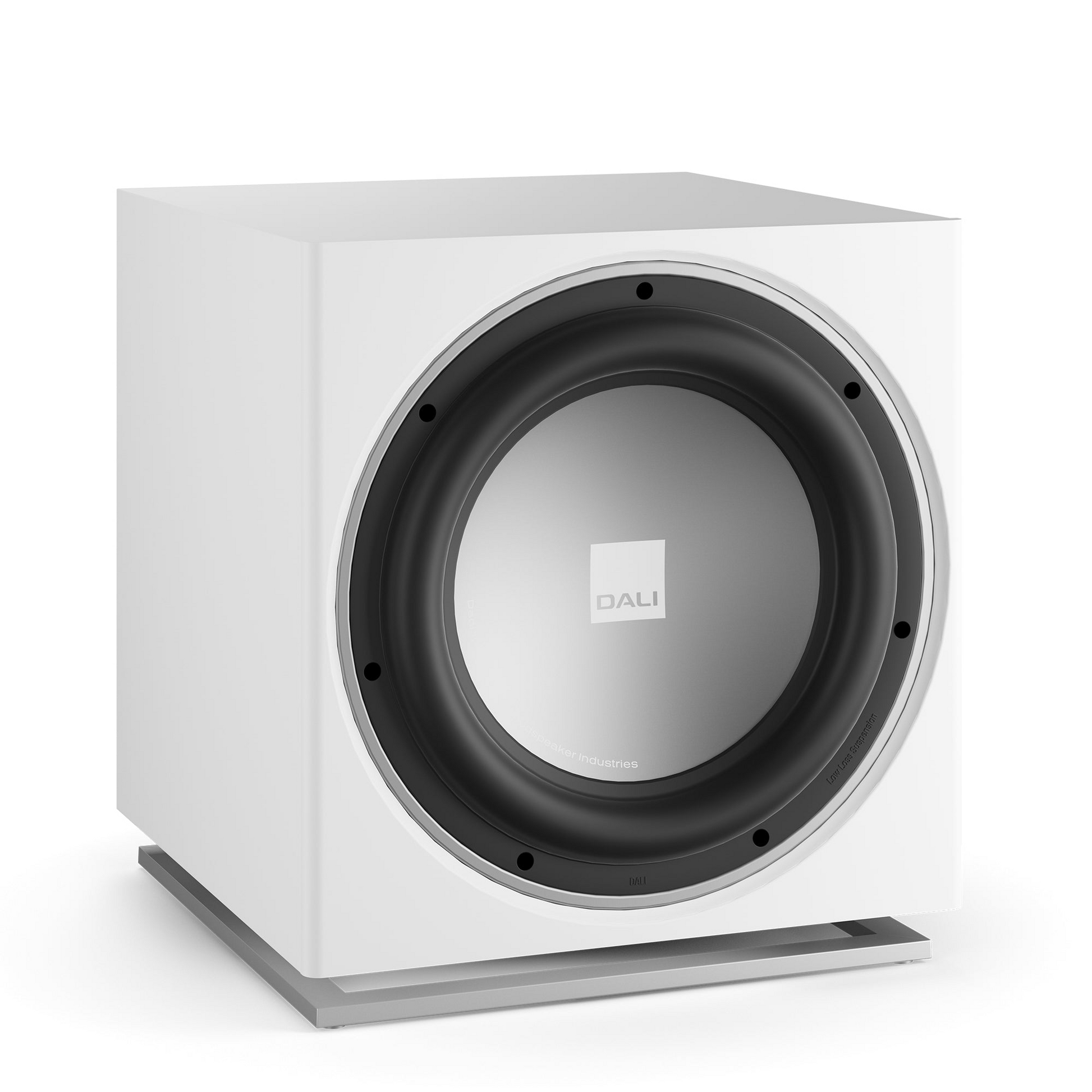

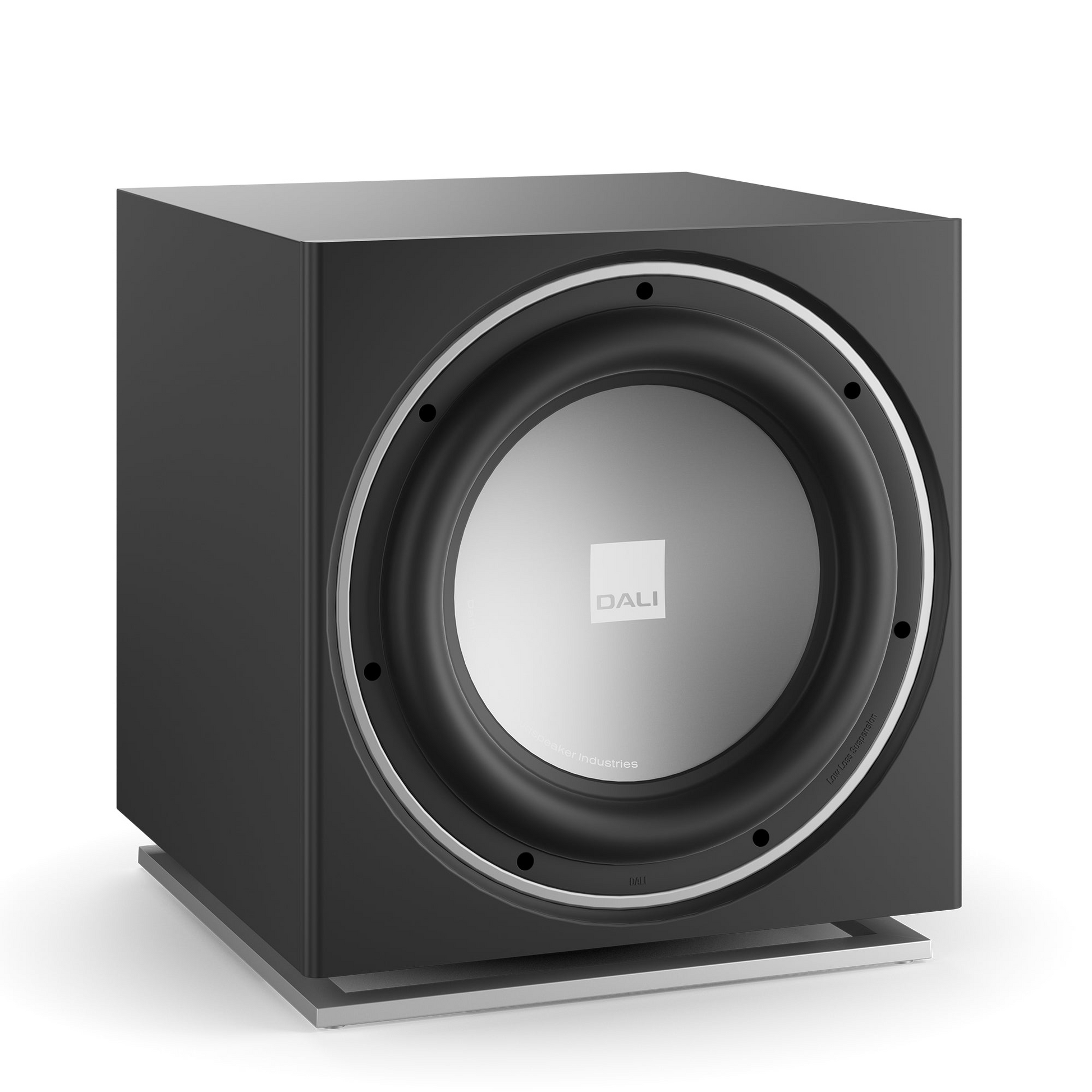

The DALI SUB E-12 F is a powerful, well-balanced subwoofer with excellent bass reproduction. Featuring a 12" aluminium woofer for maximum rigidity, the SUB E-12 F flawlessly integrates with any stereo or multi-channel system.
PERFECT PLACEMENT
Maximising bass output and distribution
Placing a subwoofer is a large part of creating the perfect audio reproduction. To maximise bass output and distribution around the room, we recommend placing the SUB E-12 F in a corner or, if that's not possible, along a wall. The relatively compact size of the subwoofer makes for flexible placement, compared with larger subwoofers, and is a great match for our OPTICON MK2, FAZON, OBERON and SPEKTOR series speakers.
12" ALUMINIUM WOOFER
Distortion at an absolute minimum
The SUB E-12 F incorporates a large 12" aluminium cone woofer that's stiff, lightweight and ensures great transient response. The ability to start and stop quickly is at the heart of our loudspeaker design philosophy, and it lets the SUB E-12 F integrate easily with front speakers of any size, from bookshelfs to floorstanders. Also, the construction of the SUB E-12 F cone avoids the need for a dust cap, which ensures piston-like movement and keeps distortion to an absolute minimum.
CLASS D AMPLIFIER
Rendering audio with absolute integrity
The integrated 170 Watt RMS Class D amplifier is highly linear and renders audio with absolute integrity. Designed for maximum continuous power, the SUB E-12 F also delivers 220 Peak Watts to handle more demanding movie soundtracks and music..
CABINET DESIGN
DALI standards equals quality
The solid MDF cabinet is designed and manufactured to meet our exacting standards. With a choice of enclosures in Black Ash or White finish, and an updated front baffle in matt satin finish, each cabinet blends in perfectly with most speaker designs and room decors. To eliminate potential turbulence underneath the subwoofer, four oversized, polymer-based spikes raise the cabinet by 30 mm, effectively decoupling it from the floor. Raising it off the floor also ensures higher efficiency and more freedom when it comes to placing the subwoofer.
Specifications
Specifications
| Frequency Range (+/-3 dB) [Hz] | 28 - 190 |
| Maximum SPL [dB] | 112 |
| Crossover Frequency [Hz] | 40 - 120 |
| Low Frequency Driver | 1 x 12" long stroke Polymere Aluminimum |
| Enclosure Type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 36 |
| Max. Amplifier Power Output [RMS watt] | 220 |
| Continous IEC Power Output [RMS watt] | 170 |
| Input Impedance [Ω] | 25k |

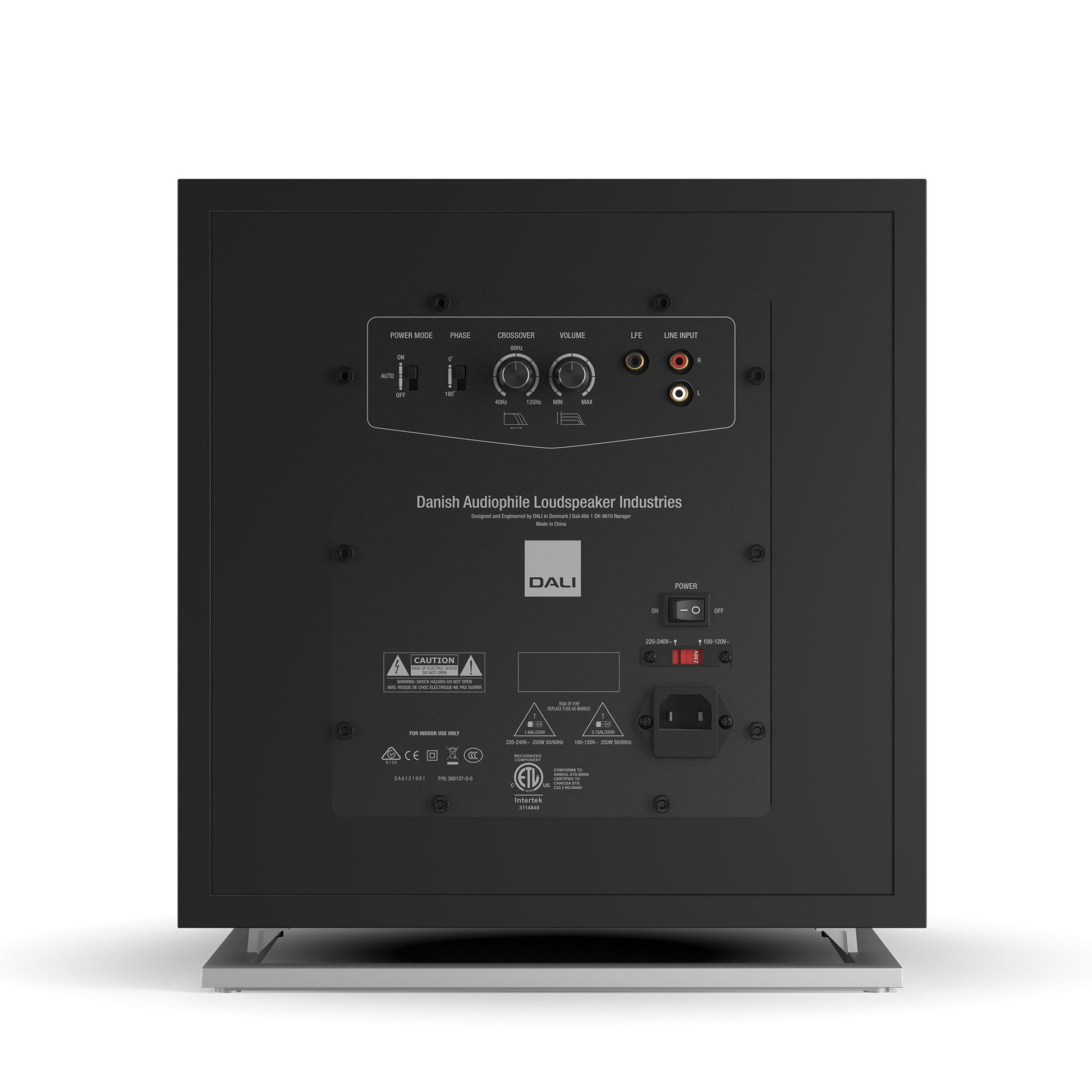

| Connection input(s) | Mono line level (LFE) Stereo line level (low pass filtered) RCA |
| Magnetic Shielding | No |
| Recommended Placement | Floor Near wall or corner |
| Recommended Distance From Wall [cm] | > 5 |
| Functions | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
| Maximum Power Consumption [W] | 250 |
| Dimensions With Base (HxWxD) [mm] | 370 x 340 x 380 |
| Weight [kg] | 14.7 |
| Accessories Included | Manual Rubber Bumpers Spikes M6 |
