Emotiva BasX A3+ Three-Channel Power Amplifier

Description

The BasX A3+ is a three-channel power amplifier that delivers 140 watts/channel into 8 Ohms and 200 watts/channel into 4 Ohms, all channels driven, with a rated THD+N of <0.02%, and an A-weighted S/N ratio of 112 dB. The BasX A3+ features a heavy-duty linear power supply, high-quality Class A/B amplification, transparent fault protection, and a trigger input and output.

The BasX A3+ offers both individual unbalanced RCA inputs and balanced XLR inputs for each channel, so it can be used with almost any preamp or processor, and any AVR that has preamp outputs. Audiophile grade five way speaker terminals accept banana plugs, spade lugs, or bare wire. These features combine to enable the BasX A3+ to deliver true audiophile performance and sound quality at an amazingly affordable price.

The BasX A3+ is the ideal choice to power a 3.1 channel system, to upgrade the front three channels of a surround sound receiver, or for anywhere where three channels of great sounding clean power are needed.

Sound Quality First

Designed first and foremost to sound great in all types of audio systems with all types of music.

Great sounding Class A/B output stage ensures smooth, detailed sound and incredibly natural imaging, without a trace of harshness or strain.

Low noise, wide bandwidth design, and a highly optimized input stage, lets you hear everything your high definition sources have to offer.

Totally stable with real world speakers in real systems; not just on a test bench.

Solid Engineering And Quality Construction

A heavy duty linear power supply with an oversized toroidal power transformer delivers plenty of current to drive even difficult speakers.

Top quality parts and construction throughout deliver years of reliable trouble-free service.

Heavy steel chassis with milled aluminum faceplate offers strength and rugged good looks.

Double sided FR4 circuit boards, with plated-through holes, help optimize signal paths and minimize the need for point-to-point wiring.

Flexible Power and Control Options

The BasX A3+ is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz and will automatically detect and configure itself for the proper line voltage. Remote trigger input and output allow the BasX A3+ to control and be controlled by other trigger-enabled equipment.

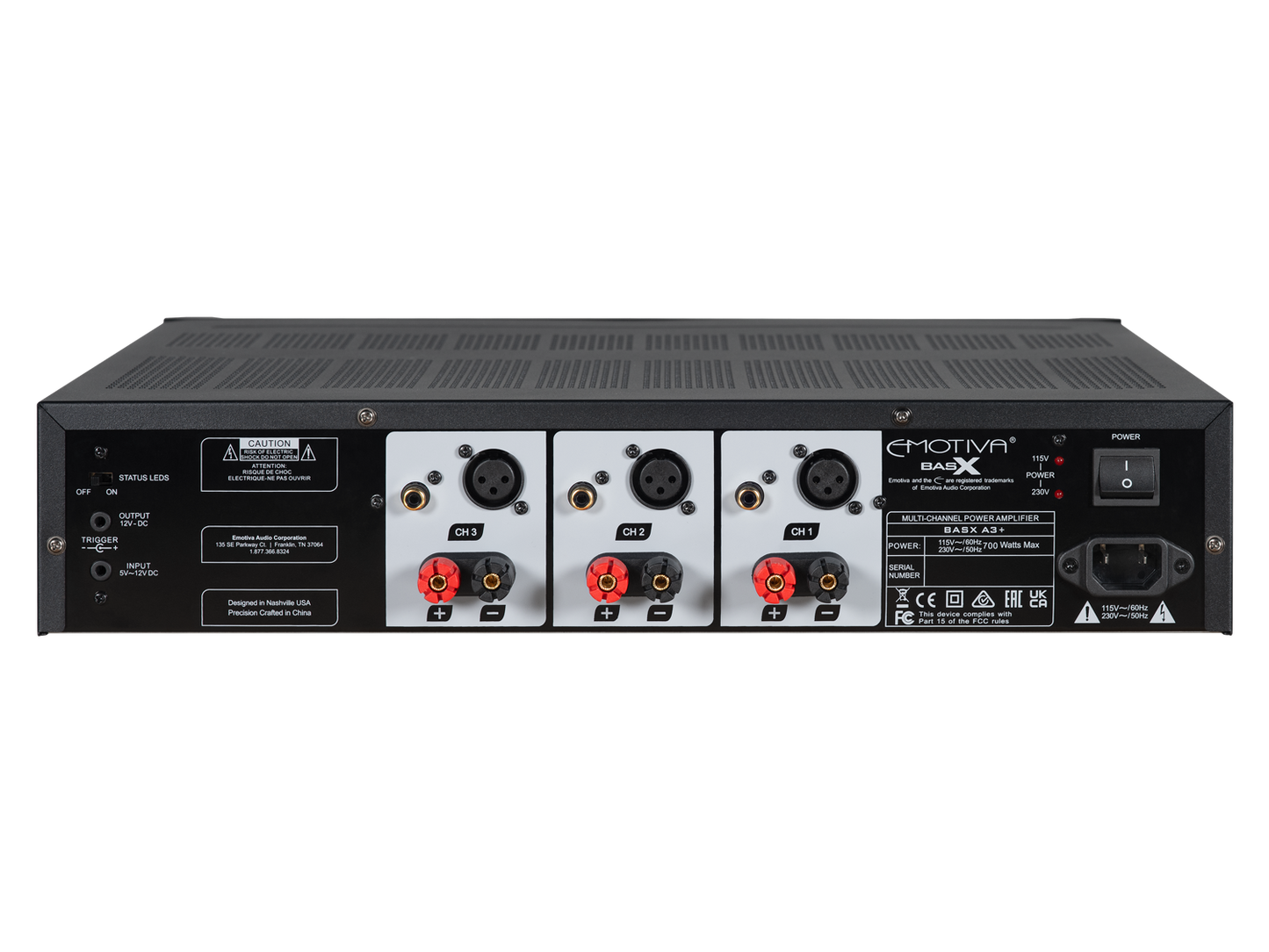

Audiophile Quality Speaker Connections and Both Balanced and Unbalanced Inputs
Heavy duty insulated five-way speaker binding posts allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs. Both individual balanced XLR and unbalanced RCA inputs for each channel ensure compatibility with a wide range of preamps and AVRs.
