Emotiva

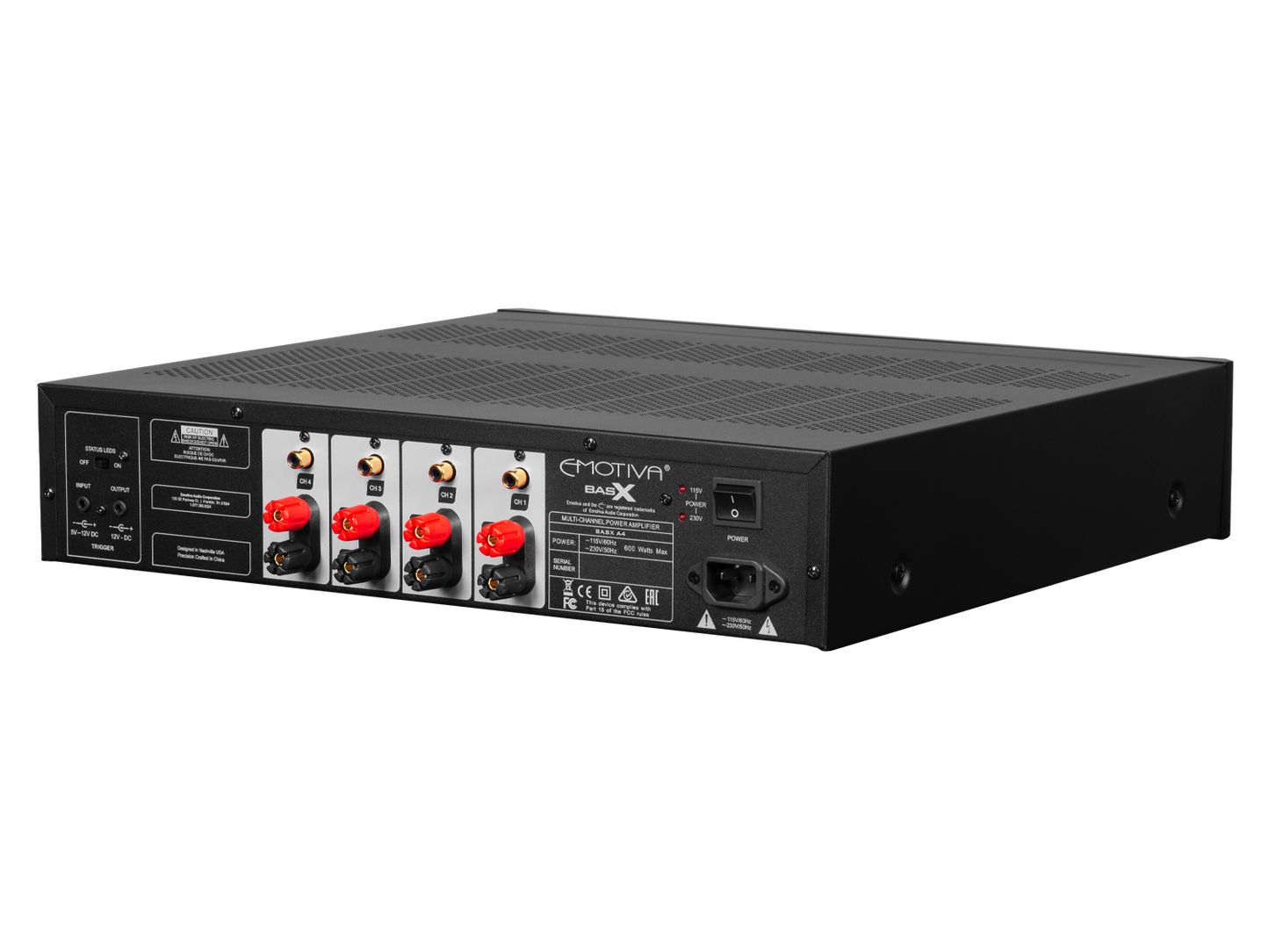

Emotiva BasX A4 Four-Channel Power Amplifier

Emotiva BasX A4 Four-Channel Power Amplifier

Regular price £679.00
Regular price Sale price £679.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
  • 5 year Warranty
  • Pay in 3
View full details

Details

Description

BasX A4 Four-Channel Power Amplifier
The BasX A4 is the perfect solution if you need a high quality amp to power your Dolby Atmos and DTS:X height channels. It is also an excellent choice to power your surrounds if you're building a new system and you've already committed to a more powerful amp, like our XPA-3, to power your front channels or to power two pairs of zone speakers.

The BasX A4 is a four channel power amplifier that delivers 100 watts / channel into 8 Ohms and 130 watts / channel into 4 Ohms, all channels driven, with a rated THD+N of < 0.02%, and an A-weighted S/N ratio of 115 dB. The BasX A4 features a heavy-duty linear power supply, high-quality Class A/B amplification, transparent fault protection, and a trigger input and output. High quality industry standard unbalanced RCA inputs enable the BasX A4 to be used with almost any preamp or processor and audiophile grade five way speaker terminals accept banana plugs, spade lugs, or bare wire. These features combine to enable the BasX A4 to deliver true audiophile performance and sound quality at an amazingly affordable price.

The BasX A4 is the perfect solution if you need a high quality amp to power your Dolby Atmos and DTS:X height channels. It is also an excellent choice to power your surrounds if you're building a new system and you've already committed to a more powerful amp, like our XPA-3, to power your front channels or to power two pairs of zone speakers.

Specifications

Specifications

Circuit Topology
The BasX A4 is a four channel power amplifier. The BasX A4 combines classical audiophile amplifier architecture, based on a heavy-duty linear power supply, and a carefully designed high current short signal path Class A/B output stage, with advanced microprocessor-controlled monitoring and protection circuitry, to deliver superb sound quality at a truly reasonable price.

Audio Specifications
Power Output (ALL channels driven):
100 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
130 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
Power Output (two channels driven):
100 watts RMS per channel; into 8 Ohms.
175 watts RMS per channel; into 4 Ohms.
Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.02 dB)
Broad Band Frequency Response: 10 Hz to 80 kHz +0/-1.8 dB
THD + noise: < 0.02% (A-weighted); ref rated power
Signal to Noise Ratio (8 Ohm load):
> 115 dB; ref rated power; (A-weighted).
Minimum Recommended Load Impedance (per channel): 4 Ohms
(which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load): > 500.
Input Sensitivity (for rated power; 8 Ohm load): 1.2 V.
Gain: 29 dB.
Input Impedance: 27 kOhms.

Input And Output Connections
Input Connections: Unbalanced (RCA); one each per channel.
Speaker Output Connections: Audiophile grade 5-way binding posts.
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators
Standby: push button.
Status LEDs: one per channel; blue.
Status LEDs change to red to indicate a fault condition.
Standby LED: amber.

Rear Panel Controls
AC Power switch: rocker switch (switches AC main power).
Status LEDs switch: disables front panel Status LEDs.

Protection
The BasX A4 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Mechanical
Dimensions:
17” wide x 4” high x 15-1/2” deep (not including connectors).
21-1/2” wide x 8” high x 21” deep (boxed).
Weight:
26 lbs (unboxed)
32 lbs (boxed)
