Emotiva

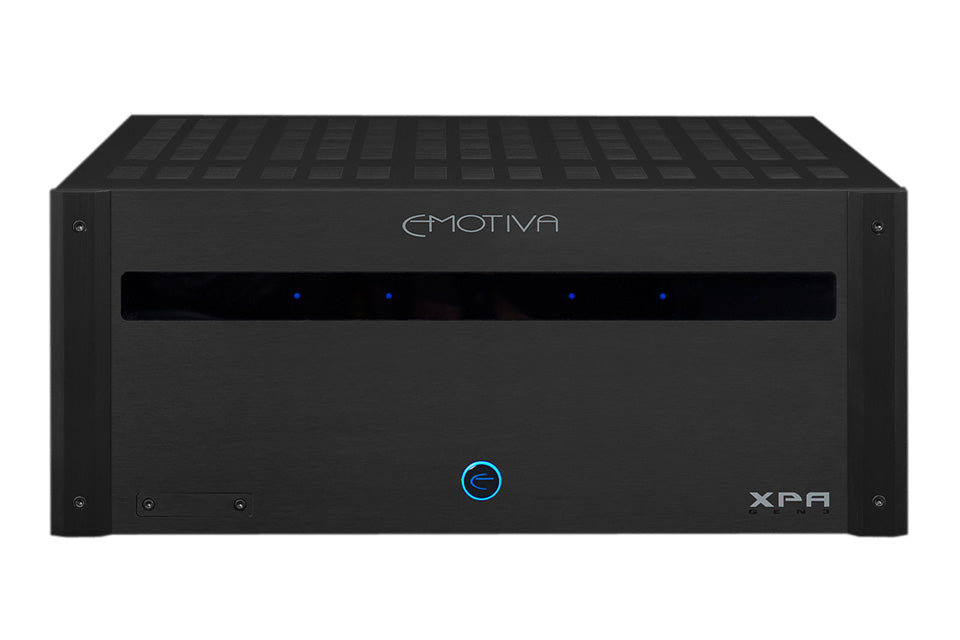

Emotiva XPA-4 Gen3 4 Channel Power Amplifier

Emotiva XPA-4 Gen3 4 Channel Power Amplifier

Regular price £1,999.00
Regular price Sale price £1,999.00
Sale Sold out
  • Free Delivery
  • Demo Available
  • Trade-in Available
  • 5 year Warranty
  • Pay in 3
View full details

Details

Description

Thanks to the Regulated Switch Mode Power Supply (SMPS) power supply it offers all of the benefits of a classic transformer-based design, but avoids virtually all of the limitations. It can deliver over 3 kW of fully regulated power, which ensures optimum performance under a wide range of load conditions, and plenty of dynamic power to ensure that musical peaks will never be compressed or limited.

Perfect for powering:

All 4 main channels in a superb 7.1 channel home theater system

A high-end 2 channel system with bi-amped front speakers

The 4 main channels in an Atmos or DTS-X system
Configuration:
4 x High-Powered Single-Channel Modules (all slots populated)

Power output:
Power Output: 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.

300 watts/channel RMS into 8 Ohms; two channels driven
490 watts/channel RMS into 4 Ohms; two channels driven

• True audiophile-quality sound - as with all of our amplifiers, the XPA Gen3 modular power
amplifier was designed first and foremost to sound superb in all types of audio systems.
• Great sounding Class A/B output stage - ensures smooth detailed sound and incredibly
natural imaging - without a trace of harshness or strain.
• Optimized Class H™ power supply topology - delivers improved efficiency without
compromising audio performance.
• Switched Mode Power Supply (SMPS) - offers all of the performance of a traditional linear
power supply, while improving efficiency and reliability, and reducing overall weight.
• Fully modular construction - allows you to purchase as many channels as you need today,
then add more channels later when and if you need them.
• Top quality parts and construction throughout - promise years of reliable service.
• Totally stable - designed for use in the real world, with real speakers.
• Heavy steel 4RU chassis with milled aluminum face plate - provide strength and rugged
good looks.
• Gold plated five-way speaker binding posts with clear shields - allow you to use a wide
range of speaker cables with bare wires, lugs, or banana plugs.
• Solid machined gold-plated RCA input connectors - provide a reliable connection with a
wide variety of audio interconnects.
• Choice of balanced or unbalanced inputs - for maxumum flexibility and compatibility with
a wide variety of other equipment.
• Remote trigger input and output - allow the XPA Gen3 to be turned on by trigger-enabled
equipment, and to activate other trigger-enabled equipment.
• Audiophile-grade fault protection - entirely transparent under normal conditions, yet
protects the amp and your other equipment from all common fault conditions.
• Universal AC line voltage operation - the XPA Gen3 operates on any line voltage between
100 VAC and 250 VAC; and is protected from faults by a rugged resettable circuit breaker.
• Standard IEC power inlet - fits all standard and audiophile IEC power cables.
• Fully five year warranty - ensures that you’ll be able to enjoy your XPA Gen3 amplifier for
years to come.

Class A/B Sound Quality Meets Optimized Class H Efficiency
The High-Powered Single Channel Modules used in the XPA-4 utilize a fully analog Class A/B output stage, and our highly regarded Soft-Switch™ Optimized Class H power supply topology, which increases their efficiency significantly without compromising their superb Class A/B performance and sound quality. At low power levels, each channel operates on a relatively low supply voltage, to minimize quiescent power consumption and standby power losses. Then, when the demand for power increases, it instantly and seamlessly switches to a higher voltage rail to ensure that the signal passes cleanly and without clipping. This process happens on a continuous basis - in real time, allowing greater overall efficiency, cooler operation, longer component life, reduced power consumption, and increased reliability.

Specifications

Specifications

Circuit Topology

The XPA-4 Gen3 is a fully modular audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.

The XPA-4 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS).

Audio Specifications
The XPA-4 Gen3 features seven of our High-Powered Single Channel Modules.

Audio Specifications (Seven High-Powered Single Channel Modules):
Power Output: 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven.
550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven.
300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven.
490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven.

Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).

Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB.

THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms.

Signal to Noise Ratio (8 Ohm load): > 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted).

Minimum Recommended Load Impedance (per channel): 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).

Damping Factor (8 Ohm load): > 500.

Input Sensitivity (for rated power; 8 Ohm load): 1.5 V.

Gain: 29 dB.

Input Impedance: 33 kOhms (balanced). 23.5 kOhms (unbalanced).

Input And Output Connections
Input Connections (High-Powered Single Channel Modules): Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable.

Input Connections (Stereo Modules): 2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable.

Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts.

Trigger: Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required. Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements
Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).

Front Panel Controls and Indicators
Standby: push button (halo ring changes color to indicate Standby or On).

Status LEDs: one per channel; blue. Status LEDs change to red to indicate a fault condition.

Rear Panel Controls
AC Power switch: rocker switch (switches AC main power).

Status LEDs switch: disables front panel Status LEDs and dims Standby button halo.

Input selector switches (one per channel): metal toggle switches; select between balanced and unbalanced inputs.

Circuit Breaker: press button to reset circuit breaker.

Protection
The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions
Includes:
Double box, power cord, manual, trigger cord
