XPA-DR1 Differential Reference Monoblock Power Amplifier
Differential Reference Monoblock Power Amplifier
The XPA-DR1 is a true monoblock power amplifier, and features a single Differential Reference Amplifier Module, in a true monoblock configuration, powered by its own dedicated 3 kW switch mode power supply. The XPA-DR1 provides massive power, superb dynamics, incredible resolution, and absolute control. If you’re looking for the very best sound quality, with virtually endless reserves of power against a jet black noise floor, this is the amplifier for you.
The XPA-DR1 is a true monoblock power amplifier, and features a single Differential Reference Amplifier Module, in a true monoblock configuration, powered by its own dedicated 3 kW switch mode power supply. The XPA-DR1 provides massive power, superb dynamics, incredible resolution, and absolute control. If you’re looking for the very best sound quality, with virtually endless reserves of power against a jet black noise floor, this is the amplifier for you.
The XPA-DR1 delivers 650 watts RMS into 8 Ohms, and 1000 watts RMS (that’s 1 kW) into 4 Ohms, with less than 0.1% THD.
The Power Supply: The Foundation Of A Great Amplifier
In amplifier design, everything starts with the power supply. The XPA-DR1 features a custom-configured version of our high-current switch mode power supply (SMPS) - a lightweight, powerful, intelligent design capable of delivering over 3 kW of continuous power with absolute reliability and extremely high efficiency. Our cutting edge SMPS offers the dynamic attributes of a classic transformer-based design with none of the drawbacks. Like the best transformer-based power supplies, our SMPS delivers plenty of continuous power to enable our amplifier modules to live up to their full performance potential, and plenty of dynamic power to ensure that musical peaks will never be compressed or limited. However, compared to transformer-based designs, our SMPS is lighter and more efficient; it’s also fully regulated, which ensures optimum performance under a wider range of load conditions.
The Latest In A Long Line Of Great Amplifiers
The Differential Reference Amplifier Modules we use in our XPA-DR amplifiers use the same basic circuit topology as our legendary XPR series amplifiers. A unique differential input stage, with a cross-linked current source, drives a balanced voltage amplification stage, and this advanced input circuitry delivers an incredibly accurate and pure audio signal to the complementary, fully discrete output stage. A pair of these modules work together in perfect synergy to power a single channel of one of our new fully balanced, fully differential, XPA-DR amplifiers. Together they deliver a holistic, natural, and powerful listening experience. Low-level musical details and dialogue emerge from a deep black background; musical crescendos are delivered with both stunning impact and precision. The wide bandwidth, low distortion performance of the XPA-DR1 reveals every nuance of your high-resolution music sources, and it has plenty of power to drive even difficult loudspeakers with absolute authority and control.
Class A/B Sound Quality Meets Optimized Class H Efficiency
The Differential Reference™ Module in the XPA-DR1 utilizes a matched pair of amplifier modules, each of which features our fully analog Class A/B output stage, and our highly regarded Soft-Switch™ Class H power supply topology, which increases their efficiency significantly without compromising the audio performance you’d expect from an Emotiva amplifier. The output stage in each operates on a lower supply voltage at low power levels to minimize quiescent power consumption and standby power losses, instantly switching to a higher voltage rail when needed to ensure the signal passes cleanly and without clipping. This process happens on a continuous basis in real time, allowing greater overall efficiency, cooler operation, longer component life, reduced power consumption, and increased reliability.
The Benefits Of A Fully Differential Balanced Power Amplifier
Most experts agree that, if you want the absolute best sound quality and technical performance, you should use dedicated separate components. Because our power amplifiers are designed for a single purpose, we can concentrate on ensuring that they perform that one task very well, and avoid the compromises inherent in products that are expected to perform a variety of different functions.
The Differential Reference Module in the XPA-DR1 is made up of a perfectly symmetrical balanced pair of high-performance amplifier modules. Each individual amplifier module already has vanishingly low distortion but, by connecting them as a balanced differential pair, a significant portion of the tiny amount of remaining nonlinearity is cancelled out. As a result, we are able to achieve even lower levels of distortion in the XPA-DR1, resulting in remarkably transparent sound, with unprecedented smoothness and clarity.
Finally, because the XPA-DR1 is a true monoblock, and only contains a single power supply and amplifier channel, even the slightest possibility of interaction between channels is eliminated, ensuring the best possible isolation between channels, and perfect channel separation. When you put it all together, the XPA-DR1 is simply the finest amplifier we can devise, and we’re sure you’ll be as impressed with its performance as we are.
Designed and Assembled in the USA with Globally Sourced Components
The XPA-DR1 is designed, assembled, and tested in the USA, where we use the finest materials and latest technologies to bring you world-class products. Each Emotiva amplifier is carefully designed with premium components to deliver a stunningly capable, reliable, and refined system.
The Latest and Greatest
A new approach to amplifier design.
When we set out to make the new X Series line, we analyzed everything in every amplifier we’ve ever made, from front to back, inside, and out. In doing so, we discovered several areas where our years of experience, and advances in audio technology, indicated that we could make significant improvements in our amplifier designs. After carefully weighing all the pros and cons, we kept the best features of our original designs, added a new set of optimizations and improvements, and the result became the foundation of our new line of audiophile amplifiers. The new XPA-DR amplifiers are the fully differential members of our new XPA amplifier family, and carry our philosophy of continuous product improvement to its ultimate conclusion.
Modular Construction
Each XPA-DR Differential Reference Monoblock Power Amplifier is comprised of a heavy-duty chassis, which houses our massively overdesigned, fully regulated, 3 kW switch mode power supply, and up to three Differential Reference™ Amplifier Modules. The front panel display and protection system are designed to work with the maximum number of channels, and so need not be updated when the XPA-DR is expanded; on the rear panel, slots not occupied by amplifier modules will be covered with protective cover panels.
Specifications
Specifications
Circuit Topology
A fully modular, fully differential, fully balanced audio power amplifier with a high-efficiency switch mode power supply (SMPS), independent, fully discrete, dual differential, high current, short signal path Class A/B amplifier modules, Optimized Class H™ power supply topology, and microprocessor-controlled fault protection.
Audio Specifications
The XPA-DR1 features one Differential Reference™ Amplifier Module.
Audio Specifications (One Differential Reference Amplifier Module):
Power Output:
650 watts RMS into 8 Ohms at <0.1% THD.
1000 watts RMS into 4 Ohms at <0.1% THD.
Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / – 0.1 dB).
Broad Band Frequency Response: 20 Hz to 50 kHz +0/-2 dB.
THD + noise: < 0.008%; at 100 watts RMS; 1 kHz; 8 Ohms.
Signal to Noise Ratio (8 Ohm load):
> 122 dB; ref FTC rated power; unbalanced input (A-weighted).
> 96 dB; ref 1 watt; unbalanced input (A-weighted).
Minimum Recommended Load Impedance (per channel): 4 Ohms
(which equals one 4 Ohm load or two paralleled 8 Ohm loads).
Damping Factor (8 Ohm load): > 500.
Input Sensitivity (for rated power; 8 Ohm load): 2.4 V.
Gain: 29 dB.
Maximum Power Consumption: 1,000 watts.
Note: The values shown refer to the amount of power the amplifier would
consume while playing test tones continuously, on all channels, at full power, into a load bank. Therefore they are not at all characteristic of what you would expect when playing music or the sound track from a movie. Normal audio signals are dynamic, so the amount of power they require from second to second varies widely, and the average is far lower than this. With normal content, even playing very loudly, one of our amplifiers will consume far less power than indicated in the chart, so these values should not be considered to be a circuit requirement for normal operation.
Input Impedance:
33 kOhms (balanced).
23.5 kOhms (unbalanced).
Input And Output Connections
Input Connections:
Unbalanced (RCA); balanced (XLR); one each, user selectable.
Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts.
Trigger:
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirements
Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected).
Front Panel Controls and Indicators
Standby: push button (halo ring changes color to indicate Standby or On).
Status LEDs: one per channel; blue.
Status LEDs change to red to indicate a fault condition.

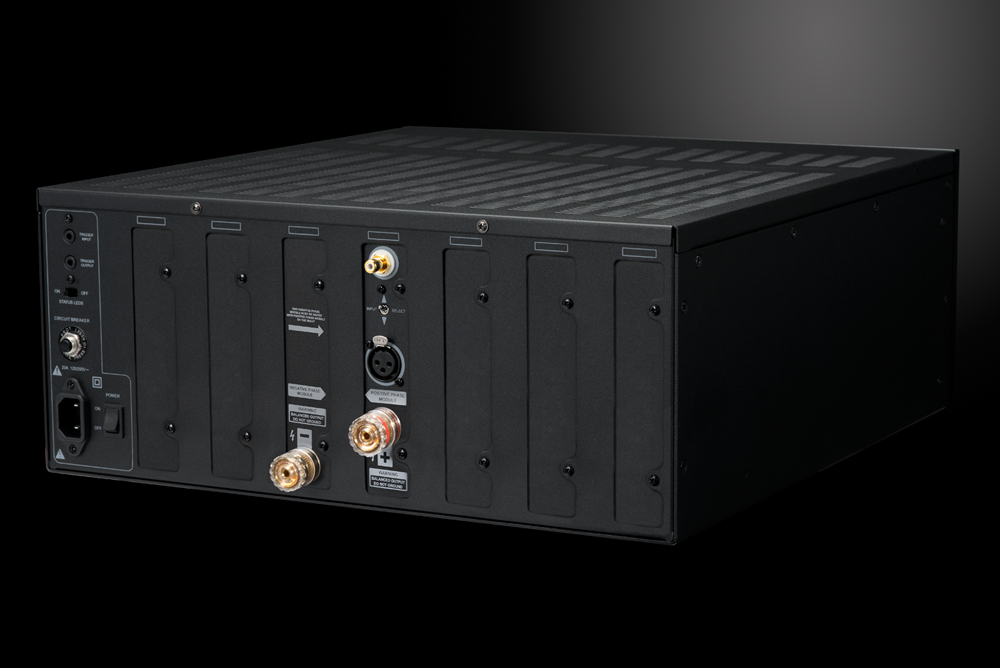

Rear Panel Controls
AC Power switch: rocker switch (switches AC main power).
Status LEDs switch: disables front panel Status LEDs and dims Standby button halo.
Input selector switches (one per channel):
metal toggle switches; select between balanced and unbalanced inputs.
Circuit Breaker: press button to reset circuit breaker.
Protection
The XPA-DR1 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.
Mechanical
Dimensions:
17” wide x 8” high x 19” deep (unboxed; including feet).
17” wide x 7” high x 19” deep (unboxed; without feet).
24-1/2” wide x 12” high x 24-3/4” deep (boxed).
Weight:
35.5 lbs (unboxed).
40.5 lbs (boxed).
