Super Audio CD/CD Player
K-01XD
Bringing you the sound created by an unmistakable lineage of masterpieces
that have captivated music lovers
Since the first debut of our K-01 and K-03 Super Audio CD Players, Esoteric’s integrated digital players have captivated listeners with their unrivaled playback of musical sources. They have also gone on to win numerous awards as they have come to be regarded as the gold standard of digital players around the world. This new “XD” edition boasts even more advanced features, combining two innovative technologies originally developed for Esoteric’s flagship Grandioso K-1X model: VRDS-ATLAS, the superlative Super Audio CD transport mechanism, and Master Sound Discrete DAC, designed completely in-house by ESOTERIC to provide even more enhanced playback from digital musical sources.
The incredible dynamic range and resolution achieved by these two technologies deliver thrilling reproduction of symphonic crescendos while reproducing an expansive spectrum of tones and faithfully rendering the subtle details of music with breathtaking depth and vivid realism. This broad versatility enables anyone to confidently enjoy an endless array of musical genres, from silky-smooth arias to pounding rock tunes. Now you too can fully experience a sound brought to life in a new pedigree of components from the name that has captured the hearts of music enthusiasts the world over: ESOTERIC.
Specifications
Specifications
Playable disc types | Super Audio CD, CD (including CD-R and CD-RW) |
Anaog audio outputs | |
XLR/ESL-A | 1 pair (L/R) |
Output impedance | 114Ω |
Maximum output level | 5.0Vrms (1kHz, 10kΩ loaded) |
RCA | 1 pair (L/R) |
Output impedance | 34Ω |
Maximum output level | 2.5Vrms (1kHz, 10kHz loaded) |
Digital audio outputs | |
XLR | 1 |
Output impedance | 3Vp-p (110Ω loaded) |
Output signal formats | Linear PCM (AES/EBU) 44.1kHz,16-bit(CD) |
RCA | 1 |
Output impedance | 0.5Vp-p (75Ω loaded) |
Output signal formats | Linear PCM (IEC60958) 44.1kHz,16-bit(CD) |
Digital audio inputs | |
RCA | 1 |
Input signal formats | |
Linear PCM | 32k to 192kHz, 16/24-bit (IEC60958) |
DSD | 2.8MHz (DoP) |
OPTICAL | 1 |
Input signal formats | |
Linear PCM | 32k to 192kHz, 16/24-bit (IEC60958) |
DSD | 2.8MHz (DoP) |
USB B | 1 (USB2.0 supported) |
Input signal formats | |
Linear PCM | 44.1k to 384kHz, 16/24/32-bit (IEC60958) |
DSD | 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz |
Clock input | |
BNC | 1 |
Input impedance | 50Ω |
Frequencies that can be input (±10ppm) | 10MHz |
Input level | 0.5 to 1.0Vrms (Sine wave) |
External control interface | |
RS-232C | 1 (Please see here for command table) |
Trigger | 1 (3.5mm Monaural mini jack) |
General | |
Power supply | |
Model for Europe | AC 220 to 240V, 50/60Hz |
Model for US/Canada | AC 120V, 60Hz |
Model for Korea | AC 220V, 60Hz |
Model for Hong Kong | AC 230V, 50Hz |
Power consumption | 26W |
External dimensions (W×H×D) | 445 × 162 × 438mm 17-⅝" × 6-½" × 17-¼" (including protrusions) |
Weight | 31kg / 68-⅜ lb |

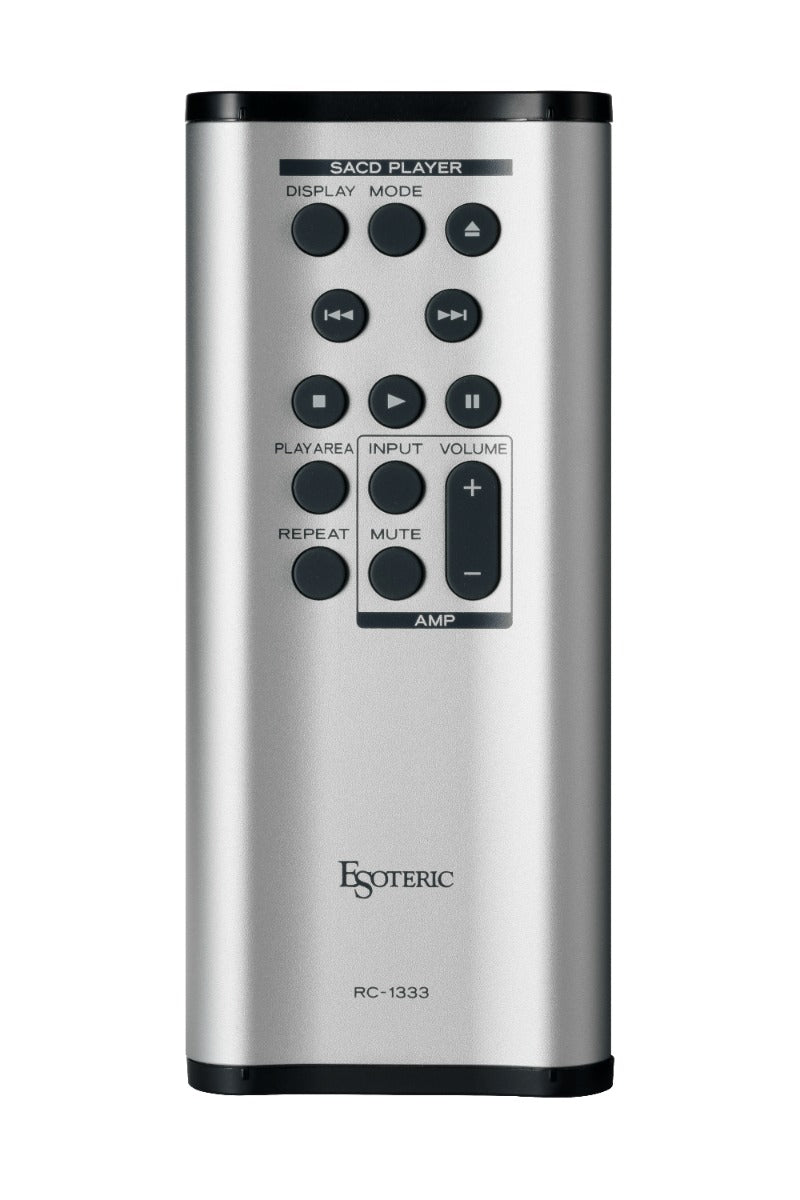

Included accessories | Power cord set × 1 Remote control (RC-1333) × 1 AAA batteries × 2 Felt pads × 3 Owner's manual × 1 Warranty card × 1 |
Audio performance
Frequency response | 5Hz to 70kHz (–3dB, Super Audio CD, 0dB, DSDF=F2, XLR output) |
S/N ratio | 113dB (A-weight, Super Audio CD, 0dB, DSDF=F2, XLR output) |
Distortions | 0.0007% (1kHz, Super Audio CD, 0dB, DSDF=F2, XLR output) |
